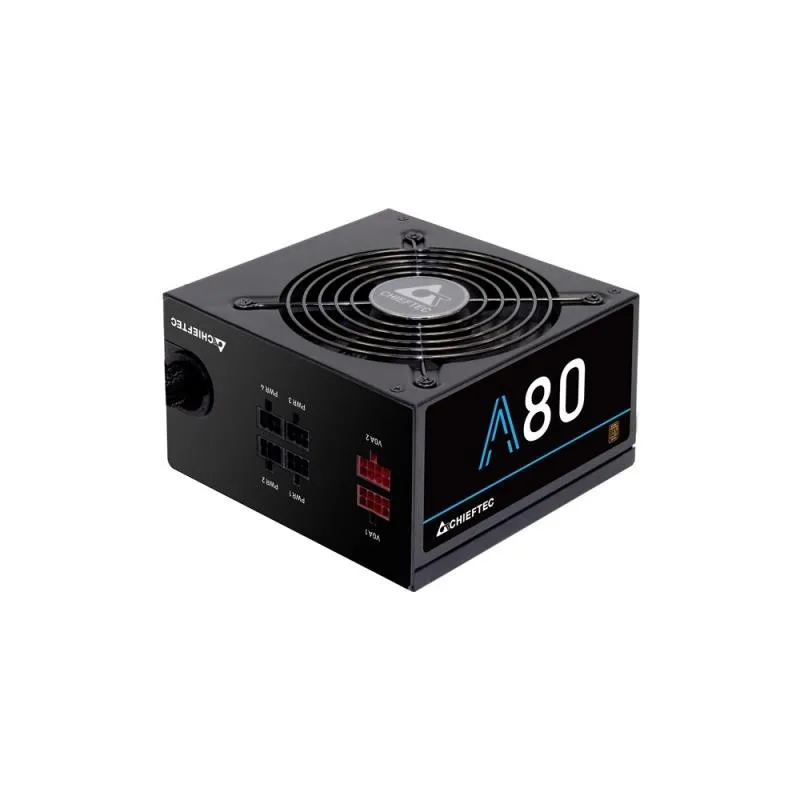

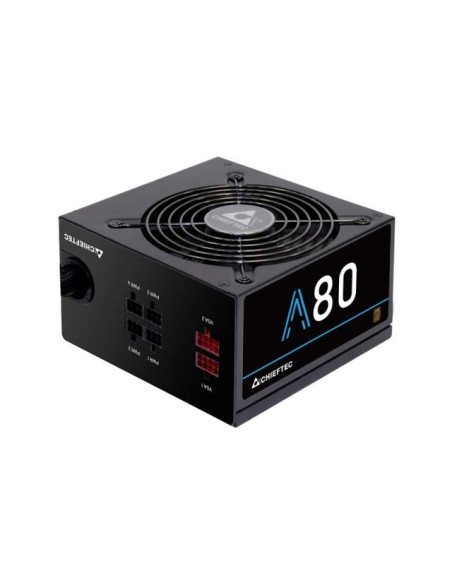

Power Supply, CHIEFTEC, ATX, PC, 230 V, 750 W, CTG-750C
Power Supply, CHIEFTEC, ATX, PC, 230 V, 750 W, CTG-750C
Power Supply, CHIEFTEC, ATX, PC, 230 V, 750 W, CTG-750C
Power Supply, CHIEFTEC, ATX, PC, 230 V, 750 W, CTG-750C

Power Supply, CHIEFTEC, ATX, PC, 230 V, 750 W, CTG-750C

CHIEFTEC
CTG-750C
Yra sandėlyje
70,79 €
Su mokesčiais
Pristatoma 1 - 3 darbo dienos
750 W , 230 V , Efficiency 85 % , 80 PLUS certification 80 PLUS , PC , ATX , Fan diameter 120 mm , Package type Box


SUMMARY
CHIEFTEC CTG-750C. TOTAL POWER: 750 W, AC INPUT VOLTAGE: 230 V, AC INPUT FREQUENCY: 50 HZ. MOTHERBOARD POWER CONNECTOR: 24-PIN ATX, CABLING TYPE: SEMI-MODULAR. PURPOSE: PC, POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX, 80 PLUS CERTIFICATION: 80 PLUS. PRODUCT
CATEGORY CODE
PSU
CNCODE
85044095
UNIT BOX HEIGHT
0.1
UNIT BOX LENGTH
0.25
UNIT BOX WIDTH
0.19
PRODUCT COLOUR
BLACK
HEIGHT, MM
87
WIDTH, MM
150
DEPTH, MM
140
PACKAGE TYPE
BOX
COMPLIANCE CERTIFICATES
ROHS
UNIT CALCULATED WEIGHT, KG
2.45
PRODUCT NET WEIGHT, KG
1.8
UNIT CALCULATED VOLUME, CUBM
0.005869
UNITS PER SHIPPING BOX
8
SHIPPING BOX WEIGHT, KG
19.6
UNIT WIDTH, CM
19
SHIPPING BOX HEIGHT, CM
21
UNIT DEPTH, CM
25
SHIPPING BOX DEPTH, CM
52
UNIT HEIGHT, CM
10
SHIPPING BOX WIDTH, CM
43
NAME
CASE PSU ATX 750W/CTG-750C CHIEFTEC
AC INPUT FREQUENCY, HZ
50
AC INPUT VOLTAGE, V
230
EFFICIENCY, %
85
HARMONIZED SYSTEM (HS) CODE
84733020
CERTIFICATION
CE, CB, FCC
INPUT CURRENT, A
6
POWER PROTECTION FEATURES
OVER CURRENT/OVER VOLTAGE/OVERHEATING/OVERLOAD/SHORT CIRCUIT/UNDER VOLTAGE
MEAN TIME BETWEEN FAILURES (MTBF), H
100000
NUMBER OF FANS, FAN(S)
1
PURPOSE
PC
COOLING TYPE
ACTIVE
FAN DIAMETER, MM
120
EPS POWER CONNECTOR (8-PIN)
YES
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN)
4
TOTAL POWER, W
750
COMBINED POWER (+3.3V), W
130
COMBINED POWER (+12V), W
648
COMBINED POWER (+5V), W
130
COMBINED POWER (-12V), W
3.6
COMBINED POWER (+5VSB), W
15
MAX OUTPUT CURRENT (+3.3V), A
22
MAX OUTPUT CURRENT (+5V), A
22
MAX OUTPUT CURRENT (-12V), A
0.3
MAX OUTPUT CURRENT (+5VSB), A
3
MOTHERBOARD POWER CONNECTOR
24-PIN ATX
NUMBER OF SATA POWER CONNECTORS
6
POWER FACTOR CORRECTION (PFC) TYPE
ACTIVE
PCI EXPRESS POWER CONNECTORS (6+2 PIN)
2
CABLING TYPE
SEMI-MODULAR
80 PLUS CERTIFICATION
80 PLUS
POWER SUPPLY UNIT (PSU) FORM FACTOR
ATX
POWER FACTOR
0.9
MAX OUTPUT CURRENT (+12V1), A
35
MAX OUTPUT CURRENT (+12V2), A
35
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM
150/450
SATA POWER CABLE LENGTH, MM
150/450
ATX VERSION
2.3
FAN LOCATION
TOP
CPU P4 CONNECTOR (4-PIN)
1
FLOPPY DRIVE POWER CONNECTOR
2
CPU POWER CONNECTORS (8-PIN)
1
