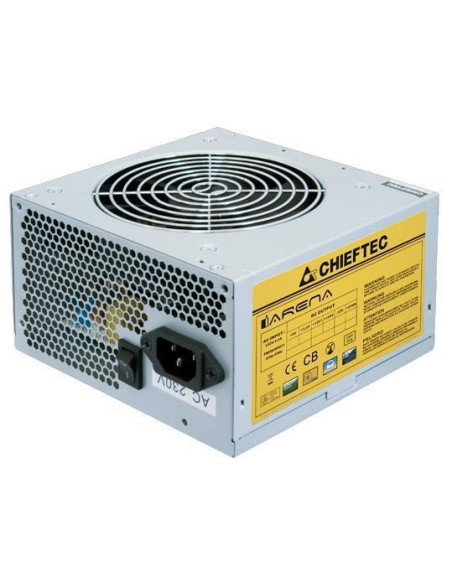

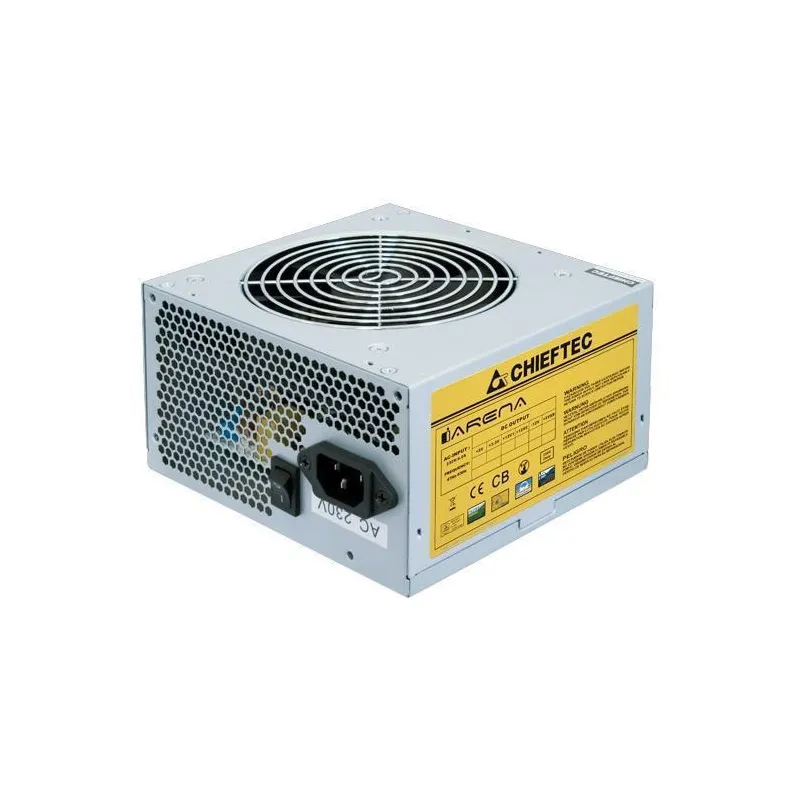

Power Supply, CHIEFTEC, GPA-650S, PS/2, PC/Server, 200 - 240 V, 650 W, GPA-650S
Power Supply, CHIEFTEC, GPA-650S, PS/2, PC/Server, 200 - 240 V, 650 W, GPA-650S

Power Supply, CHIEFTEC, GPA-650S, PS/2, PC/Server, 200 - 240 V, 650 W, GPA-650S

CHIEFTEC
GPA-650S
Yra sandėlyje
45,65 €
Su mokesčiais
Artea.lt lizingas - naujasdizainas.com
Pristatoma 1 - 3 darbo dienos
650 W , 200 - 240 V , Efficiency 80 % , PC/Server , PS/2 , Fan diameter 120 mm , Weight 1.42 kg , Package type Box , GPA-650S


SUMMARY
CHIEFTEC IARENA GPA-650S. TOTAL POWER: 650 W, AC INPUT VOLTAGE: 200 - 240 V, AC INPUT FREQUENCY: 47 - 63 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 50 CM, PERIPHERAL (MOLEX) POWER CABLE LENGTH: 500,650,800 MM. PURPOSE:
CATEGORY CODE
PSU
CNCODE
85044095
UNIT BOX HEIGHT
0.09
UNIT BOX LENGTH
0.22
UNIT BOX WIDTH
0.15
PRODUCT COLOUR
SILVER
HEIGHT, MM
87
WIDTH, MM
140
DEPTH, MM
150
WEIGHT, G
1420
PACKAGE TYPE
BOX
PACKAGE WEIGHT, G
1550
COMPLIANCE CERTIFICATES
CB/CE/EAC
UNIT CALCULATED WEIGHT, KG
1.55
PRODUCT NET WEIGHT, KG
1.42
UNIT CALCULATED VOLUME, CUBM
0.004275
UNITS PER SHIPPING BOX
10
SHIPPING BOX WEIGHT, KG
15.5
UNIT WIDTH, CM
15
SHIPPING BOX HEIGHT, CM
19
UNIT DEPTH, CM
22
SHIPPING BOX DEPTH, CM
50
UNIT HEIGHT, CM
9
SHIPPING BOX WIDTH, CM
45
NAME
CASE PSU ATX 650W/GPA-650S CHIEFTEC
MODEL NAME
GPA-650S
AC INPUT FREQUENCY, HZ
47 - 63
AC INPUT VOLTAGE, V
200 - 240
EFFICIENCY, %
80
INPUT CURRENT, A
4.5
POWER PROTECTION FEATURES
OVER VOLTAGE/OVERLOAD/SHORT CIRCUIT/UNDER VOLTAGE
NUMBER OF FANS, FAN(S)
1
CONNECTOR(S)
20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIE (6+2) 2 SATA 6 MOLEX/FLOPPY 2/1
PURPOSE
PC/SERVER
COOLING TYPE
ACTIVE
FAN DIAMETER, MM
120
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN)
2
TOTAL POWER, W
650
COMBINED POWER (+3.3V), W
120
COMBINED POWER (+12V), W
600
COMBINED POWER (+5V), W
120
COMBINED POWER (-12V), W
3.6
COMBINED POWER (+5VSB), W
12.5
MAX OUTPUT CURRENT (+3.3V), A
20
MAX OUTPUT CURRENT (+12V), A
50
MAX OUTPUT CURRENT (+5V), A
20
MAX OUTPUT CURRENT (-12V), A
0.3
MAX OUTPUT CURRENT (+5VSB), A
2.5
MOTHERBOARD POWER CONNECTOR
20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS
6
POWER FACTOR CORRECTION (PFC) TYPE
ACTIVE
PCI EXPRESS POWER CONNECTORS (6+2 PIN)
2
CABLING TYPE
NON-MODULAR
POWER SUPPLY UNIT (PSU) FORM FACTOR
PS/2
POWER FACTOR
0.9
MOTHERBOARD POWER CABLE LENGTH, MM
500
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM
150/500
SATA POWER CABLE LENGTH, MM
150/500
CPU POWER CABLE LENGTH, MM
550
ATX POWER CONNECTOR (20+4 PIN)
YES
ATX VERSION
2.3
CPU POWER CONNECTOR (4+4 PIN)
YES
FAN LOCATION
TOP
FLOPPY DISK DRIVE CONNECTOR
YES
FLOPPY DRIVE POWER CONNECTOR
1
