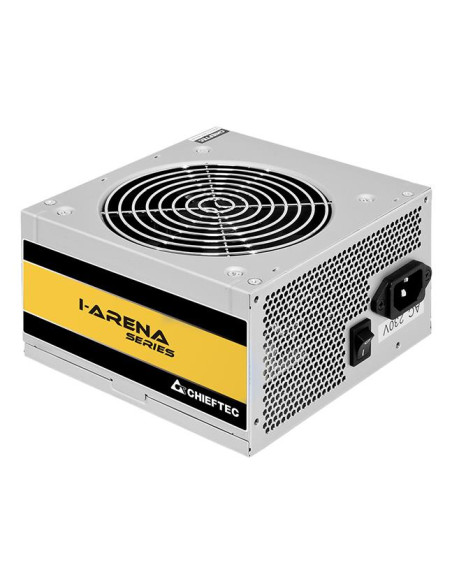

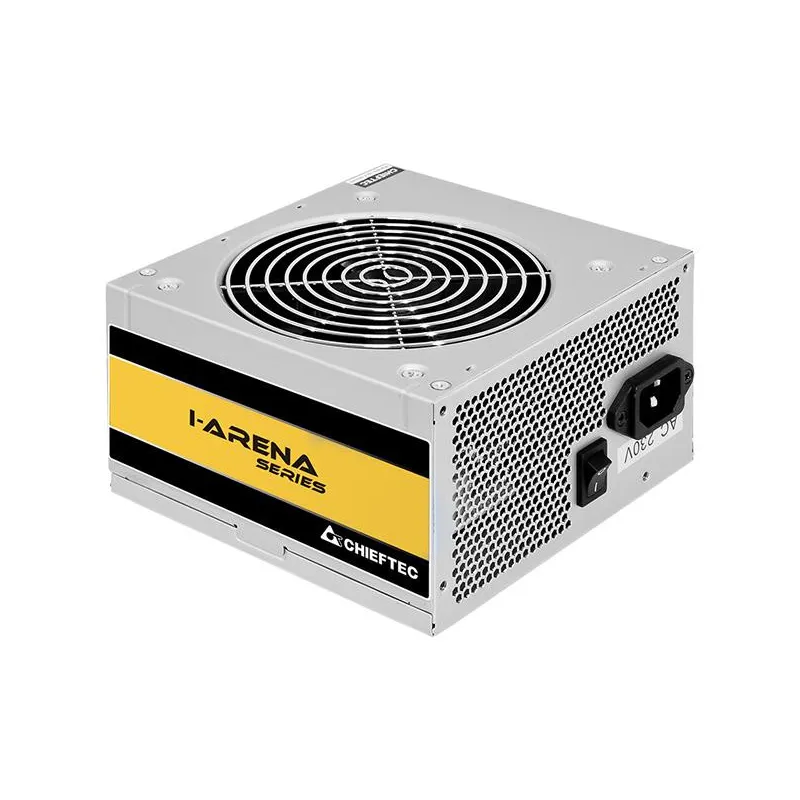

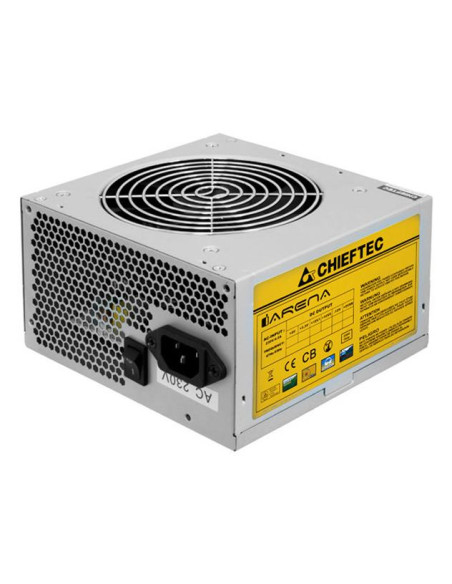

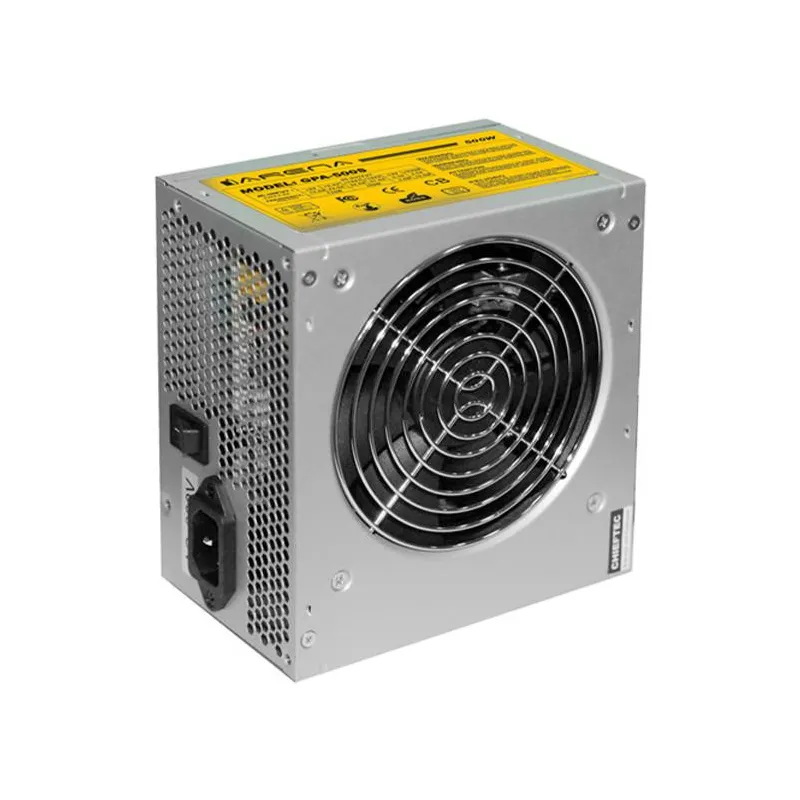

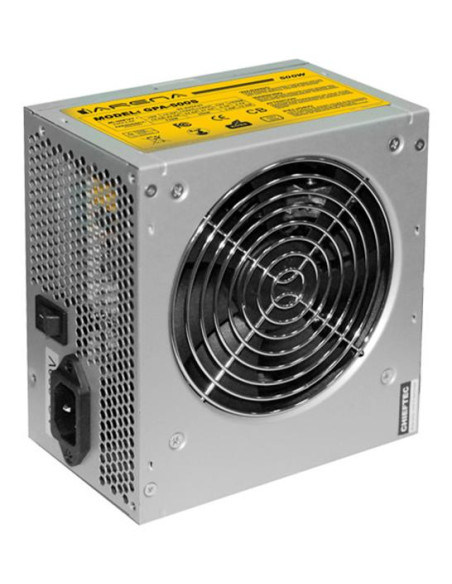

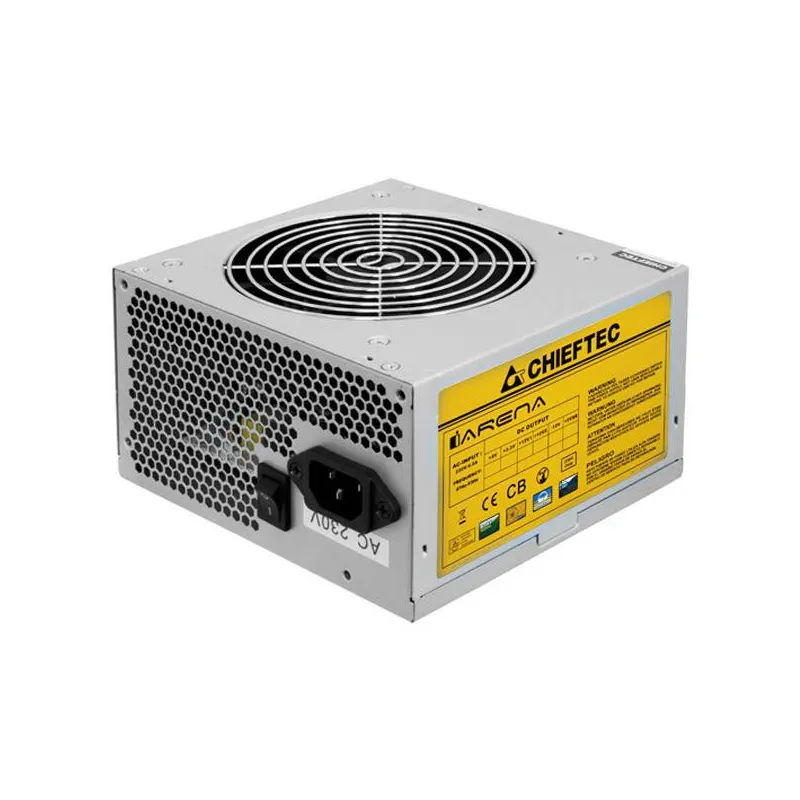

Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S
Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S
Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S
Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S
Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S
Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S

Power Supply, CHIEFTEC, PS/2, PC/Server, 200 - 240 V, 700 W, GPA-700S

CHIEFTEC
GPA-700S
Yra sandėlyje
48,50 €
Su mokesčiais
Artea.lt lizingas - naujasdizainas.com
Pristatoma 1 - 3 darbo dienos
700 W , 200 - 240 V , Efficiency 80 % , PC/Server , PS/2 , Fan diameter 120 mm , Weight 1.44 kg , Package type Box


SUMMARY
CHIEFTEC IARENA GPA-700S. TOTAL POWER: 700 W, AC INPUT VOLTAGE: 200 - 240 V, AC INPUT FREQUENCY: 47 - 63 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 50 CM, PERIPHERAL (MOLEX) POWER CABLE LENGTH: 500,650,800 MM. PURPOSE:
CATEGORY CODE
PSU
CNCODE
85044095
UNIT BOX HEIGHT
0.09
UNIT BOX LENGTH
0.22
UNIT BOX WIDTH
0.155
WIDTH, MM
140
PRODUCT COLOUR
SILVER
UNIT CALCULATED WEIGHT, KG
1.61
PRODUCT NET WEIGHT, KG
0.9
UNIT CALCULATED VOLUME, CUBM
0.004725
UNITS PER SHIPPING BOX
10
SHIPPING BOX WEIGHT, KG
16.1
UNIT WIDTH, CM
15.5
SHIPPING BOX HEIGHT, CM
21
UNIT DEPTH, CM
22
SHIPPING BOX DEPTH, CM
50
UNIT HEIGHT, CM
9
SHIPPING BOX WIDTH, CM
45
NAME
CASE PSU ATX 700W/GPA-700S CHIEFTEC
WEIGHT, G
1440
PACKAGE WEIGHT, G
1570
COMPLIANCE CERTIFICATES
CB/CE/EAC
DEPTH, MM
150
HEIGHT, MM
87
PACKAGE TYPE
BOX
INPUT CURRENT, A
5
PURPOSE
PC/SERVER
COOLING TYPE
ACTIVE
NUMBER OF FANS, FAN(S)
1
FAN DIAMETER, MM
120
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN)
2
AC INPUT VOLTAGE, V
200 - 240
AC INPUT FREQUENCY, HZ
47 - 63
TOTAL POWER, W
700
COMBINED POWER (+3.3V), W
130
COMBINED POWER (+12V), W
648
COMBINED POWER (+5V), W
130
COMBINED POWER (-12V), W
3.6
COMBINED POWER (+5VSB), W
12.5
MAX OUTPUT CURRENT (+3.3V), A
22
MAX OUTPUT CURRENT (+12V), A
50
MAX OUTPUT CURRENT (+5V), A
22
MAX OUTPUT CURRENT (-12V), A
0.3
MAX OUTPUT CURRENT (+5VSB), A
2.5
EFFICIENCY, %
80
MOTHERBOARD POWER CONNECTOR
20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS
6
POWER FACTOR CORRECTION (PFC) TYPE
ACTIVE
PCI EXPRESS POWER CONNECTORS (6+2 PIN)
2
CABLING TYPE
NON-MODULAR
POWER SUPPLY UNIT (PSU) FORM FACTOR
PS/2
POWER FACTOR
0.9
POWER PROTECTION FEATURES
OVER VOLTAGE/OVERLOAD/SHORT CIRCUIT/UNDER VOLTAGE
MOTHERBOARD POWER CABLE LENGTH, MM
500
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM
150/500
SATA POWER CABLE LENGTH, MM
150/500
CPU POWER CABLE LENGTH, MM
550
ATX POWER CONNECTOR (20+4 PIN)
YES
ATX VERSION
2.3
CPU POWER CONNECTOR (4+4 PIN)
YES
FAN LOCATION
TOP
FLOPPY DISK DRIVE CONNECTOR
YES
FLOPPY DRIVE POWER CONNECTOR
1
CONNECTOR(S)
20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIE (6+2) 2 SATA 6 MOLEX/FLOPPY 2/1
