Nauja

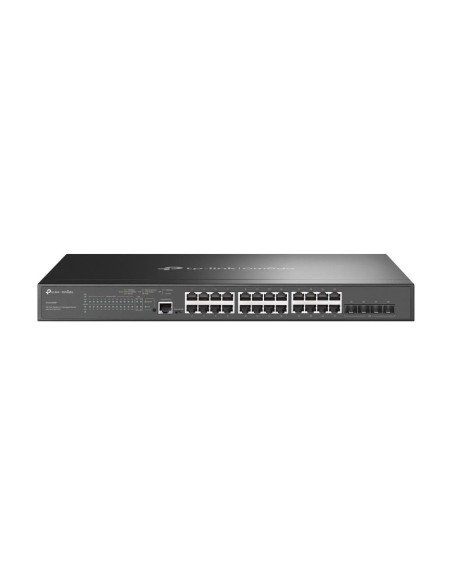

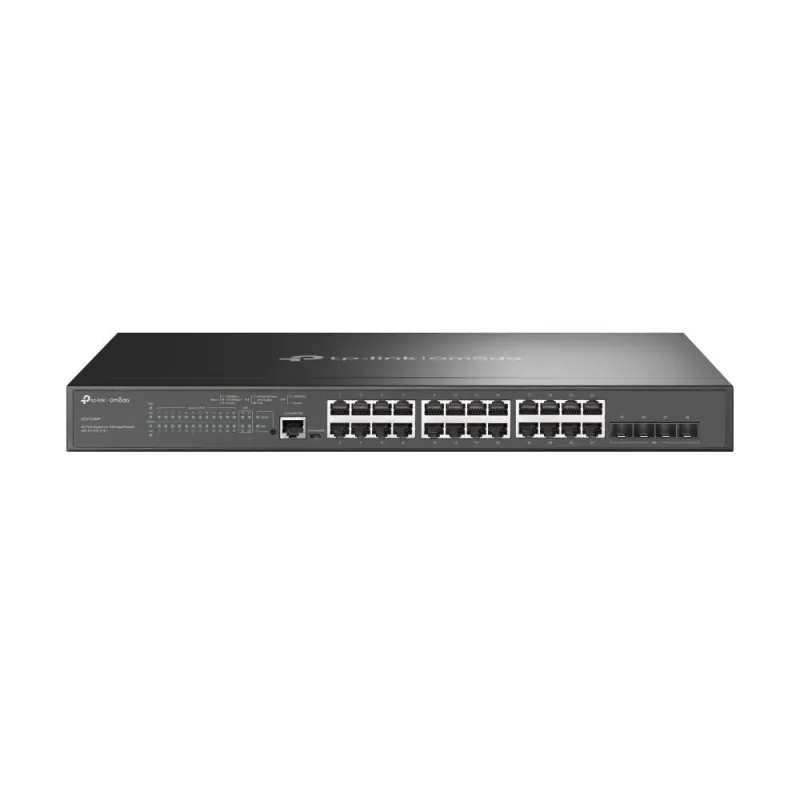

Switch, TP-LINK, Omada, TL-SG3428MP, Rack, 4xSFP, 1xConsole, 1, 384 Watts, TL-SG3428MP

Name: Switch, TP-LINK, Omada, TL-SG3428MP, Rack, 4xSFP, 1xConsole, 1, 384 Watts, TL-SG3428MP
Brand: TP-LINK
SKU: TL SG3428MP
Price: 399.15 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas TL SG3428MP

Yra sandėlyje

399,15 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+ , Type Managed , Switch layer L2+ , Quality of Service (QoS) support Yes , Web-based management Yes , Cloud-managed Yes , 24xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 4xSFP module slots quantity , Console port RJ-45/micro-USB , Port mirroring Yes , Switching capacity 56 Gbit/s , Forwarding rate 41.66 Mpps , Rack mounting Yes , Form factor 1U , Product colour Black , Power source AC , Power supply included Yes , Power over Ethernet (PoE) Yes , 24xPower over Ethernet plus (PoE+) ports quantity , Power over Ethernet (PoE) power per port 30 W , Total Power over Ethernet (PoE) budget 384 W , Width 440 mm , Depth 330 m

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 28-PORT GIGABIT L2+ MANAGED SWITCH WITH 24-PORT POE+. SWITCH TYPE: MANAGED, SWITCH LAYER: L2+. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24, CONSOLE PORT: RJ-45/
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX HEIGHT: 0.1
UNIT BOX LENGTH: 0.53
UNIT BOX WIDTH: 0.44
PRODUCT COLOUR: BLACK
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.0288
UNIT CALCULATED WEIGHT, KG: 6.59
CERTIFICATION: CE, FCC, ROHS
MODEL NAME: OMADA 28-PORT GIGABIT L2+ MANAGED SWITCH WITH 24-PORT POE+
SERIES: OMADA
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
DEPTH, MM: 330
HEIGHT, MM: 44
WIDTH, MM: 440
FORM FACTOR: 1U
OPERATING TEMPERATURE (T-T), °C: 0 - 45
STORAGE TEMPERATURE (T-T), °C: -40 - 70
LED INDICATORS: YES
EXPORT CONTROL CLASSIFICATION NUMBER (ECCN): EAR99
QUICK START GUIDE: YES
QUALITY OF SERVICE (QOS) SUPPORT: YES
SWITCH LAYER: L2+
SWITCH TYPE: MANAGED
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
POWER CONNECTOR: AC-IN JACK
10G SUPPORT: NO
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
NUMBER OF VLANS: 4000
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: MAC ADDRESS-BASED VLAN/PORT-BASED VLAN/PRIVATE VLAN/TAGGED VLAN/VOICE VLAN
VLAN SUPPORT: YES
FORWARDING RATE, MPPS: 41.66
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 16000
PACKET BUFFER MEMORY, MB: 12
SWITCHING CAPACITY, GBIT/S: 56
DHCP FEATURES: DHCP CLIENT/DHCP RELAY/DHCP SERVER/DHCP SNOOPING/DHCPV6 CLIENT/DHCPV6 SNOOPING
IGMP SNOOPING: YES
LOOP PROTECTION: YES
MULTICAST SUPPORT: YES
RACK MOUNTING: YES
POWER CONSUMPTION (MAX), W: 480.1
POWER SOURCE: AC
POWER SUPPLY INCLUDED: YES
POWER OVER ETHERNET (POE): YES
POWER OVER ETHERNET (POE) POWER PER PORT, W: 30
TOTAL POWER OVER ETHERNET (POE) BUDGET, W: 384
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
CONSOLE PORT: RJ-45/MICRO-USB
NUMBER OF FANS, FAN(S): 2
NETWORKING STANDARDS: IEEE 802.3AB/IEEE 802.3AF/IEEE 802.3AT/IEEE 802.3I/IEEE 802.3U/IEEE 802.3Z
SPANNING TREE PROTOCOL: YES
POWER OVER ETHERNET PLUS (POE+) PORTS QUANTITY: 24
CLOUD-MANAGED: YES
ARP INSPECTION: YES
SYSTEM EVENT LOG: YES
WEB-BASED MANAGEMENT: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
LINK AGGREGATION: YES
JUMBO FRAMES: 9000
STORE-AND-FORWARD: YES
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: MAC-BASED AUTHENTICATION,PORT-BASED AUTHENTICATION
BPDU FILTERING/PROTECTION: YES
IP-MAC-PORT BINDING: YES
MAC ADDRESS FILTERING: YES
SSH/SSL SUPPORT: YES
STATIC PORT SECURITY: YES
HEAD-OF-LINE (HOL) BLOCKING: YES
HEAT DISSIPATION, BTU/H: 1637.14
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
SECURITY ALGORITHMS: SSH/SSL/TLS
GARP VLAN REGISTRATION PROTOCOL (GVRP): YES
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 24
SFP MODULE SLOTS QUANTITY: 4
USER GUIDE: YES
IP ROUTING: YES
MANAGEMENT PROTOCOLS: SNMPV1/V2C/V3, LLDP/LLDP-MED
ACTIVE LINK DETECTION: YES
ETHERNET LAN DATA RATES, MBIT/S: 10,100,1000
COPPER ETHERNET CABLING TECHNOLOGY: 1000BASE-T/10BASE-T
