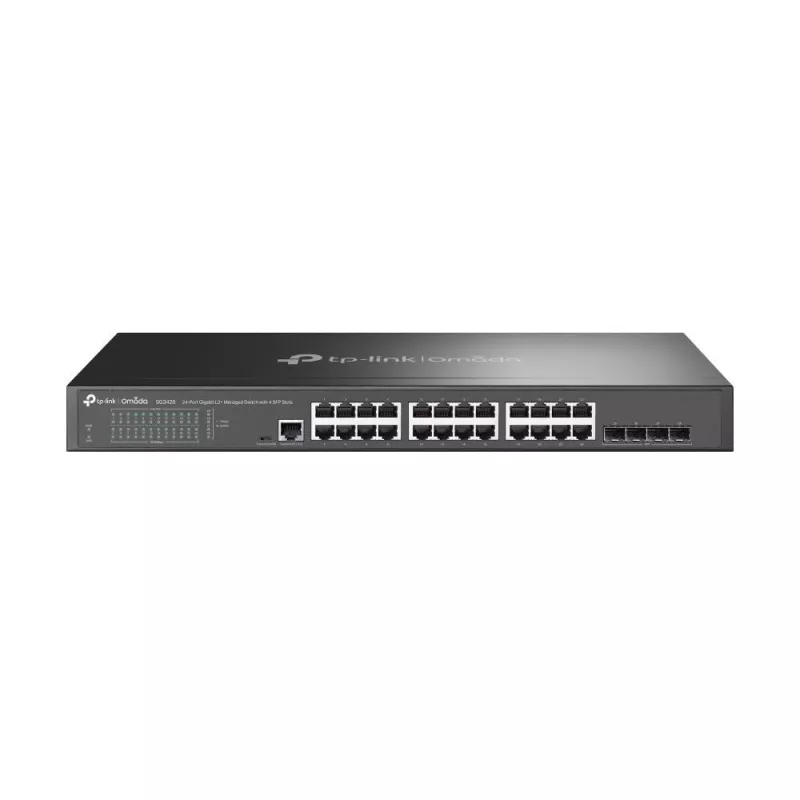

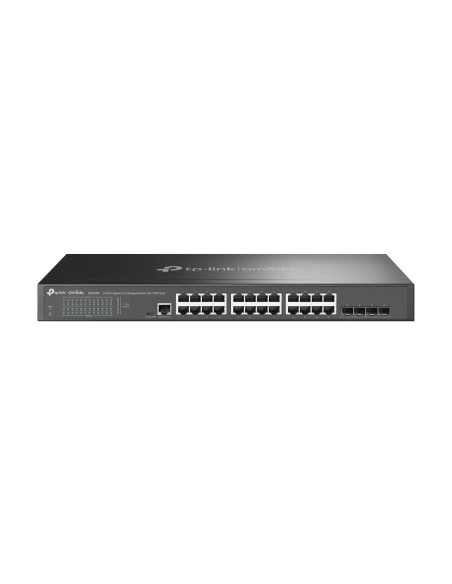

Switch, TP-LINK, Omada, TL-SG3428, Type L2, Rack, 4xSFP, 1xConsole, 1, TL-SG3428

Name: Switch, TP-LINK, Omada, TL-SG3428, Type L2, Rack, 4xSFP, 1xConsole, 1, TL-SG3428
Brand: TP-LINK
SKU: TL SG3428
Price: 196.31 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas TL SG3428

Paskutinė prekė

196,31 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots , Type Managed , Switch layer L2/L3 , Quality of Service (QoS) support Yes , Cloud-managed Yes , Web-based management Yes , 24xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 4xSFP module slots quantity , Console port RJ-45/Micro-USB , Port mirroring Yes , Switching capacity 56 Gbit/s , Forwarding rate 41.66 Mpps , Rack mounting Yes , Form factor 1U , Product colour Black , Power source AC , Width 440 mm , Depth 180 mm , Height 44 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 24-PORT GIGABIT L2+ MANAGED SWITCH WITH 4 SFP SLOTS. SWITCH TYPE: MANAGED, SWITCH LAYER: L2/L3. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24, CONSOLE PORT: RJ-45
CATEGORY CODE: SWI
CNCODE: 85176200
UNIT BOX HEIGHT: 0.08
UNIT BOX LENGTH: 0.53
UNIT BOX WIDTH: 0.255
FORM FACTOR: 1U
PRODUCT COLOUR: BLACK
DEPTH, MM: 180
HEIGHT, MM: 44
WIDTH, MM: 440
MODEL NAME: OMADA 24-PORT GIGABIT L2+ MANAGED SWITCH WITH 4 SFP SLOTS
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.01081
UNIT CALCULATED WEIGHT, KG: 2.85
CABLES INCLUDED: LAN (RJ-45)
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
OPERATING TEMPERATURE (T-T), °C: 0 - 45
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
STORAGE TEMPERATURE (T-T), °C: -40 - 70
ETHERNET LAN DATA RATES, MBIT/S: 10,100,1000
NETWORKING STANDARDS: IEEE 802.3AB/IEEE 802.3I/IEEE 802.3U/IEEE 802.3Z
LED INDICATORS: YES
QUICK START GUIDE: YES
SERIES: OMADA
AC INPUT VOLTAGE, V: 100 - 240
AC INPUT FREQUENCY, HZ: 50/60
QUALITY OF SERVICE (QOS) SUPPORT: YES
CONSOLE PORT: RJ-45/MICRO-USB
10G SUPPORT: NO
RACK MOUNTING: YES
POWER CONSUMPTION (MAX), W: 20.6
POWER SOURCE: AC
POWER SUPPLY INCLUDED: NO
POWER OVER ETHERNET (POE): NO
SWITCH LAYER: L2/L3
SWITCH TYPE: MANAGED
CLOUD-MANAGED: YES
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
IPV4 ROUTES: 48
NUMBER OF VLANS: 4000
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: PRIVATE VLAN/PROTOCOL-BASED VLAN/TAGGED VLAN/VOICE VLAN
VLAN SUPPORT: YES
FORWARDING RATE, MPPS: 41.66
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 16000
PACKET BUFFER MEMORY, MB: 12
STATIC ROUTE: YES
SWITCHING CAPACITY, GBIT/S: 56
DHCP FEATURES: DHCP CLIENT/DHCP RELAY/DHCP SERVER/DHCP SNOOPING/DHCPV6 CLIENT/DHCPV6 SNOOPING
IGMP SNOOPING: YES
LOOP PROTECTION: YES
MULTICAST SUPPORT: YES
ARP INSPECTION: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
WEB-BASED MANAGEMENT: YES
SYSTEM EVENT LOG: YES
LINK AGGREGATION: YES
SPANNING TREE PROTOCOL: YES
JUMBO FRAMES: 9000
STORE-AND-FORWARD: YES
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: MAC-BASED AUTHENTICATION,PORT-BASED AUTHENTICATION
BPDU FILTERING/PROTECTION: YES
IP-MAC-PORT BINDING: YES
MAC ADDRESS FILTERING: YES
SSH/SSL SUPPORT: YES
STATIC PORT SECURITY: YES
HEAD-OF-LINE (HOL) BLOCKING: YES
HEAT DISSIPATION, BTU/H: 70.3
AUTHENTICATION TYPE: AAA,RADIUS,TACACS+
MIB SUPPORT: YES
IPV6 ROUTES: 48
NUMBER OF STATIC ROUTES: 48
MULTICAST LISTENER DISCOVERY (MLD) SNOOPING: Y
GARP VLAN REGISTRATION PROTOCOL (GVRP): YES
IPV4 & IPV6 FEATURES: IPV4/IPV6 ACCESS-CONTROL LIST (ACL)/IPV6 PING/IPV6 TELNET/IPV6 TRACERT
MANAGEMENT PROTOCOLS: SNMPV1/V2C/V3, SNTP
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 24
SFP MODULE SLOTS QUANTITY: 4
IP ROUTING: YES
POLICY-BASED ROUTING: YES
