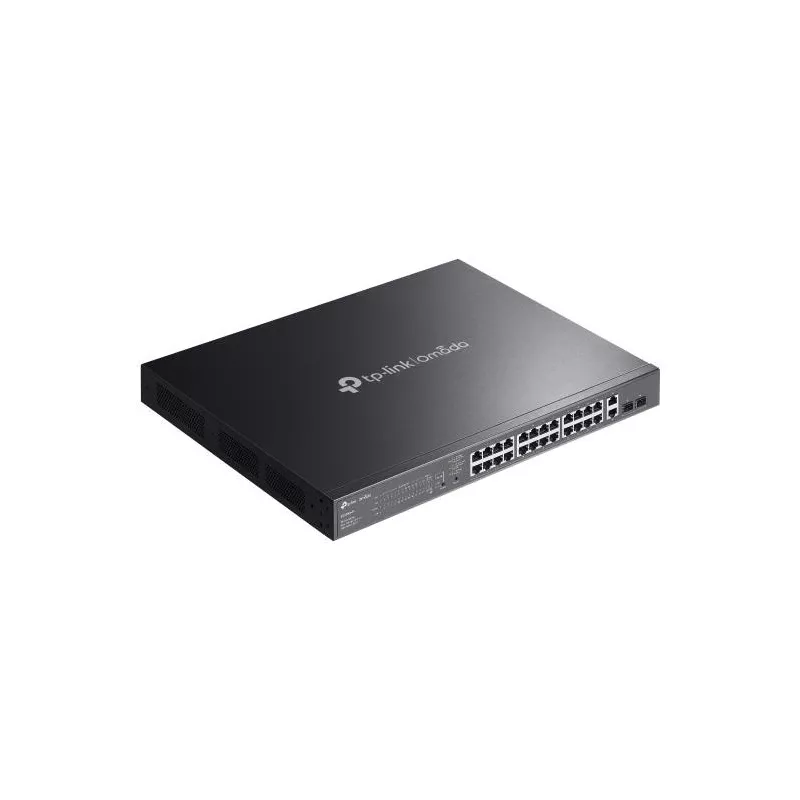

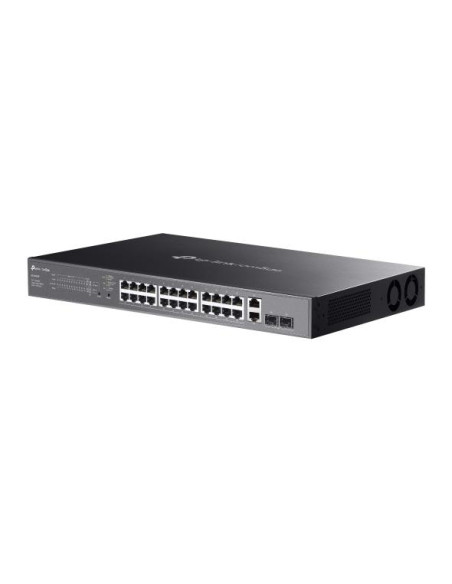

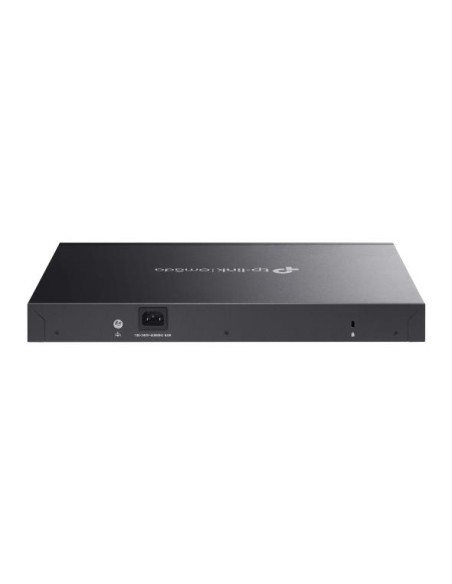

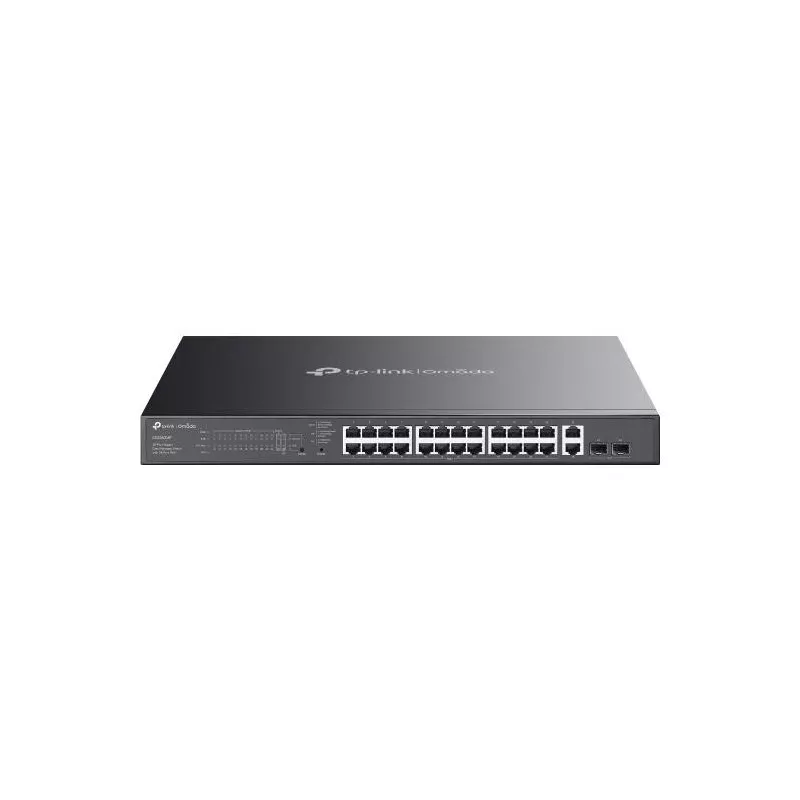

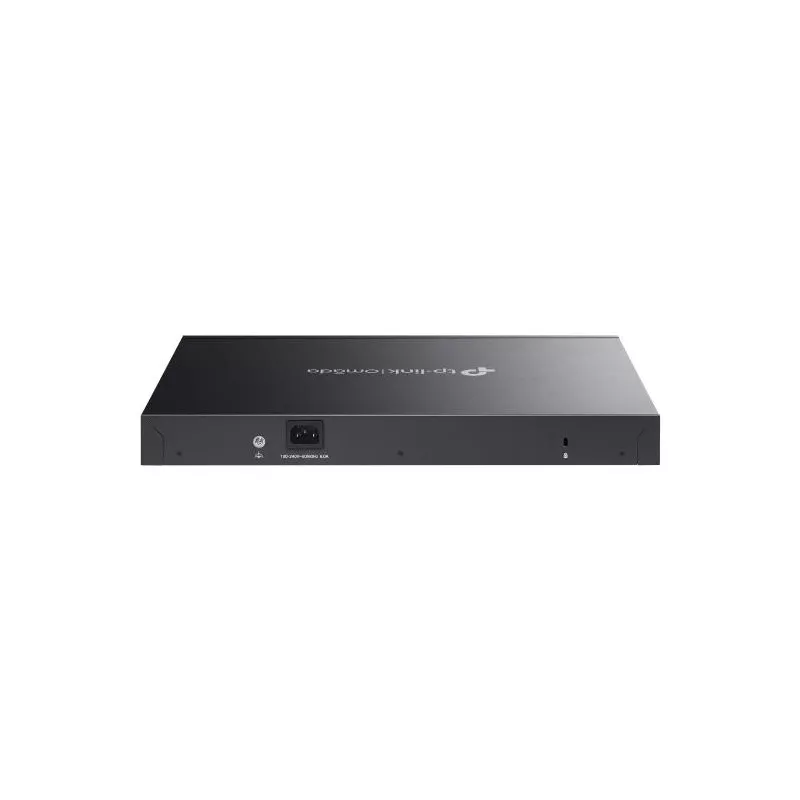

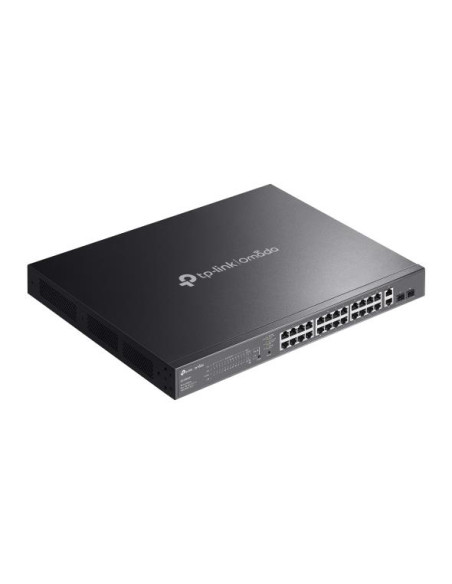

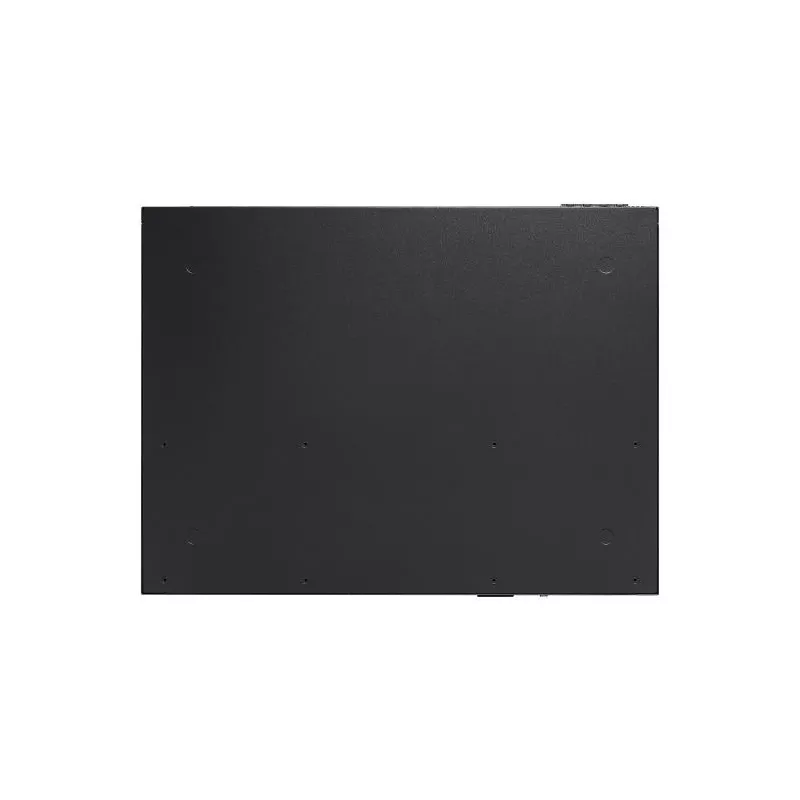

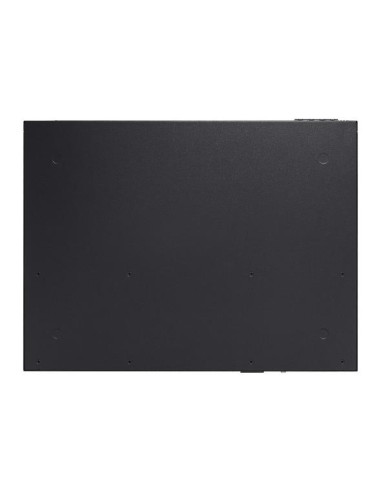

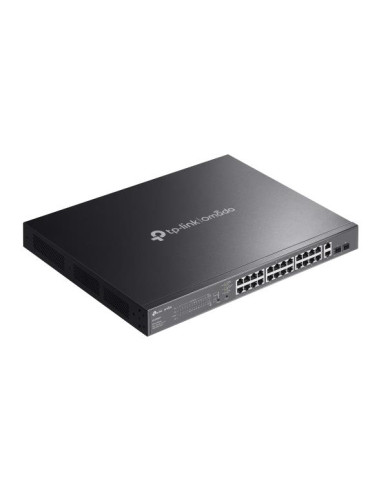

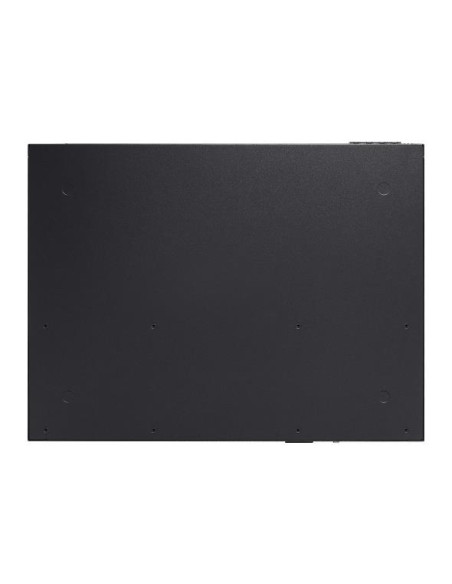

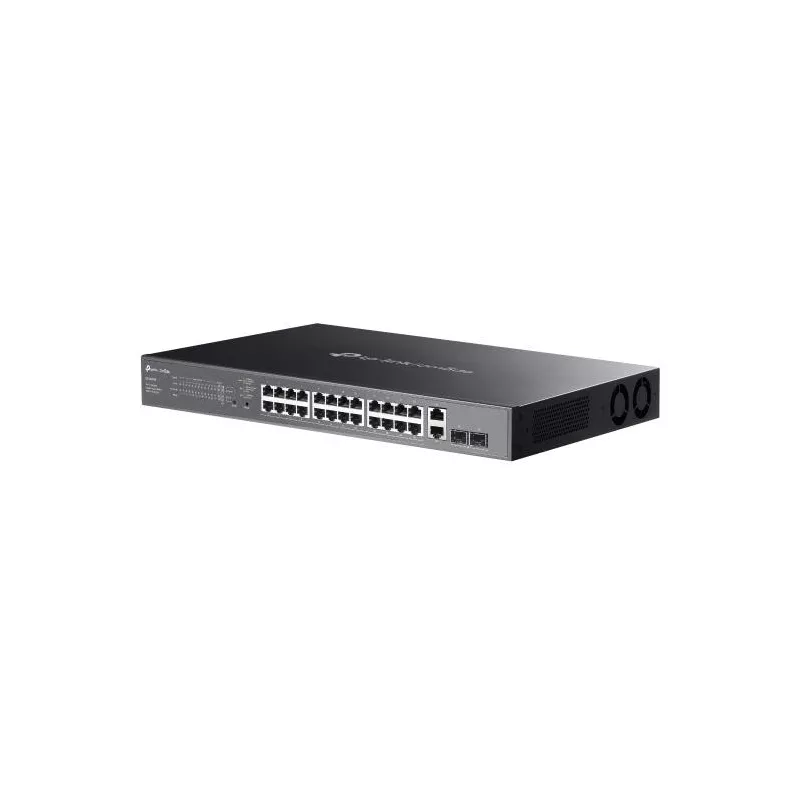

Switch, TP-LINK, Omada, SG2428P, Type L2+, 384 Watts, ES228GMP

Switch, TP-LINK, Omada, SG2428P, Type L2+, 384 Watts, ES228GMP

Name: Switch, TP-LINK, Omada, SG2428P, Type L2+, 384 Watts, ES228GMP
Brand: TP-LINK
SKU: ES228GMP
Price: 327.17 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas ES228GMP

Yra sandėlyje

327,17 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , ES228GMP , Type Managed , Switch layer L2 , Quality of Service (QoS) support Yes , Cloud-managed Yes , Web-based management Yes , 26xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 2xSFP module slots quantity , Port mirroring Yes , Switching capacity 56 Gbit/s , Forwarding rate 41.66 Mpps , Rack mounting Yes , Product colour Black , Power source AC , Power supply included Yes , Power over Ethernet (PoE) Yes , 24xPower over Ethernet plus (PoE+) ports quantity , Power over Ethernet (PoE) power per port 30 W , Total Power over Ethernet (PoE) budget 384 W , Width 440 mm , Depth 330 mm , Height 44 mm

Prekės informacija
Atsiliepimai (0)

LONG DESCRIPTION: TP-LINK OMADA ES228GMP. SWITCH TYPE: MANAGED, SWITCH LAYER: L2. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 26. MAC ADDRESS TABLE: 8000 ENTRIES, SWITCHING CAPACITY: 56 GBIT/S. N
CNCODE: 85176200
PRODUCT COLOUR: BLACK
DEPTH, MM: 330
HEIGHT, MM: 44
WIDTH, MM: 440
MODEL NAME: ES228GMP
UNIT CALCULATED VOLUME, CUBM: 0.02491
UNIT CALCULATED WEIGHT, KG: 6.125
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
CABLES INCLUDED: AC
MANUAL: YES
POWER CONSUMPTION (MAX), W: 454.8
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
OPERATING TEMPERATURE (T-T), °C: -5 - 45
CERTIFICATION: FCC, CE, ROHS
STORAGE TEMPERATURE (T-T), °C: -40 - 70
QUICK START GUIDE: YES
COMPLIANCE CERTIFICATES: CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)/ROHS
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
MEAN TIME BETWEEN FAILURES (MTBF), H: 224143
LED INDICATORS: YES
HOUSING MATERIAL: METAL
NOISE LEVEL, DB: 46.2
NUMBER OF FANS, FAN(S): 2
UNITS PER SHIPPING BOX: 1
POWER SUPPLY INCLUDED: YES
RACK MOUNTING: YES
ETHERNET LAN DATA RATES, MBIT/S: 10,100,1000
NETWORKING STANDARDS: IEEE 802.1AB/IEEE 802.1P/IEEE 802.1Q/IEEE 802.3AB/IEEE 802.3AF/IEEE 802.3AT/IEEE 802.3I/IEEE 802.3U/IEEE 802.3X/IEEE 802.3Z
FLASH MEMORY, MB: 64
BULLET POINTS: UL LI 26 10/100/1000MBPS RJ45 PORTS (24 802.3AF/AT-COMPLIANT POE+) /LI LI 2 GIGABIT SFP PORT /LI LI 384W POWER BUDGET, WITH UP TO 30W FOR EACH POE PORT /LI LI EASY TO USE: SUPPORTS PLUG-AND-PLAY FOR INSTANT CONNECTIVITY AND SIMPLE CONFIGURATION FOR ADDIT
QUALITY OF SERVICE (QOS) SUPPORT: YES
SWITCH LAYER: L2
SWITCH TYPE: MANAGED
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 26
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
10G SUPPORT: NO
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
NUMBER OF VLANS: 32
PORT MIRRORING: YES
VIRTUAL LAN FEATURES: MTU VLAN/PORT-BASED VLAN/TAGGED VLAN
VLAN SUPPORT: YES
FORWARDING RATE, MPPS: 41.66
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 8000
PACKET BUFFER MEMORY, MB: 4
SWITCHING CAPACITY, GBIT/S: 56
DHCP FEATURES: DHCP CLIENT
IGMP SNOOPING: YES
MULTICAST SUPPORT: YES
POWER SOURCE: AC
POWER OVER ETHERNET (POE): YES
POWER OVER ETHERNET (POE) POWER PER PORT, W: 30
POWER OVER ETHERNET (POE) TYPE SUPPORTED: POE+
TOTAL POWER OVER ETHERNET (POE) BUDGET, W: 384
RACK MOUNT KIT: YES
CLOUD-MANAGED: YES
WEB-BASED MANAGEMENT: YES
LINK AGGREGATION: YES
JUMBO FRAMES: 15000
STORE-AND-FORWARD: YES
POWER OVER ETHERNET PLUS (POE+) PORTS QUANTITY: 24
HEAT DISSIPATION, BTU/H: 1546.15
QUEUE SCHEDULING ALGORITHMS: WEIGHTED ROUND ROBIN (WRR)
SERIES: OMADA
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 26
SFP MODULE SLOTS QUANTITY: 2
FANLESS: NO
FIRMWARE UPGRADEABLE: YES
COPPER ETHERNET CABLING TECHNOLOGY: 1000BASE-T/1000BASE-X/100BASE-X/10BASE-T
AUTO MDI/MDI-X: YES
FAST LEAVE: YES
UNIFIED STATIC CONFIGURATION: YES
SURGE PROTECTION: YES
SURGE PROTECTION VOLTAGE, KV: 6
