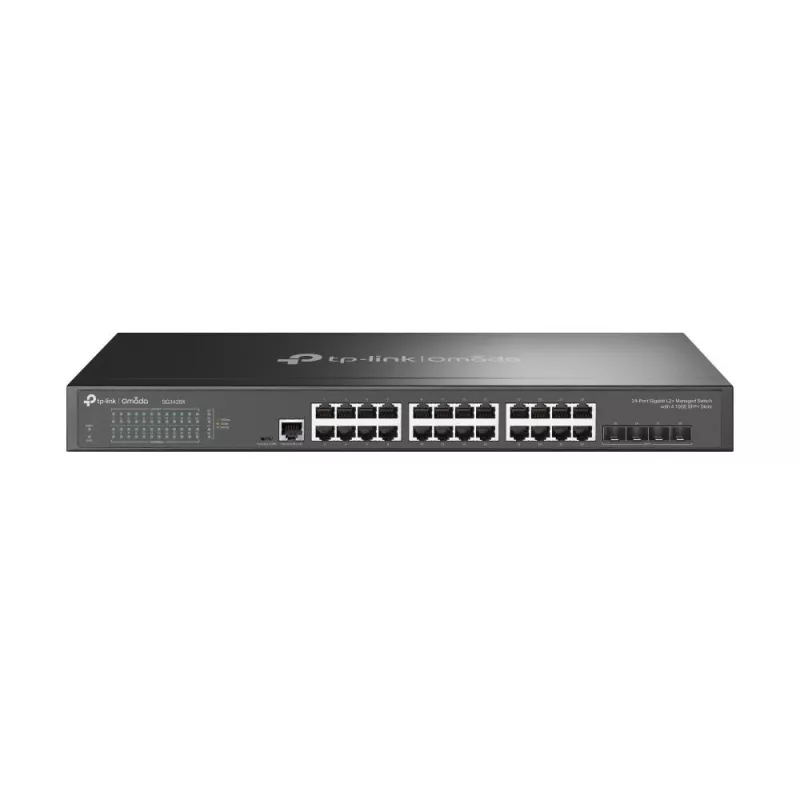

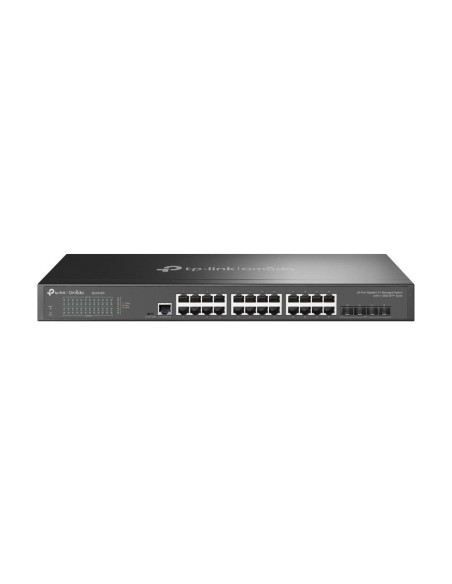

Switch, TP-LINK, Omada, TL-SG3428X, Type L2+, Rack, 4xSFP+, 1xConsole, TL-SG3428X

Name: Switch, TP-LINK, Omada, TL-SG3428X, Type L2+, Rack, 4xSFP+, 1xConsole, TL-SG3428X
Brand: TP-LINK
SKU: TL-SG3428X
Price: 264.35 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas TL-SG3428X

Yra sandėlyje

264,35 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , TL-SG3428X , Type Managed , Switch layer L2+/L3 , Quality of Service (QoS) support Yes , Cloud-managed Yes , Web-based management Yes , 24xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 4xSFP+ module slots quantity , Console port RJ-45/micro-USB , Yes , Port mirroring Yes , Switching capacity 128 Gbit/s , Forwarding rate 95.23 Mpps , Rack mounting Yes , Form factor 1U , Product colour Black , Power source AC , Power supply included Yes , Width 440 mm , Depth 180 mm , Height 44 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 24-PORT GIGABIT L2+ MANAGED SWITCH WITH 4 10GE SFP+ SLOTS. SWITCH TYPE: MANAGED, SWITCH LAYER: L2+/L3. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24, CONSOLE PORT
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX HEIGHT: 0.25
UNIT BOX LENGTH: 0.53
UNIT BOX WIDTH: 0.08
NETWORKING STANDARDS: IEEE 802.3AB/IEEE 802.3AE/IEEE 802.3I/IEEE 802.3U/IEEE 802.3Z
PRODUCT COLOUR: BLACK
DEPTH, MM: 180
HEIGHT, MM: 44
WIDTH, MM: 440
UNITS PER SHIPPING BOX: 6
UNIT CALCULATED VOLUME, CUBM: 0.01263
UNIT CALCULATED WEIGHT, KG: 3.03
OPERATING TEMPERATURE (T-T), °C: 0 - 45
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
STORAGE TEMPERATURE (T-T), °C: -40 - 70
LED INDICATORS: YES
CABLES INCLUDED: LAN (RJ-45)
QUICK START GUIDE: YES
MODEL NAME: TL-SG3428X
SERIES: OMADA
AC INPUT VOLTAGE, V: 100 - 240
AC INPUT FREQUENCY, HZ: 50/60
FORM FACTOR: 1U
SWITCH TYPE: MANAGED
CONSOLE PORT: RJ-45/MICRO-USB
10G SUPPORT: YES
RACK MOUNTING: YES
POWER CONSUMPTION (MAX), W: 23.6
POWER SOURCE: AC
POWER SUPPLY INCLUDED: YES
POWER OVER ETHERNET (POE): NO
SWITCH LAYER: L2+/L3
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24
WEB-BASED MANAGEMENT: YES
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
QUALITY OF SERVICE (QOS) SUPPORT: YES
FORWARDING RATE, MPPS: 95.23
SWITCHING CAPACITY, GBIT/S: 128
SFP+ MODULE SLOTS QUANTITY: 4
CLOUD-MANAGED: YES
GIGABIT ETHERNET (COPPER) PORTS QUANTITY: 24
POWER CONNECTOR: AC-IN JACK
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
IPV4 ROUTES: 48
NUMBER OF VLANS: 4000
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: PRIVATE VLAN/PROTOCOL-BASED VLAN/TAGGED VLAN/VOICE VLAN
VLAN SUPPORT: YES
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 16000
PACKET BUFFER MEMORY, MB: 12
DHCP FEATURES: DHCP CLIENT/DHCP RELAY/DHCP SERVER/DHCP SNOOPING/DHCPV6 CLIENT/DHCPV6 SNOOPING
IGMP SNOOPING: YES
LOOP PROTECTION: YES
STATIC ROUTE: YES
HEAT DISSIPATION, BTU/H: 80.52
ARP INSPECTION: YES
SYSTEM EVENT LOG: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
HEAD-OF-LINE (HOL) BLOCKING: YES
LINK AGGREGATION: YES
SPANNING TREE PROTOCOL: YES
JUMBO FRAMES: 9000
STORE-AND-FORWARD: YES
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: GUEST VLAN,MAC-BASED AUTHENTICATION,PORT-BASED AUTHENTICATION
BPDU FILTERING/PROTECTION: YES
IP-MAC-PORT BINDING: YES
SSH/SSL SUPPORT: YES
MULTICAST SUPPORT: YES
AUTHENTICATION TYPE: AAA,RADIUS,TACACS+
MIB SUPPORT: YES
IPV6 ROUTES: 48
NUMBER OF STATIC ROUTES: 48
MULTICAST LISTENER DISCOVERY (MLD) SNOOPING: Y
GARP VLAN REGISTRATION PROTOCOL (GVRP): YES
IPV4 & IPV6 FEATURES: IPV4/IPV6 ACCESS-CONTROL LIST (ACL)/IPV6 PING/IPV6 TELNET/IPV6 TRACERT
ETHERNET LAN DATA RATES, MBIT/S: 10,100,1000
MANAGEMENT PROTOCOLS: SNMPV1/V2C/V3, SNTP
ACTIVE LINK DETECTION: YES
POLICY-BASED ROUTING: YES
FANLESS: YES
