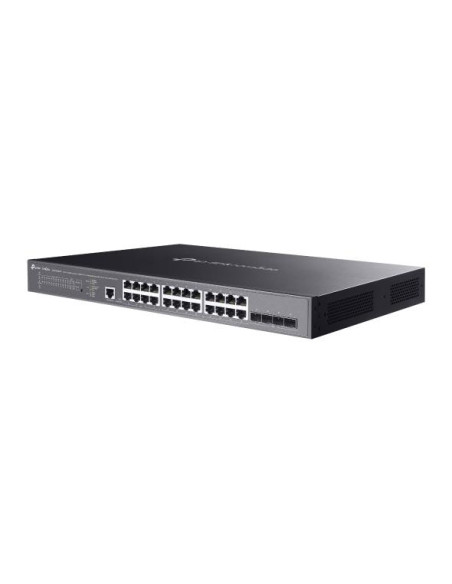

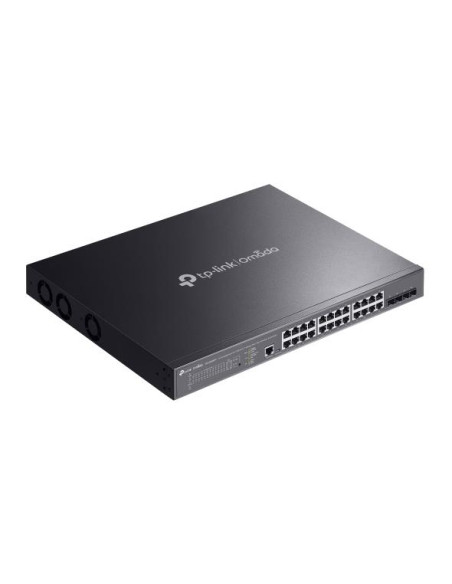

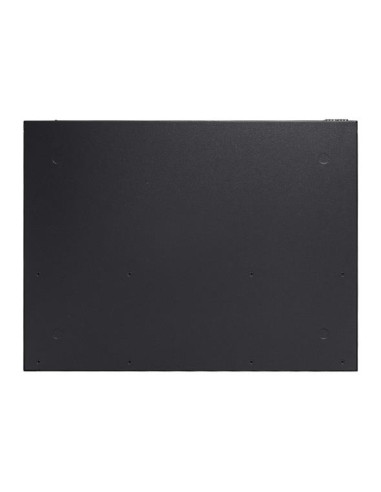

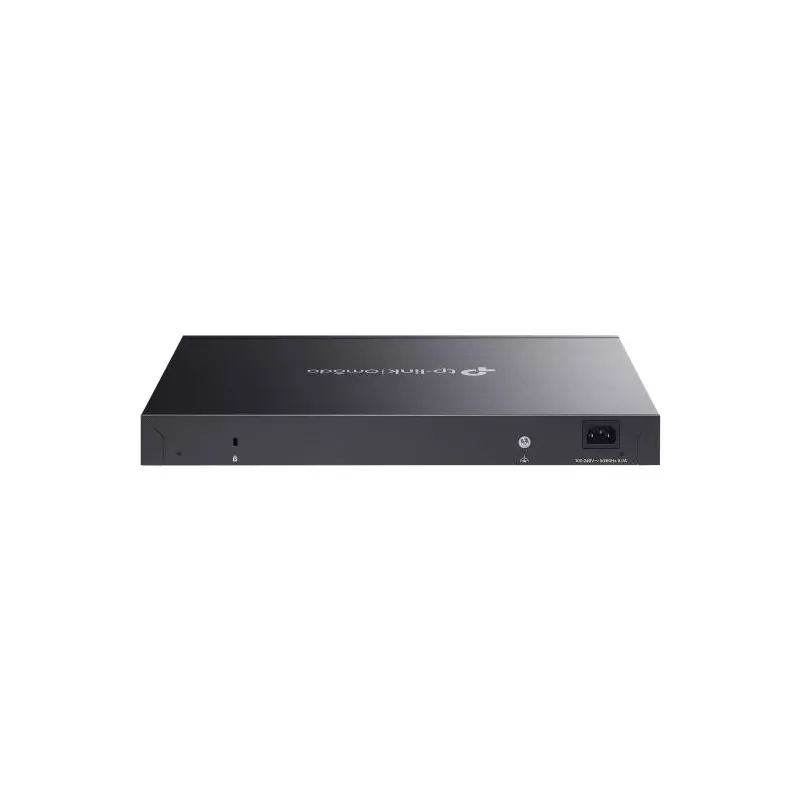

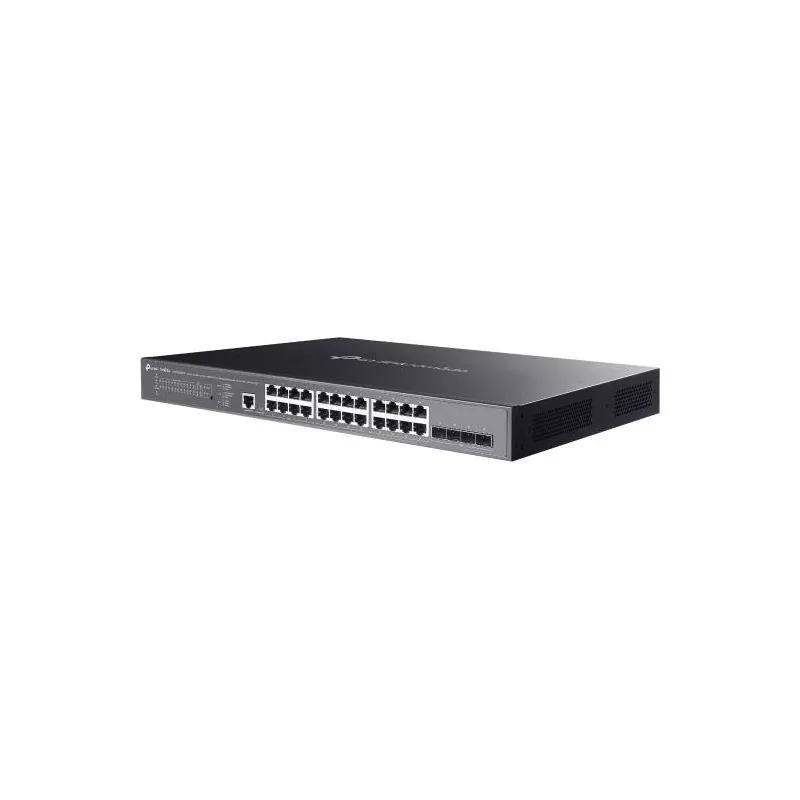

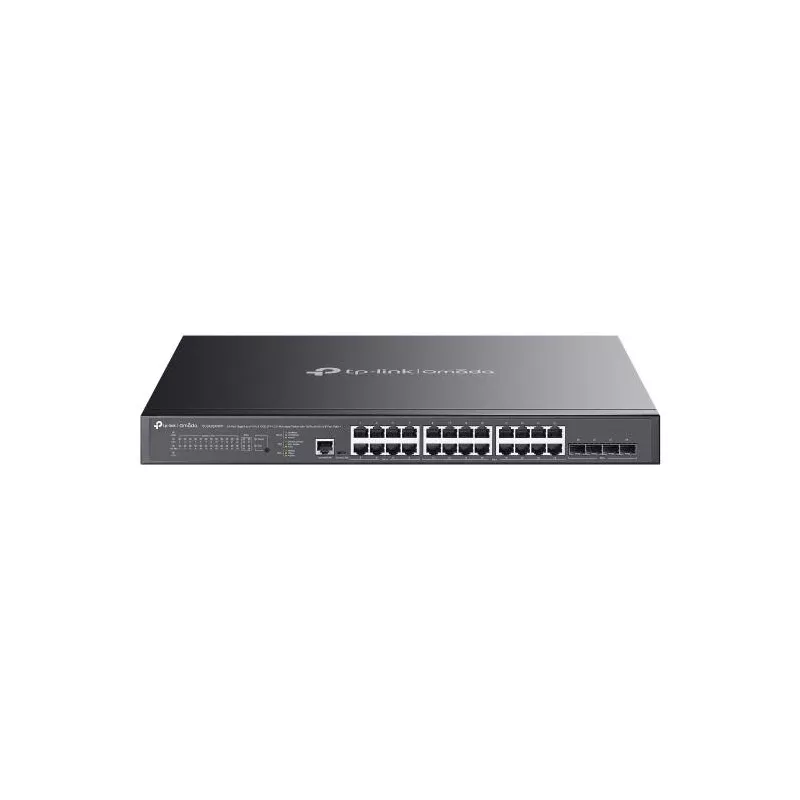

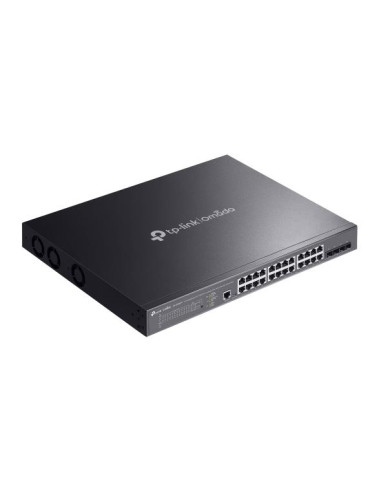

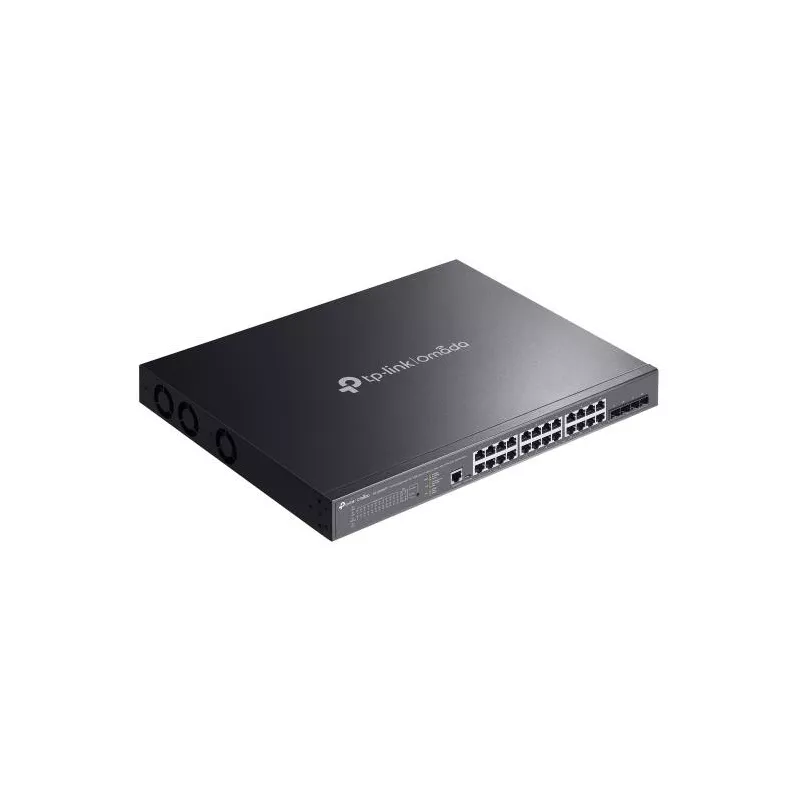

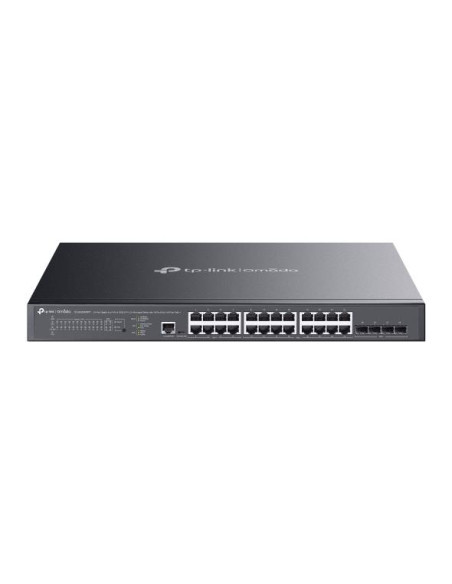

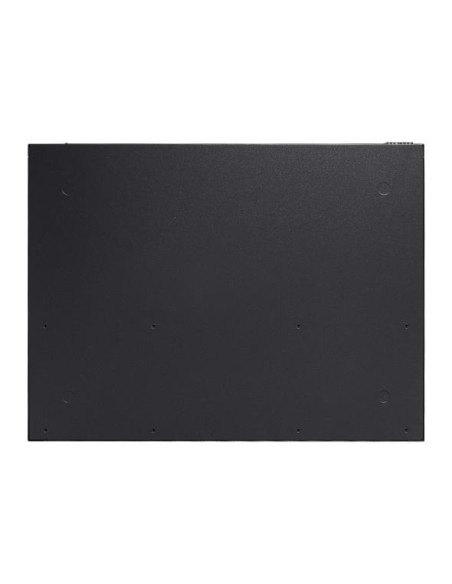

Switch, TP-LINK, Omada, SG3428XMPP, Rack, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP+, 1xConsole, 1, PoE+ ports 16, 500 Watts

Switch, TP-LINK, Omada, SG3428XMPP, Rack, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP+, 1xConsole, 1, PoE+ ports 16, 500 Watts

Name: Switch, TP-LINK, Omada, SG3428XMPP, Rack, 24x10Base-T / 100Base-TX / 1000Base-T, 4xSFP+, 1xConsole, 1, PoE+ ports 16, 500 Watts
Brand: TP-LINK
SKU: SG3428XMPP
Price: 654.72 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas SG3428XMPP

Paskutinė prekė

654,72 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , SG3428XMPP , Type Managed , Switch layer L2+ , Quality of Service (QoS) support Yes , Web-based management Yes , Cloud-managed Yes , 24xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , 4xSFP+ module slots quantity , Console port RJ-45/micro-USB , Yes , Port mirroring Yes , Switching capacity 128 Gbit/s , Forwarding rate 95.23 Mpps , Rack mounting Yes , Form factor 1U , Product colour Black , Power source AC , Power supply included Yes , Power over Ethernet (PoE) Yes , 16xPower over Ethernet plus (PoE+) ports quantity , 8xPower over Ethernet 4PPoE (PoE++) ports quantity , Power over Ethernet (PoE) power per port 30 W , Total Power over Ethernet (PoE) budget 500 W , Width 440 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA SG3428XMPP. SWITCH TYPE: MANAGED, SWITCH LAYER: L2+. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24, CONSOLE PORT: RJ-45/MICRO-USB. MAC ADDRESS TABLE: 16000 ENTRIE
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX LENGTH: 0.53
UNIT BOX WIDTH: 0.1
UNIT BOX HEIGHT: 0.47
PRODUCT COLOUR: BLACK
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
CABLES INCLUDED: AC
QUICK START GUIDE: YES
UNIT CALCULATED VOLUME, CUBM: 0.02355
UNIT CALCULATED WEIGHT, KG: 6.2
POWER CONSUMPTION (MAX), W: 486.2
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
OPERATING TEMPERATURE (T-T), °C: 0 - 40
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
STORAGE TEMPERATURE (T-T), °C: -40 - 70
CERTIFICATION: CE, FCC, ROHS
LED INDICATORS: YES
DEPTH, MM: 330
HEIGHT, MM: 44
WIDTH, MM: 440
MODEL NAME: SG3428XMPP
UNITS PER SHIPPING BOX: 1
NUMBER OF FANS, FAN(S): 3
RESET BUTTON: YES
FORM FACTOR: 1U
POWER SUPPLY INCLUDED: YES
RACK MOUNTING: YES
NETWORKING STANDARDS: IEEE 802.3AF/IEEE 802.3AT
SERIES: OMADA
SWITCH TYPE: MANAGED
CONSOLE PORT: RJ-45/MICRO-USB
10G SUPPORT: YES
POWER SOURCE: AC
POWER OVER ETHERNET (POE): YES
SWITCH LAYER: L2+
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 24
WEB-BASED MANAGEMENT: YES
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
QUALITY OF SERVICE (QOS) SUPPORT: YES
FORWARDING RATE, MPPS: 95.23
SWITCHING CAPACITY, GBIT/S: 128
SFP+ MODULE SLOTS QUANTITY: 4
CLOUD-MANAGED: YES
POWER CONNECTOR: AC-IN JACK
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
PORT MIRRORING: YES
RATE LIMITING: YES
VLAN SUPPORT: YES
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 16000
PACKET BUFFER MEMORY, MB: 12
DHCP FEATURES: DHCP CLIENT/DHCP RELAY/DHCP SERVER
IGMP SNOOPING: YES
POWER OVER ETHERNET (POE) POWER PER PORT, W: 30
POWER OVER ETHERNET 4PPOE (POE++) PORTS QUANTITY: 8
POWER OVER ETHERNET PLUS (POE+) PORTS QUANTITY: 16
TOTAL POWER OVER ETHERNET (POE) BUDGET, W: 500
HEAT DISSIPATION, BTU/H: 1658.78
ARP INSPECTION: YES
SYSTEM EVENT LOG: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
HEAD-OF-LINE (HOL) BLOCKING: YES
LINK AGGREGATION: YES
SPANNING TREE PROTOCOL: YES
JUMBO FRAMES: 9000
STORE-AND-FORWARD: YES
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: AUTO VLAN,GUEST VLAN
BPDU FILTERING/PROTECTION: YES
IP-MAC-PORT BINDING: YES
MAC ADDRESS FILTERING: YES
SSH/SSL SUPPORT: YES
STATIC PORT SECURITY: YES
MULTICAST SUPPORT: YES
