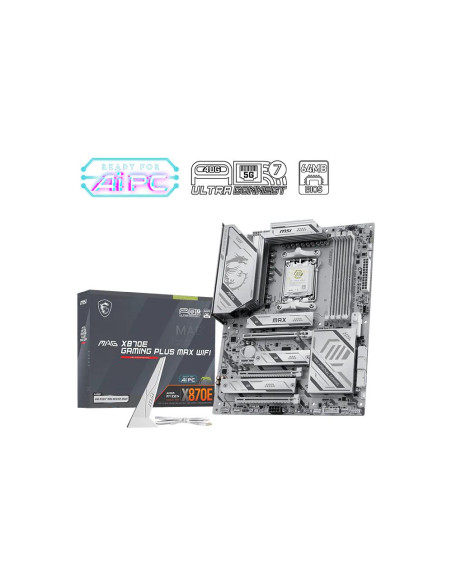

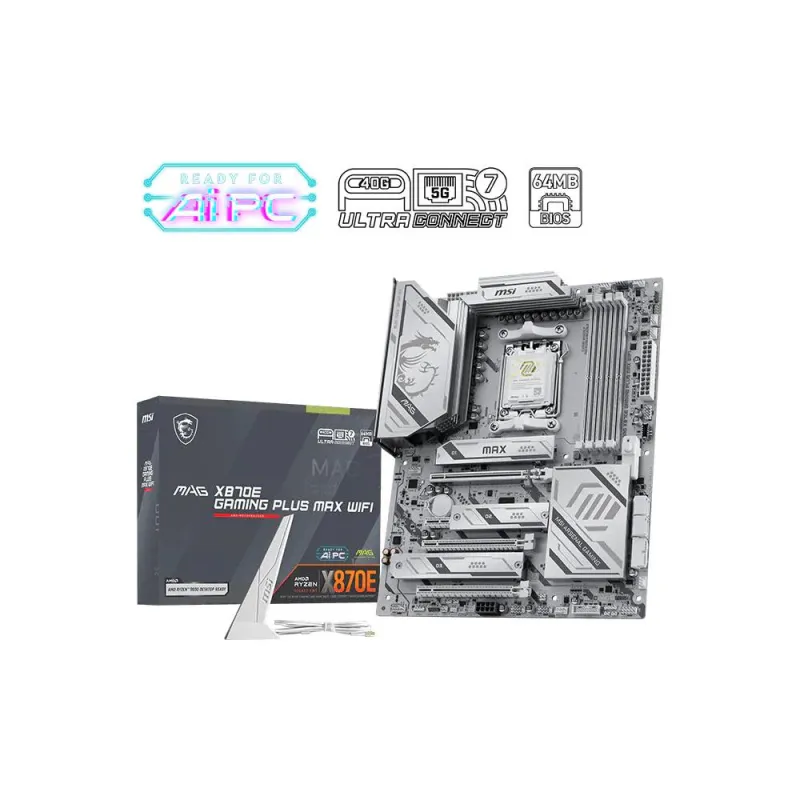

Mainboard, MSI, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, X870E

Name: Mainboard, MSI, AMD X870E, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, X870E
Brand: MSI
SKU: MAG X870E GAMING PLUS MAX WIFI
Price: 295.3 EUR
Availability: InStock

Gamintojas: MSI

Kodas MAG X870E GAMING PLUS MAX WIFI

Yra sandėlyje

295,30 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD X870E , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: MSI MAG X870E GAMING PLUS MAX WIFI. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 2
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.268
UNIT BOX LENGTH: 0.34
UNIT BOX WIDTH: 0.07
WIDTH, MM: 243.84
PRODUCT COLOUR: BLACK
UNIT CALCULATED WEIGHT, KG: 2.19
UNIT CALCULATED VOLUME, CUBM: 0.008014
UNITS PER SHIPPING BOX: 5
SHIPPING BOX WEIGHT, KG: 10.94
UNIT WIDTH, CM: 7
SHIPPING BOX HEIGHT, CM: 37
UNIT DEPTH, CM: 34
HDMI VERSION: 2.1
DEPTH, MM: 304.8
SHIPPING BOX DEPTH, CM: 38
SHIPPING BOX WIDTH, CM: 28.5
NAME: MB AMD X870E SAM5 ATX/X870E GAMING PLUS MAX WIFI MSI
UNIT HEIGHT, CM: 26.8
ETHERNET INTERFACE TYPE: 5 GIGABIT ETHERNET
BLUETOOTH VERSION: 5.4
BLUETOOTH: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
USB 2.0 PORTS QUANTITY: 4
HDMI PORTS QUANTITY: 1
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 2
WI-FI: Yes
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
COMPONENT FOR: PC
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
MEMORY CHANNELS: DUAL-CHANNEL
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 256
MOTHERBOARD CHIPSET: AMD X870E
PC HEALTH MONITORING: CPU/FAN/TEMPERATURE/VOLTAGE
MOTHERBOARD FORM FACTOR: ATX
MOTHERBOARD CHIPSET FAMILY: AMD
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: NON-ECC
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID SUPPORT: YES
RAID LEVELS: 0/1/10/5
USB 2.0 CONNECTORS: 6
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 4
NUMBER OF SATA III CONNECTORS: 4
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
USB4 GEN 2X2 PORTS QUANTITY: 1
ETHERNET LAN (RJ-45) PORTS: 1
S/PDIF OUT PORT: YES
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 3
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 512
MICROPHONE IN: YES
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5600/6000/6400/8200
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
LAN CONTROLLER: REALTEK RTL8126
ACPI VERSION: 6.5
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.7
TOTAL NUMBER OF SATA CONNECTORS: 4
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
