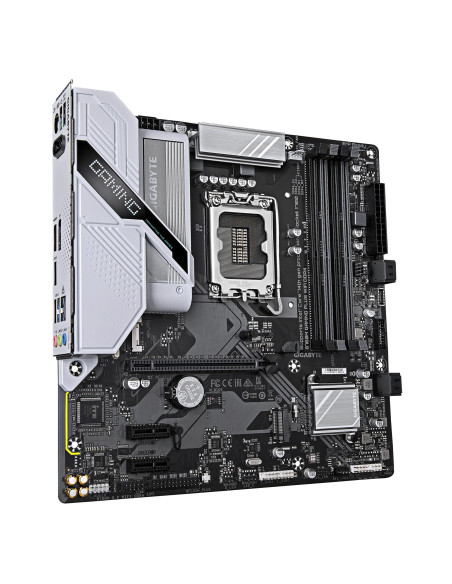

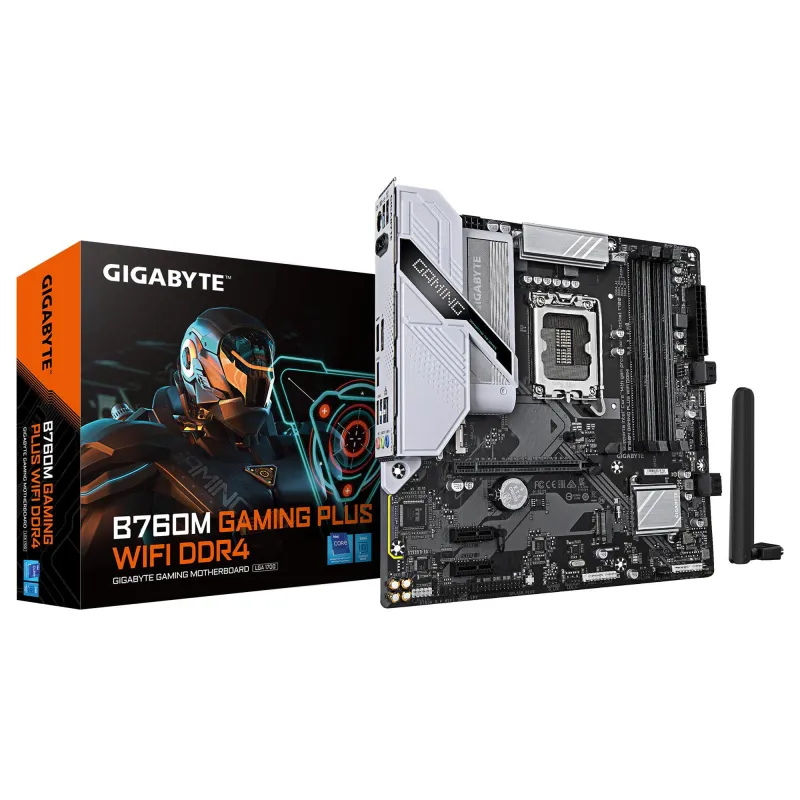

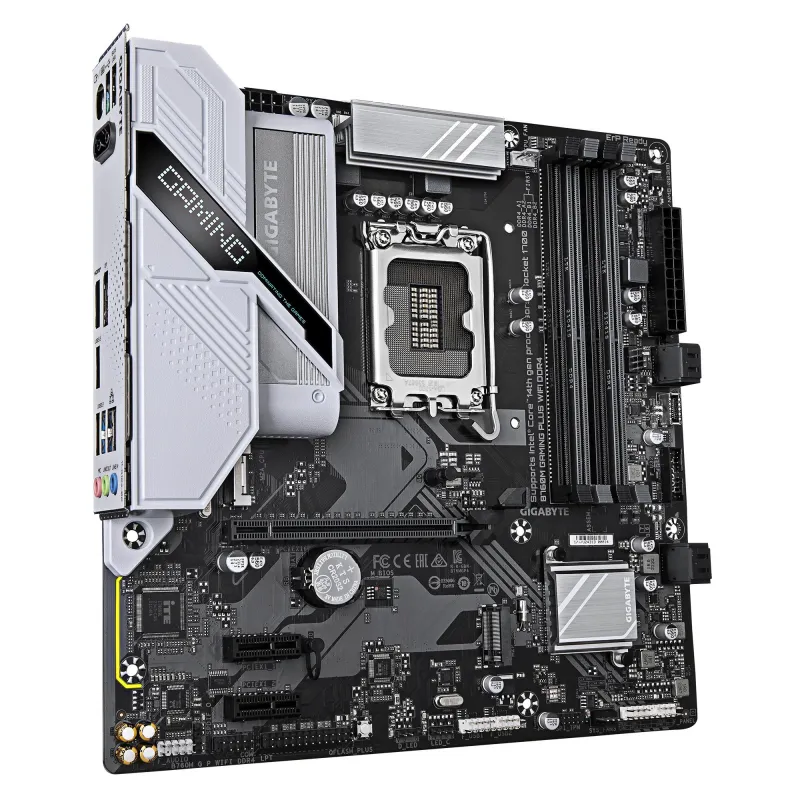

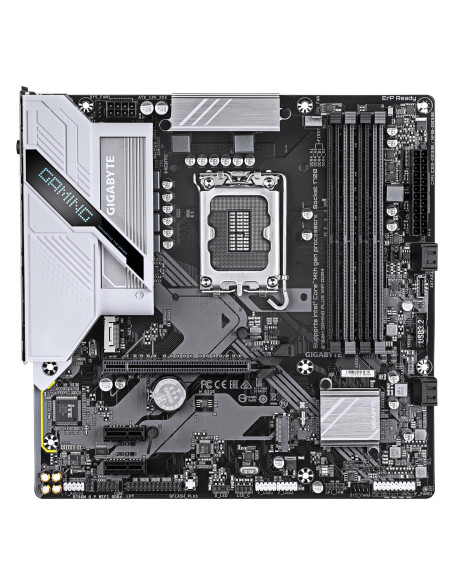

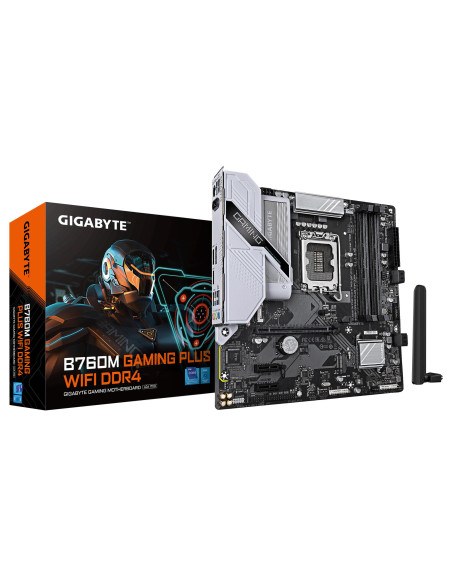

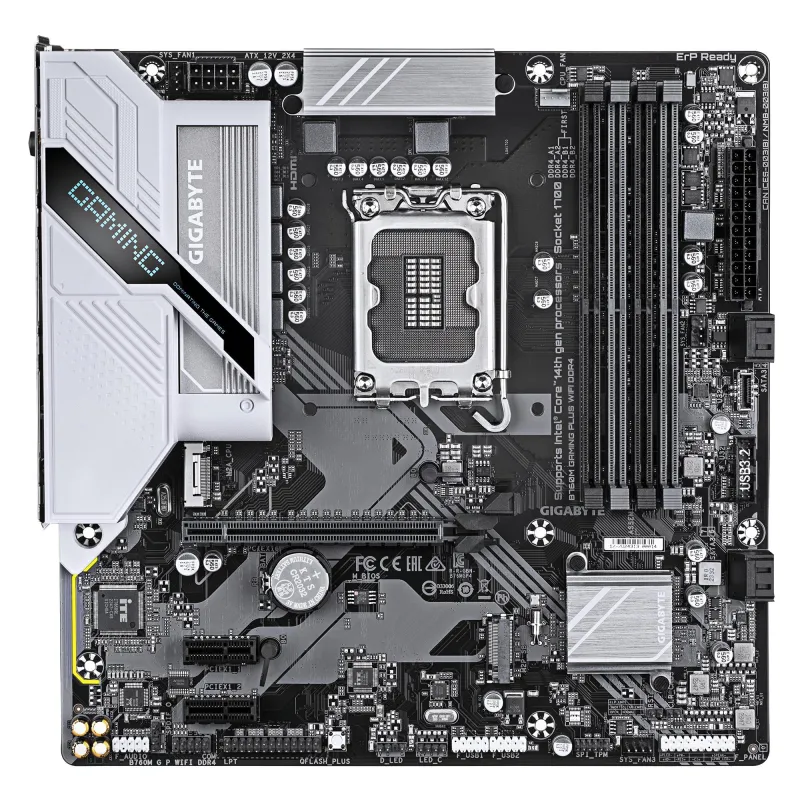

Mainboard, GIGABYTE, GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1), Intel B760, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots,

Mainboard, GIGABYTE, GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1), Intel B760, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots,

Name: Mainboard, GIGABYTE, GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1), Intel B760, LGA 1700, micro ATX, RAM DDR4-SDRAM, 4xSlots,
Brand: GIGABYTE
SKU: B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
Price: 118.42 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760M GAMING PLUS WIFI DDR4 (REV. 1.1)

Yra sandėlyje

118,42 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel B760 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2304 pixels , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.1 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B760M GAMING PLUS WIFI DDR4. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: INTEL® CELERON® , INTEL CORE I3 12TH GEN, INTEL CORE I3 13TH GEN, INTEL CORE I3 14TH GEN, INTEL.... SUPPORTED MEMORY TYPES:
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: GREY
UNIT CALCULATED WEIGHT, KG: 1.25
PRODUCT NET WEIGHT, KG: 1
UNIT CALCULATED VOLUME, CUBM: 0.00614
UNITS PER SHIPPING BOX: 10
SHIPPING BOX WEIGHT, KG: 12.49
UNIT WIDTH, CM: 27
SHIPPING BOX HEIGHT, CM: 29.5
SHIPPING BOX DEPTH, CM: 55.5
UNIT DEPTH, CM: 27.5
SHIPPING BOX WIDTH, CM: 37.5
NAME: MB B760 S1700 MATX/B760M G P WIFI DDR4 GIGABYTE
MODEL: GIGABYTE B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
UNIT HEIGHT, CM: 7
WIDTH, MM: 244
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1100
PACKAGE WIDTH, MM: 270
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1200
COUNTRY OF ORIGIN: CHINA
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
BLUETOOTH VERSION: 5.3
POWER SOURCE TYPE: ATX
BATTERY CAPACITY, MAH: 220
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY WEIGHT, G: 3
BATTERY: LITHIUM BATTERY
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BLUETOOTH: YES
WARRANTY PERIOD, YEAR(S): 3
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
HEADPHONE OUTPUTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
USB 2.0 PORTS QUANTITY: 2
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
HDMI PORTS QUANTITY: 1
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
HDCP: YES
WI-FI: Yes
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 6 (802.11AX)
COMPONENT FOR: PC
SUPPORTED PROCESSOR SOCKETS: LGA 1700
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
SCREWS INCLUDED: YES
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 128
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 128
MOTHERBOARD CHIPSET: Intel B760
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: INTEL
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC & NON-ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID SUPPORT: YES
RAID LEVELS: 0/1/10/5
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
EPS POWER CONNECTOR (8-PIN): YES
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 2

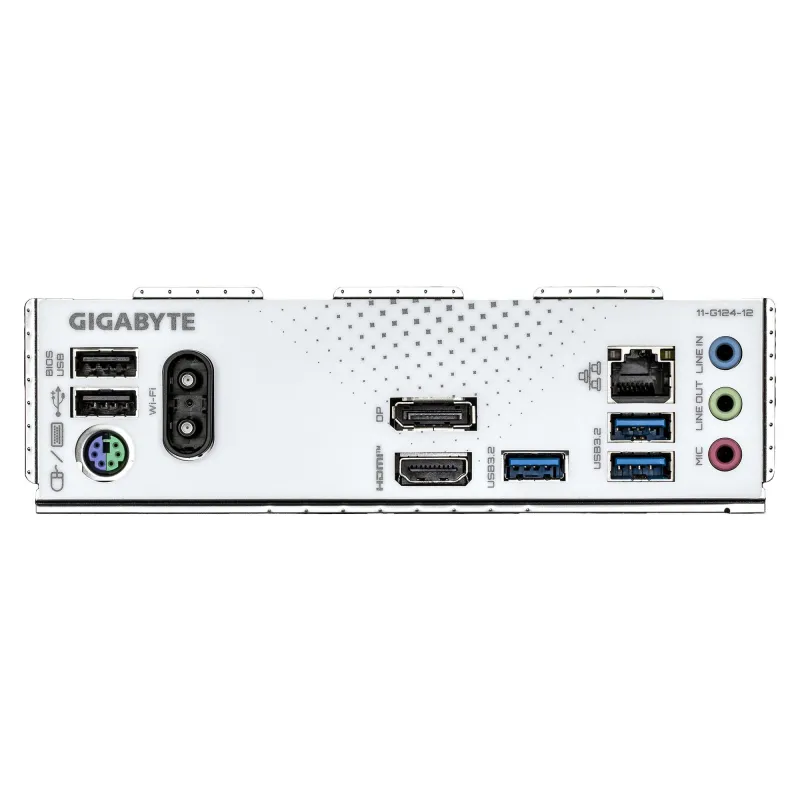

ETHERNET LAN (RJ-45) PORTS: 1
WIFI-AP ANTENNA JACK: 2
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)
WLAN CONTROLLER MODEL: REALTEK RTL8851BE
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 2
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
ANTENNA INCLUDED: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5333
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SERIAL PORT HEADERS: 1
S/PDIF OUT CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
PARALLEL CONNECTOR: YES
