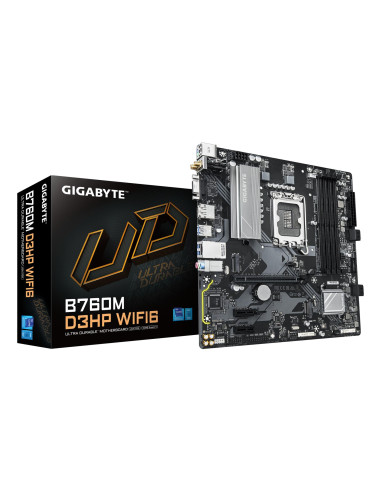

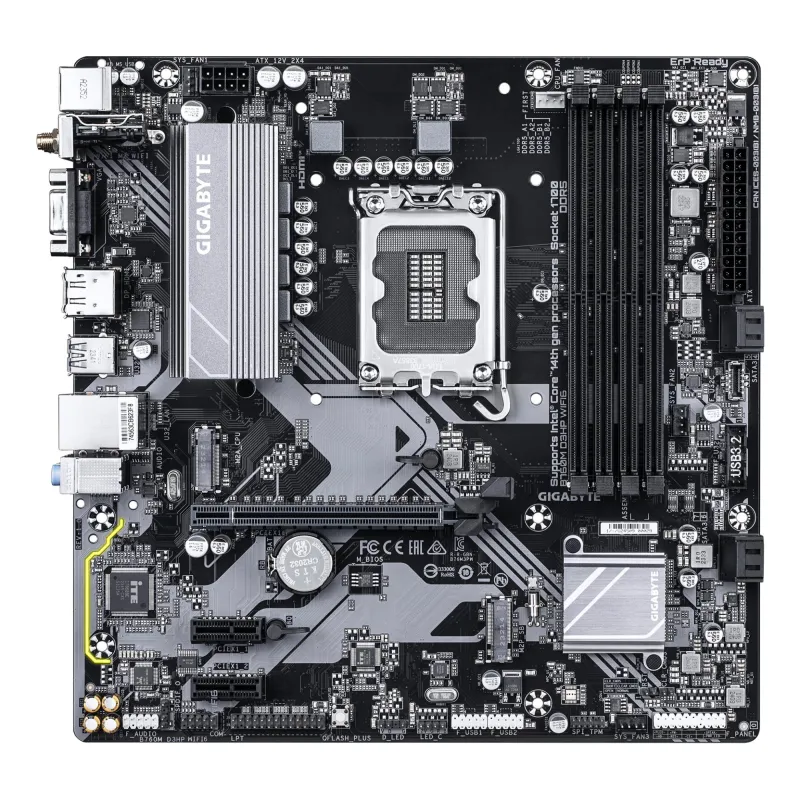

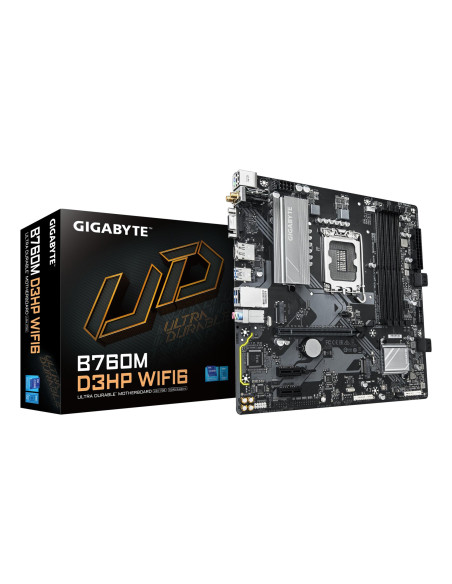

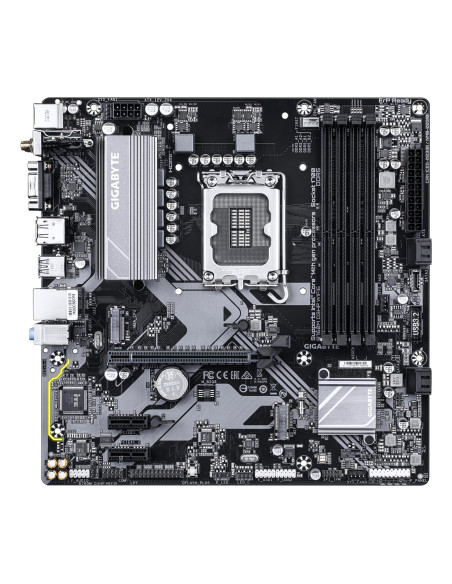

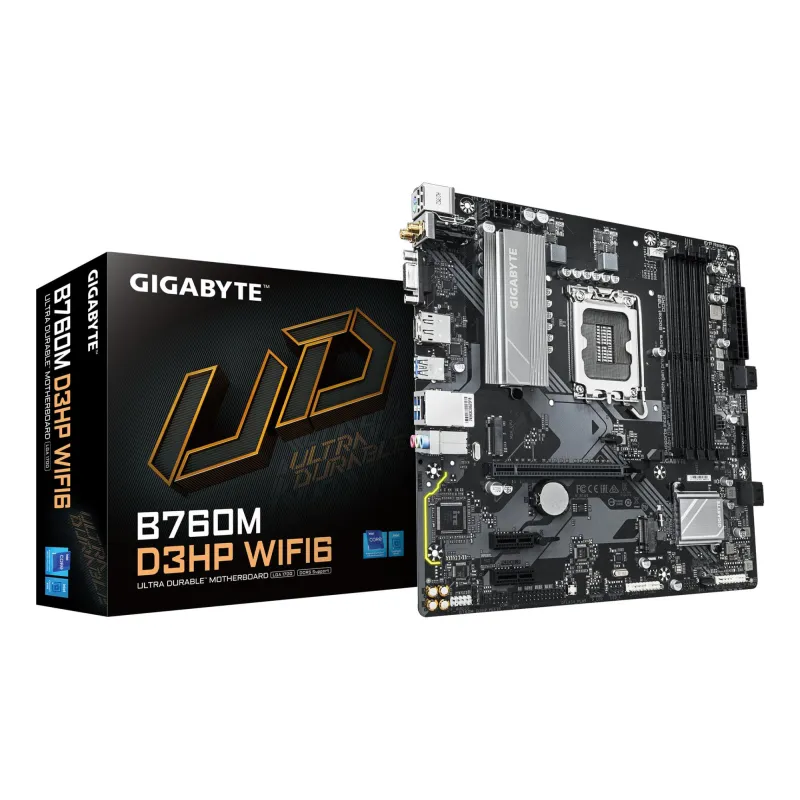

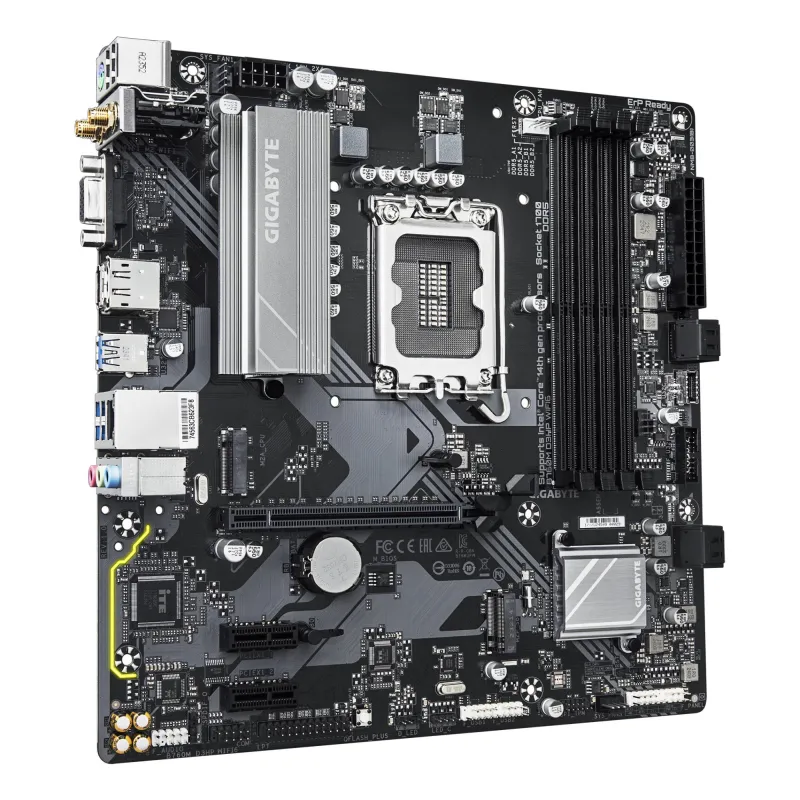

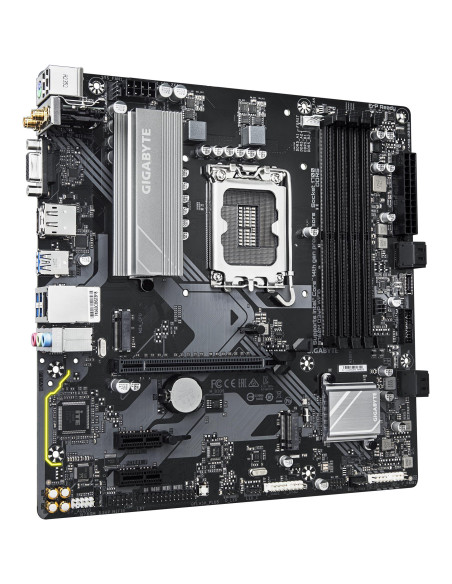

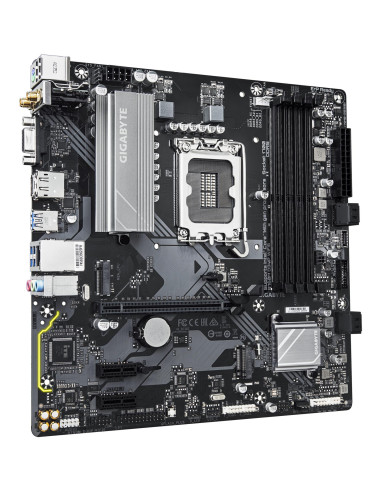

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MD3HPWIFI61.0

Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MD3HPWIFI61.0

Name: Mainboard, GIGABYTE, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, B760MD3HPWIFI61.0
Brand: GIGABYTE
SKU: B760M D3HP WIFI6 1.0
Price: 118.66 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B760M D3HP WIFI6 1.0

Yra sandėlyje

118,66 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

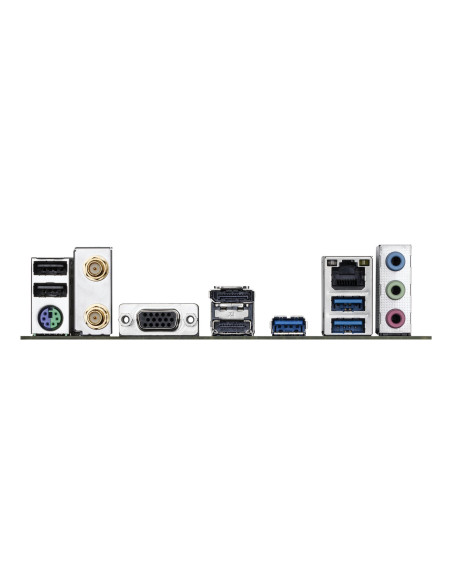

Intel B760 Express , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2304 pixels , 2xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.11 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B760M D3HP WIFI6 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 4+1+1 PHASES DIGITAL VRM, UP TO 5600MHZ DDR5, 2XPCIE 4.0 M.2, WI-FI 6, GBE LAN, USB 3.2 GEN1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: DARK BROWN
WIDTH, MM: 244
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1110
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 1200
WARRANTY PERIOD, YEAR(S): 3
UNIT CALCULATED WEIGHT, KG: 1.2
UNIT CALCULATED VOLUME, CUBM: 0.006195
UNITS PER SHIPPING BOX: 10
SHIPPING BOX WEIGHT, KG: 12
UNIT WIDTH, CM: 27
SHIPPING BOX HEIGHT, CM: 29.5
UNIT DEPTH, CM: 27.5
SHIPPING BOX DEPTH, CM: 56
UNIT HEIGHT, CM: 7
SHIPPING BOX WIDTH, CM: 37.5
NAME: MB B760 S1700 MATX/B760M D3HP WIFI6 1.0 GIGABYTE
PRODUCT NET WEIGHT, KG: 0.5
HDMI VERSION: 2.1
MODEL: B760M D3HP WIFI6
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2304
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY WEIGHT, G: 3
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
WI-FI: Yes
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
POWER SOURCE TYPE: ATX
BATTERY TYPE: CR2032
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
ETHERNET LAN (RJ-45) PORTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: Intel
USB 2.0 PORTS QUANTITY: 2
SCREWS INCLUDED: YES
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 6 (802.11AX)
WI-FI STANDARDS: WI-FI 6 (802.11AX)
ANTENNA INCLUDED: YES
BATTERIES INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
COOLING TYPE: PASSIVE
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.2
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
VGA (D-SUB) PORTS QUANTITY: 1
SUPPORTED PROCESSOR SOCKETS: LGA 1700
COMPATIBLE PROCESSOR SERIES: INTEL CORE/INTEL CORE I3 12TH GEN/INTEL CORE I3 13TH GEN/INTEL CORE I3 14TH GEN/INTEL CORE I5 12TH GEN/INTEL CORE I5 13TH GEN/INTEL CORE I5 14TH GEN/INTEL CORE I7 12TH GEN/INTEL CORE I7 13TH GEN/INTEL CORE I7 14TH GEN/INTEL CORE I9 12TH GEN/INTEL CELERON
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 192
MOTHERBOARD CHIPSET: INTEL B760 EXPRESS
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: INTEL
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC & NON-ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID SUPPORT: YES
RAID LEVELS: 0/1/10/5
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
EPS POWER CONNECTOR (8-PIN): YES
12V POWER CONNECTOR: YES
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 2
WIFI-AP ANTENNA JACK: 2
WLAN CONTROLLER MODEL: REALTEK RTL8851BE
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 2
1ST M.2 LARGEST KEY SIZE: 2280
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5600
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 48
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SERIAL PORT HEADERS: 1
S/PDIF OUT CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
PARALLEL CONNECTOR: YES
