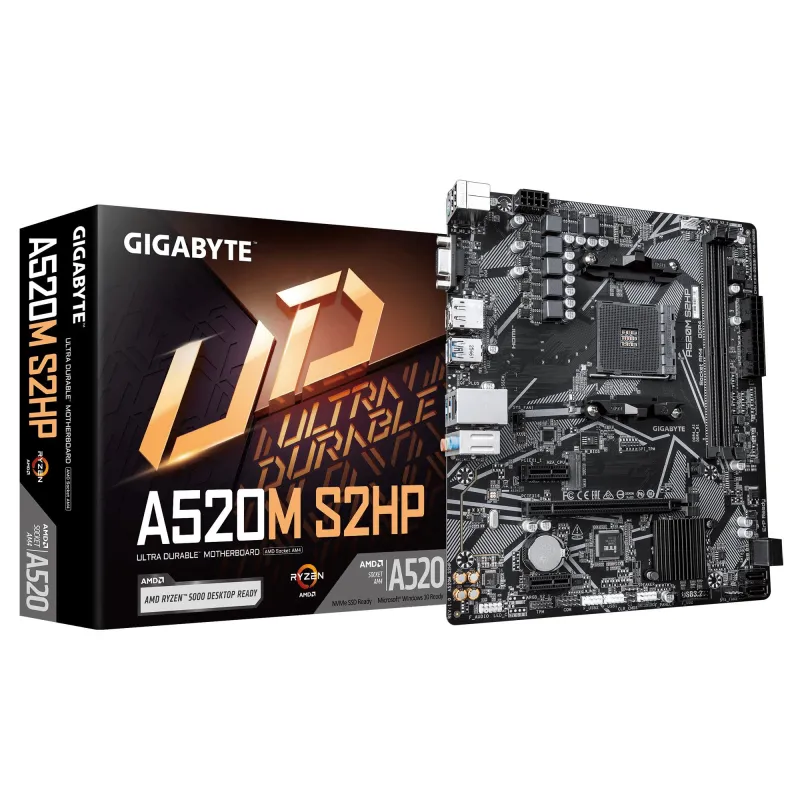

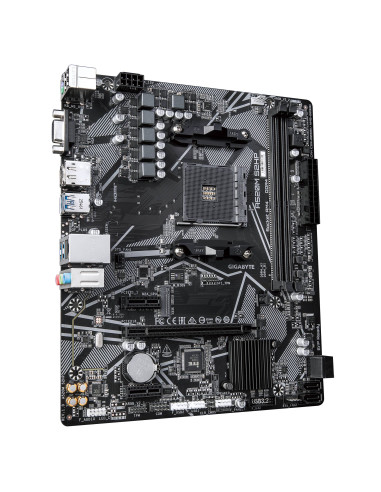

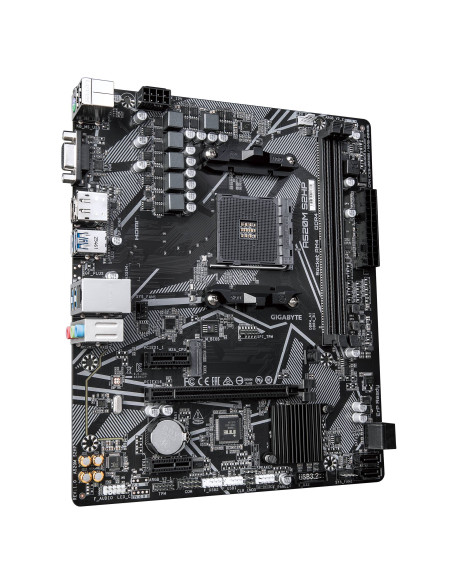

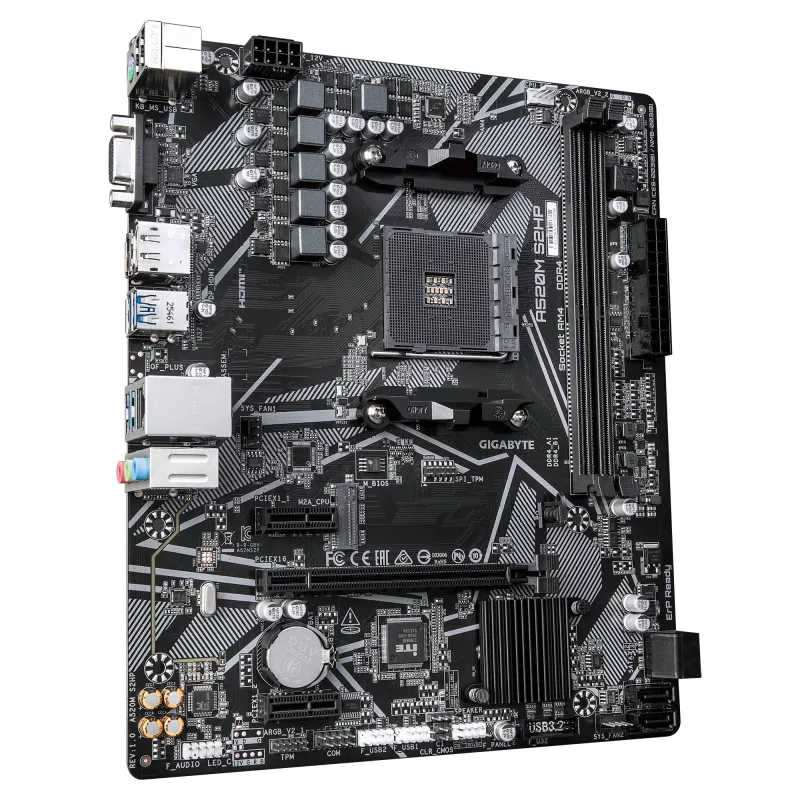

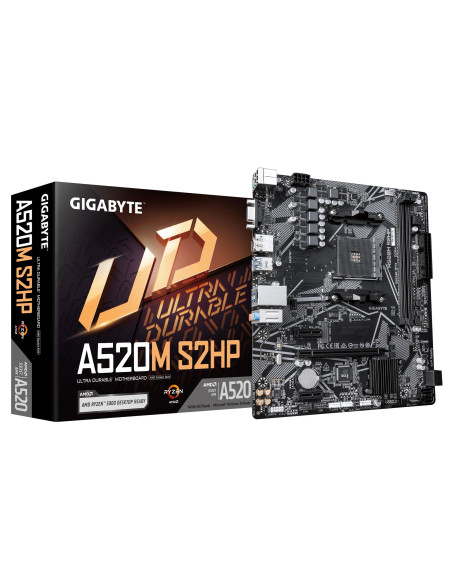

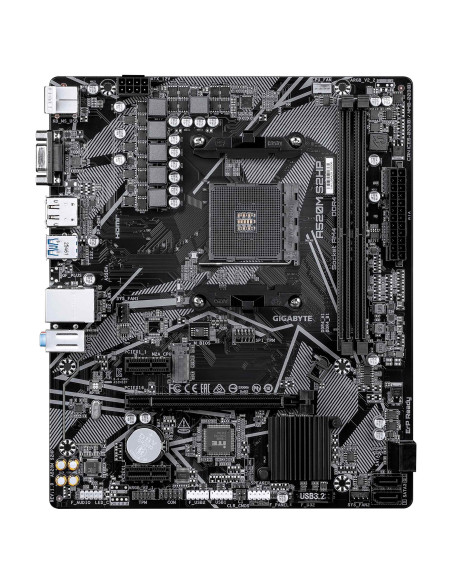

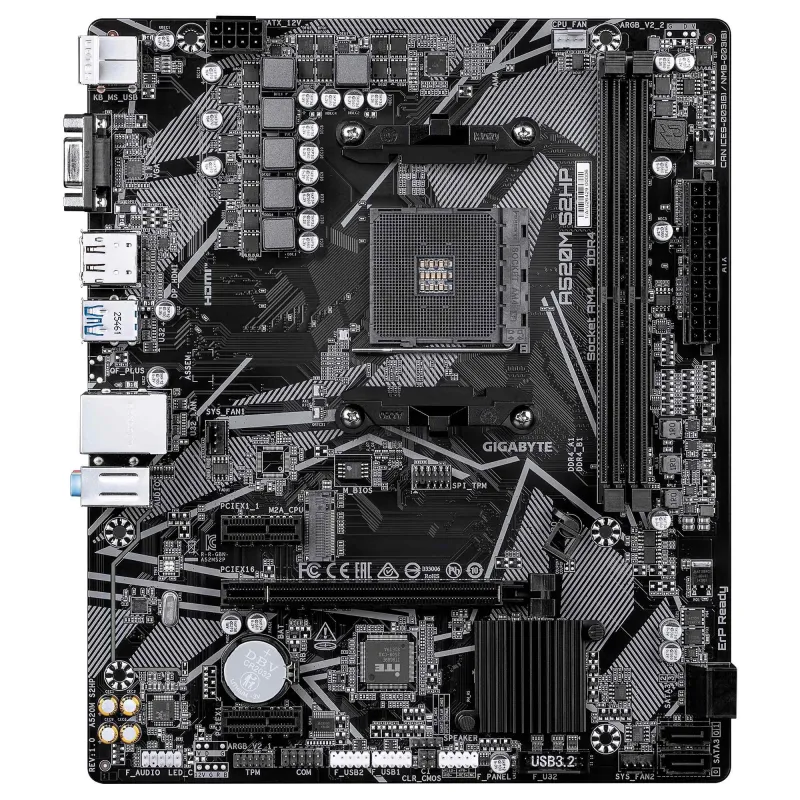

Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0

Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0

Name: Mainboard, GIGABYTE, AMD A520, Socket AM4, micro ATX, RAM DDR4-SDRAM, 2xSlots, 1xNumber of M.2 (M) slots, A520MS2HP1.0
Brand: GIGABYTE
SKU: A520M S2HP 1.0
Price: 65.11 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas A520M S2HP 1.0

Yra sandėlyje

65,11 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

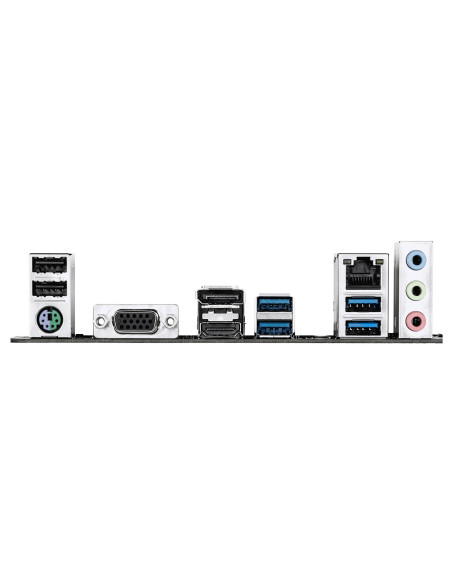

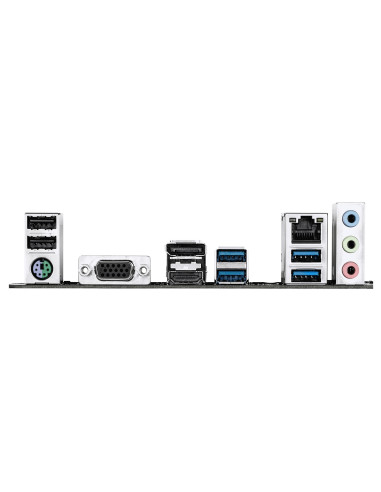

AMD A520 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 3.0,SATA , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE A520M S2HP MOTHERBOARD. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 64 GB, MEMORY SLOTS TYPE: DIMM. SUPPORTED STORAGE
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.23
PRODUCT COLOUR: BLACK
WIDTH, MM: 244
DEPTH, MM: 205
HEIGHT, MM: 35
PACKAGE WIDTH, MM: 265
PACKAGE DEPTH, MM: 235
PACKAGE HEIGHT, MM: 52
PACKAGE WEIGHT, G: 772
COUNTRY OF ORIGIN: CHINA
UNIT CALCULATED WEIGHT, KG: 0.78
UNIT CALCULATED VOLUME, CUBM: 0.004187
UNITS PER SHIPPING BOX: 10
SHIPPING BOX WEIGHT, KG: 7.8
UNIT WIDTH, CM: 23
SHIPPING BOX HEIGHT, CM: 26
UNIT DEPTH, CM: 27
SHIPPING BOX DEPTH, CM: 56.5
UNIT HEIGHT, CM: 5.5
SHIPPING BOX WIDTH, CM: 28.5
NAME: MB AMD A520 SAM4 MATX/A520M S2HP 1.0 GIGABYTE
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
HDCP: YES
WARRANTY PERIOD, YEAR(S): 3
BATTERY WEIGHT, G: 3
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
WI-FI: No
BATTERY TYPE: CR2032
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY CAPACITY, MAH: 220
ETHERNET LAN (RJ-45) PORTS: 1
PROCESSOR MANUFACTURER: AMD
USB 2.0 PORTS QUANTITY: 2
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
BATTERIES INCLUDED: YES
HDMI PORTS QUANTITY: 1
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES
PROCESSOR SOCKET: SOCKET AM4
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 64
MOTHERBOARD CHIPSET: AMD A520
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: AMD
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC & NON-ECC
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 3.0,SATA
RAID SUPPORT: YES
RAID LEVELS: 0/1/10
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 4
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
NUMBER OF M.2 (M) SLOTS: 1
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3333/3600/4866
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 3200
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
MAXIMUM NUMBER OF SMP PROCESSORS: 1
POWER FAN CONNECTOR: YES
PS/2 PORTS QUANTITY: 1
