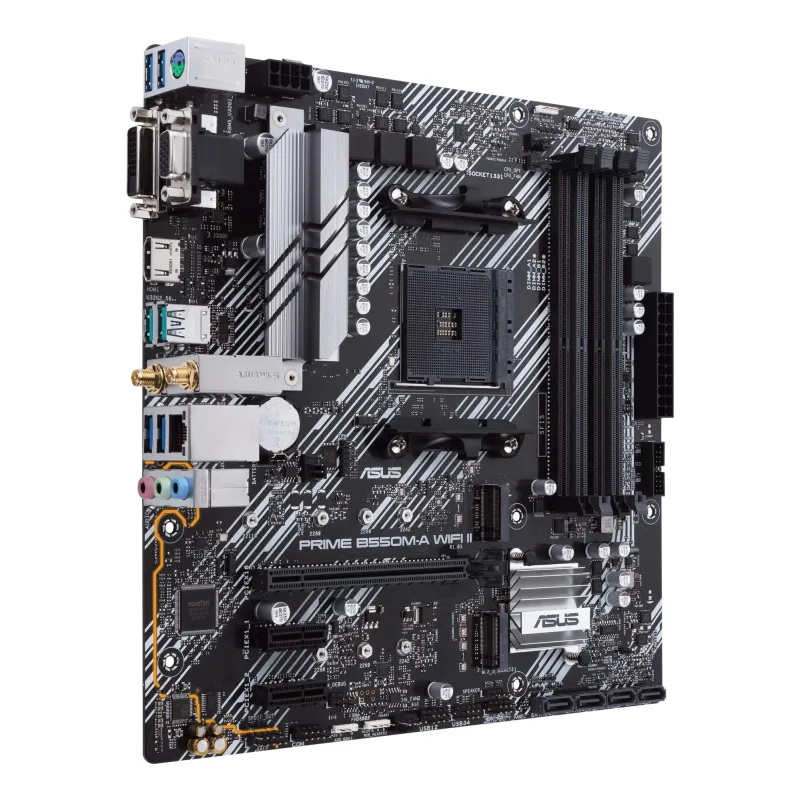

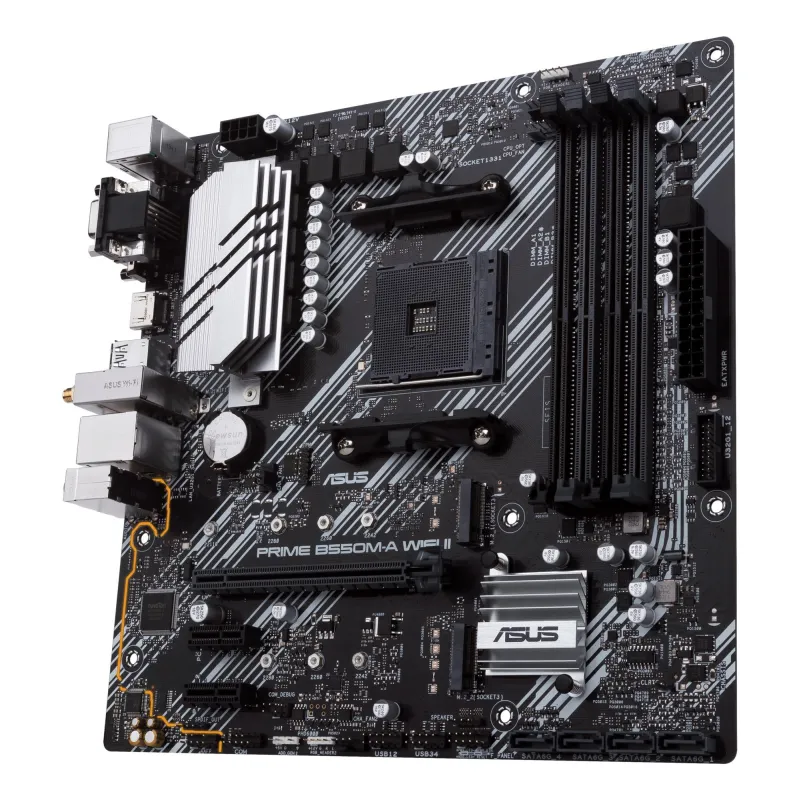

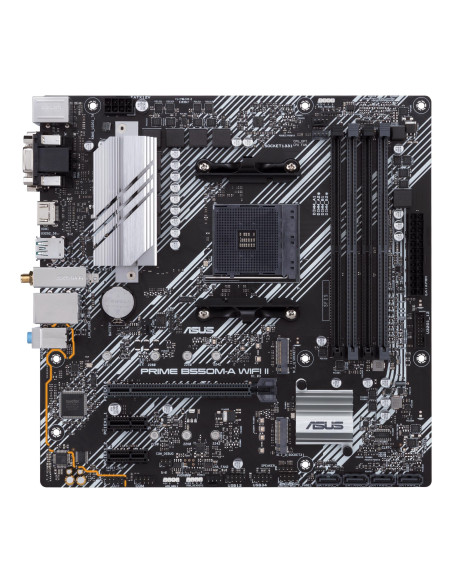

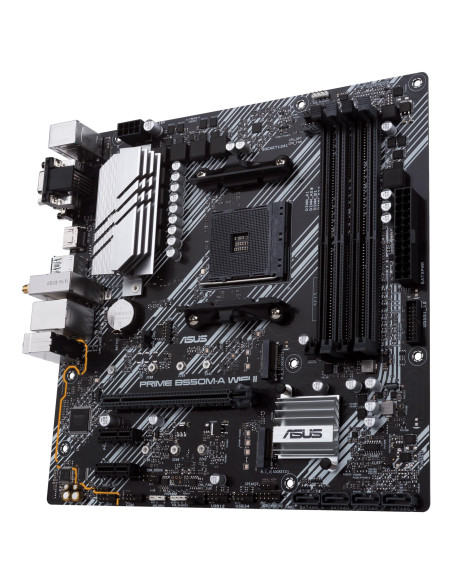

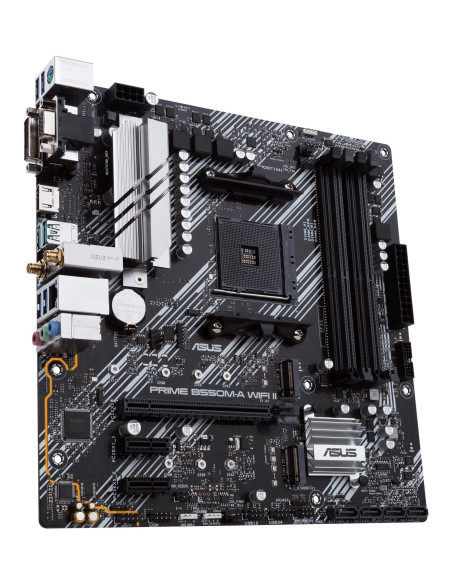

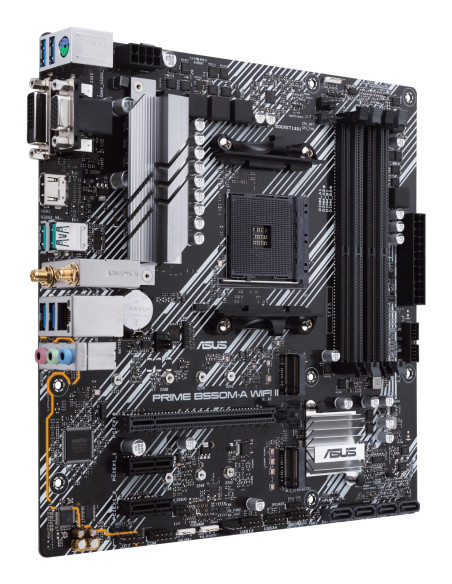

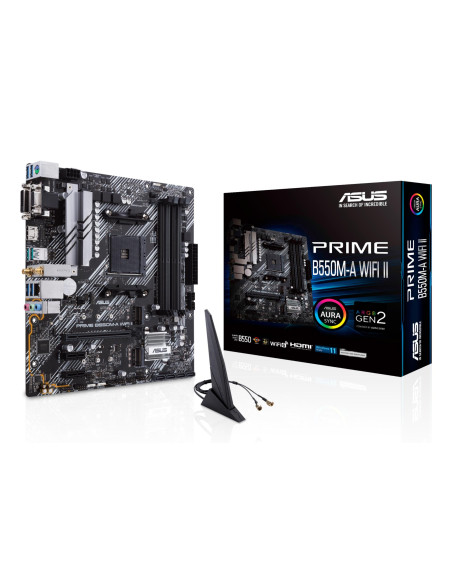

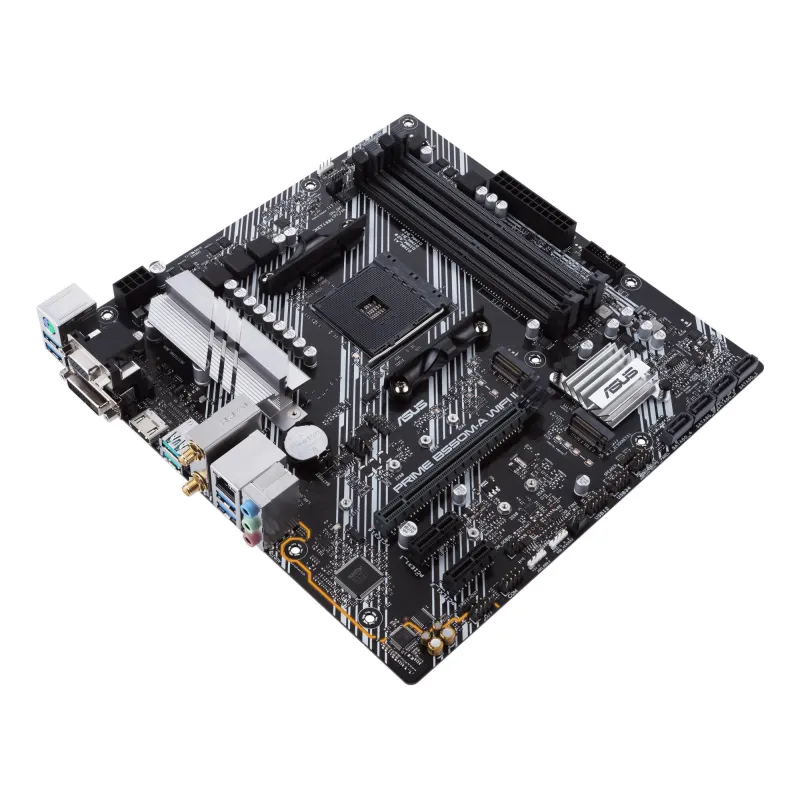

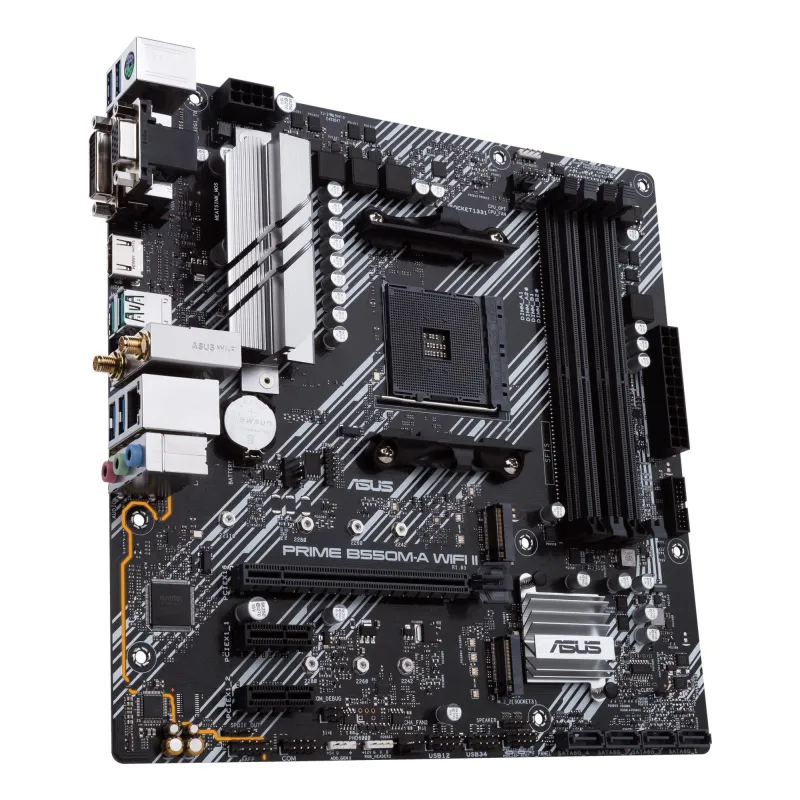

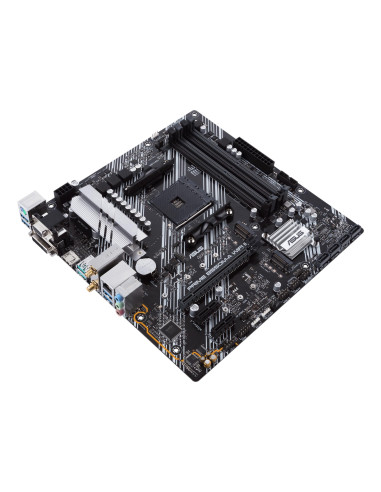

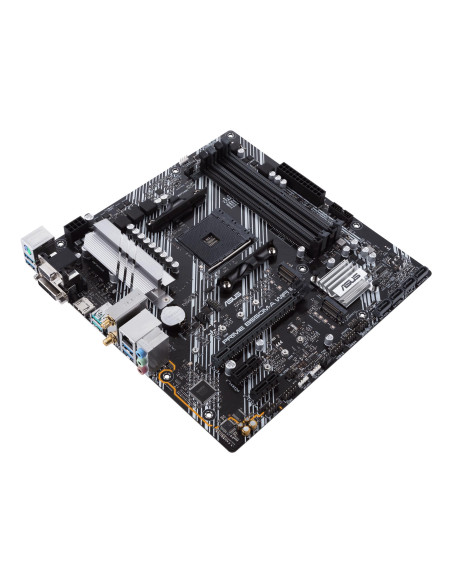

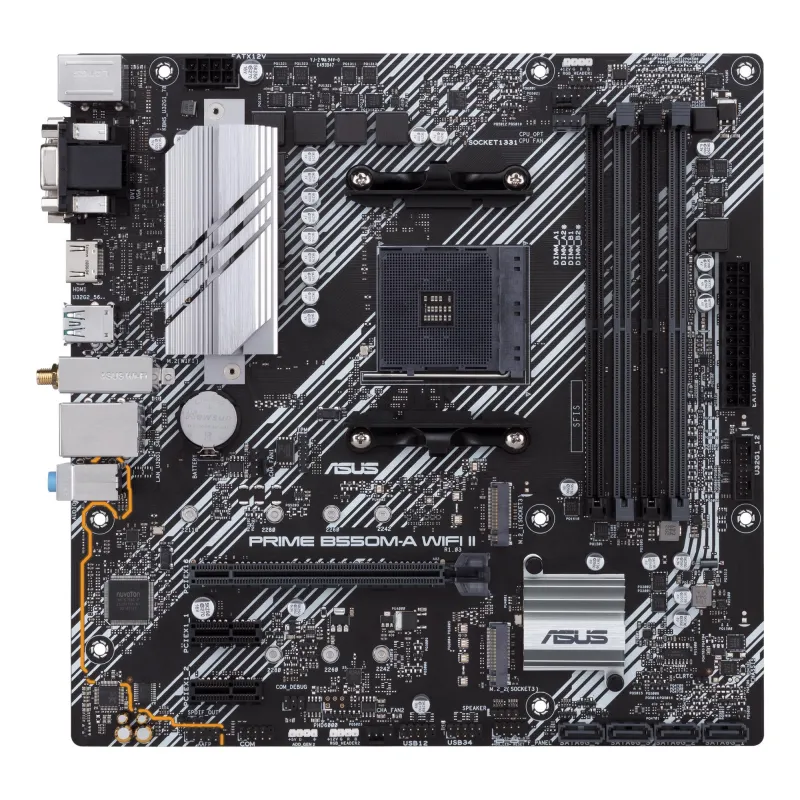

Mainboard, ASUS, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x1

Mainboard, ASUS, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x1

Name: Mainboard, ASUS, AMD B550, SAM4, MicroATX, Memory DDR4, Memory slots 4, 2xPCI-Express 3.0 1x, 1xPCI-Express 4.0 16x, 2xM.2, 1x1
Brand: ASUS
SKU: PRIMEB550M-AWIFIII
Price: 112.87 EUR
Availability: InStock

Gamintojas: ASUS

Kodas PRIMEB550M-AWIFIII

Paskutinė prekė

112,87 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD B550 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 3.0,PCI Express 4.0,SATA III , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , 1xDVI-D ports quantity , Wi-Fi Yes , Bluetooth Yes , Weight 845 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS PRIME B550M-A WIFI II. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AMD RYZEN 5000 SERIES. SUPPORTED MEMORY TYPES: DDR4-SDRAM, MAXIMUM INTERNAL MEMORY: 128 GB, MEMORY SLOTS TYPE: DIMM.
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.28
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: MULTICOLOUR
WI-FI: Yes
HEIGHT, MM: 67
WIDTH, MM: 244
DEPTH, MM: 244
WEIGHT, G: 845

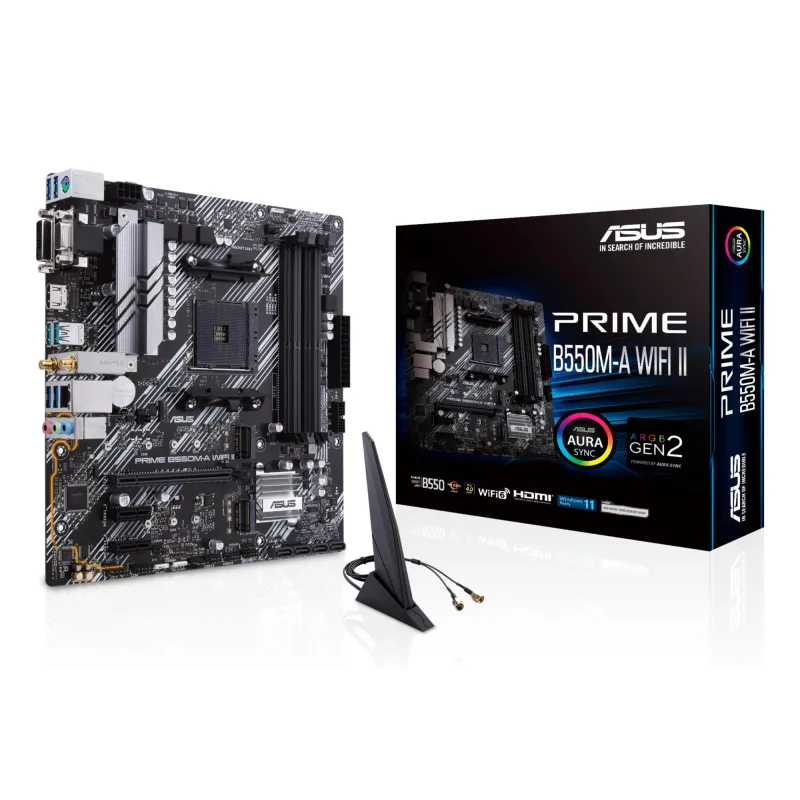

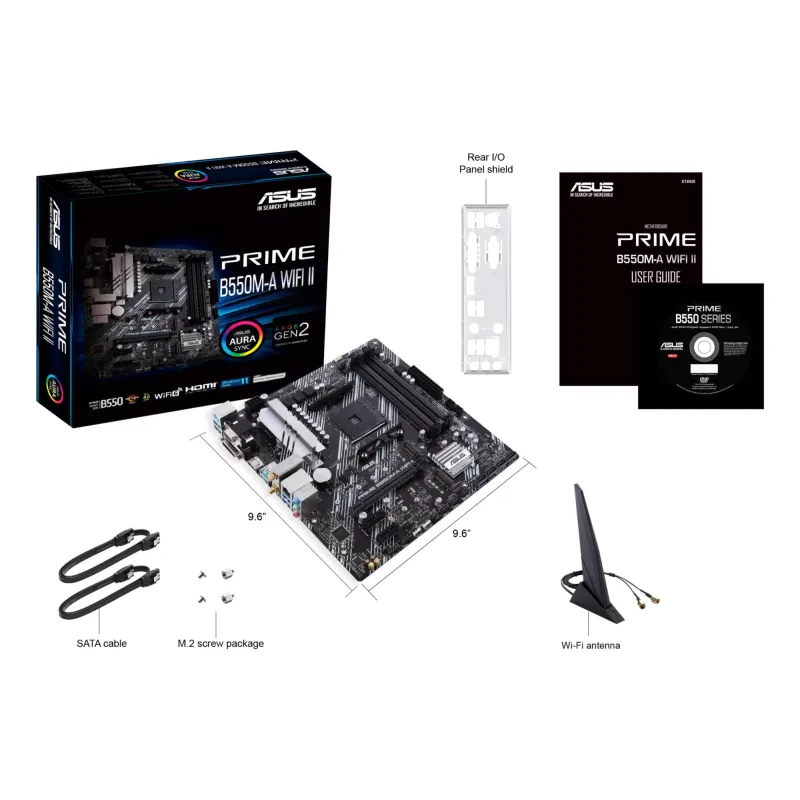

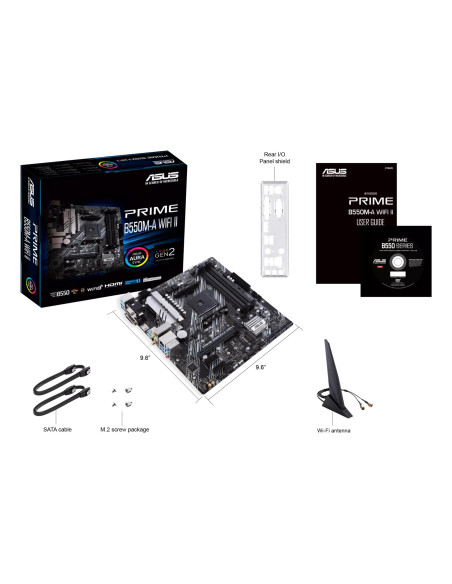

PACKAGING CONTENT: 2 X SATA 6GB/S CABLES 1 X ASUS WI-FI MOVING ANTENNAS 1 X I/O SHIELD 1 X M.2 SSD SCREW PACKAGE 1 X SUPPORT DVD 1 X USER MANUAL
UNIT CALCULATED WEIGHT, KG: 1.31
PRODUCT NET WEIGHT, KG: 0.7
UNIT CALCULATED VOLUME, CUBM: 0.006438
UNITS PER SHIPPING BOX: 10
SHIPPING BOX WEIGHT, KG: 13.13
UNIT WIDTH, CM: 27
SHIPPING BOX HEIGHT, CM: 30
UNIT DEPTH, CM: 28
SHIPPING BOX DEPTH, CM: 58
UNIT HEIGHT, CM: 7
SHIPPING BOX WIDTH, CM: 37
NAME: MB AMD B550 SAM4 MATX/PRIME B550M-A WIFI II ASUS
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
COMPONENT FOR: PC
CABLES INCLUDED: SATA
HARMONIZED SYSTEM (HS) CODE: 84733020
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 6 (802.11AX)
BLUETOOTH: YES
BLUETOOTH VERSION: 5.2
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
DRIVERS INCLUDED: YES
WAKE-ON-LAN READY: YES
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
USB CONNECTOR TYPE: USB TYPE-A
HDMI VERSION: 2.1
MICROPHONE IN: YES

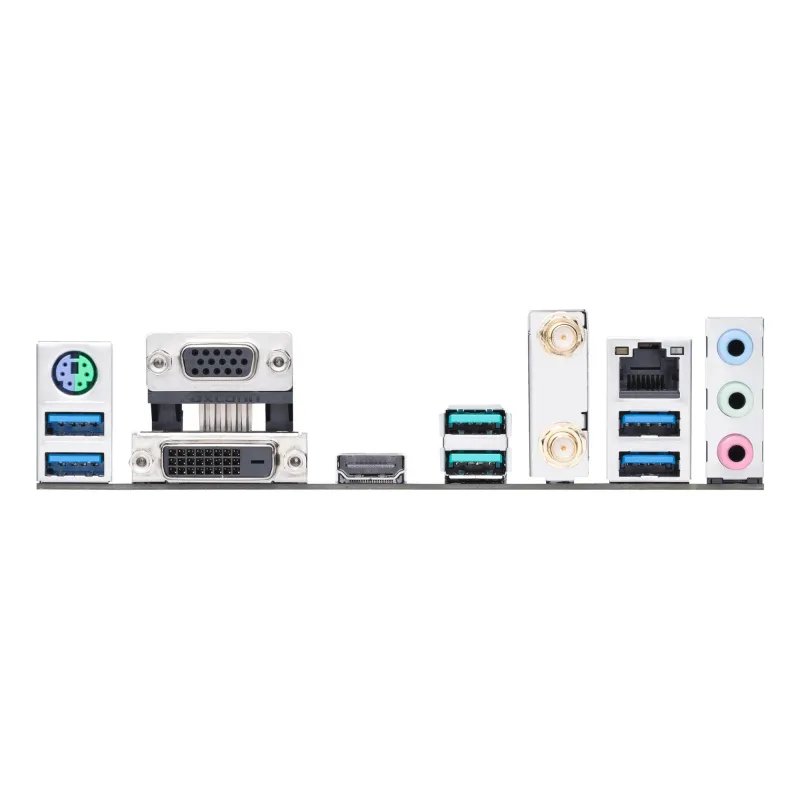

USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
PROCESSOR MANUFACTURER: AMD
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
MEMORY CHANNELS: DUAL-CHANNEL
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 2
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DVI-D PORTS QUANTITY: 1
VGA (D-SUB) PORTS QUANTITY: 1
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 5000 SERIES
PROCESSOR SOCKET: SOCKET AM4
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 128
MOTHERBOARD CHIPSET: AMD B550
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: AMD
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 3.0,PCI EXPRESS 4.0,SATA III
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID SUPPORT: YES
RAID LEVELS: 0/1/10
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
EPS POWER CONNECTOR (8-PIN): YES
12V POWER CONNECTOR: YES
RGB LED PIN HEADER: YES
WIFI-AP ANTENNA JACK: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 2
1ST M.2 LARGEST KEY SIZE: 22110
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
NUMBER OF COM CONNECTORS: 1
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800/4866
TPM CONNECTOR: YES
LAN CONTROLLER: REALTEK RTL8111H
CLEAR CMOS JUMPER: YES
S/PDIF OUT CONNECTOR: YES
NUMBER OF EATX POWER CONNECTORS: 1
PS/2 PORTS QUANTITY: 1
