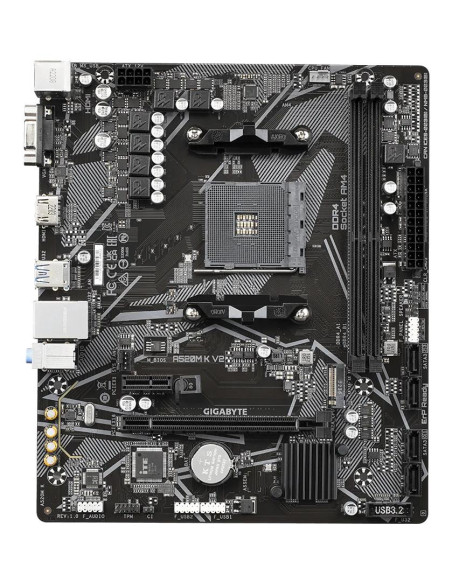

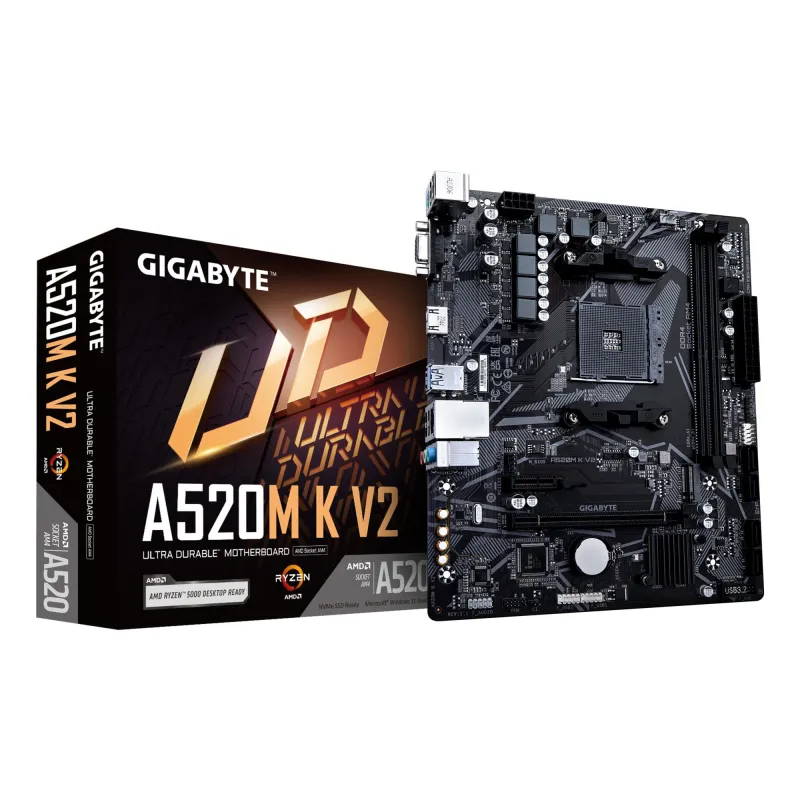

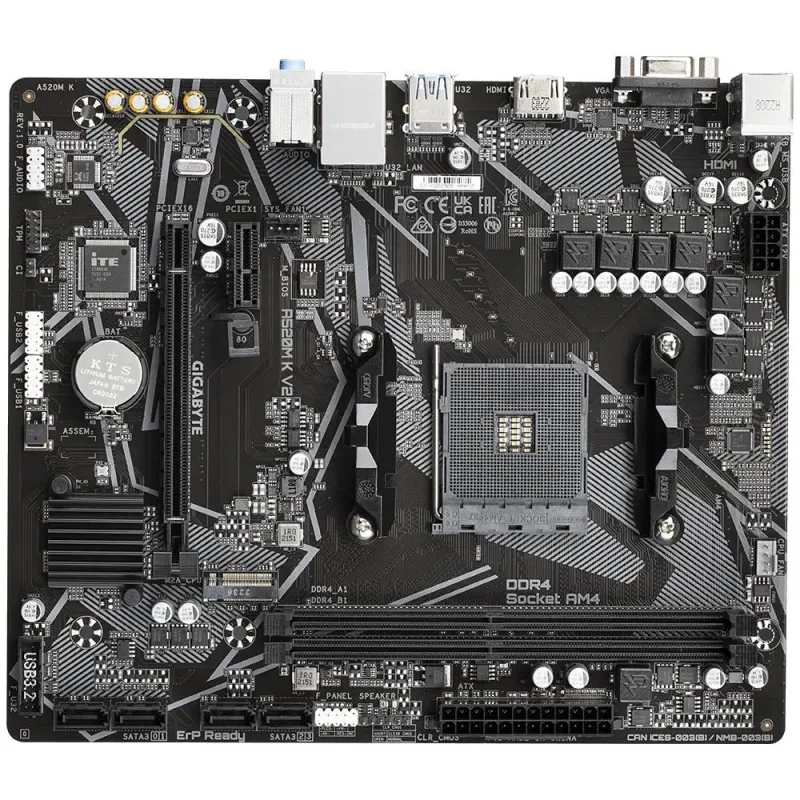

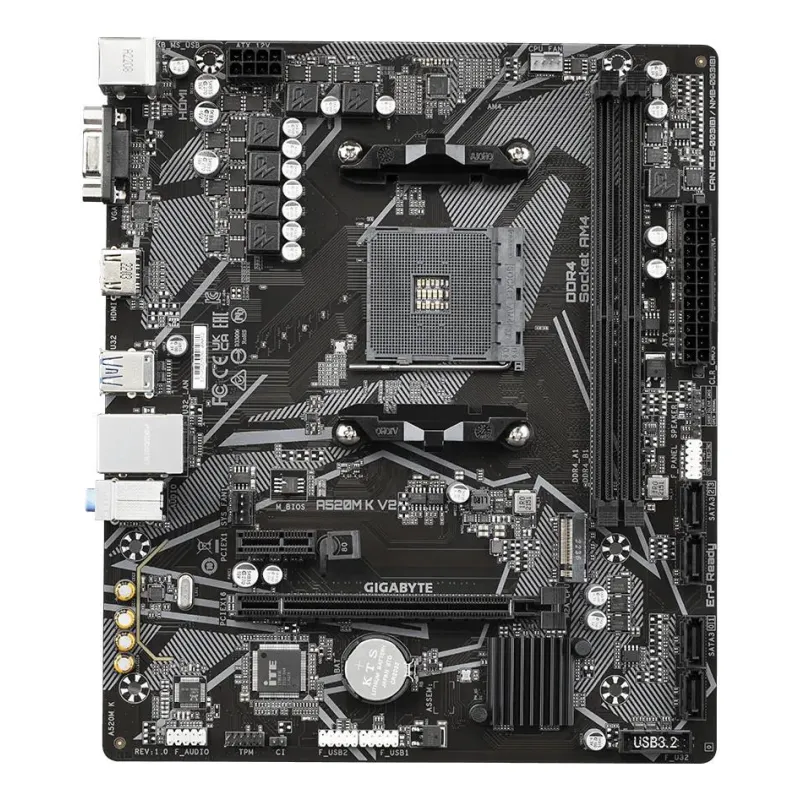

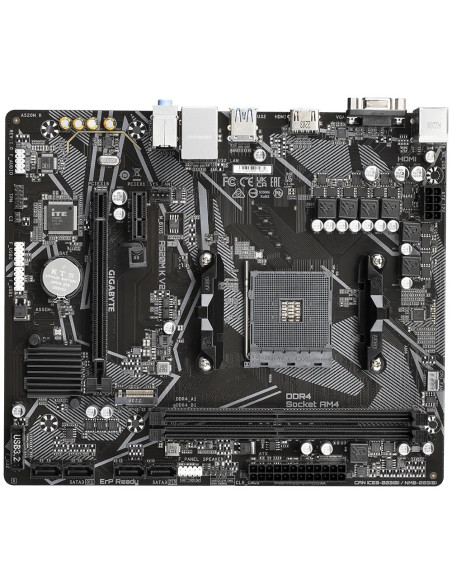

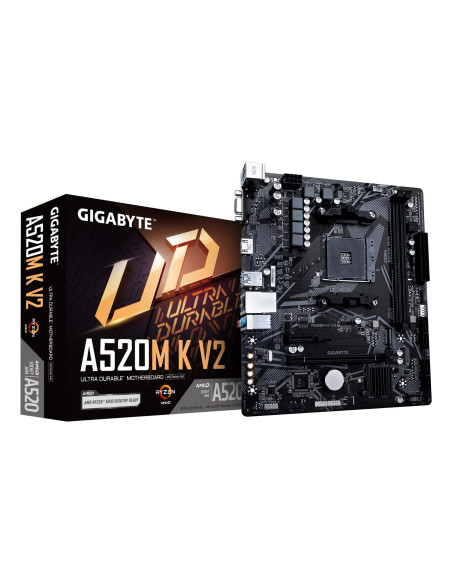

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2

Name: Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 1xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2
Brand: GIGABYTE
SKU: A520MKV21.1
Price: 54.87 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas A520MKV21.1

Yra sandėlyje

54,87 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

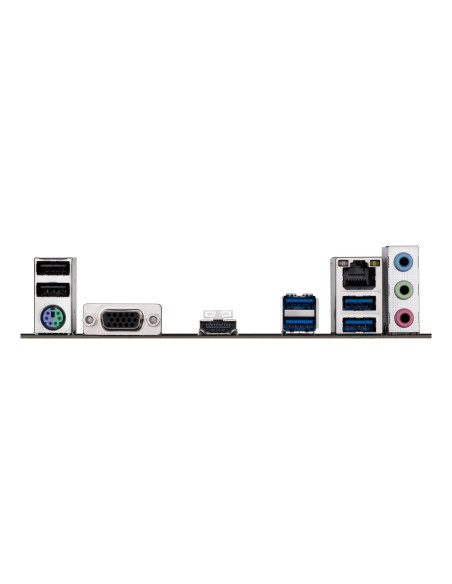

AMD A520 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE A520M K V2 MOTHERBOARD - SUPPORTS AMD RYZEN 5000 SERIES AM4 CPUS, UP TO 5100MHZ DDR4 (OC), PCIE GEN3 X4 M.2, GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES, AM
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.05
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.23
HEIGHT, MM: 35
UNIT CALCULATED WEIGHT, KG: 0.75
BATTERY WEIGHT, G: 3
PRODUCT NET WEIGHT, KG: 0.5
UNIT CALCULATED VOLUME, CUBM: 0.004267
UNITS PER SHIPPING BOX: 10
SHIPPING BOX WEIGHT, KG: 7.5
UNIT WIDTH, CM: 23
SHIPPING BOX HEIGHT, CM: 26.5
UNIT DEPTH, CM: 27
SHIPPING BOX DEPTH, CM: 56.5
UNIT HEIGHT, CM: 5
SHIPPING BOX WIDTH, CM: 28.5
NAME: MB AMD A520 SAM4 MATX/A520M K V2 1.1 GIGABYTE
MODEL: A520M K V2 (REV. 1.1)
WI-FI: No
COUNTRY OF ORIGIN: CHINA
WIDTH, MM: 233
DEPTH, MM: 198
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
PACKAGE DEPTH, MM: 235
PACKAGE HEIGHT, MM: 52
PACKAGE WIDTH, MM: 265
PACKAGE WEIGHT, G: 675
BATTERIES INCLUDED: YES
NUMBER OF BATTERY CELLS: 1
WARRANTY PERIOD, YEAR(S): 3
ETHERNET LAN (RJ-45) PORTS: 1
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
COMPONENT FOR: PC
CABLES INCLUDED: SATA
ETHERNET LAN: YES
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
USB CONNECTOR TYPE: USB TYPE-A
BATTERY TYPE: CR2032
HDMI VERSION: 2.1
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
BUNDLED SOFTWARE: NORTON INTERNET SECURITY
PROCESSOR MANUFACTURER: AMD
USB 2.0 PORTS QUANTITY: 2
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 3
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
VGA (D-SUB) PORTS QUANTITY: 1
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 5000 SERIES
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY, GB: 64
MOTHERBOARD CHIPSET: AMD A520
MOTHERBOARD FORM FACTOR: MICRO ATX
MOTHERBOARD CHIPSET FAMILY: AMD
SUPPORTED MEMORY TYPES: DDR4-SDRAM
NUMBER OF MEMORY SLOTS: 2
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: ECC & NON-ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF STORAGE DRIVES SUPPORTED: 5
RAID SUPPORT: YES
RAID LEVELS: 0/1/10
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
12V POWER CONNECTOR: YES
NUMBER OF M.2 (M) SLOTS: 1
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 128
MICROPHONE IN: YES
CHASSIS INTRUSION CONNECTOR: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 5100
TPM CONNECTOR: YES
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
PCI EXPRESS X16 SLOTS: 1
PS/2 PORTS QUANTITY: 1
PCI EXPRESS X1 SLOTS: 1
