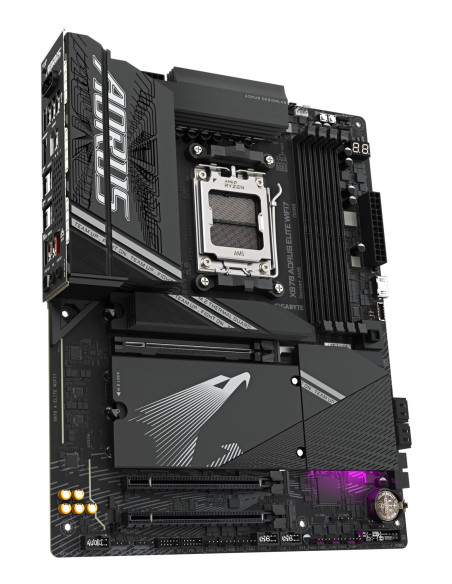

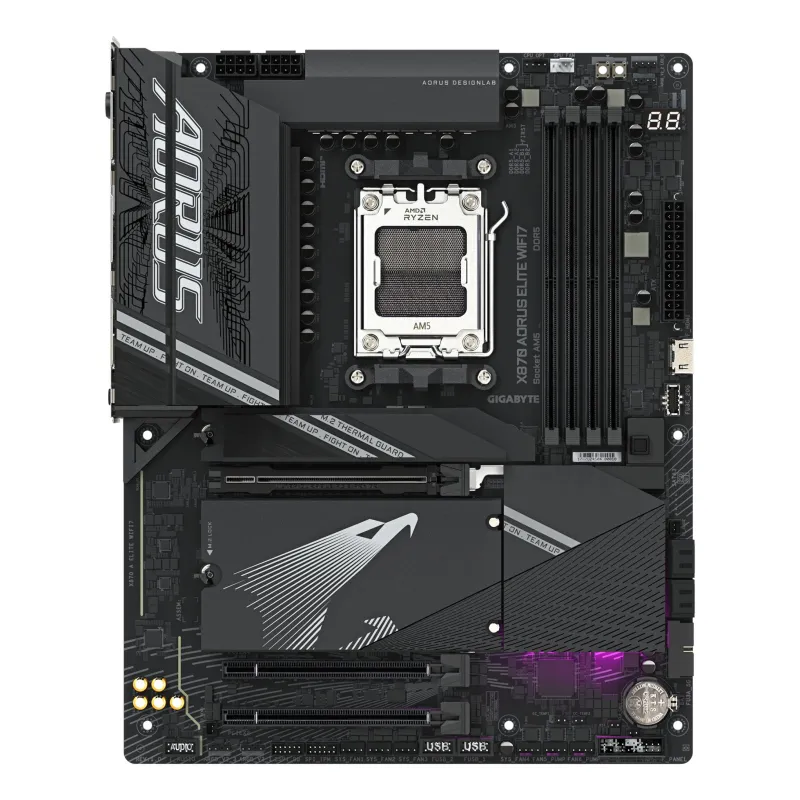

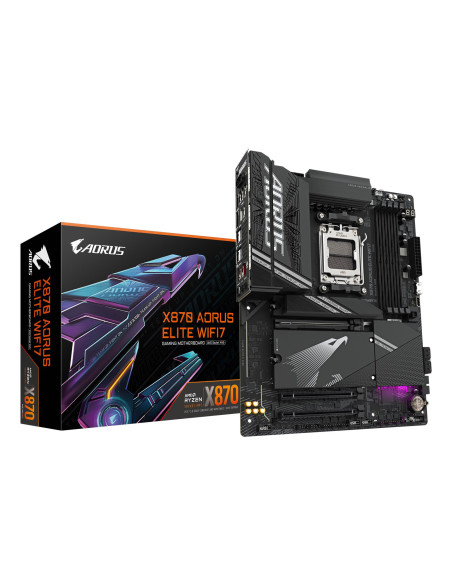

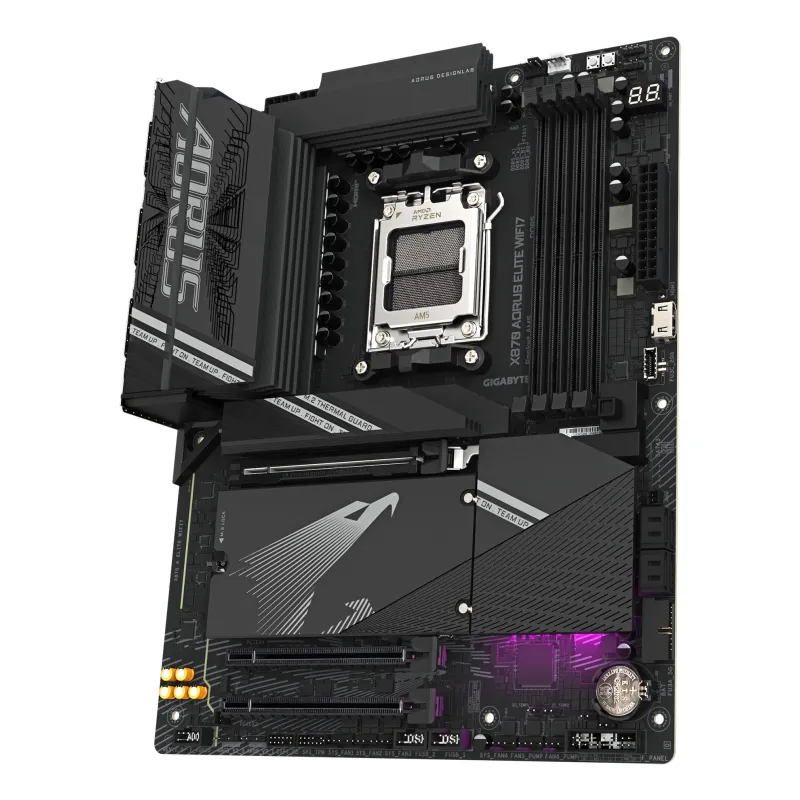

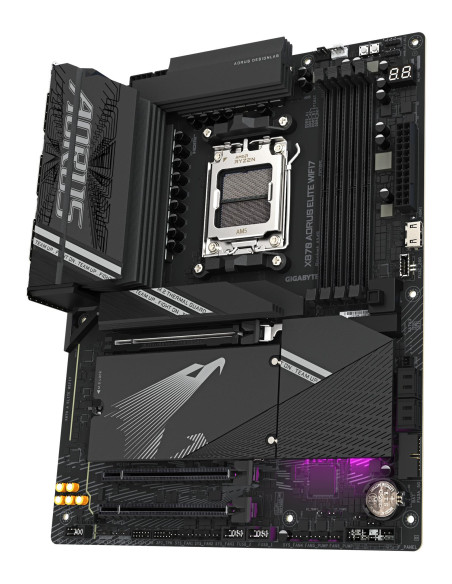

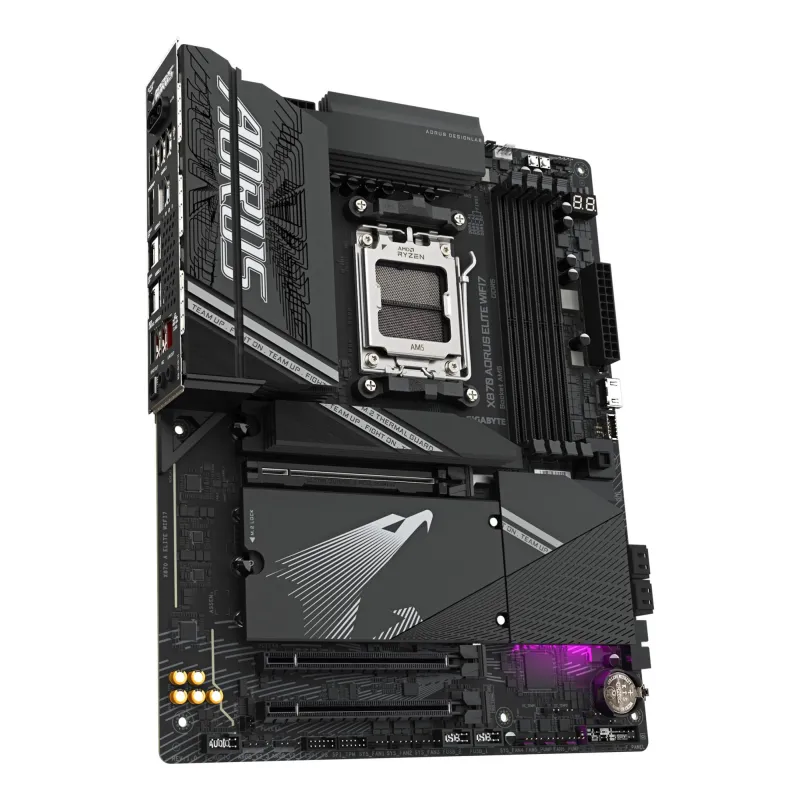

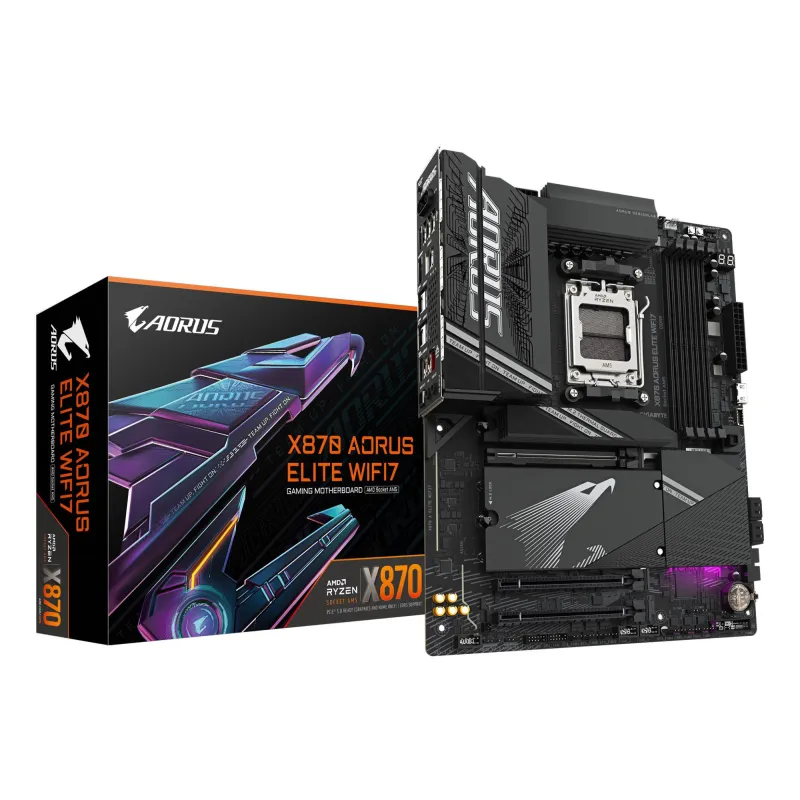

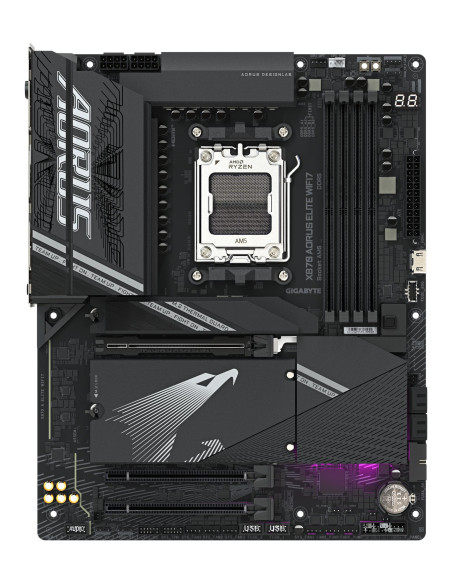

Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, X870AELITEWIFI71.1

Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, X870AELITEWIFI71.1

Name: Mainboard, GIGABYTE, AMD X870, SAM5, ATX, Memory DDR5, Memory slots 4, X870AELITEWIFI71.1
Brand: GIGABYTE
SKU: X870 A ELITE WIFI7 1.1
Price: 281.69 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas X870 A ELITE WIFI7 1.1

Yra sandėlyje

281,69 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD X870 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 2.4 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE X870 AORUS ELITE WIFI7 MOTHERBOARD - SUPPORTS AMD RYZEN 9000 CPUS, 16+2+2 PHASES VRM, UP TO 8000MHZ DDR5 (OC), 3XPCIE 5.0 + 1XPCIE 4.0, WI-FI 7, 2.5GBE LAN, USB 4. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SE
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.27
UNIT BOX LENGTH: 0.34
UNIT BOX WIDTH: 0.08
PRODUCT COLOUR: BLACK
WIDTH, MM: 305
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 2400
PACKAGE WIDTH, MM: 335
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 2740
UNIT CALCULATED WEIGHT, KG: 2.3
PRODUCT NET WEIGHT, KG: 1.5
UNITS PER SHIPPING BOX: 5
UNIT WIDTH, CM: 8
UNIT DEPTH, CM: 34
UNIT CALCULATED VOLUME, CUBM: 0.01043
UNIT HEIGHT, CM: 27
SHIPPING BOX WEIGHT, KG: 11.5
SHIPPING BOX HEIGHT, CM: 38
SHIPPING BOX DEPTH, CM: 45
SHIPPING BOX WIDTH, CM: 30.5
NAME: MB AMD X870 SAM5 ATX/X870 A ELITE WIFI7 GIGABYTE
MODEL: X870 AORUS ELITE WIFI7
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
COUNTRY OF ORIGIN: CHINA
HDMI VERSION: 2.1
BLUETOOTH VERSION: 5.4
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
BATTERY WEIGHT, G: 3
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BLUETOOTH: YES
WARRANTY PERIOD, YEAR(S): 3
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
HEADPHONE OUTPUTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
USB 2.0 PORTS QUANTITY: 2
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
HDMI PORTS QUANTITY: 1
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 2
DIRECTX VERSION: 12.0
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
WI-FI: Yes
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
COMPONENT FOR: PC
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SCREWS INCLUDED: YES
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 256
MEMORY CHANNELS: DUAL-CHANNEL
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 256
MOTHERBOARD CHIPSET: AMD X870
AUDIO CHIP: REALTEK ALC1220
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
MOTHERBOARD FORM FACTOR: ATX
MOTHERBOARD CHIPSET FAMILY: AMD
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: NON-ECC
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 8
RAID SUPPORT: YES
RAID LEVELS: 0/1/10
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2X2 CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 6
EPS POWER CONNECTOR (8-PIN): YES
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 3
USB4 GEN 2X2 PORTS QUANTITY: 2
ETHERNET LAN (RJ-45) PORTS: 1
WIFI-AP ANTENNA JACK: 2
S/PDIF OUT PORT: YES
WI-FI STANDARDS: WI-FI 7 (802.11BE)
WLAN CONTROLLER MODEL: MEDIATEK MT7925
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 4
1ST M.2 LARGEST KEY SIZE: 25110
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 22110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
3RD M.2 LARGEST KEY SIZE: 22110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
4TH M.2 LARGEST KEY SIZE: 22110
4TH M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
ANTENNA INCLUDED: YES
MICROPHONE IN: YES
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF WATER PUMP CONNECTORS: 3
TPM CONNECTOR: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8125
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
SUPPORTED MEMORY MODULE CAPACITIES: 16GB/1GB/24GB/2GB/32GB/4GB/8GB
PCI EXPRESS X4 SLOTS: 2
