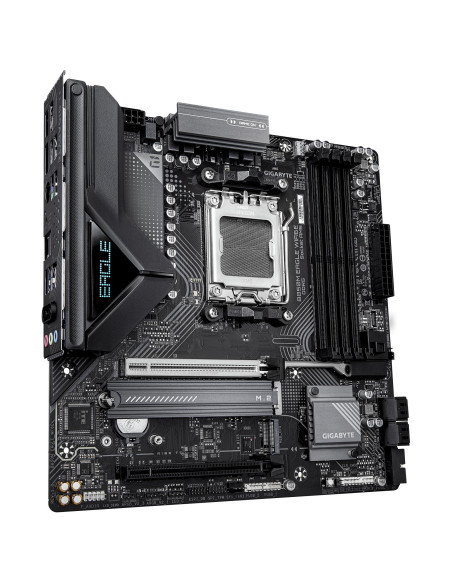

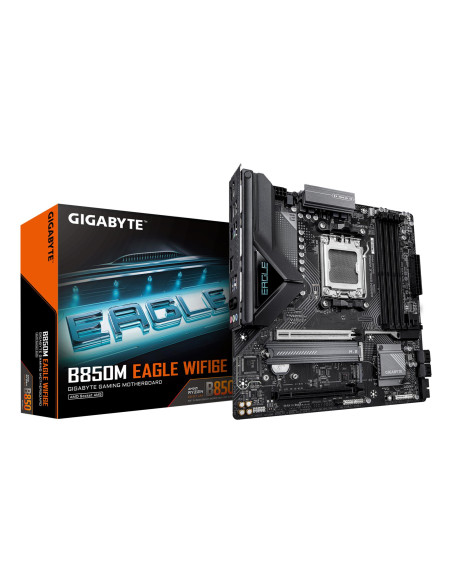

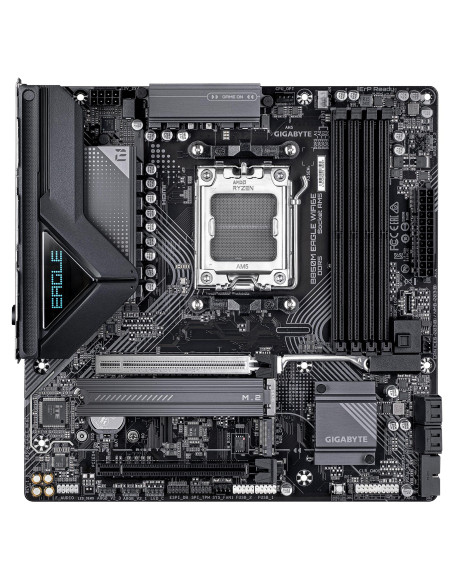

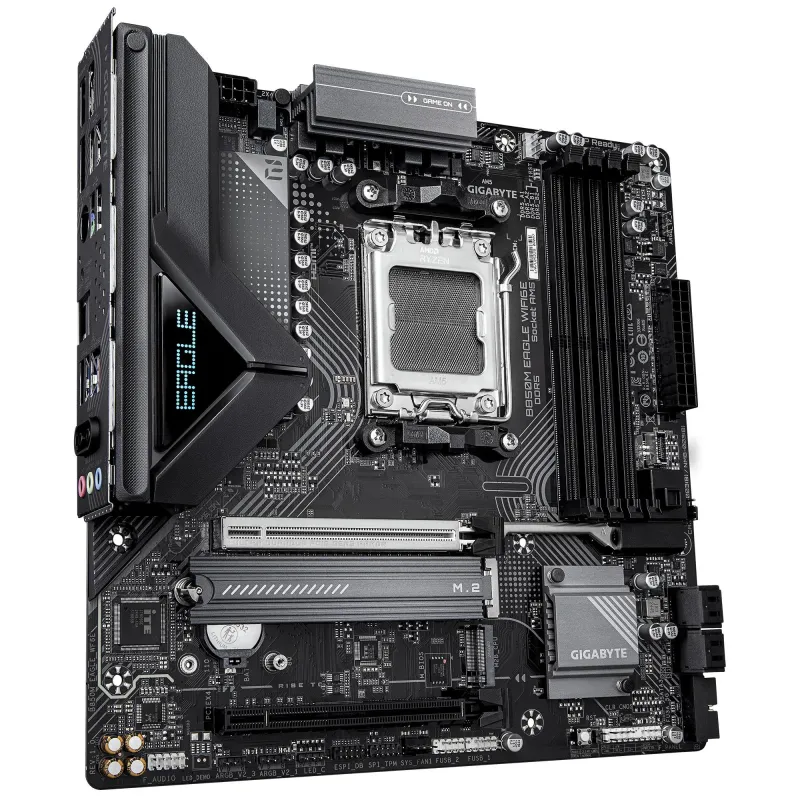

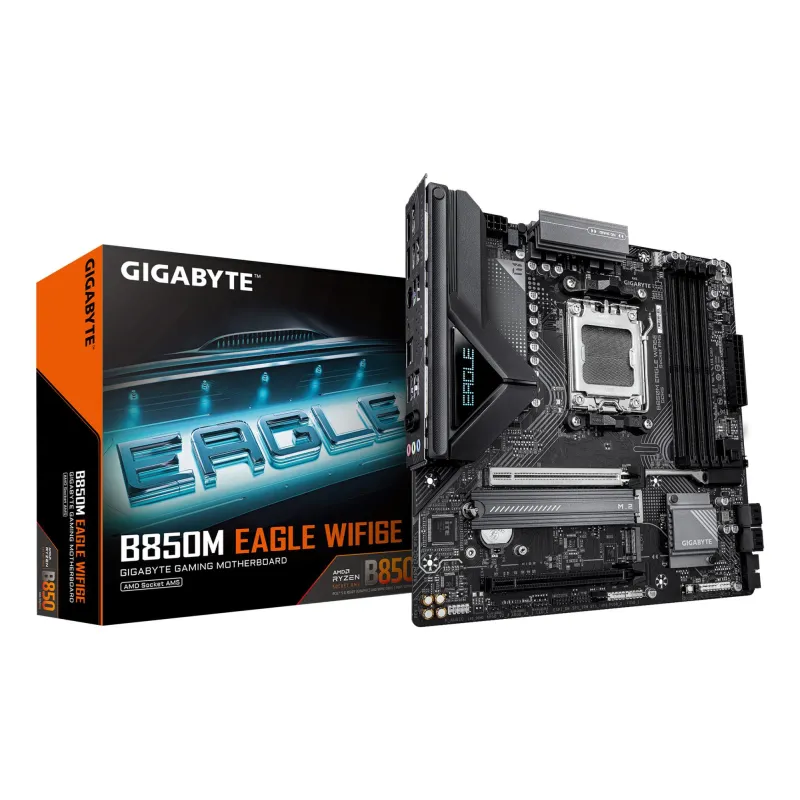

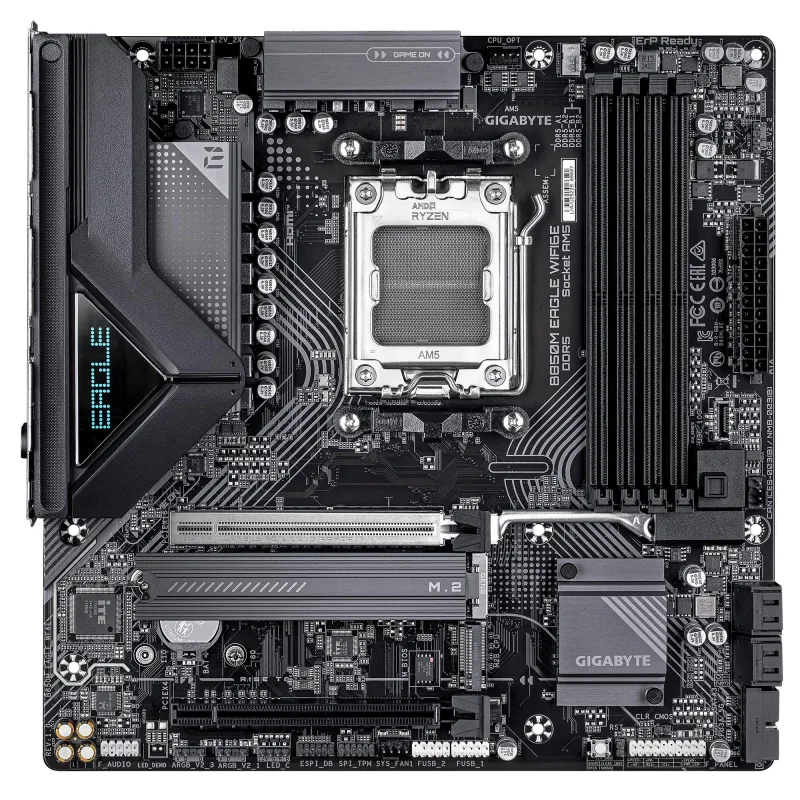

Mainboard, GIGABYTE, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B850MEAGLEWF6E

Mainboard, GIGABYTE, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B850MEAGLEWF6E

Name: Mainboard, GIGABYTE, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, B850MEAGLEWF6E
Brand: GIGABYTE
SKU: B850M EAGLE WF6E
Price: 160.94 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B850M EAGLE WF6E

Yra sandėlyje

160,94 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

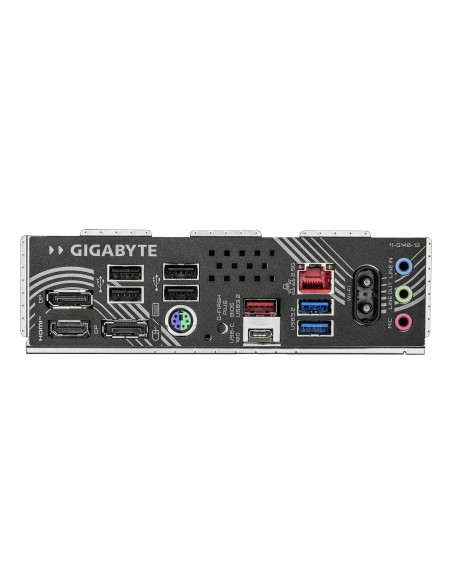

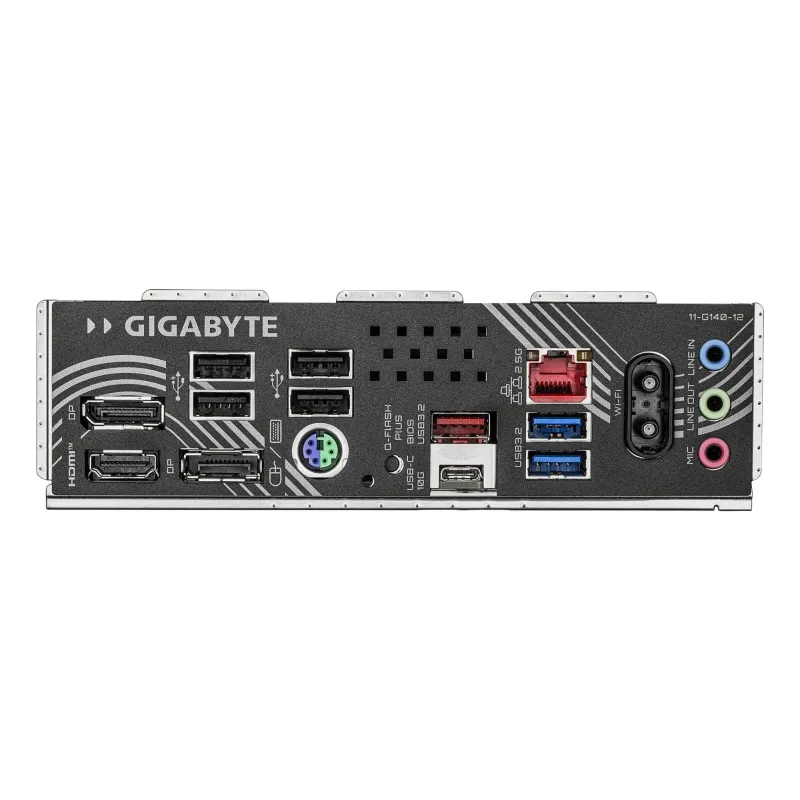

AMD B850 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 1.26 kg

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B850M EAGLE WIFI6E MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 8+2+2 PHASES DIGITAL VRM, UP TO 8200MHZ DDR5 (OC), 1XPCIE 5.0 + 1XPCIE 4.0 M.2, WIFI 6E, 2.5 GBE LAN, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBL
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.265
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.07
PRODUCT COLOUR: DARK BROWN
WI-FI: Yes
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 1260
WIDTH, MM: 244
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.00713
UNIT CALCULATED WEIGHT, KG: 1.48
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1462.5
PACKAGE WIDTH, MM: 270
MODEL: B850M EAGLE WF6E
COUNTRY OF ORIGIN: CHINA
BATTERY WEIGHT, G: 3
BATTERIES INCLUDED: YES
WARRANTY PERIOD, YEAR(S): 3
NUMBER OF BATTERY CELLS: 1
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
COMPONENT FOR: PC
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
BATTERY TYPE: CR2032
POWER SOURCE TYPE: ATX
HDCP: YES
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
MICROPHONE IN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
HDCP VERSION: 2.3
SCREWS INCLUDED: YES
USB 2.0 PORTS QUANTITY: 4
ETHERNET LAN (RJ-45) PORTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: AMD
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
ETHERNET LAN: YES
ANTENNA INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 2
DIRECTX VERSION: 12.0
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: AMD B850
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF HDDS SUPPORTED: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
WIFI-AP ANTENNA JACK: 2
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8200
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 4
NUMBER OF WATER PUMP CONNECTORS: 2
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
LINE-IN: YES
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 22110
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8125
WLAN CONTROLLER MODEL: REALTEK RTL8852CE
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
PS/2 PORTS QUANTITY: 1
