Nauja

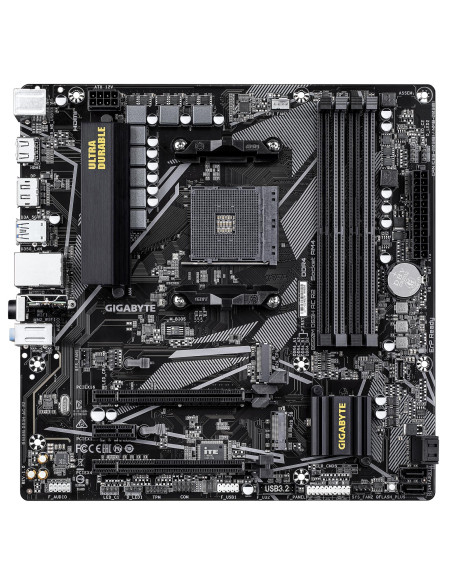

Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 2xNumber of M.2 (M) sl

Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 2xNumber of M.2 (M) sl

Name: Mainboard, GIGABYTE, AMD B550, Socket AM4, micro ATX, RAM DDR4-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 2xNumber of M.2 (M) sl
Brand: GIGABYTE
SKU: B550M DS3H AC R2
Price: 103.42 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B550M DS3H AC R2

Yra sandėlyje

103,42 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD B550 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Supported memory types DDR4-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 3.0,PCI Express 4.0,SATA III , 5120 x 2880 pixels , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes , Weight 980 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B550M DS3H AC R2 MOTHERBOARD - AMD RYZEN 5000 CPUS, 5+3 PHASES VRM, UP TO 4733MHZ DDR4 (O.C.), 1XPCIE 4.0 + 1XPCIE 3.0 M.2, WI-FI 5, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES:
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: DARK BROWN
WI-FI: Yes
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 980
WIDTH, MM: 244
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.006423
UNIT CALCULATED WEIGHT, KG: 1.06
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 68
PACKAGE WEIGHT, G: 1070
PACKAGE WIDTH, MM: 270
MODEL: GIGABYTE B550M DS3H AC R2
BATTERY WEIGHT, G: 3
BATTERIES INCLUDED: YES
WARRANTY PERIOD, YEAR(S): 3
NUMBER OF BATTERY CELLS: 1
BLUETOOTH: YES
BLUETOOTH VERSION: 5.0
TOP WI-FI STANDARD: WI-FI 5 (802.11AC)
COMPONENT FOR: PC
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
BATTERY TYPE: CR2032
POWER SOURCE TYPE: ATX
HDCP: YES
HDMI VERSION: 2.1
MAXIMUM RESOLUTION, PIXELS: 5120 X 2880
MICROPHONE IN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
SCREWS INCLUDED: YES
USB 2.0 PORTS QUANTITY: 2
ETHERNET LAN (RJ-45) PORTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: AMD
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
ETHERNET LAN: YES
ANTENNA INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COOLING TYPE: PASSIVE
RAID SUPPORT: YES
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES/AMD RYZEN 4000 SERIES/AMD RYZEN 5000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
PROCESSOR SOCKET: SOCKET AM4
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 128
AUDIO CHIP: REALTEK ALC1220-VB
MOTHERBOARD CHIPSET: AMD B550
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR4-SDRAM
UNBUFFERED MEMORY: YES
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 3.0,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
NUMBER OF HDDS SUPPORTED: 4
WIFI-AP ANTENNA JACK: 2
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 4733
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 5
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
LINE-IN: YES
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
2ND M.2 LARGEST KEY SIZE: 2280
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 32
LAN CONTROLLER: REALTEK RTL8111H
WLAN CONTROLLER MODEL: REALTEK RTL8821CE
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
SERIAL PORT HEADERS: 1
PS/2 PORTS QUANTITY: 1
