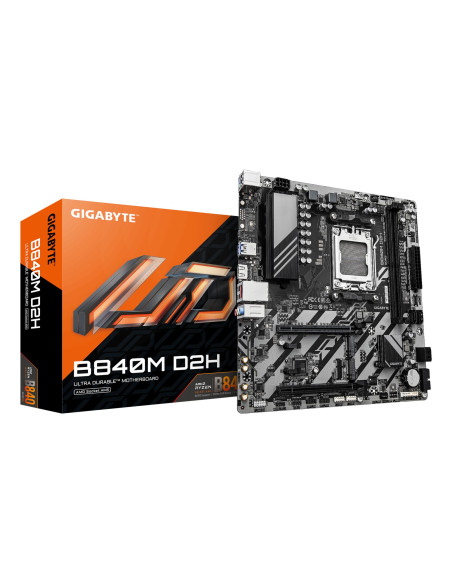

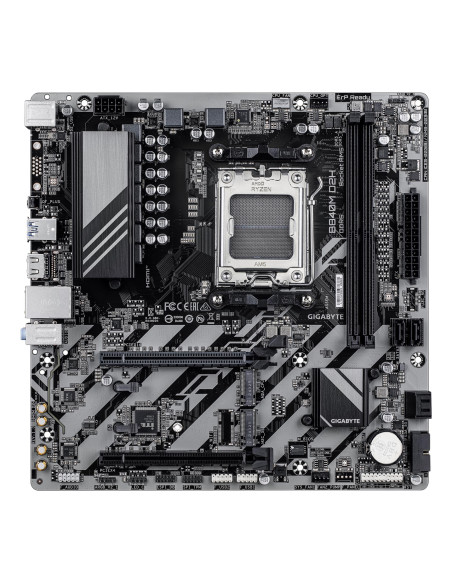

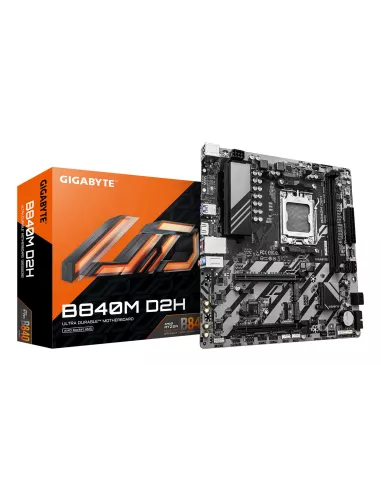

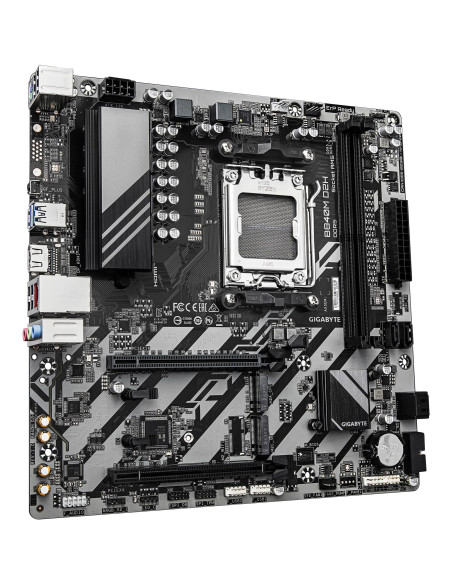

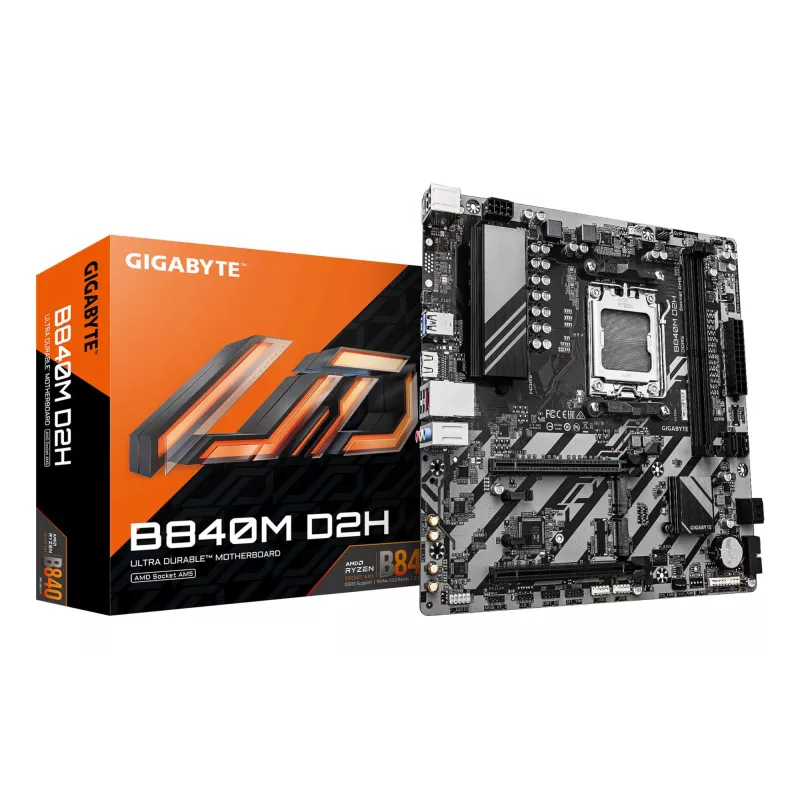

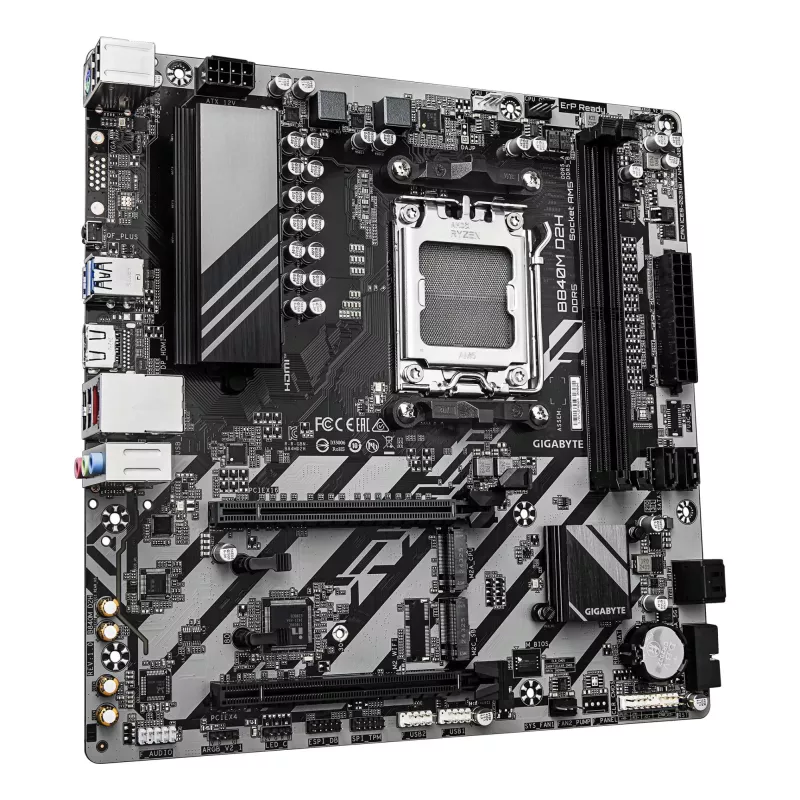

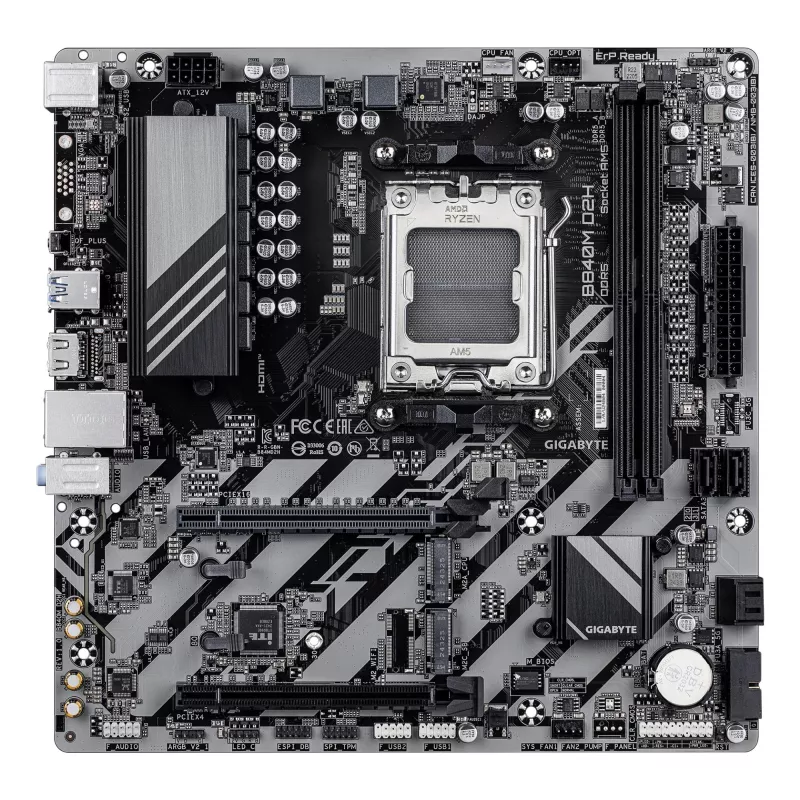

Mainboard, GIGABYTE, AMD B840, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B840MD2H1.2

Mainboard, GIGABYTE, AMD B840, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B840MD2H1.2

Name: Mainboard, GIGABYTE, AMD B840, Socket AM5, micro ATX, RAM DDR5-SDRAM, 2xSlots, 2xNumber of M.2 (M) slots, B840MD2H1.2
Brand: GIGABYTE
SKU: B840M D2H 1.2
Price: 96.74 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B840M D2H 1.2

Paskutinė prekė

96,74 € 101,95 € -5,21 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

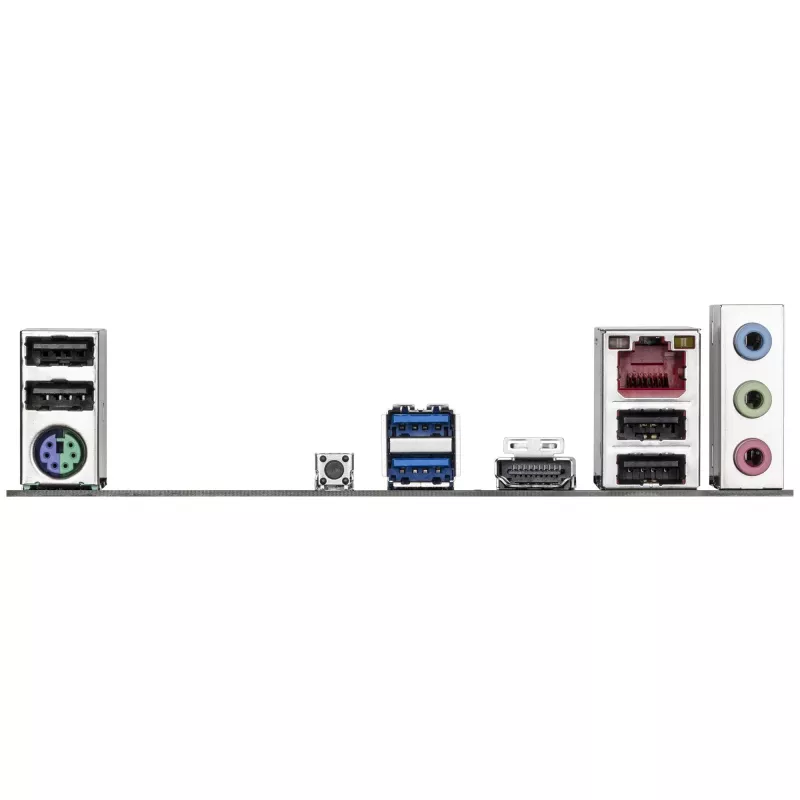

AMD B840 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Weight 940 g

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B840M D2H MOTHERBOARD - AMD RYZEN 9000 CPUS, 5+2+2 PHASES VRM, UP TO 7600MHZ DDR5, 1XPCIE 4.0 + 1XPCIE 3.0 M.2, 2.5GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERI
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.06
UNIT BOX LENGTH: 0.26
UNIT BOX WIDTH: 0.27
PRODUCT COLOUR: DARK BROWN
HDCP: YES
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
HEADPHONE OUTPUTS: 1
PACKAGE DEPTH, MM: 265
PACKAGE WEIGHT, G: 1026.4
WARRANTY PERIOD, YEAR(S): 3
UNIT CALCULATED VOLUME, CUBM: 0.004669
UNIT CALCULATED WEIGHT, KG: 1.04
PACKAGE HEIGHT, MM: 54
PACKAGE WIDTH, MM: 265
WI-FI: No
ETHERNET LAN: YES
MICROPHONE IN: YES
EPS POWER CONNECTOR (8-PIN): YES
COOLING TYPE: PASSIVE
DEPTH, MM: 244
HEIGHT, MM: 35
WEIGHT, G: 940
WIDTH, MM: 244
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
UNITS PER SHIPPING BOX: 10
SCREWS INCLUDED: YES
ATX POWER CONNECTOR (24-PIN): YES
NUMBER OF STORAGE DRIVES SUPPORTED: 6
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 PORTS QUANTITY: 4
PROCESSOR MANUFACTURER: AMD
MAXIMUM INTERNAL MEMORY, GB: 128
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
NUMBER OF BATTERY CELLS: 1
ETHERNET LAN (RJ-45) PORTS: 1
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: AMD B840
LINE-IN: YES
PS/2 PORTS QUANTITY: 1
MEMORY CHANNELS: DUAL-CHANNEL
MEMORY SLOTS TYPE: DIMM
LAN CONTROLLER: REALTEK RTL8125
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR SOCKET: SOCKET AM5
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
COMPONENT FOR: PC
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY WEIGHT, G: 3
BATTERY TYPE: CR2032
POWER SOURCE TYPE: ATX
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
BATTERIES INCLUDED: YES
RAID SUPPORT: YES
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DIRECTX VERSION: 12.0
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: NON-ECC
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 7600
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
CPU FAN CONNECTOR: YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
NUMBER OF M.2 (M) SLOTS: 2
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
FRONT PANEL CONNECTOR: YES
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 1
RGB LED PIN HEADER: YES
TPM CONNECTOR: YES
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2580
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 3.0
2ND M.2 LARGEST KEY SIZE: 2280
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
