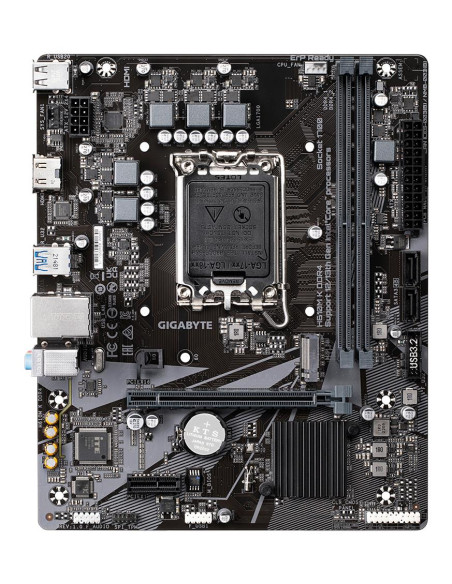

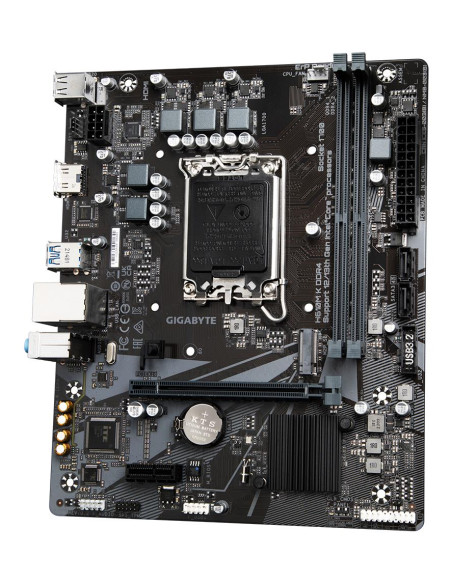

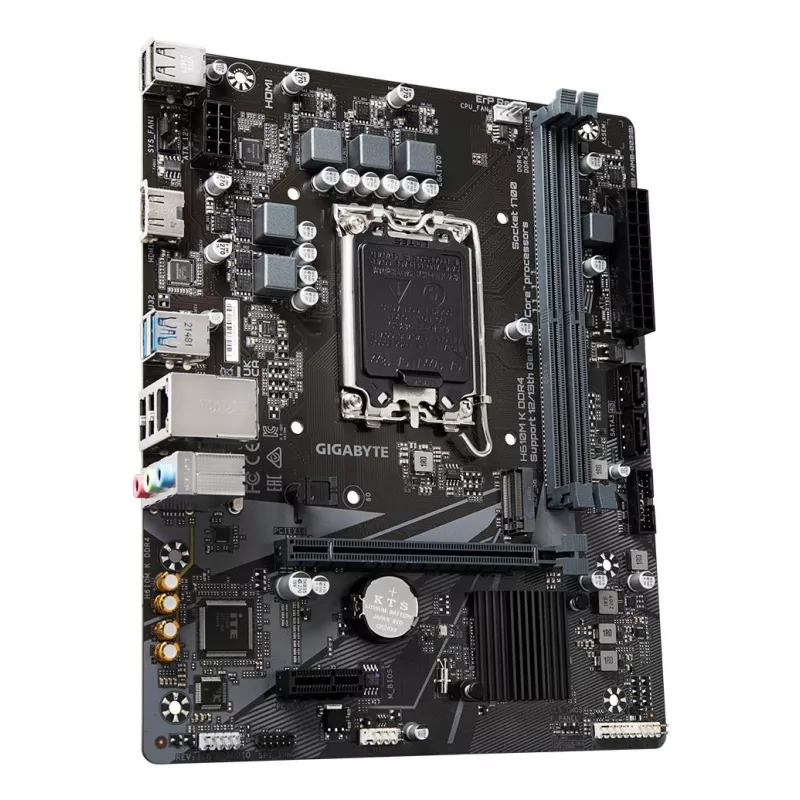

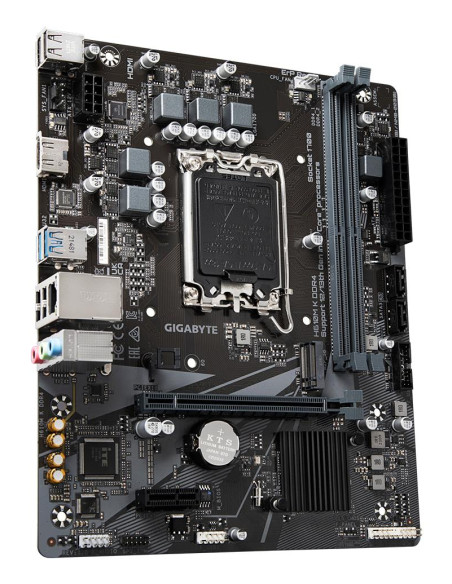

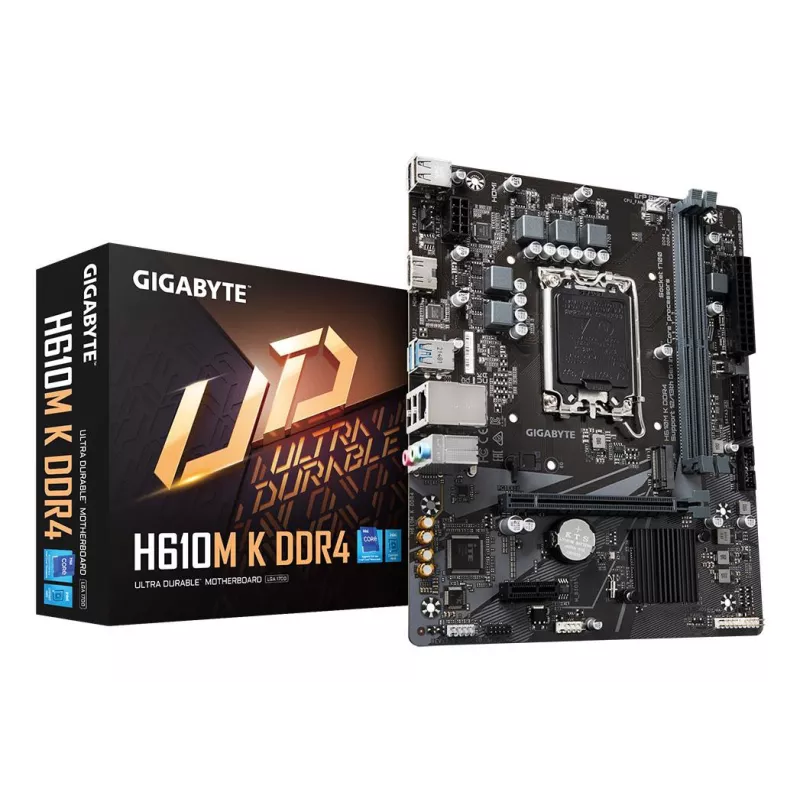

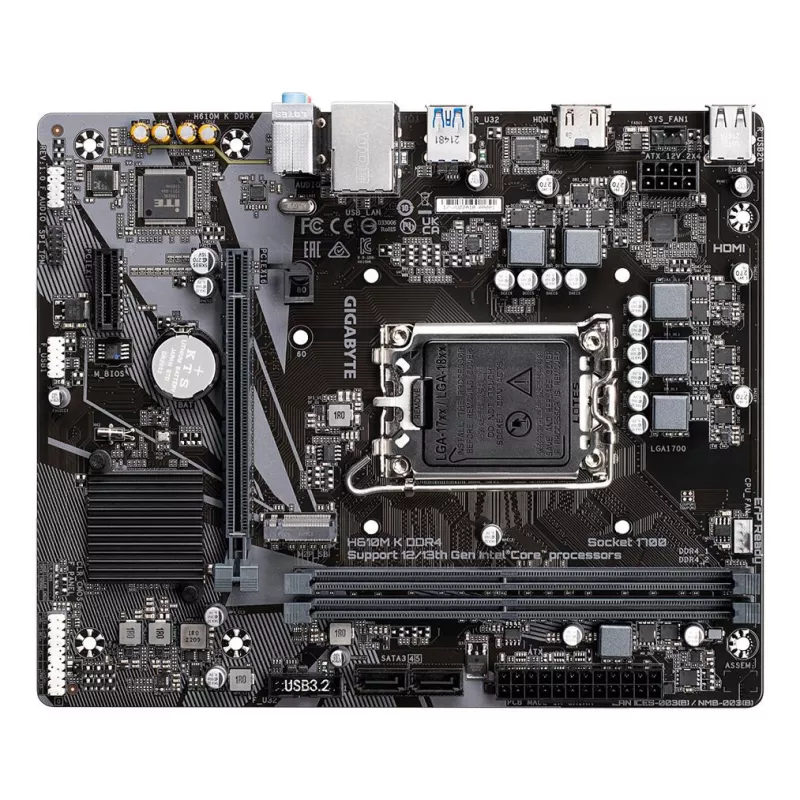

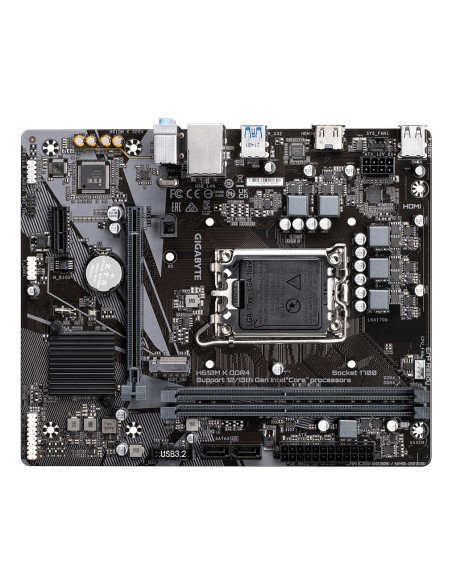

Mainboard, GIGABYTE, Intel H610, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, H610MKDDR42.0

Mainboard, GIGABYTE, Intel H610, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, H610MKDDR42.0

Name: Mainboard, GIGABYTE, Intel H610, LGA1700, Micro-ATX, Memory DDR4, Memory slots 2, H610MKDDR42.0
Brand: GIGABYTE
SKU: H610M K DDR4 2.0
Price: 60.81 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas H610M K DDR4 2.0

Paskutinė prekė

60,81 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

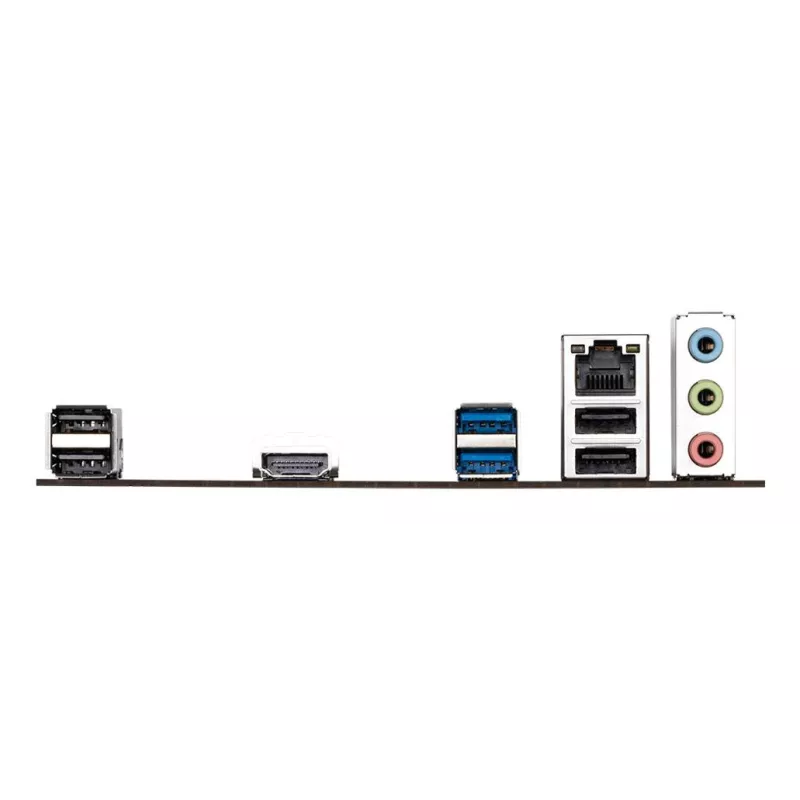

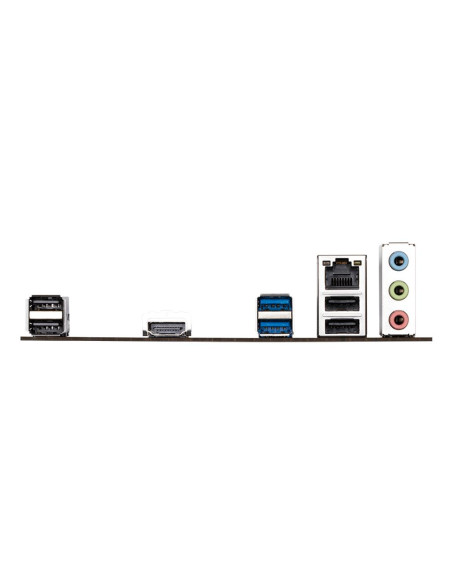

Intel H610 Express , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1700 , Series Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , 4xUSB 2.0 ports quantity , 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE H610M K DDR4 MOTHERBOARD - SUPPORTS INTEL CORE 14TH GEN CPUS, 3+1+1 PHASES HYBRID POWER DESIGN, UP TO 3200MHZ DDR4, 1XPCIE 3.0 M.2, GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1700, COMPATIBLE PROCESSOR SERIES: IN
CATEGORY CODE: MBI
CNCODE: 84733020
UNIT BOX HEIGHT: 0.052
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.24
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.004222
UNIT CALCULATED WEIGHT, KG: 0.723
MODEL: H610M K DDR4 (REV. 2.0)
PRODUCT COLOUR: BROWN
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
PACKAGE DEPTH, MM: 235
PACKAGE HEIGHT, MM: 52
PACKAGE WEIGHT, G: 717
PACKAGE WIDTH, MM: 265
BATTERIES INCLUDED: YES
CABLES INCLUDED: SATA
USB CONNECTOR TYPE: USB TYPE-A
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
DEPTH, MM: 185
HEIGHT, MM: 35
WIDTH, MM: 226
BATTERY WEIGHT, G: 3
COUNTRY OF ORIGIN: CHINA
WI-FI: No
POWER SOURCE TYPE: ATX
USB 2.0 PORTS QUANTITY: 4
PROCESSOR MANUFACTURER: Intel
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 2
HDMI VERSION: 2.1
WARRANTY PERIOD, YEAR(S): 3
HEADPHONE OUTPUTS: 1
HDCP: YES
COMPONENT FOR: PC
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
COMPATIBLE PROCESSOR SERIES: INTEL CELERON /INTEL CORE I3/INTEL CORE I7/INTEL CORE I9/INTEL PENTIUM GOLD
PROCESSOR SOCKET: LGA 1700
MAXIMUM INTERNAL MEMORY, GB: 64
SUPPORTED MEMORY TYPES: DDR4-SDRAM
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 3200
UNBUFFERED MEMORY: YES
NUMBER OF HDDS SUPPORTED: 2
NUMBER OF STORAGE DRIVES SUPPORTED: 3
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 2
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
MICROPHONE IN: YES
MOTHERBOARD CHIPSET: INTEL H610 EXPRESS
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
NUMBER OF M.2 (M) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2666/2933/3000/3200
TOTAL NUMBER OF SATA CONNECTORS: 2
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
FRONT PANEL CONNECTOR: YES
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: REALTEK RTL8111H
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
SUPPORTED MEMORY MODULE CAPACITIES: 12GB/16GB/1GB/2GB/32GB/4GB/8GB
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
AUDIO CONNECTOR: YES
MAXIMUM NUMBER OF SMP PROCESSORS: 1
NUMBER OF EATX POWER CONNECTORS: 1
POWER FAN CONNECTOR: YES
MAXIMUM RDIMM MEMORY, GB: 64
