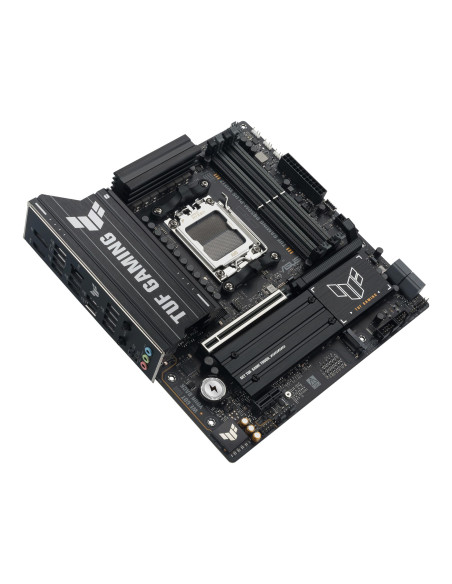

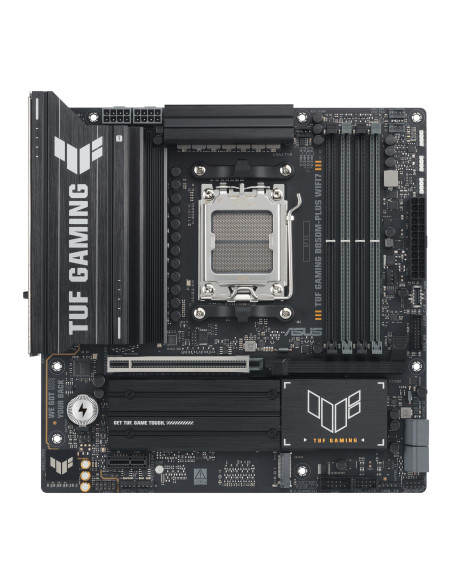

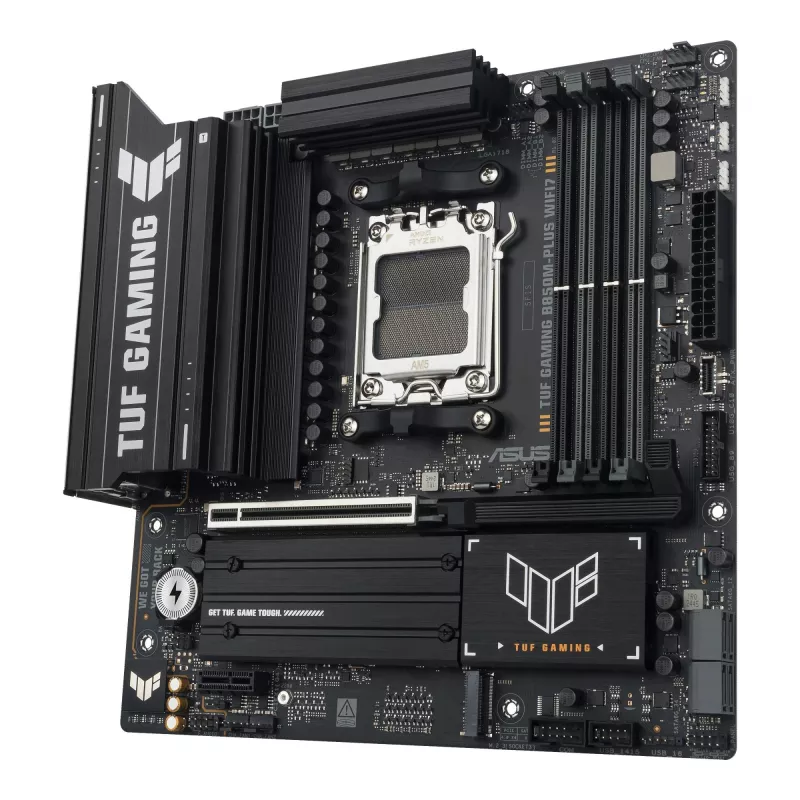

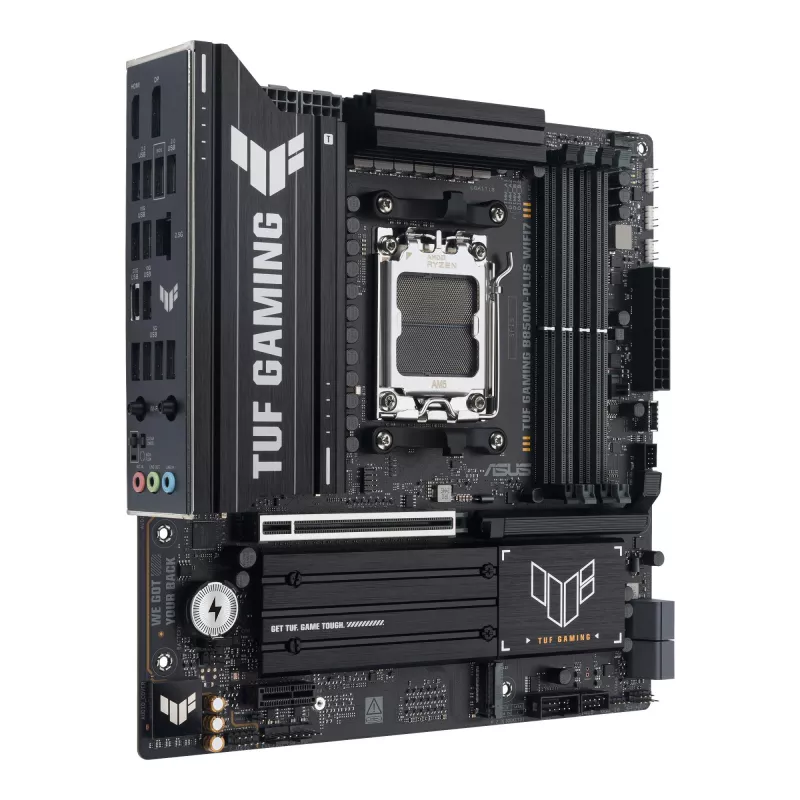

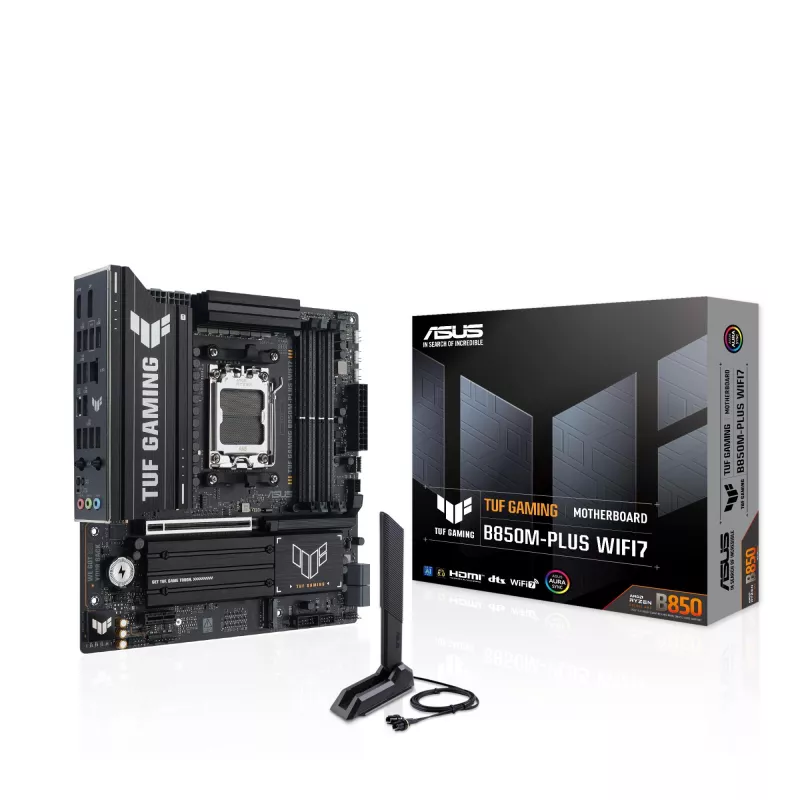

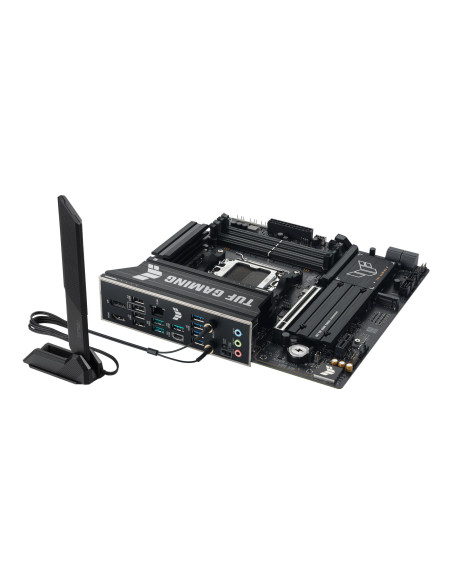

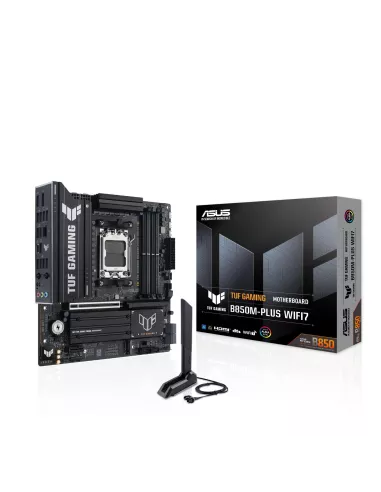

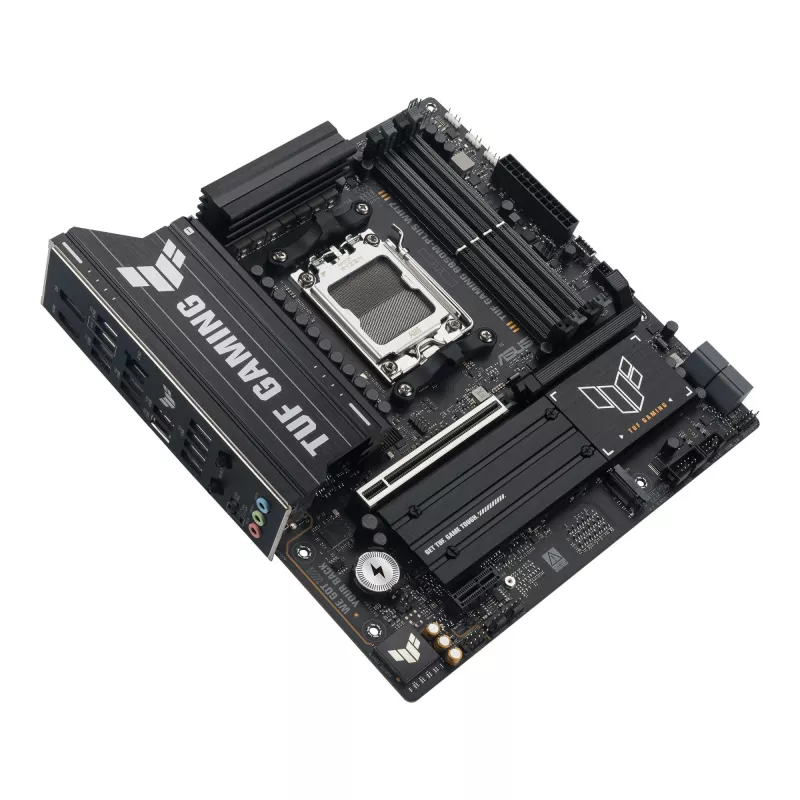

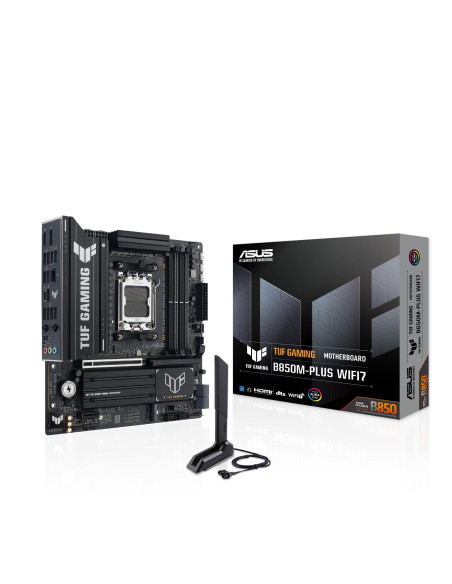

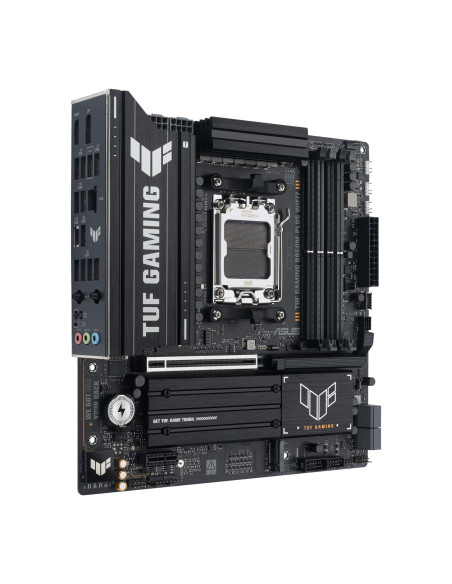

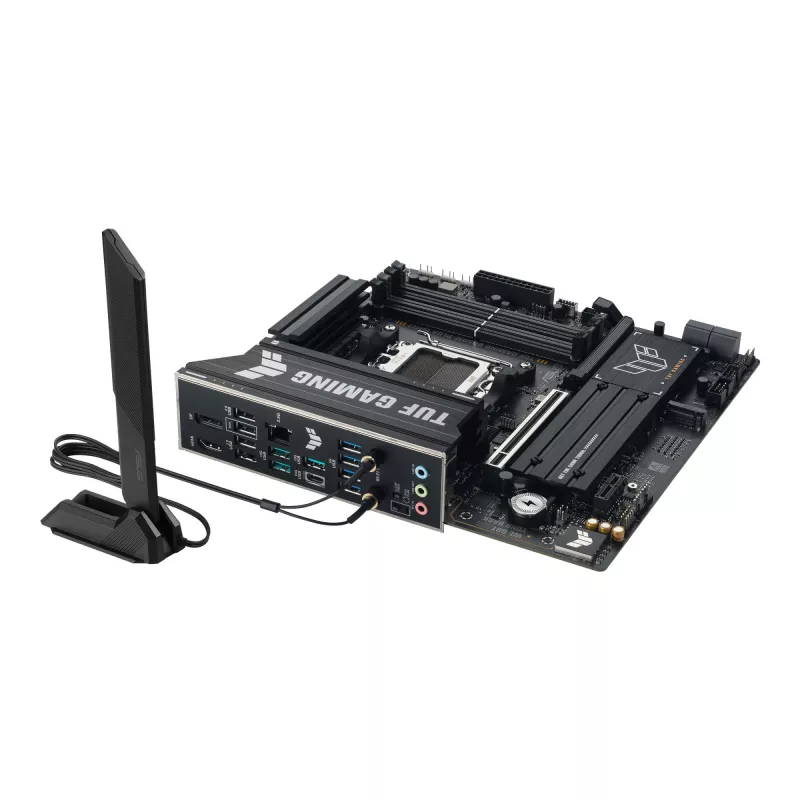

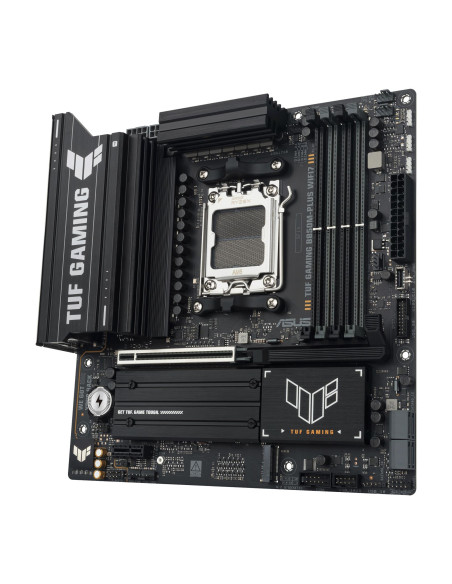

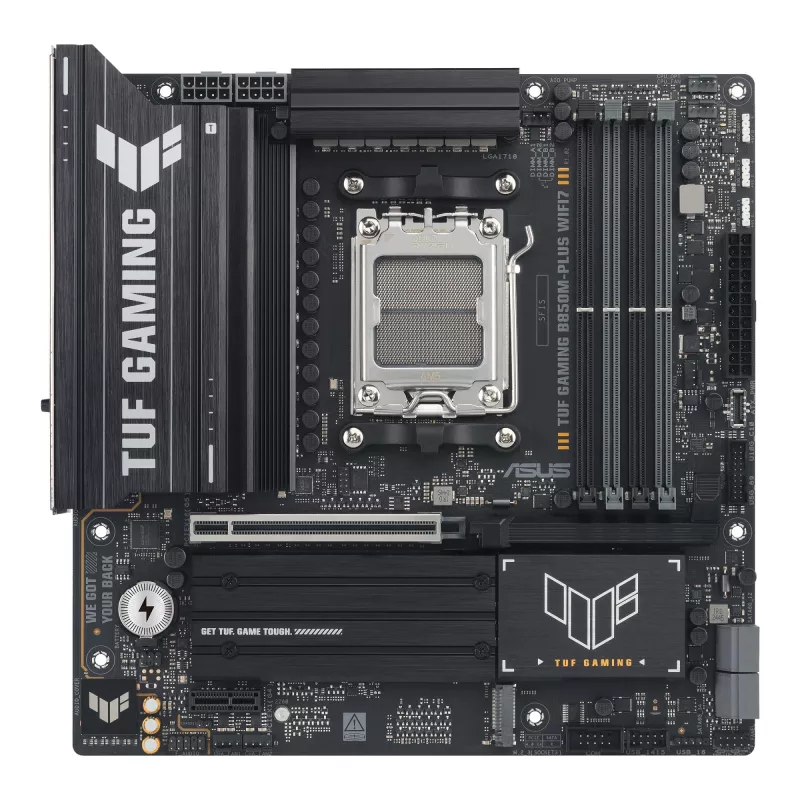

Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, GAMINGB850M-PLUSWIFI7

Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, GAMINGB850M-PLUSWIFI7

Name: Mainboard, ASUS, AMD B850, SAM5, Micro-ATX, Memory DDR5, Memory slots 4, GAMINGB850M-PLUSWIFI7
Brand: ASUS
SKU: TUF GAMING B850M-PLUS WIFI7
Price: 252.71 EUR
Availability: InStock

Gamintojas: ASUS

Kodas TUF GAMING B850M-PLUS WIFI7

Yra sandėlyje

252,71 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

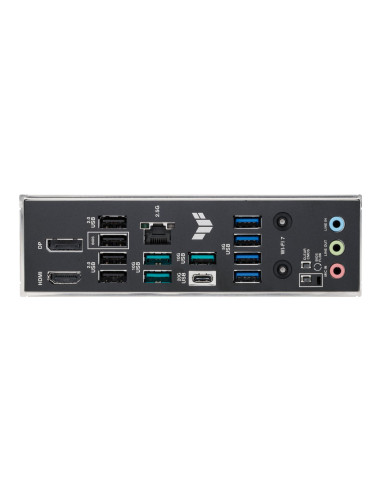

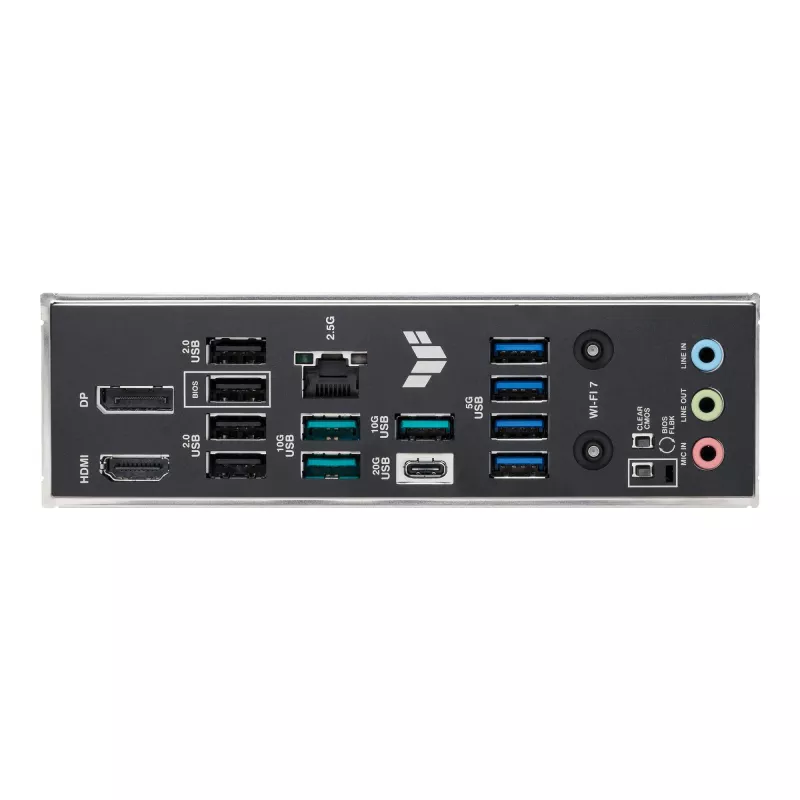

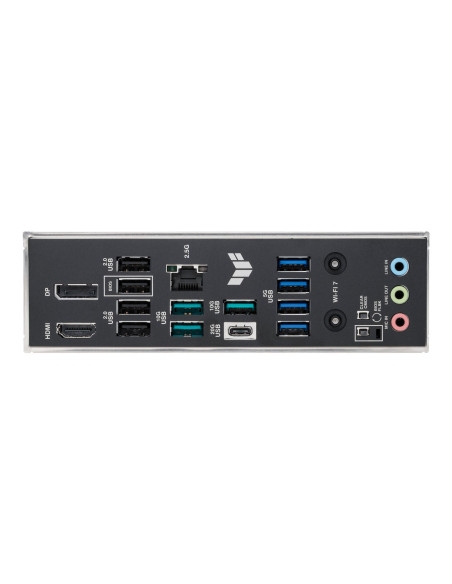

AMD B850 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0 , 4xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASUS TUF GAMING B850M-PLUS WIFI7. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.275
UNIT BOX LENGTH: 0.275
UNIT BOX WIDTH: 0.07
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
HDMI VERSION: 2.1
USB 2.0 PORTS QUANTITY: 4
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
BLUETOOTH: Y
BLUETOOTH VERSION: 5.4
WI-FI: Y
WI-FI STANDARDS: WI-FI 7 (802.11BE)
ETHERNET LAN: Y
PRODUCT COLOUR: BLACK
PACKAGE DEPTH, MM: 275
PACKAGE HEIGHT, MM: 67.5
PACKAGE WEIGHT, G: 1680
PACKAGE WIDTH, MM: 275
CABLES INCLUDED: SATA
UNIT CALCULATED VOLUME, CUBM: 0.006156
UNIT CALCULATED WEIGHT, KG: 1.82
MODEL: TUF GAMING B850M-PLUS WIFI7
HEADPHONE OUTPUTS: 1
SCREWS INCLUDED: Y
UNITS PER SHIPPING BOX: 10
DEPTH, MM: 244
WIDTH, MM: 244
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
COOLING TYPE: PASSIVE
POWER SOURCE TYPE: ATX
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR SOCKET: SOCKET AM5
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
ECC ?OMPATIBILITY: ECC & NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 256
PROCESSOR MANUFACTURER: AMD
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: Y
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
RAID SUPPORT: Y
SUPPORTED STORAGE DRIVE INTERFACES: PCI EXPRESS 4.0,PCI EXPRESS 5.0
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ON-BOARD GRAPHICS CARD: N
12V POWER CONNECTOR: Y
ATX POWER CONNECTOR (24-PIN): Y
CPU FAN CONNECTOR: Y
EPS POWER CONNECTOR (8-PIN): Y
FRONT PANEL AUDIO CONNECTOR: Y
FRONT PANEL CONNECTOR: Y
NUMBER OF CHASSIS FAN CONNECTORS: 3
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: Y
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 3
WIFI-AP ANTENNA JACK: 2
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
AUDIO CHIP: REALTEK ALC1220P
MOTHERBOARD CHIPSET: AMD B850
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: Y
MICROPHONE IN: Y
NUMBER OF HDDS SUPPORTED: 4
PCI EXPRESS X1 (GEN 4.X) SLOTS: 1
WLAN CONTROLLER MODEL: MEDIATEK MT7925
CHASSIS INTRUSION CONNECTOR: Y
NUMBER OF COM CONNECTORS: 1
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 1
LINE-IN: Y
USB 3.2 GEN 2X2 TYPE-C PORTS QUANTITY: 1
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
