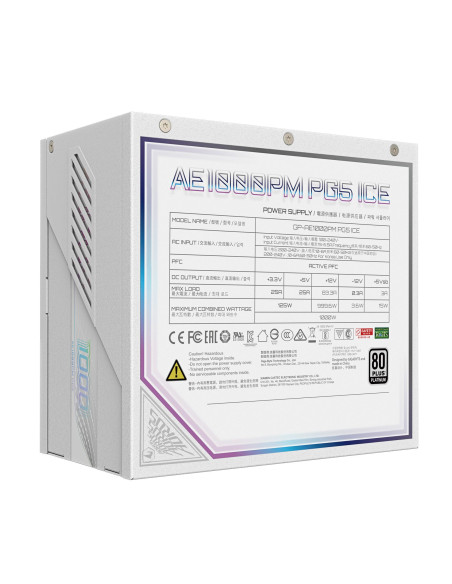

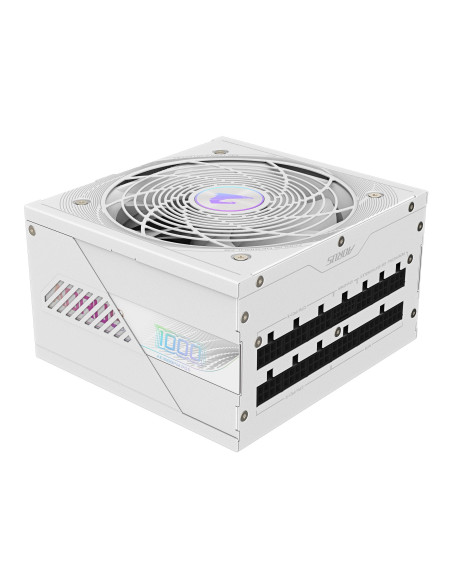

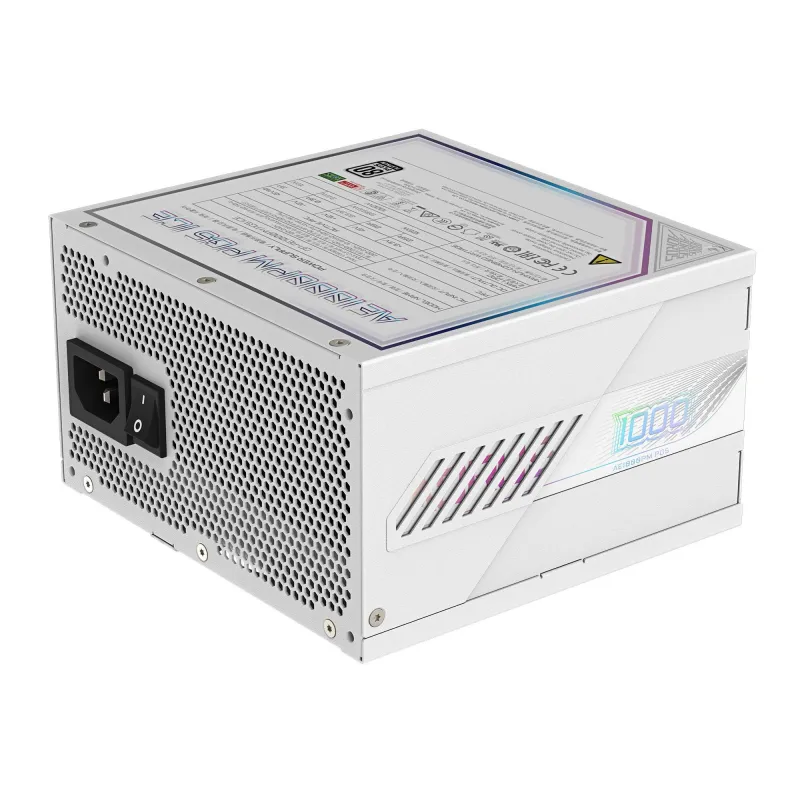

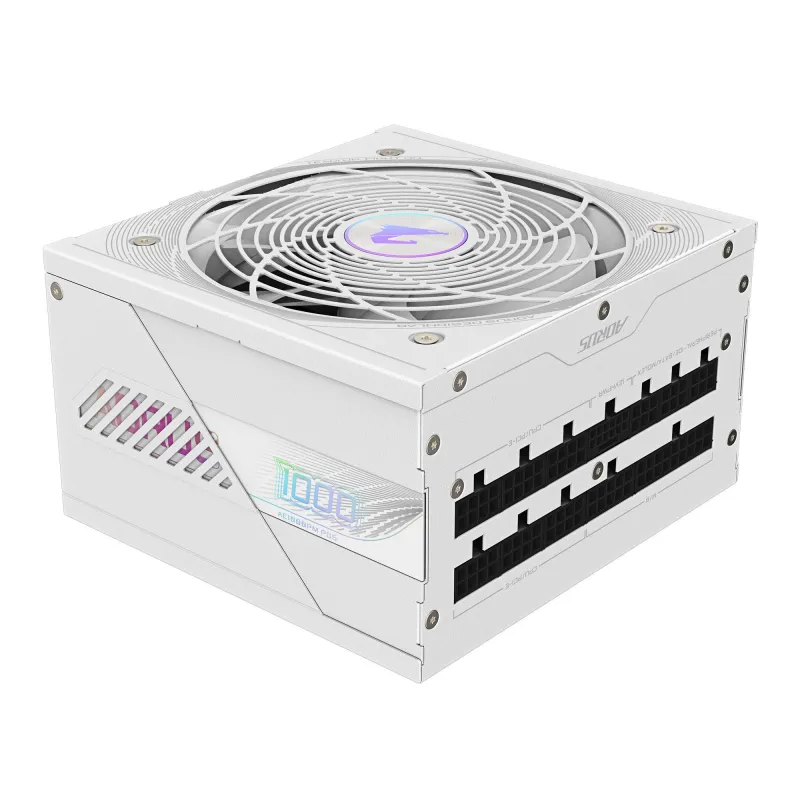

Power Supply, GIGABYTE, GP-AE1000PM PG5 ICE, 1000 Watts, Efficiency 80 PLUS PLATINIUM, PFC Active, MTBF 100000 hours, GP-AE1000

Power Supply, GIGABYTE, GP-AE1000PM PG5 ICE, 1000 Watts, Efficiency 80 PLUS PLATINIUM, PFC Active, MTBF 100000 hours, GP-AE1000

Name: Power Supply, GIGABYTE, GP-AE1000PM PG5 ICE, 1000 Watts, Efficiency 80 PLUS PLATINIUM, PFC Active, MTBF 100000 hours, GP-AE1000
Brand: GIGABYTE
SKU: GP-AE1000PMPG5ICE
Price: 165.92 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas GP-AE1000PMPG5ICE

Yra sandėlyje

165,92 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

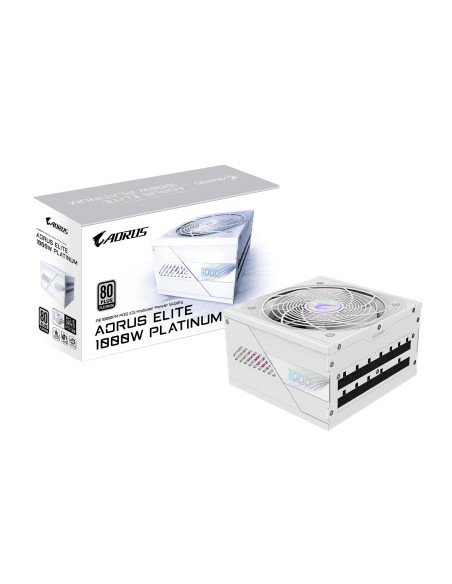

1000 W , 100 - 240 V , Efficiency 92 % , 80 PLUS certification 80 PLUS Platinum , PC , ATX , Fan diameter 120 mm , Weight 3.1 kg , Package type Box , AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE AORUS ELITE P1000W ICE POWER SUPPLY UNIT - PCIE 5.0, 80 PLUS PLATINUM, FULLY MODULAR DESIGN, 120MM FAN, ATX 3.0 COMPATIBLE, EU PLUG. TOTAL POWER: 1000 W, AC INPUT VOLTAGE: 100 - 240 V, AC INPUT FREQUENCY: 50/60 HZ. MOTHERBOARD POWER CONNECTOR: 20
CNCODE: 85044095
CATEGORY CODE: PSU
UNIT BOX HEIGHT: 0.205
UNIT BOX LENGTH: 0.34
UNIT BOX WIDTH: 0.12
PRODUCT COLOUR: WHITE
DEPTH, MM: 140
HEIGHT, MM: 86
WEIGHT, G: 3102
WIDTH, MM: 150
PACKAGE DEPTH, MM: 206
PACKAGE HEIGHT, MM: 120
PACKAGE WEIGHT, G: 3732
PACKAGE WIDTH, MM: 340
UNITS PER SHIPPING BOX: 5
UNIT CALCULATED VOLUME, CUBM: 0.01086
UNIT CALCULATED WEIGHT, KG: 3.73
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000

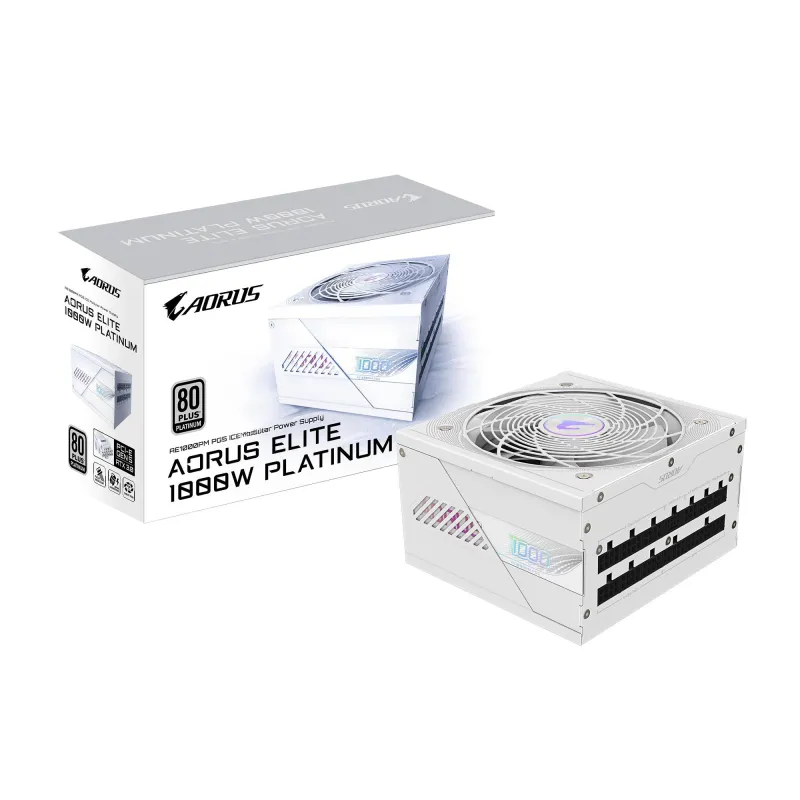

PACKAGE TYPE: BOX
WARRANTY PERIOD, YEAR(S): 10
COOLING TYPE: ACTIVE
MODEL NAME: AORUS ELITE P1000W ICE POWER SUPPLY UNIT - PCIE 5.0, 80 PLUS PLATINUM, FULLY MODULAR DESIGN, 120MM FAN, ATX 3.0 COMPATIBLE, EU PLUG

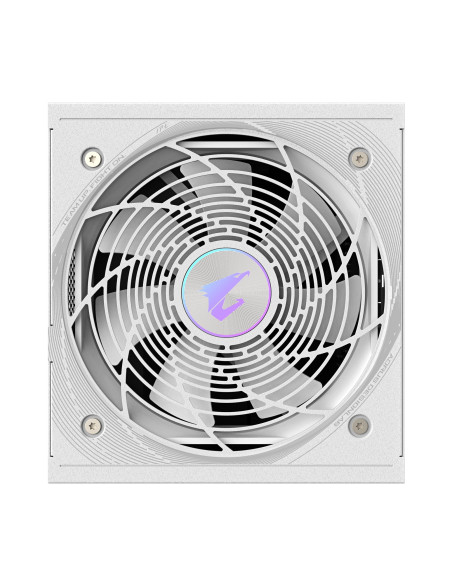

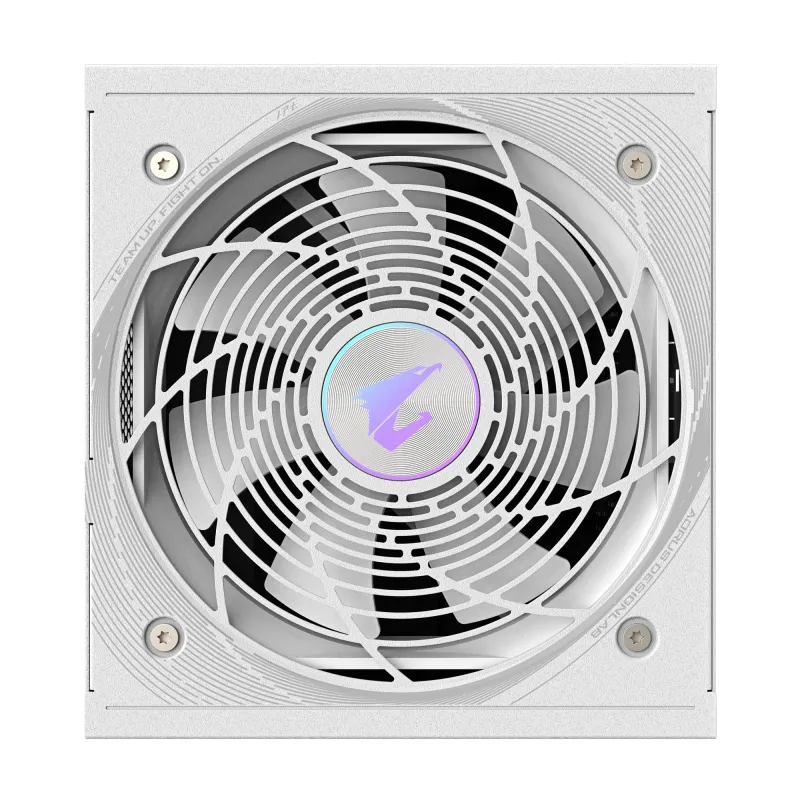

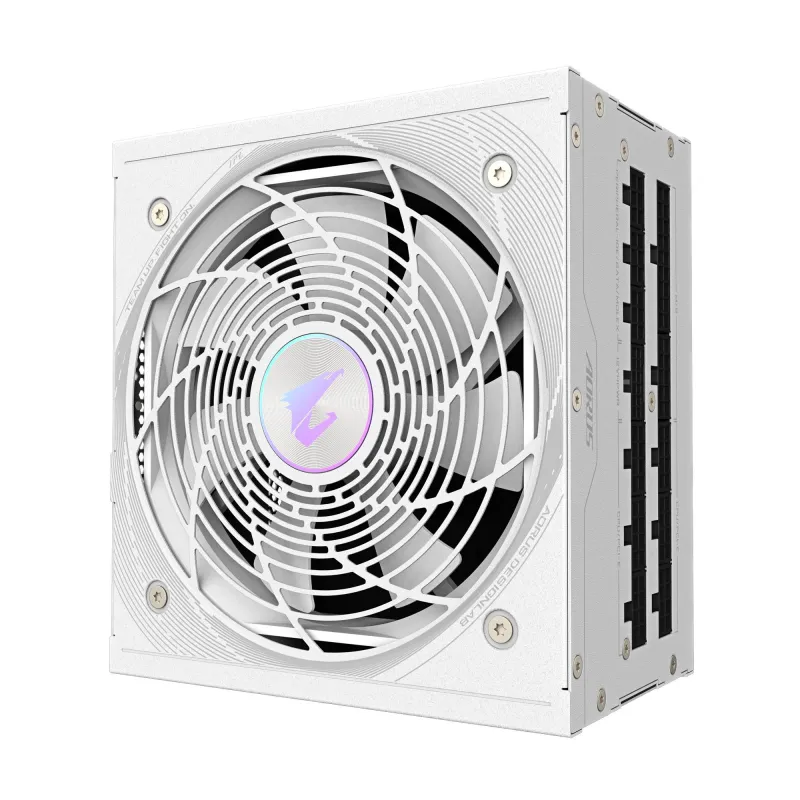

FAN DIAMETER, MM: 120
NUMBER OF FANS, FAN(S): 1
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 4
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240

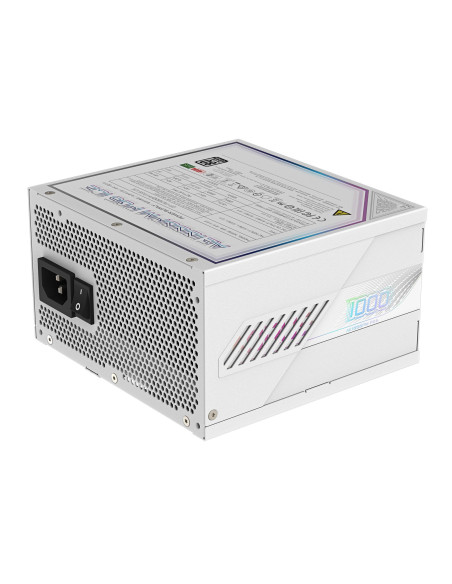

ON/OFF SWITCH: YES
INPUT CURRENT, A: 15 - 6.5
COMBINED POWER (+12V), W: 999.6
COMBINED POWER (+3.3V), W: 125
COMBINED POWER (+5V), W: 125
COMBINED POWER (+5VSB), W: 15
EFFICIENCY, %: 92
MAX OUTPUT CURRENT (+12V), A: 83.3
MAX OUTPUT CURRENT (+3.3V), A: 25
MAX OUTPUT CURRENT (+5V), A: 25
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
COMBINED POWER (-12V), W: 3.6
TOTAL POWER, W: 1000

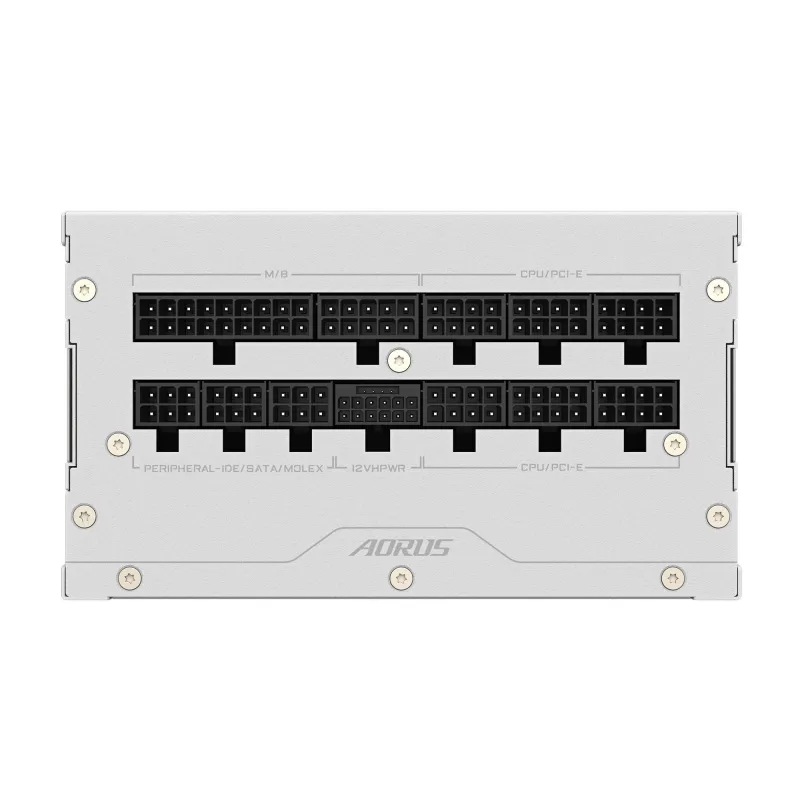

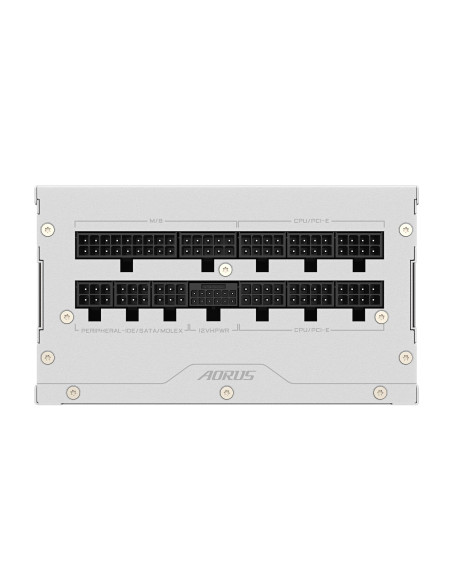

CABLING TYPE: FULLY-MODULAR
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 6
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 6
80 PLUS CERTIFICATION: 80 PLUS PLATINUM
BEARING TECHNOLOGY: BALL BEARING
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
PURPOSE: PC
HOLD TIME, MS: 16
POWER FACTOR: 0.9
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/UNDER VOLTAGE
ATX POWER CONNECTOR (20+4 PIN): YES
MOTHERBOARD POWER CABLE LENGTH, MM: 650
PCI EXPRESS CONNECTOR: YES
ATX VERSION: 3.1
CPU POWER CONNECTOR (4+4 PIN): YES
POWER GOOD SIGNAL DELAY RANGE, MS: 100 - 150
FLOPPY DISK DRIVE CONNECTOR: YES
FLOPPY DRIVE POWER CONNECTOR: 2
FAN LOCATION: TOP
