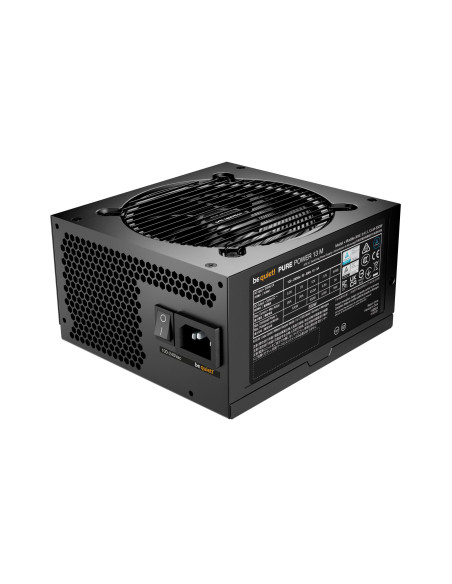

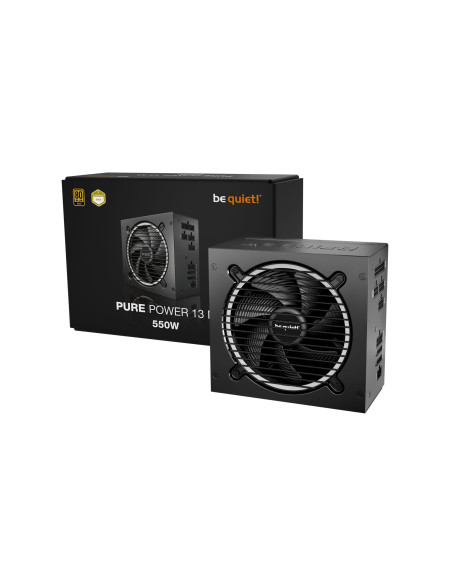

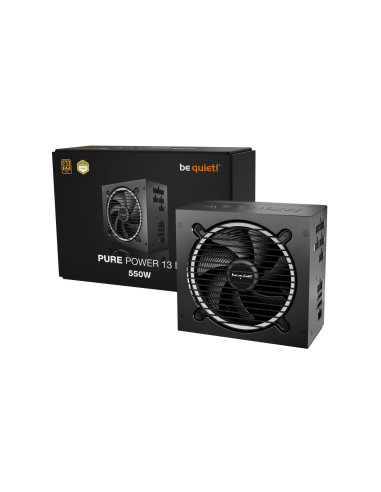

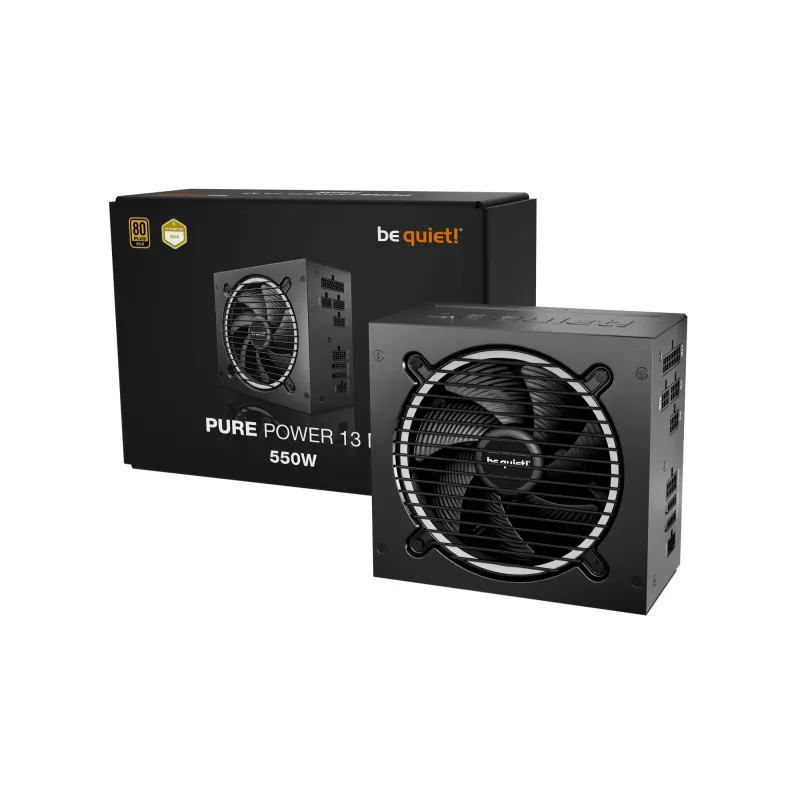

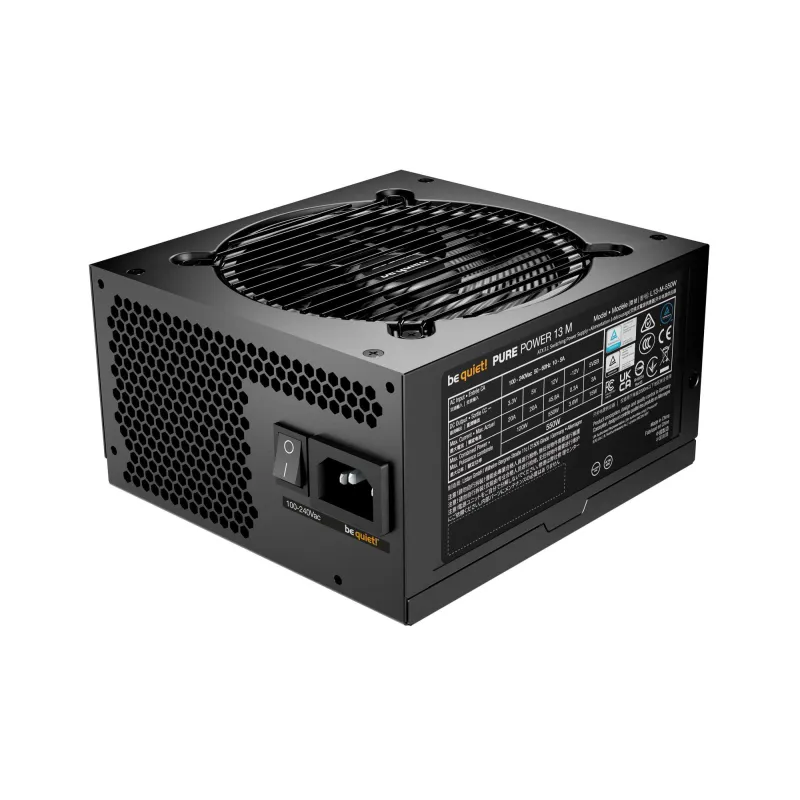

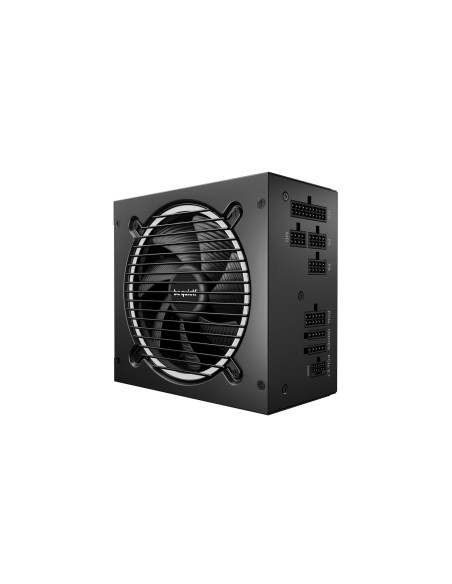

Power Supply, BE QUIET, Pure Power 13M, 550 Watts, Peak Power 600 Watts, Efficiency 80 PLUS GOLD, BP024EU

Power Supply, BE QUIET, Pure Power 13M, 550 Watts, Peak Power 600 Watts, Efficiency 80 PLUS GOLD, BP024EU

Name: Power Supply, BE QUIET, Pure Power 13M, 550 Watts, Peak Power 600 Watts, Efficiency 80 PLUS GOLD, BP024EU
Brand: BE QUIET
SKU: BP024EU
Price: 101.37 EUR
Availability: InStock

Gamintojas: BE QUIET

Kodas BP024EU

Yra sandėlyje

101,37 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

550 W , 100 - 240 V , Efficiency 92.1 % , 80 PLUS certification 80 PLUS Gold , PC , ATX , Noise level 20.8 dB , Fan diameter 120 mm , Weight 2.23 kg , Pure Power 13M

Prekės informacija
Atsiliepimai (0)

SUMMARY: BE QUIET! PURE POWER 13 M | 550W. TOTAL POWER: 550 W, AC INPUT VOLTAGE: 100 - 240 V, PEAK POWER: 600 W. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 55 CM, SATA POWER CABLE LENGTH: 500,650,800 MM. PURPOSE: PC, POWER SUPPLY UN
CATEGORY CODE: PSU
CNCODE: 85044095
UNIT BOX HEIGHT: 0.1
UNIT BOX LENGTH: 0.29
UNIT BOX WIDTH: 0.2
PRODUCT COLOUR: BLACK
OPERATING TEMPERATURE (T-T), °C: 0 - 40
DEPTH, MM: 160
HEIGHT, MM: 86
WIDTH, MM: 150
PACKAGE DEPTH, MM: 320
PACKAGE HEIGHT, MM: 133
PACKAGE WEIGHT, G: 3000
PACKAGE WIDTH, MM: 210

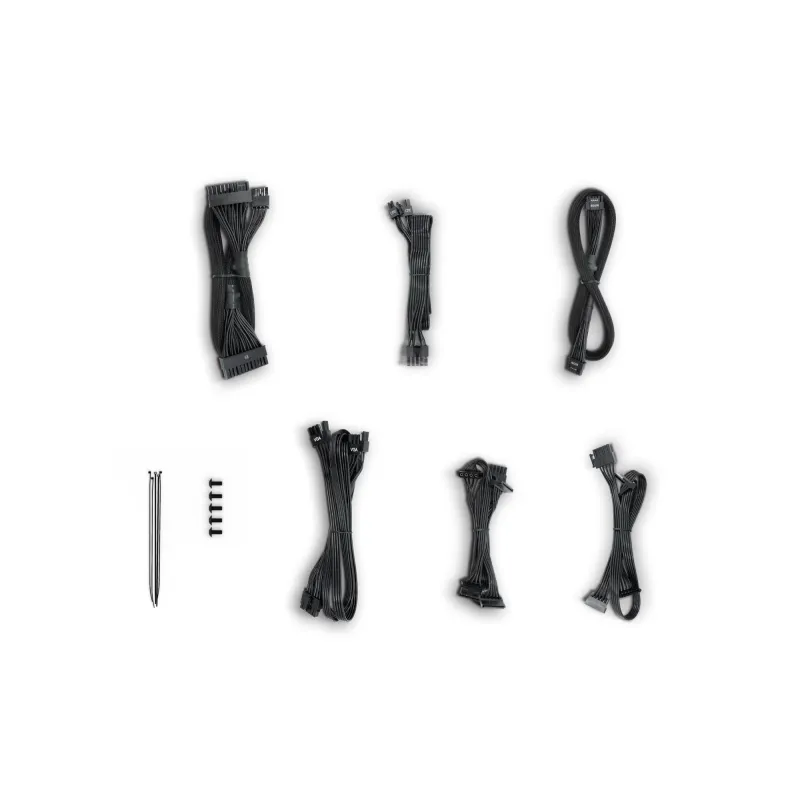

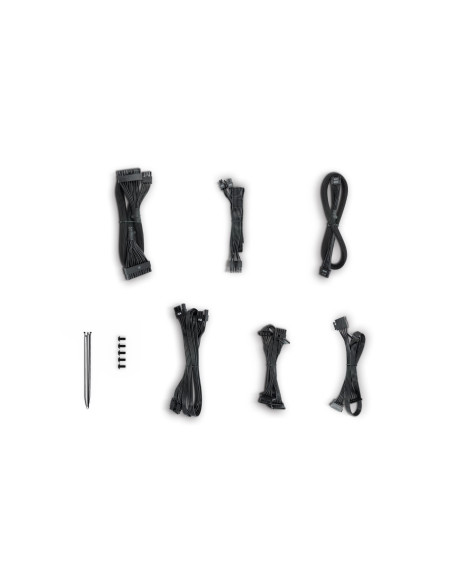

CABLES INCLUDED: AC,CPU,PCIE,PERIPHERAL (MOLEX),SATA
COMPLIANCE CERTIFICATES: BSMI/CB/CCC/CE/CTUVUS/FEDERAL COMMUNICATIONS COMMISSION (FCC)/IRAM/RCM/ROHS/T V MARK/UKCA/WEEE
UNITS PER SHIPPING BOX: 6
UNIT CALCULATED VOLUME, CUBM: 0.008211
UNIT CALCULATED WEIGHT, KG: 2.92
WEIGHT, G: 2230
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/SURGE & INRUSH PROTECTION (SIP)/UNDER VOLTAGE
ON/OFF SWITCH: YES
SUSTAINABILITY CERTIFICATES: ENERGY STAR/ERP
AC INPUT VOLTAGE, V: 100 - 240
MODEL NAME: PURE POWER 13M
SCREWS INCLUDED: YES

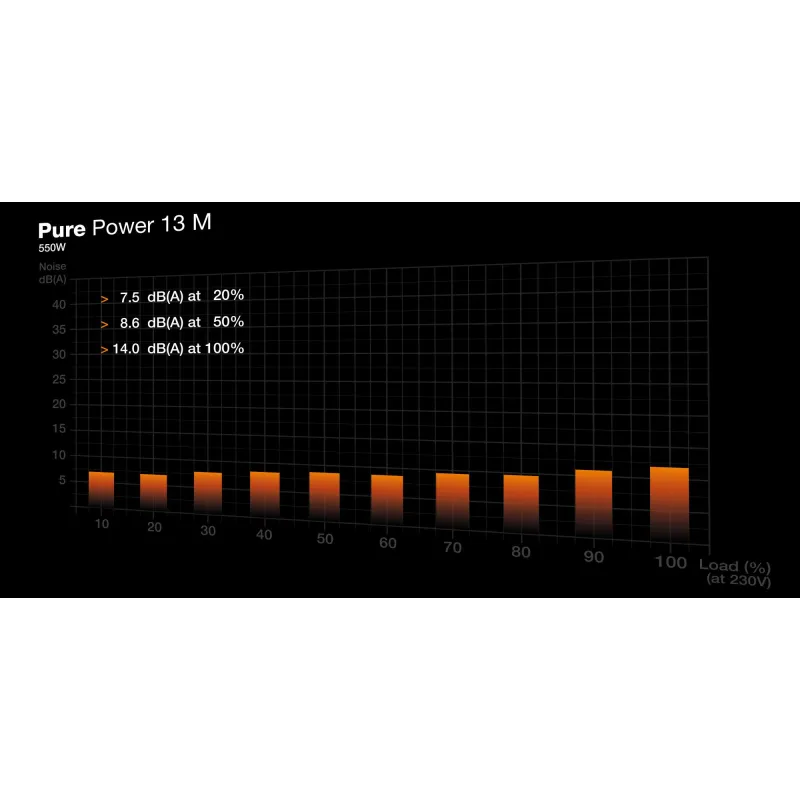

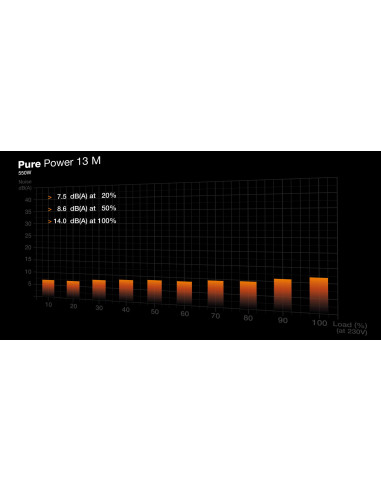

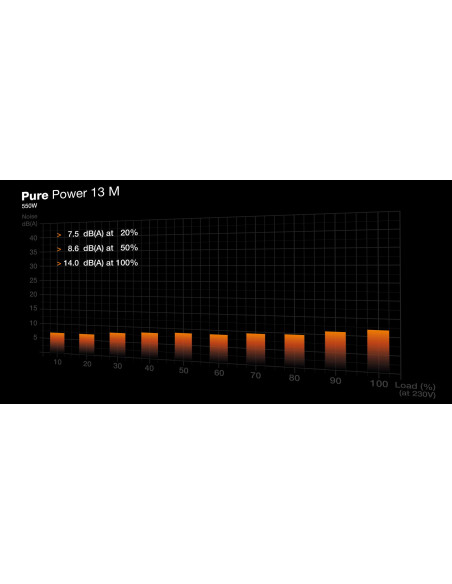

NOISE LEVEL, DB: 20.8
AC INPUT FREQUENCY, HZ: 50/60
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
NUMBER OF FANS, FAN(S): 1
PURPOSE: PC
COOLING TYPE: ACTIVE
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 6
FAN DIAMETER, MM: 120
SHIPPING (INNER) CASE GROSS WEIGHT, G: 17900
SHIPPING (INNER) CASE HEIGHT, MM: 233
SHIPPING (INNER) CASE WIDTH, MM: 325
SHIPPING (INNER) CASE LENGTH, MM: 580
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 2
COMBINED POWER (+12V), W: 550
COMBINED POWER (+3.3V), W: 120
COMBINED POWER (+5V), W: 120
COMBINED POWER (+5VSB), W: 15
EFFICIENCY, %: 92.1
COMBINED POWER (-12V), W: 3.6
MAX OUTPUT CURRENT (+3.3V), A: 20
MAX OUTPUT CURRENT (+5V), A: 20
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
TOTAL POWER, W: 550

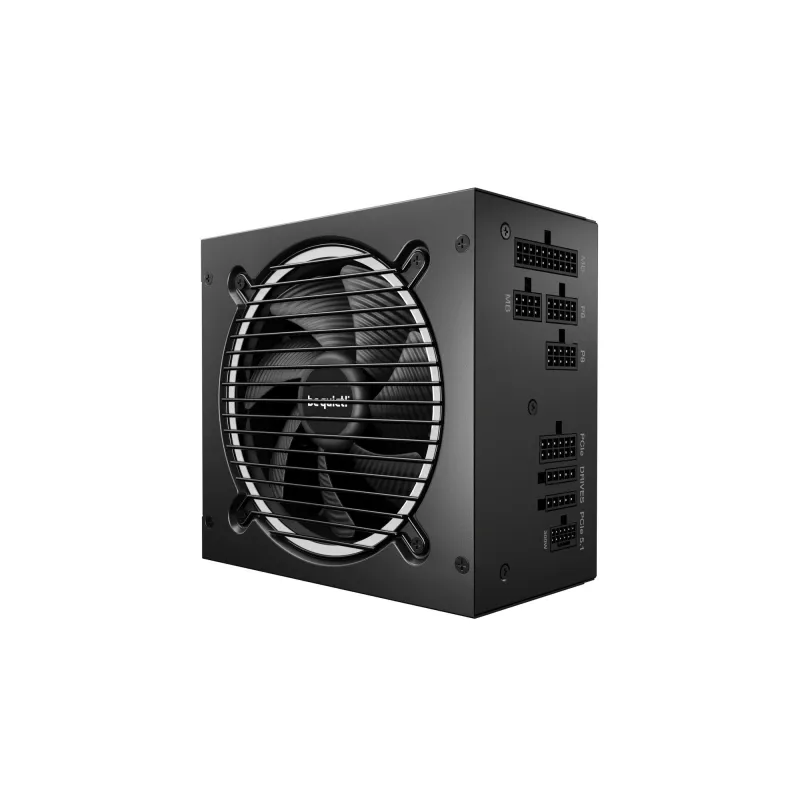

CABLING TYPE: FULLY-MODULAR

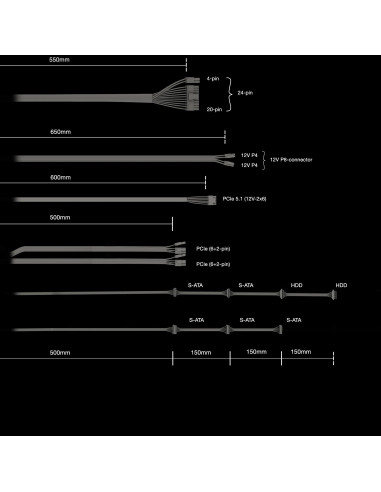

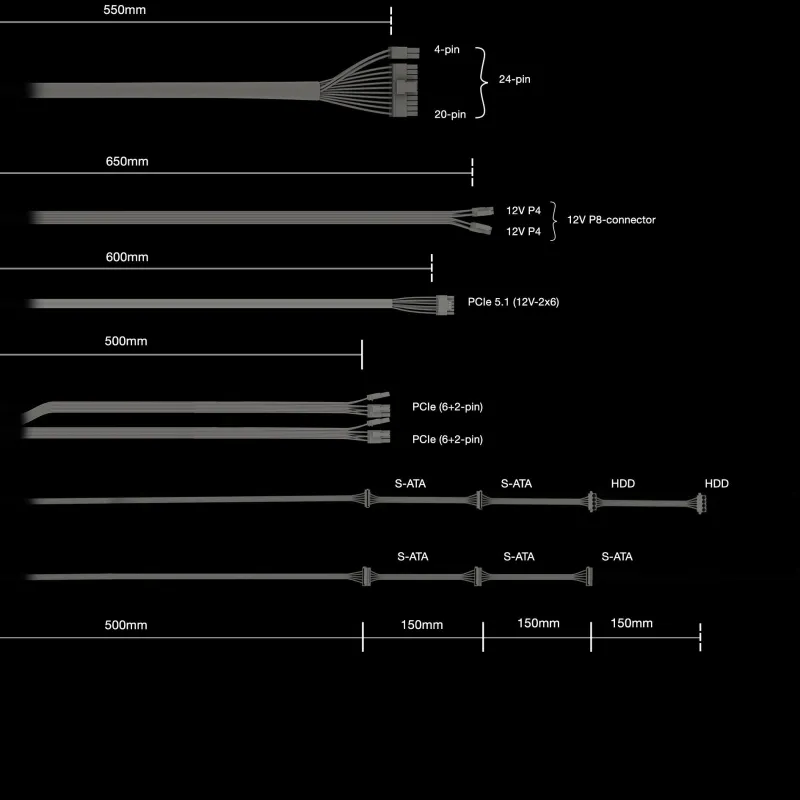

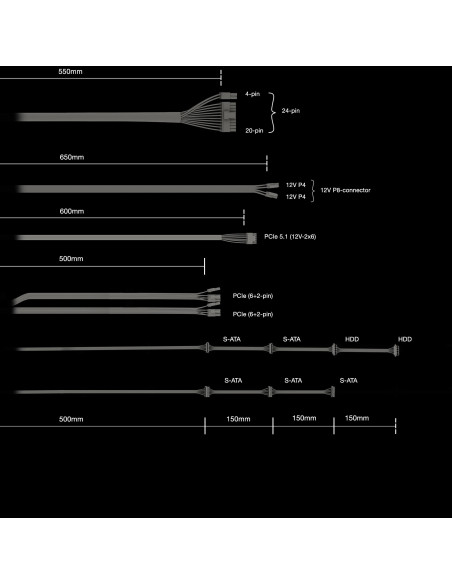

MOTHERBOARD POWER CABLE LENGTH, MM: 550
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 5
HOLD TIME, MS: 21.68
80 PLUS CERTIFICATION: 80 PLUS GOLD
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
BEARING TECHNOLOGY: RIFLE
MAX OUTPUT CURRENT (+12V1), A: 45.8
POWER FACTOR: 0.98
PEAK POWER, W: 600
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
CPU POWER CABLE LENGTH, MM: 650
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 2
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM: 800/950
SATA POWER CABLE LENGTH, MM: 500/650/800
ATX VERSION: 3.1
EPS VERSION: 2.92
CPU POWER CONNECTOR (4+4 PIN): YES
MAXIMUM INPUT CURRENT (@220V), A: 5
MAXIMUM INPUT CURRENT (@110V), A: 10
PCI EXPRESS POWER CONNECTORS (12-PIN): 1
FAN SPEED, RPM: 0 - 1800
NUMBER OF +12V RAIL(S): 1
CABLE TIES INCLUDED: YES
CPU P4 CONNECTOR (4-PIN): 2
