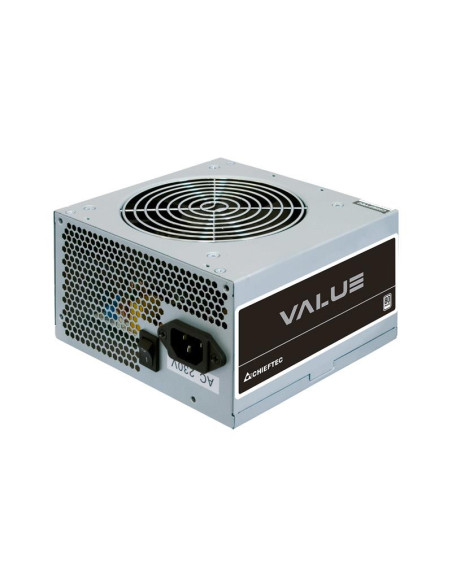

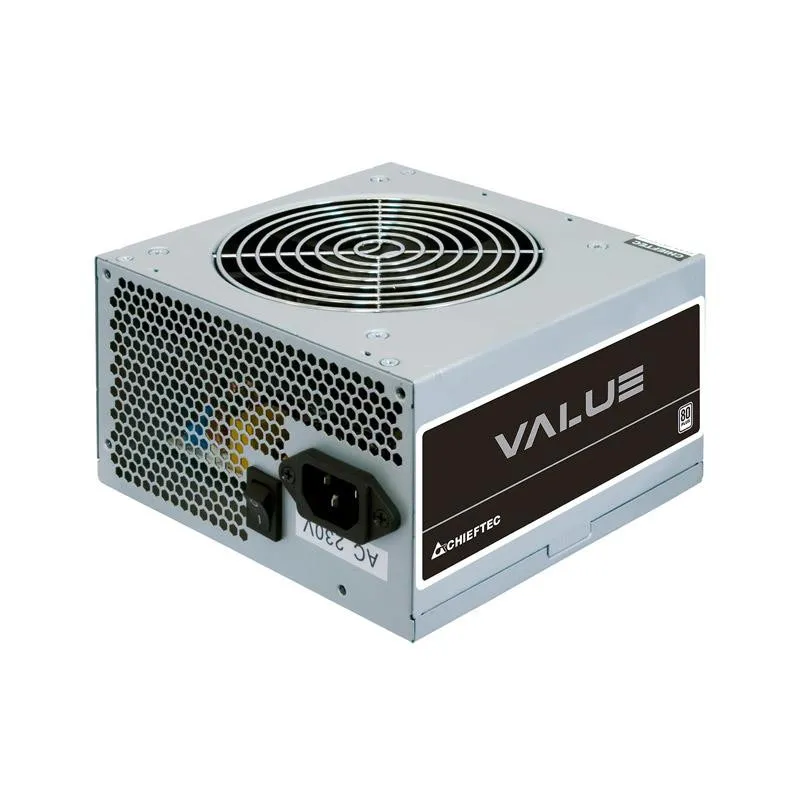

Power Supply, CHIEFTEC, 400 Watts, PFC Active, APB-400B8
Power Supply, CHIEFTEC, 400 Watts, PFC Active, APB-400B8

Power Supply, CHIEFTEC, 400 Watts, PFC Active, APB-400B8

CHIEFTEC
APB-400B8
Yra sandėlyje
30,61 € 31,52 € -0,91 €
Su mokesčiais
Artea.lt lizingas - naujasdizainas.com
Pristatoma 1 - 3 darbo dienos
400 W , 200 - 240 V , 80 PLUS certification 80 PLUS , PC/Server , PS/2 , Fan diameter 120 mm


SUMMARY
CHIEFTEC VALUE APB-400B8. TOTAL POWER: 400 W, AC INPUT VOLTAGE: 200 - 240 V, AC INPUT FREQUENCY: 47 - 63 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 35 CM, SATA POWER CABLE LENGTH: 150,350 MM. PURPOSE: PC/SERVER, POWER S
CATEGORY CODE
PSU
CNCODE
85044095
UNIT BOX HEIGHT
0.16
UNIT BOX LENGTH
0.18
UNIT BOX WIDTH
0.09
PRODUCT COLOUR
SILVER
WIDTH, MM
140
DEPTH, MM
150
UNIT CALCULATED WEIGHT, KG
1.28
PRODUCT NET WEIGHT, KG
1.05
UNIT CALCULATED VOLUME, CUBM
0.004825
UNITS PER SHIPPING BOX
10
SHIPPING BOX WEIGHT, KG
12.8
UNIT WIDTH, CM
9
SHIPPING BOX HEIGHT, CM
21
UNIT DEPTH, CM
18
SHIPPING BOX DEPTH, CM
50.5
UNIT HEIGHT, CM
16
SHIPPING BOX WIDTH, CM
45.5
NAME
CASE PSU ATX 400W/APB-400B8 CHIEFTEC
HEIGHT, MM
87
AC INPUT FREQUENCY, HZ
47 - 63
AC INPUT VOLTAGE, V
200 - 240
CERTIFICATION
80PLUS 230V EU
HARMONIZED SYSTEM (HS) CODE
84733020
INPUT CURRENT, A
3
POWER PROTECTION FEATURES
OVER VOLTAGE/OVERLOAD/SHORT CIRCUIT/UNDER VOLTAGE
NUMBER OF FANS, FAN(S)
1
PURPOSE
PC/SERVER
FAN DIAMETER, MM
120
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN)
2
TOTAL POWER, W
400
COMBINED POWER (+3.3V), W
100
COMBINED POWER (+12V), W
360
COMBINED POWER (+5V), W
100
COMBINED POWER (-12V), W
3.6
COMBINED POWER (+5VSB), W
12.5
MAX OUTPUT CURRENT (+3.3V), A
17
MAX OUTPUT CURRENT (+12V), A
30
MAX OUTPUT CURRENT (+5V), A
16
MAX OUTPUT CURRENT (-12V), A
0.3
MAX OUTPUT CURRENT (+5VSB), A
2.5
MOTHERBOARD POWER CONNECTOR
20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS
3
POWER FACTOR CORRECTION (PFC) TYPE
ACTIVE
EPS POWER CONNECTOR (4+4 PIN)
YES
PCI EXPRESS POWER CONNECTORS (6+2 PIN)
1
CABLING TYPE
NON-MODULAR
80 PLUS CERTIFICATION
80 PLUS
POWER SUPPLY UNIT (PSU) FORM FACTOR
PS/2
POWER FACTOR
0.9
MOTHERBOARD POWER CABLE LENGTH, MM
350
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM
150/350
SATA POWER CABLE LENGTH, MM
150/350
PCI EXPRESS POWER CABLE LENGTH, MM
350
CPU POWER CABLE LENGTH, MM
350
ATX VERSION
2.3
CPU POWER CONNECTOR (4+4 PIN)
YES
FLOPPY DISK DRIVE CONNECTOR
YES
FLOPPY DRIVE POWER CONNECTOR
1
