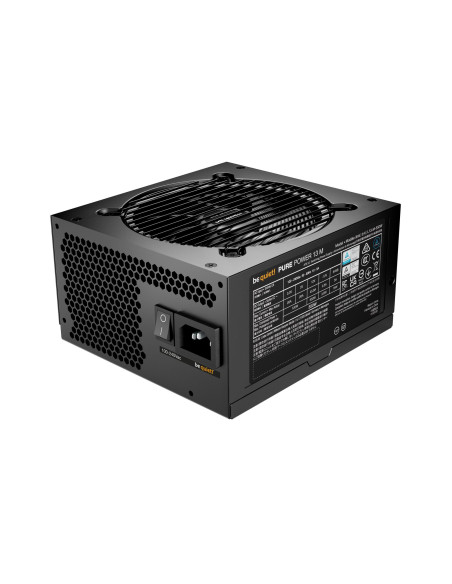

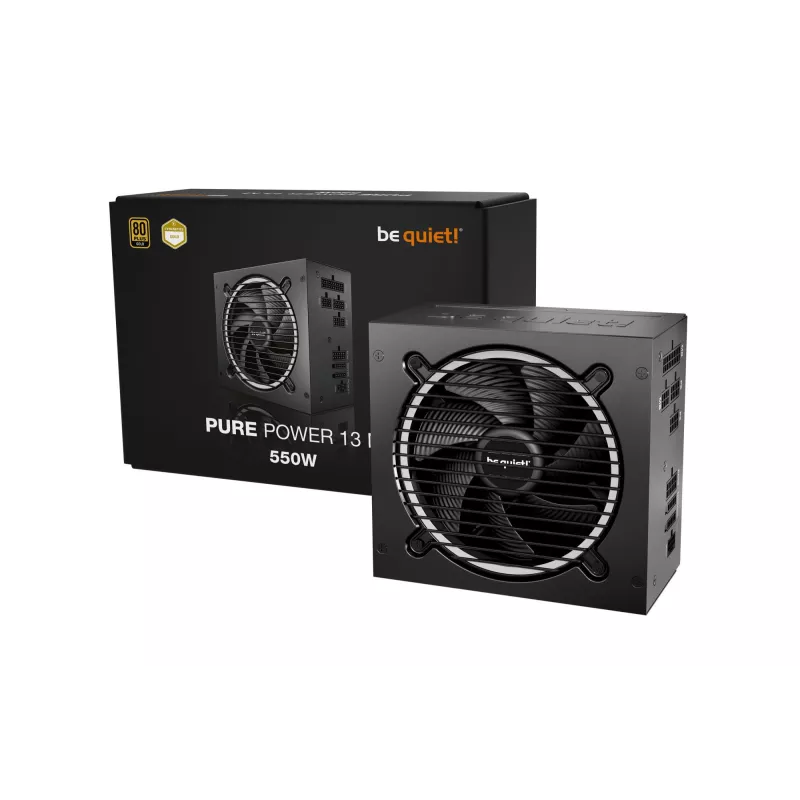

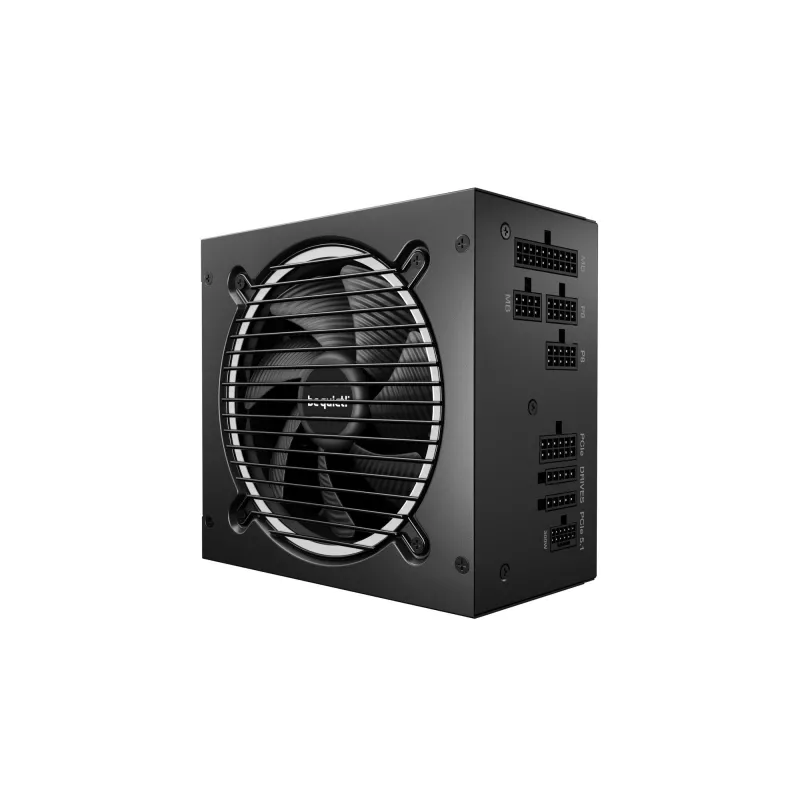

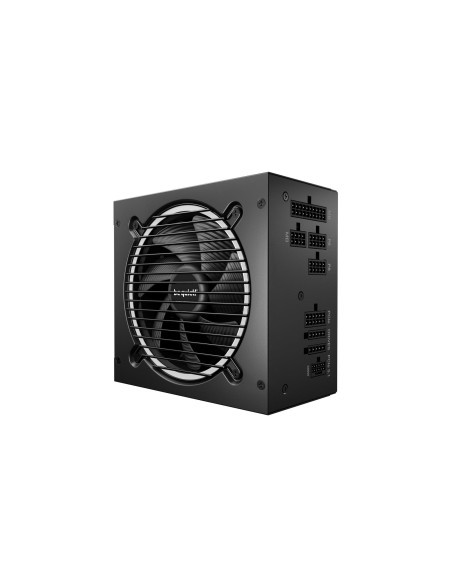

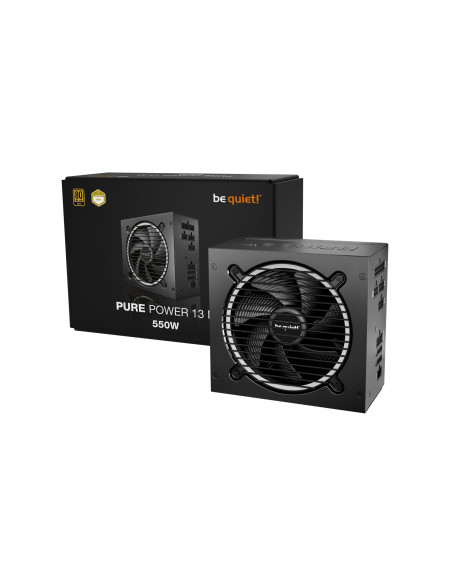

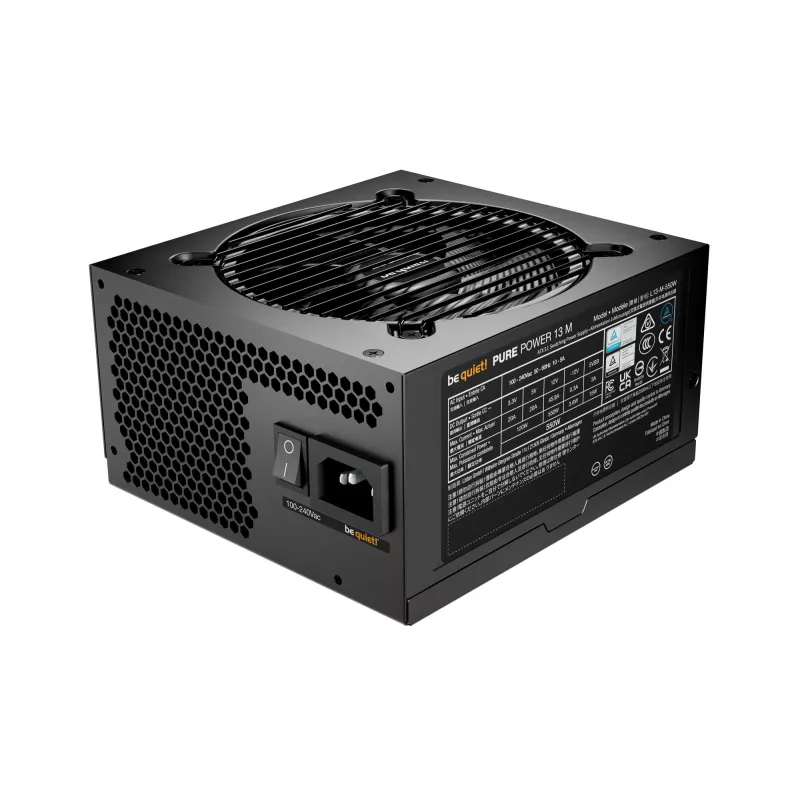

Power Supply, BE QUIET, Pure Power 13M, 550 Watts, Peak Power 600 Watts, Efficiency 80 PLUS GOLD, BP024EU

Power Supply, BE QUIET, Pure Power 13M, 550 Watts, Peak Power 600 Watts, Efficiency 80 PLUS GOLD, BP024EU

Name: Power Supply, BE QUIET, Pure Power 13M, 550 Watts, Peak Power 600 Watts, Efficiency 80 PLUS GOLD, BP024EU
Brand: BE QUIET
SKU: BP024EU
Price: 102.17 EUR
Availability: InStock

Gamintojas: BE QUIET

Kodas BP024EU

Yra sandėlyje

102,17 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

550 W , 100 - 240 V , Efficiency 92.1 % , 80 PLUS certification 80 PLUS Gold , PC , ATX , Noise level 20.8 dB , Fan diameter 120 mm , Weight 2.23 kg , Pure Power 13M

Prekės informacija
Atsiliepimai (0)

SUMMARY: BE QUIET! PURE POWER 13 M | 550W. TOTAL POWER: 550 W, AC INPUT VOLTAGE: 100 - 240 V, PEAK POWER: 600 W. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 55 CM, SATA POWER CABLE LENGTH: 500,650,800 MM. PURPOSE: PC, POWER SUPPLY UN
CATEGORY CODE: PSU
CNCODE: 85044095
UNIT BOX LENGTH: 0.29
UNIT BOX HEIGHT: 0.1
UNIT BOX WIDTH: 0.2
PRODUCT COLOUR: BLACK
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
PACKAGE DEPTH, MM: 320
PACKAGE HEIGHT, MM: 133
PACKAGE WEIGHT, G: 3000
PACKAGE WIDTH, MM: 210

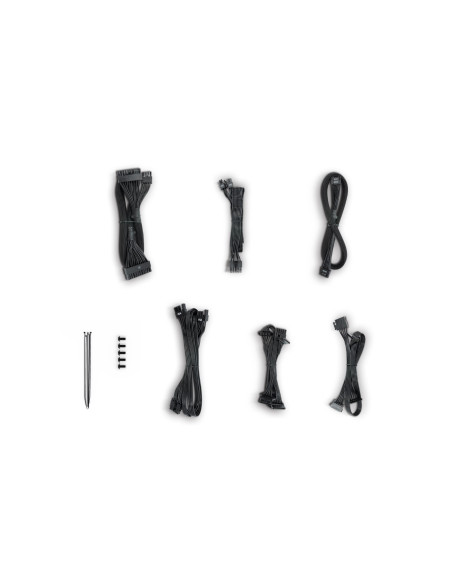

CABLES INCLUDED: AC,CPU,PCIE,PERIPHERAL (MOLEX),SATA
COMPLIANCE CERTIFICATES: BSMI/CB/CCC/CE/CTUVUS/FEDERAL COMMUNICATIONS COMMISSION (FCC)/IRAM/RCM/ROHS/T V MARK/UKCA/WEEE
MODEL NAME: PURE POWER 13M
UNIT CALCULATED VOLUME, CUBM: 0.008211
UNIT CALCULATED WEIGHT, KG: 2.92
OPERATING TEMPERATURE (T-T), °C: 0 - 40
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
SUSTAINABILITY CERTIFICATES: ENERGY STAR/ERP
COMBINED POWER (+12V), W: 550
COMBINED POWER (+3.3V), W: 120
COMBINED POWER (+5V), W: 120
COMBINED POWER (+5VSB), W: 15
EFFICIENCY, %: 92.1
MAX OUTPUT CURRENT (+3.3V), A: 20
MAX OUTPUT CURRENT (+5V), A: 20
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
COMBINED POWER (-12V), W: 3.6
TOTAL POWER, W: 550
CABLING TYPE: FULLY-MODULAR
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 5
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 2
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 2
80 PLUS CERTIFICATION: 80 PLUS GOLD
BEARING TECHNOLOGY: RIFLE
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
FAN DIAMETER, MM: 120
DEPTH, MM: 160
HEIGHT, MM: 86
WIDTH, MM: 150
UNITS PER SHIPPING BOX: 6
PURPOSE: PC
HOLD TIME, MS: 21.68
MAX OUTPUT CURRENT (+12V1), A: 45.8
POWER FACTOR: 0.98
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/SURGE & INRUSH PROTECTION (SIP)/UNDER VOLTAGE

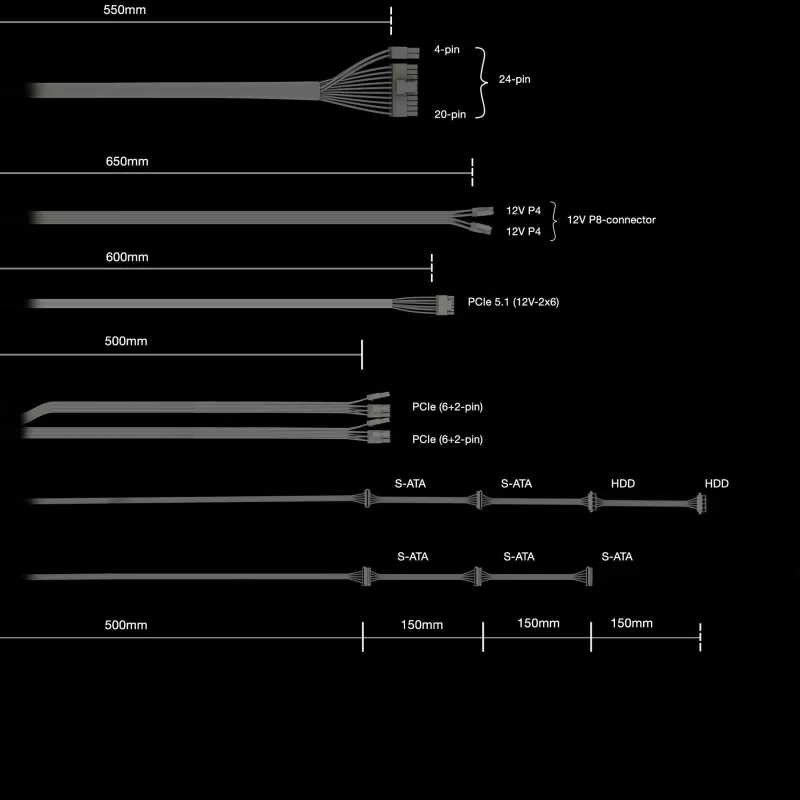

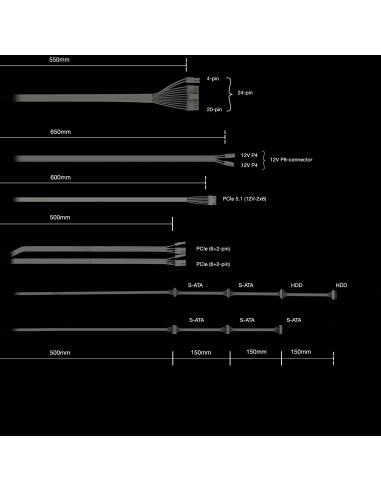

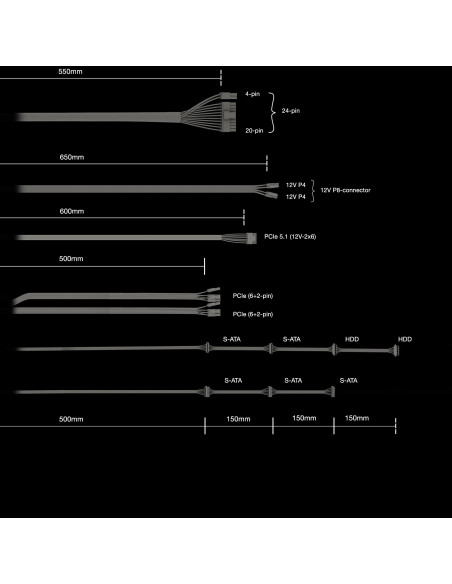

CPU POWER CABLE LENGTH, MM: 650
PEAK POWER, W: 600
MOTHERBOARD POWER CABLE LENGTH, MM: 550
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM: 800/950
SATA POWER CABLE LENGTH, MM: 500/650/800
ATX VERSION: 3.1

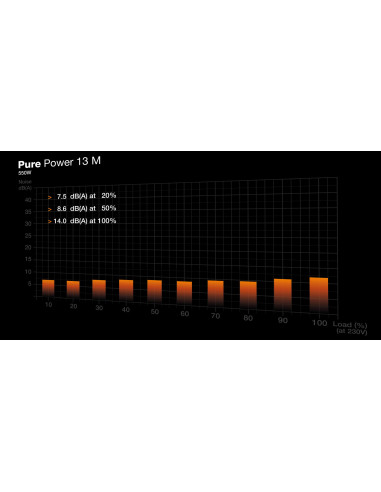

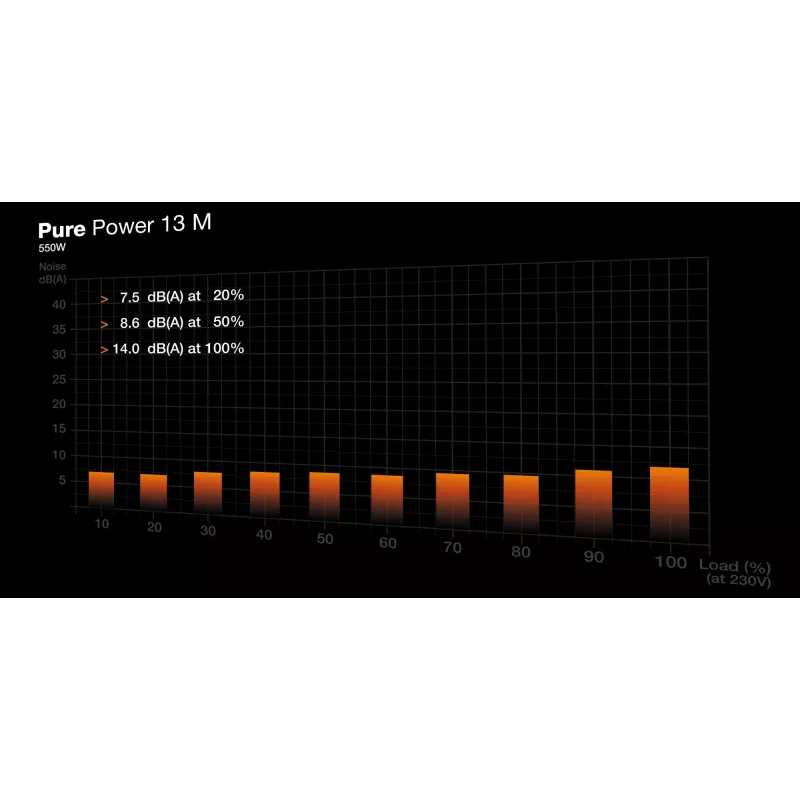

NOISE LEVEL, DB: 20.8
EPS VERSION: 2.92
COOLING TYPE: ACTIVE
NUMBER OF FANS, FAN(S): 1
WEIGHT, G: 2230
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 6
SHIPPING (INNER) CASE HEIGHT, MM: 233
SHIPPING (INNER) CASE WIDTH, MM: 325
SHIPPING (INNER) CASE LENGTH, MM: 580
ON/OFF SWITCH: YES
CPU POWER CONNECTOR (4+4 PIN): YES
MAXIMUM INPUT CURRENT (@220V), A: 5
MAXIMUM INPUT CURRENT (@110V), A: 10
PCI EXPRESS POWER CONNECTORS (12-PIN): 1
FAN SPEED, RPM: 0 - 1800
NUMBER OF +12V RAIL(S): 1
CABLE TIES INCLUDED: YES
SCREWS INCLUDED: YES
CPU P4 CONNECTOR (4-PIN): 2
SHIPPING (INNER) CASE GROSS WEIGHT, G: 17900
