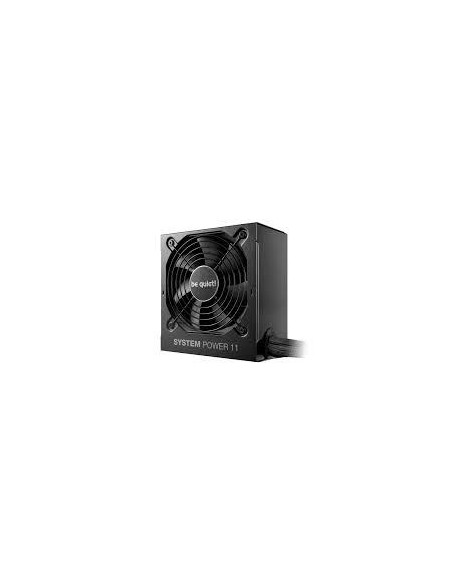

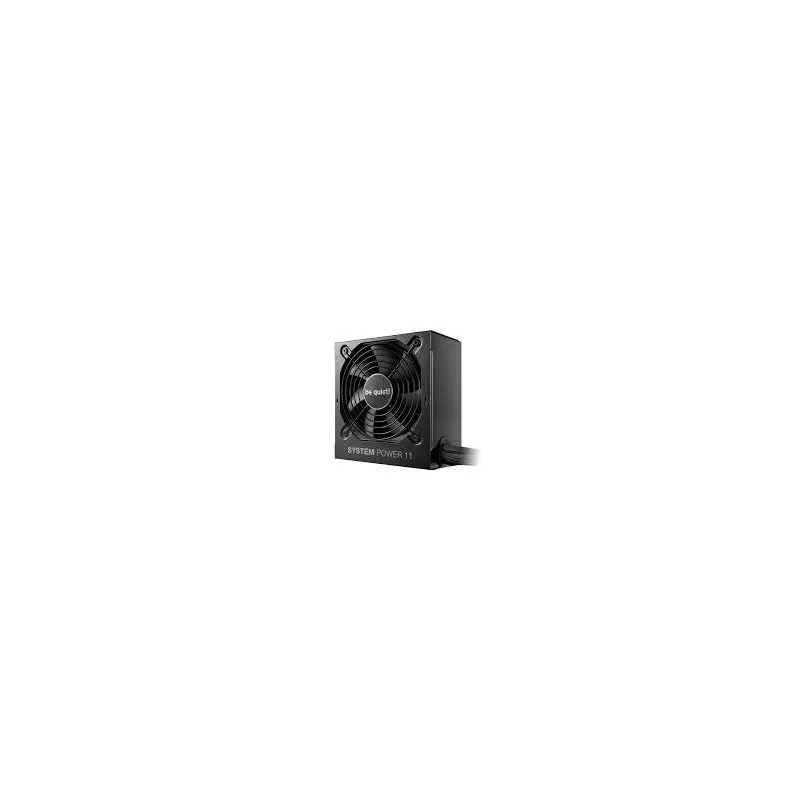

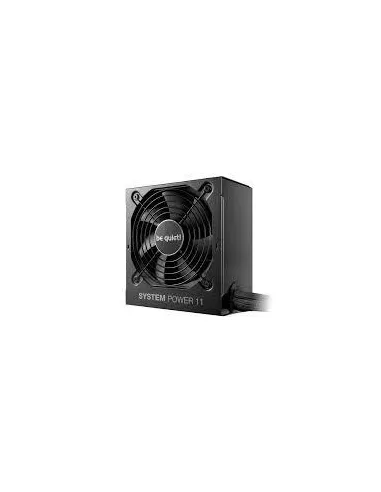

Power Supply, BE QUIET, ATX, PC, 200 - 240 V, 550 W, BP010EU

Name: Power Supply, BE QUIET, ATX, PC, 200 - 240 V, 550 W, BP010EU
Brand: BE QUIET
SKU: BP010EU
Price: 65 EUR
Availability: InStock

Gamintojas: BE QUIET

Kodas BP010EU

Yra sandėlyje

65,00 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

550 W , 200 - 240 V , Efficiency 89.7 % , 80 PLUS certification 80 PLUS Bronze , PC , ATX , Noise level 24.2 dB , Fan diameter 120 mm , Weight 1.92 kg , Package type Box

Prekės informacija
Atsiliepimai (0)

SUMMARY: BE QUIET! SYSTEM POWER 11 550W. TOTAL POWER: 550 W, AC INPUT VOLTAGE: 200 - 240 V, AC INPUT FREQUENCY: 50 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, CABLING TYPE: NON-MODULAR. PURPOSE: PC, POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX, 80 PLUS CERTIFICATIO
CATEGORY CODE: PSU
CNCODE: 85044095
UNIT BOX HEIGHT: 0.196
UNIT BOX LENGTH: 0.28
UNIT BOX WIDTH: 0.099
PRODUCT COLOUR: BLACK
AC INPUT FREQUENCY, HZ: 50
AC INPUT VOLTAGE, V: 200 - 240
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 97
PACKAGE TYPE: BOX
PACKAGE WEIGHT, G: 2300
PACKAGE WIDTH, MM: 195
UNIT CALCULATED VOLUME, CUBM: 0.006615
UNIT CALCULATED WEIGHT, KG: 2.5
SUSTAINABILITY CERTIFICATES: ENERGY STAR/ERP
COMPLIANCE CERTIFICATES: CB/CE/ROHS/T V MARK/UKCA/WEEE
INPUT CURRENT, A: 4
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
COMBINED POWER (+12V), W: 550
COMBINED POWER (+3.3V), W: 120
COMBINED POWER (+5V), W: 120
COMBINED POWER (+5VSB), W: 15
EFFICIENCY, %: 89.7
MAX OUTPUT CURRENT (+3.3V), A: 20
MAX OUTPUT CURRENT (+5V), A: 20
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
COMBINED POWER (-12V), W: 3.6
TOTAL POWER, W: 550
CABLING TYPE: NON-MODULAR
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 5
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 2
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
80 PLUS CERTIFICATION: 80 PLUS BRONZE
BEARING TECHNOLOGY: RIFLE
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
FAN DIAMETER, MM: 120
DEPTH, MM: 86
HEIGHT, MM: 140
WIDTH, MM: 150
UNITS PER SHIPPING BOX: 6
PURPOSE: PC
HOLD TIME, MS: 16.86
MAX OUTPUT CURRENT (+12V1), A: 45.83
POWER FACTOR: 0.98
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/SURGE & INRUSH/UNDER VOLTAGE
ATX VERSION: 3.1
NOISE LEVEL, DB: 24.2
EPS VERSION: 2.92
COOLING TYPE: ACTIVE
NUMBER OF FANS, FAN(S): 1
WEIGHT, G: 1920
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 6
SHIPPING (INNER) CASE HEIGHT, MM: 218
SHIPPING (INNER) CASE WIDTH, MM: 311
SHIPPING (INNER) CASE LENGTH, MM: 556
ON/OFF SWITCH: YES
CPU POWER CONNECTOR (4+4 PIN): YES
PCI EXPRESS POWER CONNECTORS (12-PIN): 1
FAN SPEED, RPM: 0 - 1800
NUMBER OF +12V RAIL(S): 1
CABLE TIES INCLUDED: YES
SCREWS INCLUDED: YES
CPU P4 CONNECTOR (4-PIN): 1
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) COMPLIANCE: YES
SHIPPING (INNER) CASE GROSS WEIGHT, G: 14900
