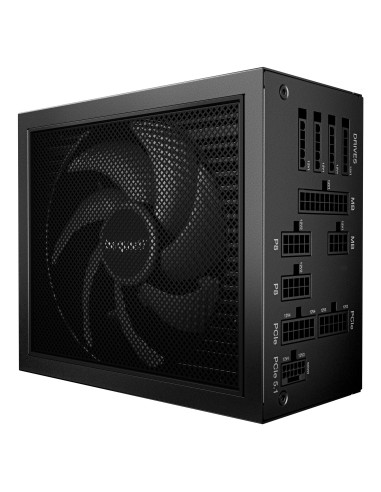

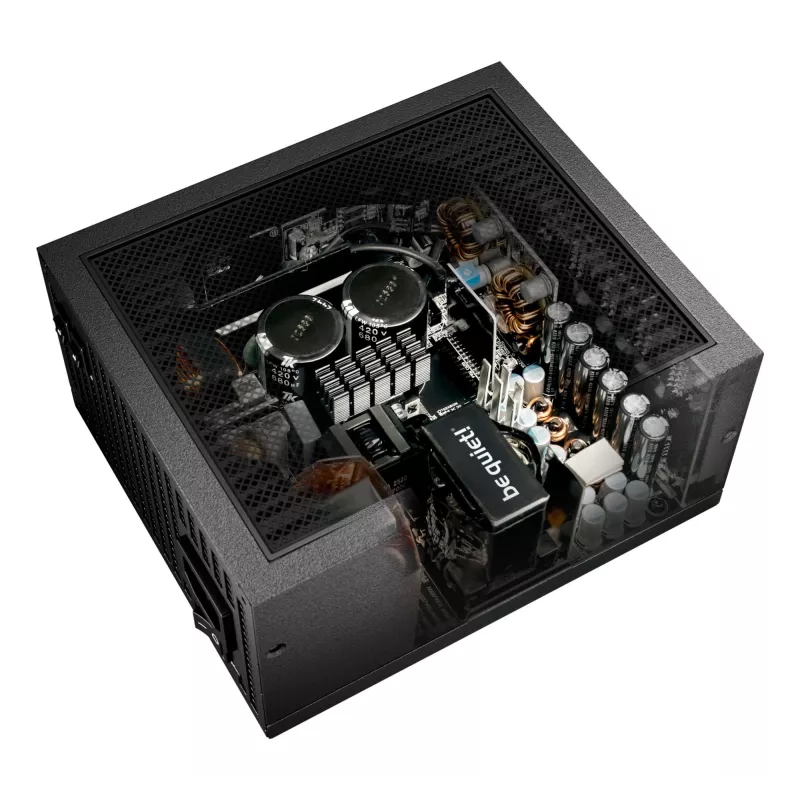

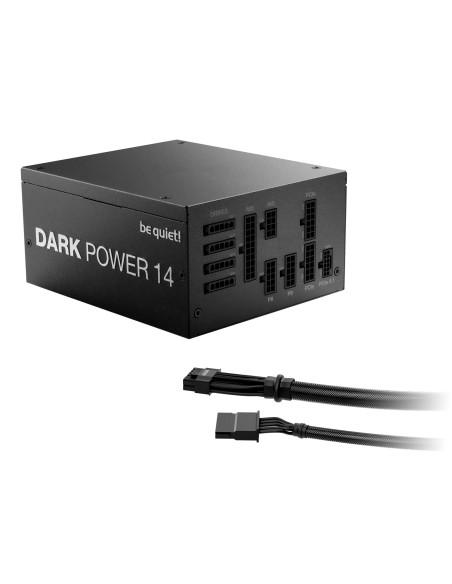

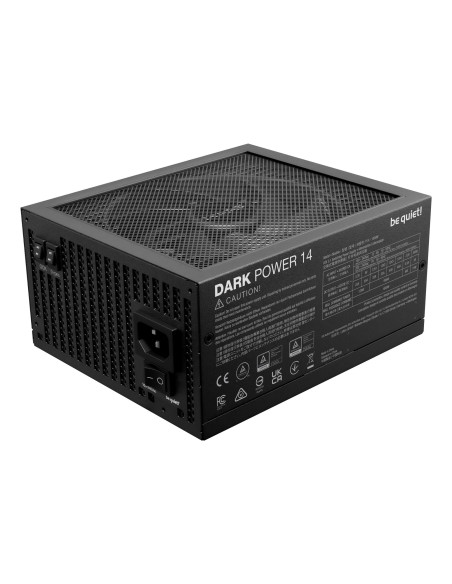

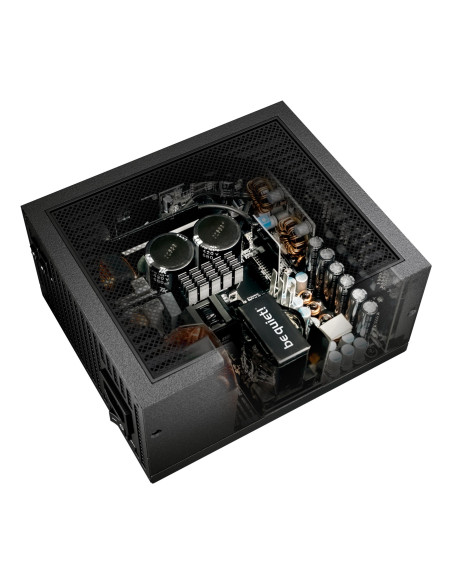

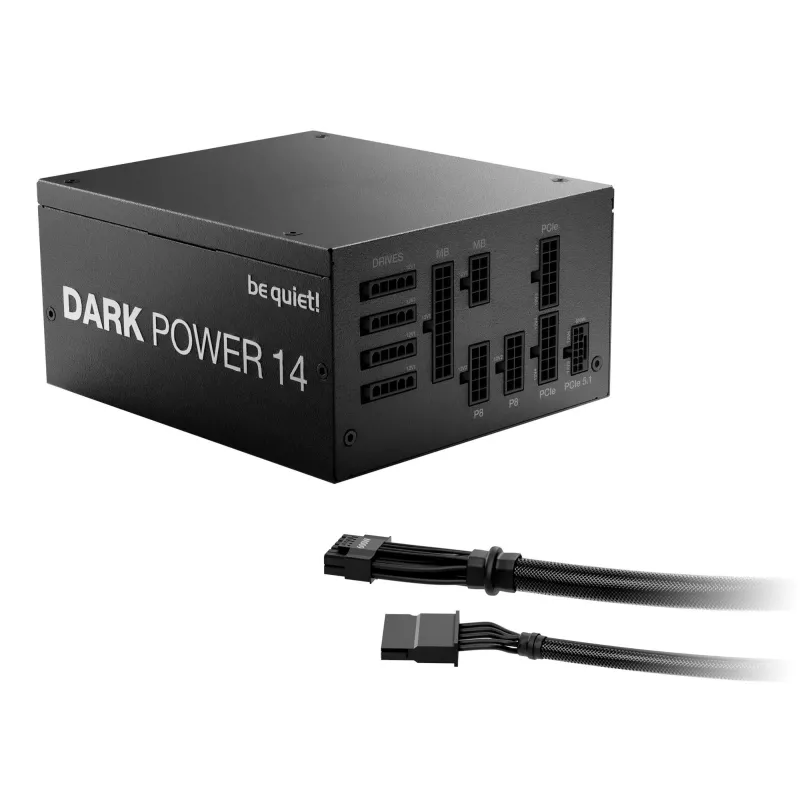

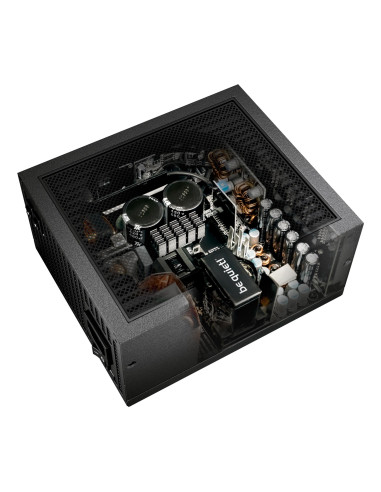

Power Supply, BE QUIET, ATX, PC, 100 - 240 V, 1000 W, BP020EU

Power Supply, BE QUIET, ATX, PC, 100 - 240 V, 1000 W, BP020EU

Name: Power Supply, BE QUIET, ATX, PC, 100 - 240 V, 1000 W, BP020EU
Brand: BE QUIET
SKU: BP020EU
Price: 273.04 EUR
Availability: InStock

Gamintojas: BE QUIET

Kodas BP020EU

Yra sandėlyje

273,04 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

1000 W , 100 - 240 V , Efficiency 93.8 % , 80 PLUS certification 80 PLUS Titanium , PC , ATX , Noise level 18.2 dB , Fan diameter 135 mm , Weight 2.2 kg

Prekės informacija
Atsiliepimai (0)

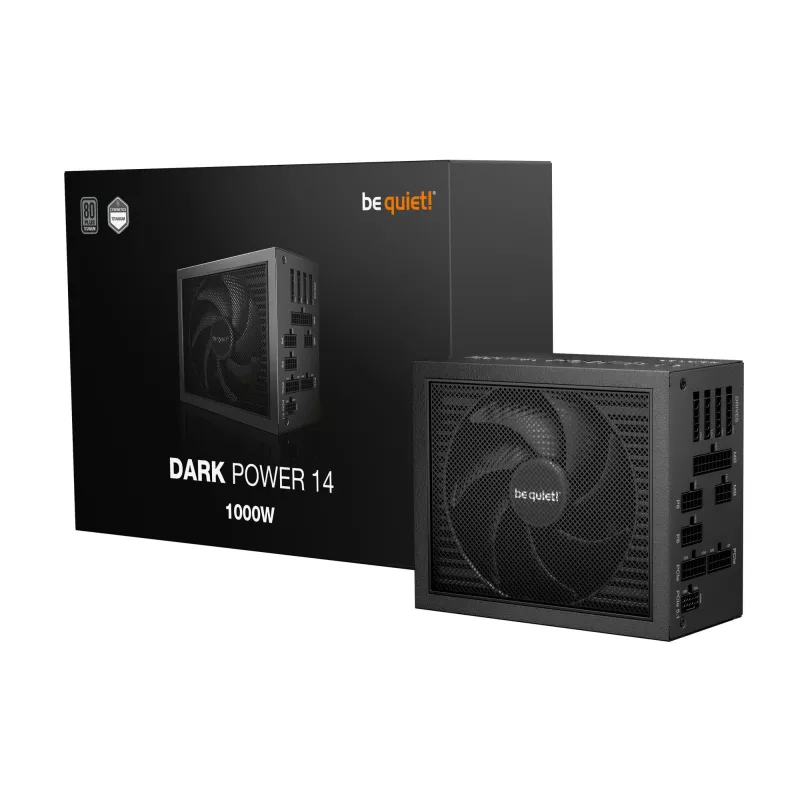

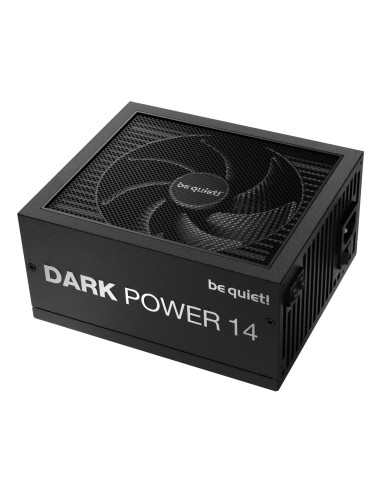

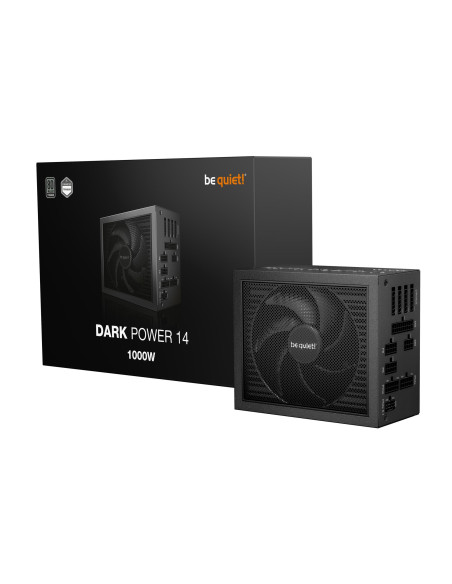

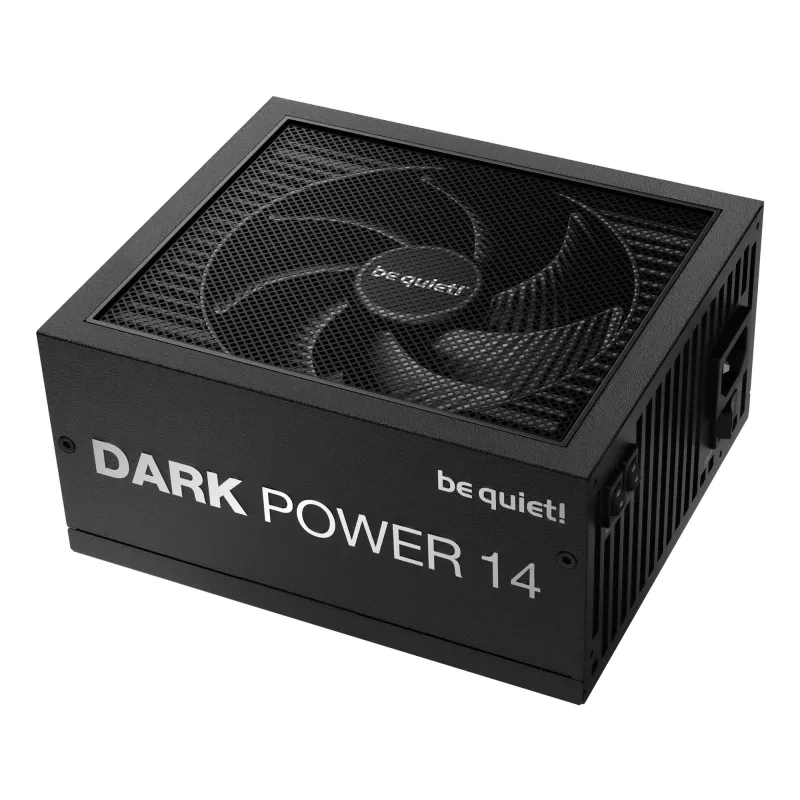

SUMMARY: BE QUIET! DARK POWER 14 1000 W - 80 PLUS TITANIUM. TOTAL POWER: 1000 W, AC INPUT VOLTAGE: 100 - 240 V, PEAK POWER: 1100 W. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 60 CM, SATA POWER CABLE LENGTH: 600,750,900,1050 MM. PURP
CNCODE: 85044095
CATEGORY CODE: PSU
UNIT BOX LENGTH: 0.354
UNIT BOX HEIGHT: 0.231
UNIT BOX WIDTH: 0.127
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
COMBINED POWER (+12V), W: 996
COMBINED POWER (+3.3V), W: 120
COMBINED POWER (+5V), W: 120
MAX OUTPUT CURRENT (+3.3V), A: 25
MAX OUTPUT CURRENT (+5V), A: 24
MAX OUTPUT CURRENT (+5VSB), A: 3
POWER PROTECTION FEATURES: OVER CURRENT/OVER VOLTAGE/OVERHEATING/OVERLOAD/SHORT CIRCUIT/SURGE & INRUSH PROTECTION (SIP)/UNDER VOLTAGE
TOTAL POWER, W: 1000

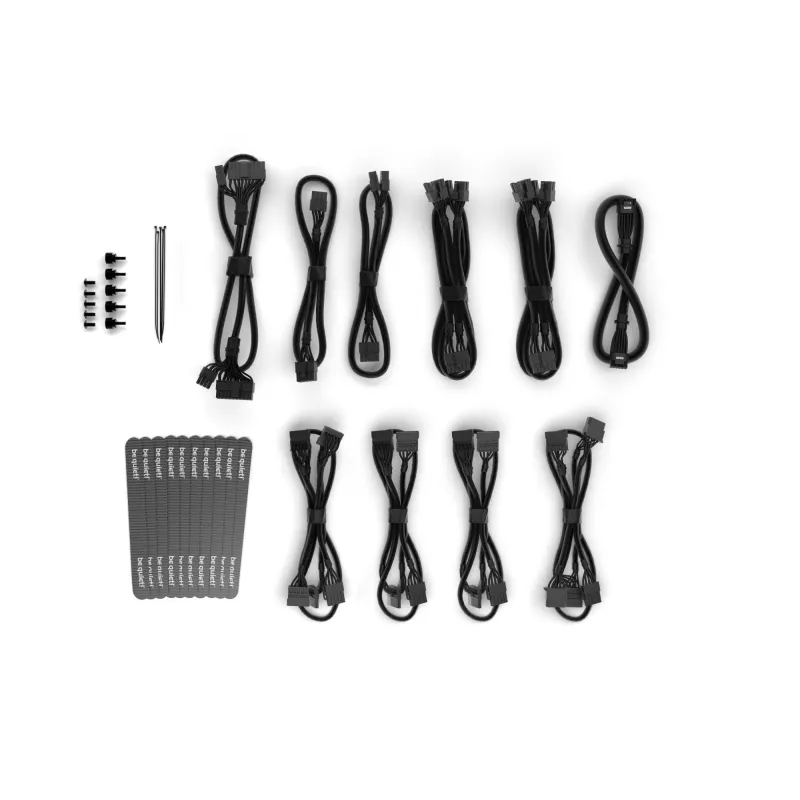

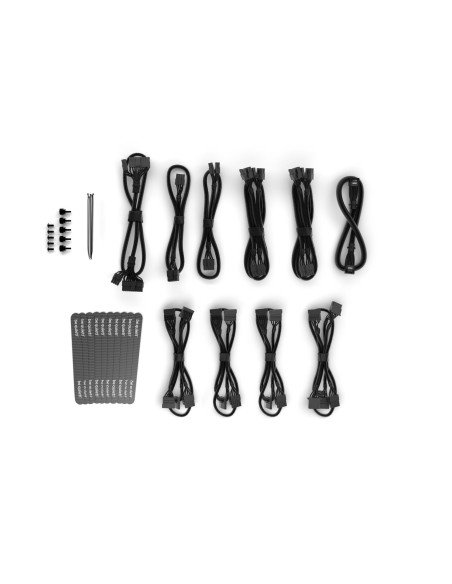

CABLING TYPE: FULLY-MODULAR
EPS POWER CONNECTOR (4+4 PIN): YES

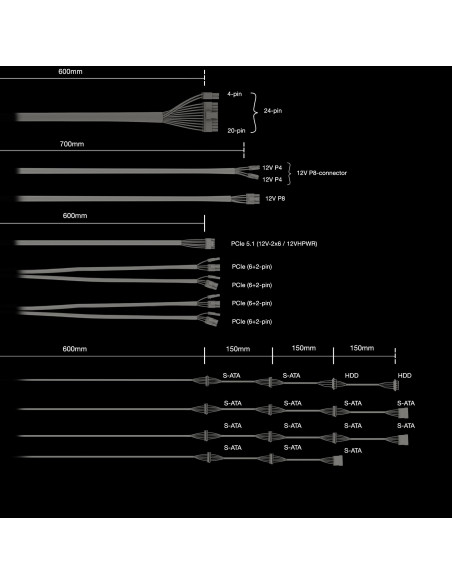

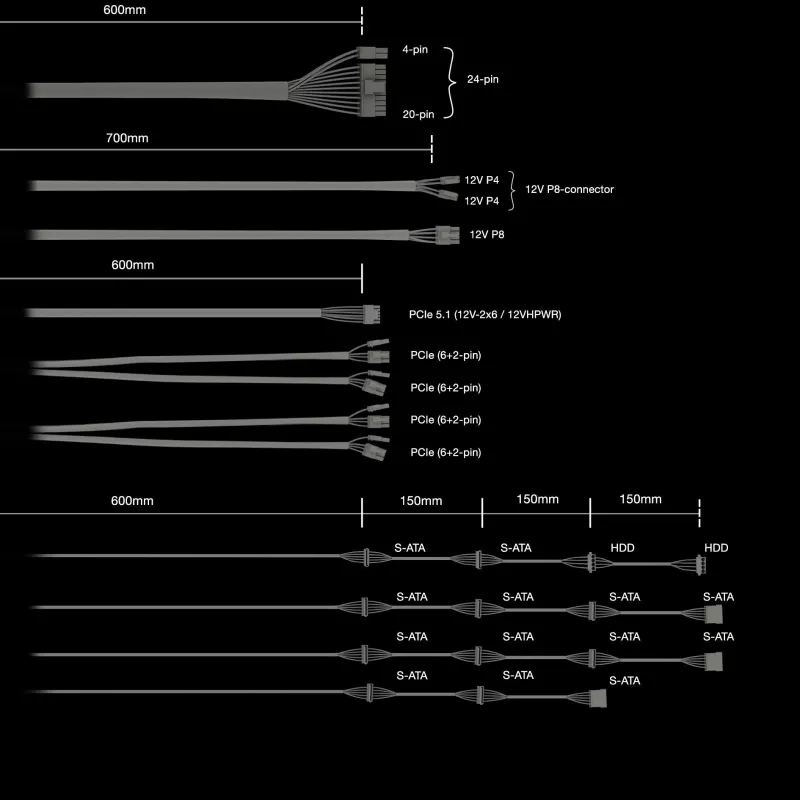

MOTHERBOARD POWER CABLE LENGTH, MM: 600
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 13
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 4
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM: 1050/900
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 2
SATA POWER CABLE LENGTH, MM: 1050/600/750/900
80 PLUS CERTIFICATION: 80 PLUS TITANIUM
ATX VERSION: 3.1
BEARING TECHNOLOGY: FDB
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
COOLING TYPE: ACTIVE
FAN DIAMETER, MM: 135
NUMBER OF FANS, FAN(S): 1
ON/OFF SWITCH: YES
PRODUCT COLOUR: BLACK
COMPLIANCE CERTIFICATES: CB/CTUVUS/FEDERAL COMMUNICATIONS COMMISSION (FCC)/ROHS/T V MARK/UKCA/WEEE
PURPOSE: PC
DEPTH, MM: 175
HEIGHT, MM: 86
WEIGHT, G: 2200
WIDTH, MM: 150
MANUAL: YES
PACKAGE DEPTH, MM: 126
PACKAGE HEIGHT, MM: 355
PACKAGE WEIGHT, G: 3500
PACKAGE WIDTH, MM: 230
UNITS PER SHIPPING BOX: 4
UNIT CALCULATED VOLUME, CUBM: 0.01331
UNIT CALCULATED WEIGHT, KG: 4.82
MAX OUTPUT CURRENT (-12V), A: 0.5
CPU POWER CONNECTOR (4+4 PIN): YES
OPERATING TEMPERATURE (T-T), °C: 0 - 40
NUMBER OF SATA POWER CABLES: 4
POWER FACTOR: 0.98
EPS POWER CONNECTOR (8-PIN): YES
FAN SPEED, RPM: 0 - 2100
EFFICIENCY, %: 93.8
HOLD TIME, MS: 20.1
MAXIMUM INPUT CURRENT (@220V), A: 5
ATX POWER CONNECTOR (20+4 PIN): YES
PCI EXPRESS CONNECTOR: YES
MAXIMUM INPUT CURRENT (@110V), A: 10
CPU POWER CABLE LENGTH, MM: 700
PCI EXPRESS POWER CABLE LENGTH, MM: 600
MAX OUTPUT CURRENT (+12V1), A: 33

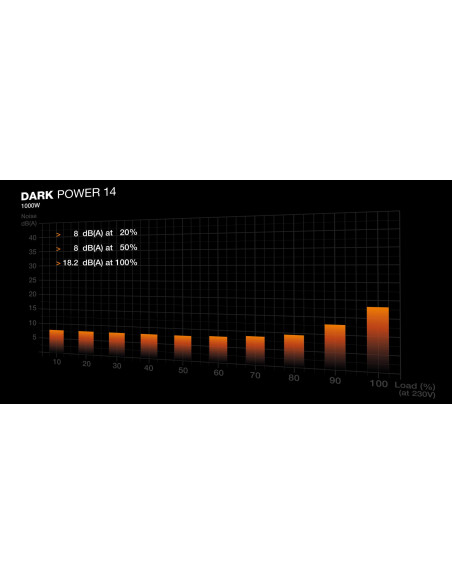

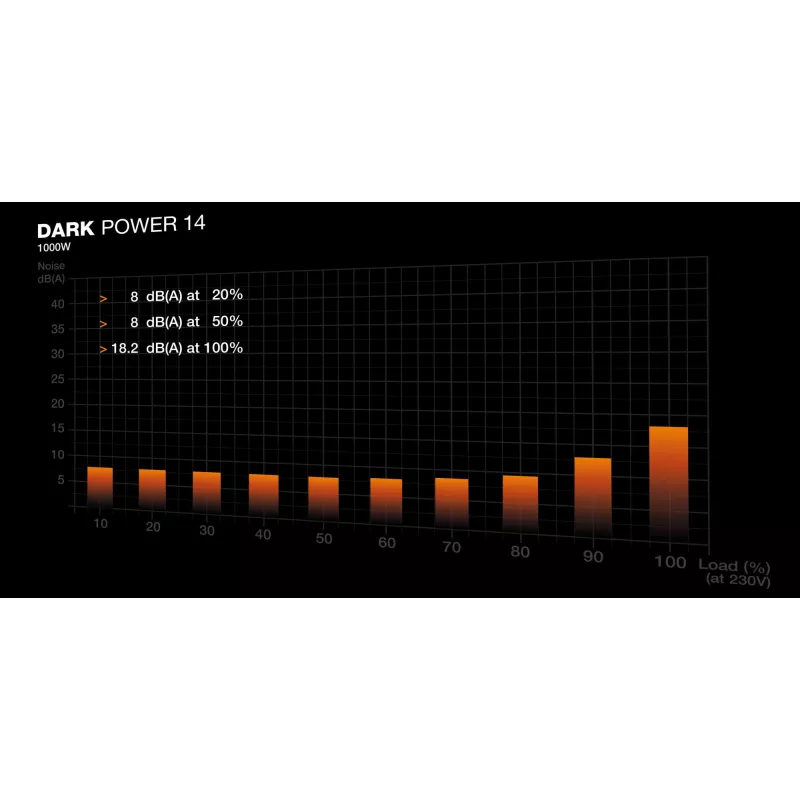

NOISE LEVEL, DB: 18.2
SUSTAINABILITY CERTIFICATES: ENERGY STAR/ERP/TRIMAN
MAX OUTPUT CURRENT (+12V2), A: 33
PEAK POWER, W: 1100
SCREWS INCLUDED: YES
MANUAL LANGUAGES: ENGLISH/FRENCH/GERMAN/ITALIAN/JAPANESE/POLISH/RUSSIAN/SIMPLIFIED CHINESE/SPANISH/THAI/UKRAINIAN
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 4
SHIPPING (INNER) CASE HEIGHT, MM: 260
SHIPPING (INNER) CASE WIDTH, MM: 368
SHIPPING (INNER) CASE LENGTH, MM: 528
MAX OUTPUT CURRENT (+12V3), A: 40
MAX OUTPUT CURRENT (+12V4), A: 40
EPS VERSION: 2.92
SHIPPING (INNER) CASE NET WEIGHT, G: 19340
PCI EXPRESS POWER CONNECTORS (12-PIN): 1

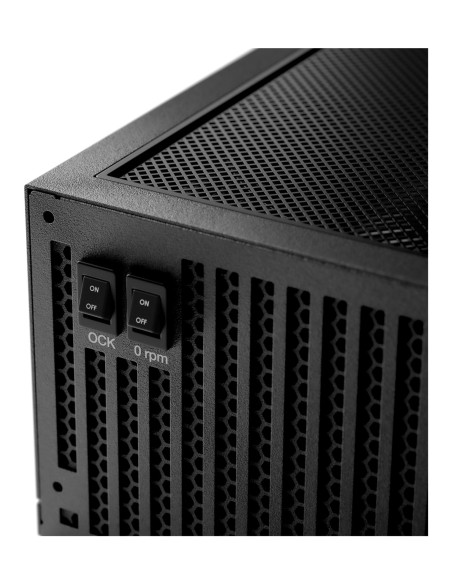

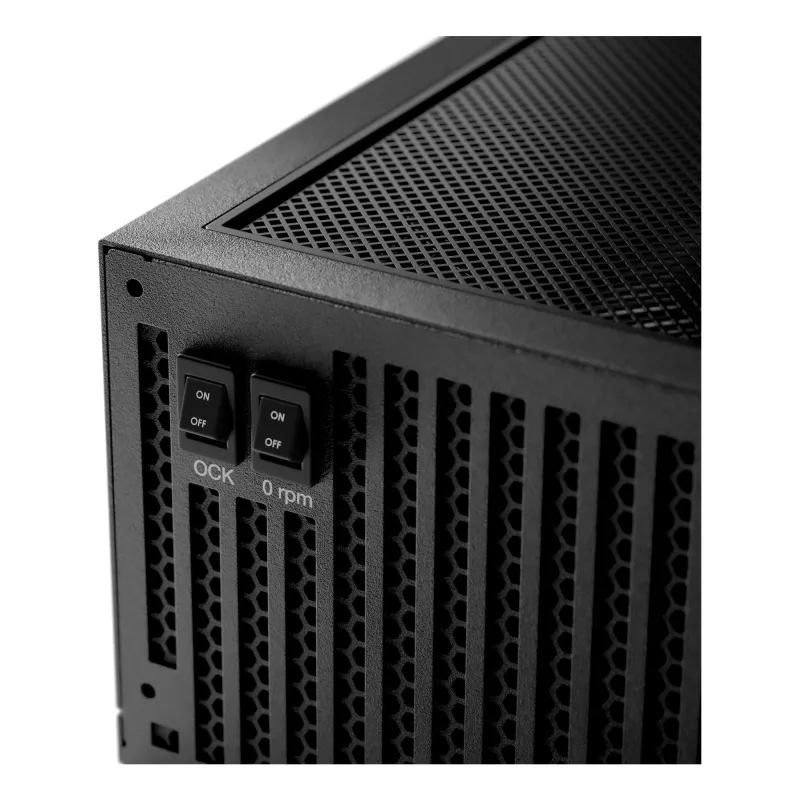

ON/OFF FAN SWITCH: YES
NUMBER OF +12V RAIL(S): 4
CABLE TIES INCLUDED: YES
