Nauja

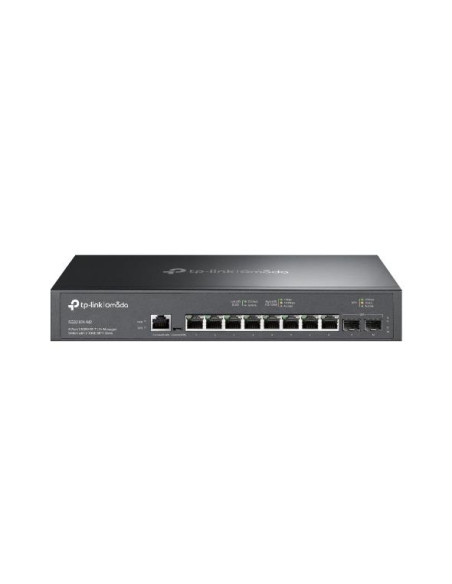

Switch, TP-LINK, Omada, SG3210X-M2, Type L2+, Desktop/pedestal, Rack, 8x2.5GbE, 2xSFP+, 1xConsole, 1, SG3210X-M2

Name: Switch, TP-LINK, Omada, SG3210X-M2, Type L2+, Desktop/pedestal, Rack, 8x2.5GbE, 2xSFP+, 1xConsole, 1, SG3210X-M2
Brand: TP-LINK
SKU: SG3210X-M2
Price: 235.56 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas SG3210X-M2

Paskutinė prekė

235,56 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , Omada 8-Port 2.5G L2+ Managed Switch , Type Managed , Switch layer L2+ , Quality of Service (QoS) support Yes , Cloud-managed Yes , Web-based management Yes , 8xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500) , 2xSFP+ module slots quantity , Console port RJ-45/Micro-USB , Yes , Port mirroring Yes , Switching capacity 80 Gbit/s , Forwarding rate 59.52 Mpps , Password protection Yes , Rack mounting Yes , Form factor 1U , Product colour Black , Power source AC , Power supply included Yes , Power consumption (typical) 15 W , Width 294 mm , Depth 180 mm , Height 44 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 8-PORT 2.5G L2+ MANAGED SWITCH. SWITCH TYPE: MANAGED, SWITCH LAYER: L2+. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: 2.5G ETHERNET (100/1000/2500), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 8, CONSOLE PORT: RJ-45/MICRO-USB. MAC ADDRESS T
CATEGORY CODE: SWI
CNCODE: 85176200
UNIT BOX HEIGHT: 0.082
UNIT BOX LENGTH: 0.405
UNIT BOX WIDTH: 0.25
PRODUCT COLOUR: BLACK
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
DEPTH, MM: 180
HEIGHT, MM: 44
WIDTH, MM: 294
MODEL NAME: OMADA 8-PORT 2.5G L2+ MANAGED SWITCH
UNITS PER SHIPPING BOX: 8
UNIT CALCULATED VOLUME, CUBM: 0.009573
UNIT CALCULATED WEIGHT, KG: 2.53
POWER CONSUMPTION (TYPICAL), W: 15
PACKAGE DEPTH, MM: 250
PACKAGE HEIGHT, MM: 80
PACKAGE TYPE: BOX
PACKAGE WEIGHT, G: 2840
PACKAGE WIDTH, MM: 528
QUICK START GUIDE: YES
OPERATING TEMPERATURE (T-T), °C: 0 - 50
CLOUD-MANAGED: YES
POWER SOURCE: AC
CERTIFICATION: CE, FCC, ROHS
LED INDICATORS: YES
NETWORKING STANDARDS: IEEE 802.1D/IEEE 802.1S/IEEE 802.1W
SECURITY ALGORITHMS: HTTPS/SSH/SSH-2/SSL/TLS
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
STORAGE TEMPERATURE (T-T), °C: -40 - 70
CABLES INCLUDED: AC
HARMONIZED SYSTEM (HS) CODE: 85176990
FORM FACTOR: 1U
PASSWORD PROTECTION: YES
ARP INSPECTION: YES
QUALITY OF SERVICE (QOS) SUPPORT: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
SWITCH LAYER: L2+
SWITCH TYPE: MANAGED
SYSTEM EVENT LOG: YES
WEB-BASED MANAGEMENT: YES
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 8
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: 2.5G ETHERNET (100/1000/2500)
CONSOLE PORT: RJ-45/MICRO-USB
POWER CONNECTOR: AC-IN JACK
10G SUPPORT: YES
BROADCAST STORM CONTROL: YES
SFP+ MODULE SLOTS QUANTITY: 2
FLOW CONTROL SUPPORT: YES
IP ROUTING: YES
NUMBER OF VLANS: 4000
PORT MIRRORING: YES
RATE LIMITING: YES
SPANNING TREE PROTOCOL: YES
VIRTUAL LAN FEATURES: MAC ADDRESS-BASED VLAN/PORT-BASED VLAN/PRIVATE VLAN/PROTOCOL-BASED VLAN/TAGGED VLAN/VOICE VLAN
VLAN SUPPORT: YES
FORWARDING RATE, MPPS: 59.52
JUMBO FRAMES: 9000
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 16000
PACKET BUFFER MEMORY, MB: 12
STATIC ROUTE: YES
SWITCHING CAPACITY, GBIT/S: 80
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: MAC-BASED AUTHENTICATION,PORT-BASED AUTHENTICATION
AUTHENTICATION TYPE: AAA,TACACS+
DHCP FEATURES: DHCP CLIENT/DHCP RELAY/DHCP SERVER/DHCP SNOOPING/DHCPV6 CLIENT/DHCPV6 SNOOPING
IGMP SNOOPING: YES
LOOP PROTECTION: YES
SSH/SSL SUPPORT: YES
MULTICAST SUPPORT: YES
ETHERNET LAN DATA RATES, MBIT/S: 100,1000,2500
NUMBER OF FANS, FAN(S): 2
RACK MOUNTING: YES
POWER SUPPLY INCLUDED: YES
HEAT DISSIPATION, BTU/H: 51.18
SERIES: OMADA
2.5G ETHERNET (COPPER) PORTS QUANTITY: 8
BPDU FILTERING/PROTECTION: YES
MIB SUPPORT: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
HEAD-OF-LINE (HOL) BLOCKING: YES
LINK AGGREGATION: YES
NUMBER OF IP INTERFACES: 16
NUMBER OF STATIC ROUTES: 48
IP-MAC-PORT BINDING: YES
QUEUE SCHEDULING ALGORITHMS: SP/WEIGHTED ROUND ROBIN (WRR)/WRR+SP
STATIC PORT SECURITY: YES
MULTICAST LISTENER DISCOVERY (MLD) SNOOPING: Y
GARP VLAN REGISTRATION PROTOCOL (GVRP): YES
MANAGEMENT PROTOCOLS: SNMPV1/V2C/V3, SNTP
FANLESS: YES
TRAFFIC CLASSIFICATION: YES
MAC ADDRESS FILTERING: YES
