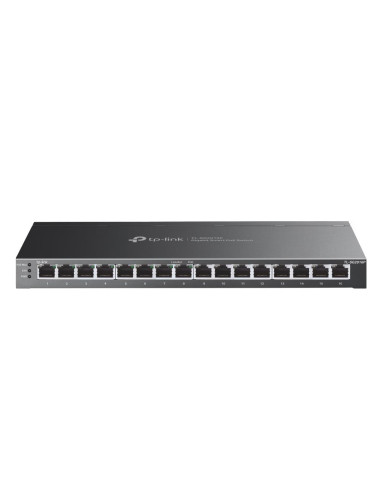

Switch, TP-LINK, Omada, TL-SG2016P, 16x10Base-T / 100Base-TX / 1000Base-T, PoE+ ports 8, 120 Watts, TL-SG2016P

Name: Switch, TP-LINK, Omada, TL-SG2016P, 16x10Base-T / 100Base-TX / 1000Base-T, PoE+ ports 8, 120 Watts, TL-SG2016P
Brand: TP-LINK
SKU: TL-SG2016P
Price: 196.31 EUR
Availability: InStock

Gamintojas: TP-LINK

Kodas TL-SG2016P

Paskutinė prekė

196,31 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Series Omada , TL-SG2016P , Type Managed , Switch layer L2/L2+ , Quality of Service (QoS) support Yes , Cloud-managed Yes , Web-based management Yes , 16xBasic switching RJ-45 Ethernet ports quantity , Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) , Port mirroring Yes , Switching capacity 32 Gbit/s , Forwarding rate 23.81 Mpps , Rack mounting Yes , Product colour Black , Power source DC/PoE , Power over Ethernet (PoE) Yes , 8xPower over Ethernet plus (PoE+) ports quantity , Total Power over Ethernet (PoE) budget 120 W , Width 286 mm , Depth 111.7 mm , Height 25.4 mm

Prekės informacija
Atsiliepimai (0)

SUMMARY: TP-LINK OMADA 16-PORT GIGABIT SMART SWITCH WITH 8-PORT POE+. SWITCH TYPE: MANAGED, SWITCH LAYER: L2/L2+. BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000), BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 16. MAC ADDRESS TABLE: 8000
CNCODE: 85176200
CATEGORY CODE: SWI
UNIT BOX HEIGHT: 0.07
UNIT BOX LENGTH: 0.44
UNIT BOX WIDTH: 0.23
PRODUCT COLOUR: BLACK
DEPTH, MM: 111.7
HEIGHT, MM: 25.4
WIDTH, MM: 286
MODEL NAME: TL-SG2016P
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.007084
UNIT CALCULATED WEIGHT, KG: 2
OPERATING TEMPERATURE (T-T), °C: 0 - 40
CERTIFICATION: CE, FCC, ROHS
MANUAL: YES
STORAGE TEMPERATURE (T-T), °C: -40 - 70
OPERATING RELATIVE HUMIDITY (H-H), %: 10 - 90
STORAGE RELATIVE HUMIDITY (H-H), %: 5 - 90
CABLES INCLUDED: AC
POWER CONSUMPTION (MAX), W: 146.5
POWER SOURCE: DC/POE
LED INDICATORS: POE/POWER/SYSTEM
ETHERNET LAN DATA RATES, MBIT/S: 10,100,1000
RACK MOUNTING: YES
NETWORKING STANDARDS: IEEE 802.11W/IEEE 802.1D/IEEE 802.1P/IEEE 802.1Q/IEEE 802.1S/IEEE 802.1X/IEEE 802.3AB/IEEE 802.3AD/IEEE 802.3AF/IEEE 802.3AT/IEEE 802.3I/IEEE 802.3X
SECURITY ALGORITHMS: EAP-MD5/HTTPS/SNMP/SNMPV2/SNMPV3/SSH/SSL/TLS
SUPPORTED NETWORK PROTOCOLS: ICMP, TCPV6, UDPV6, PING6, TRACERT6, TELNET (V6), TFTP, TCP/UDP, DSCP/IP, SSLV3, TLS 1.2
SERIES: OMADA
SWITCH TYPE: MANAGED
10G SUPPORT: NO
POWER OVER ETHERNET (POE): YES
SWITCH LAYER: L2/L2+
BASIC SWITCHING RJ-45 ETHERNET PORTS QUANTITY: 16
WEB-BASED MANAGEMENT: YES
BASIC SWITCHING RJ-45 ETHERNET PORTS TYPE: GIGABIT ETHERNET (10/100/1000)
QUALITY OF SERVICE (QOS) SUPPORT: YES
FORWARDING RATE, MPPS: 23.81
SWITCHING CAPACITY, GBIT/S: 32
DC INPUT VOLTAGE, V: 53.5
CLOUD-MANAGED: YES
POWER CONNECTOR: DC-IN JACK
BROADCAST STORM CONTROL: YES
FLOW CONTROL SUPPORT: YES
NUMBER OF VLANS: 4000
PORT MIRRORING: YES
RATE LIMITING: YES
VIRTUAL LAN FEATURES: MULTICAST VLAN/TAGGED VLAN/VOICE VLAN
VLAN SUPPORT: YES
JUMBO FRAMES SUPPORT: YES
MAC ADDRESS TABLE, ENTRIES: 8000
PACKET BUFFER MEMORY, MB: 4.1
DHCP FEATURES: DHCP RELAY/DHCP SNOOPING/DHCPV6 CLIENT/DHCPV6 SNOOPING
IGMP SNOOPING: YES
POWER OVER ETHERNET PLUS (POE+) PORTS QUANTITY: 8
TOTAL POWER OVER ETHERNET (POE) BUDGET, W: 120
HEAT DISSIPATION, BTU/H: 499.98
ARP INSPECTION: YES
SYSTEM EVENT LOG: YES
CONFIGURING LOCATION SETTINGS (CLI): YES
LINK AGGREGATION: YES
SPANNING TREE PROTOCOL: YES
JUMBO FRAMES: 9000
ACCESS CONTROL LIST (ACL): YES
AUTHENTICATION: GUEST VLAN,MAC-BASED AUTHENTICATION,PORT-BASED AUTHENTICATION
BPDU FILTERING/PROTECTION: YES
IP-MAC-PORT BINDING: YES
MAC ADDRESS FILTERING: YES
SSH/SSL SUPPORT: YES
MULTICAST SUPPORT: YES
AUTO MDI/MDI-X: YES
MIB SUPPORT: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
NUMBER OF QUEUES: 8
QUEUE SCHEDULING ALGORITHMS: SP/WEIGHTED ROUND ROBIN (WRR)
MULTICAST LISTENER DISCOVERY (MLD) SNOOPING: MLD V1, MLD V2
GARP VLAN REGISTRATION PROTOCOL (GVRP): YES
IPV4 & IPV6 FEATURES: DUAL STACK IPV4/IPV6
FANLESS: YES
COPPER ETHERNET CABLING TECHNOLOGY: 1000BASE-T/100BASE-TX/10BASE-T
FIRMWARE UPGRADEABLE: YES
AUTO-NEGOTIATION: YES
MAC ADDRESS ENTRIES: DYNAMIC MAC ADDRESS ENTRIES/STATIC MAC ADDRESS ENTRIES
