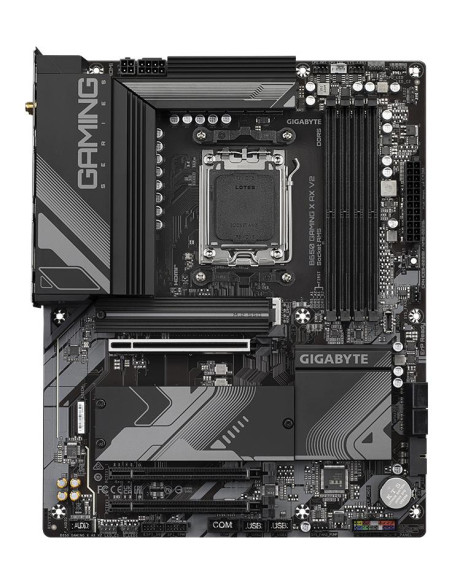

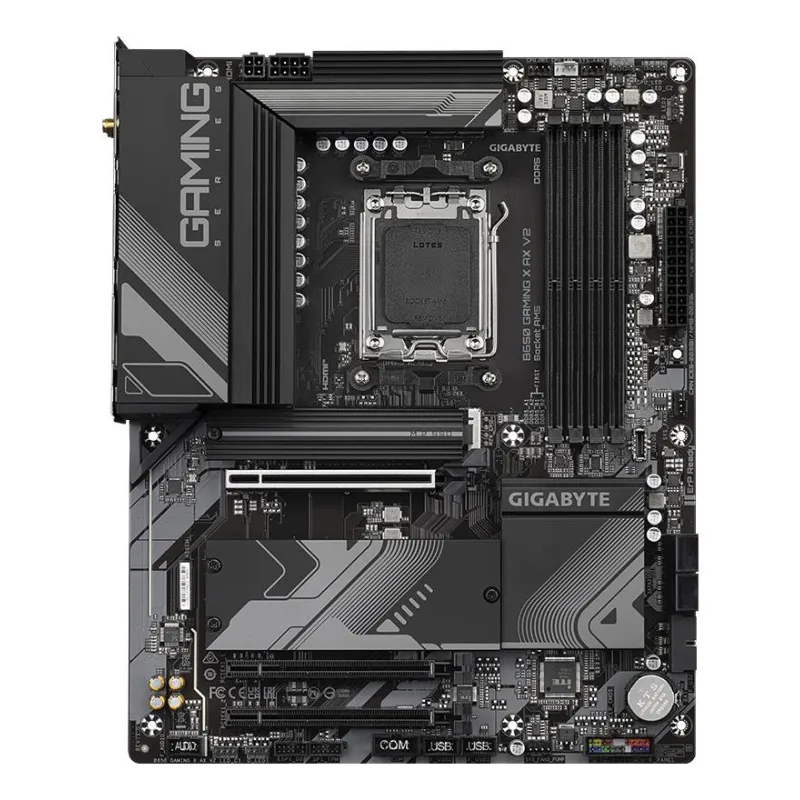

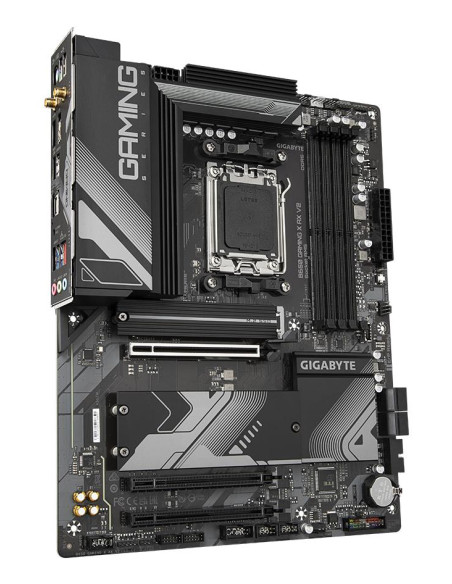

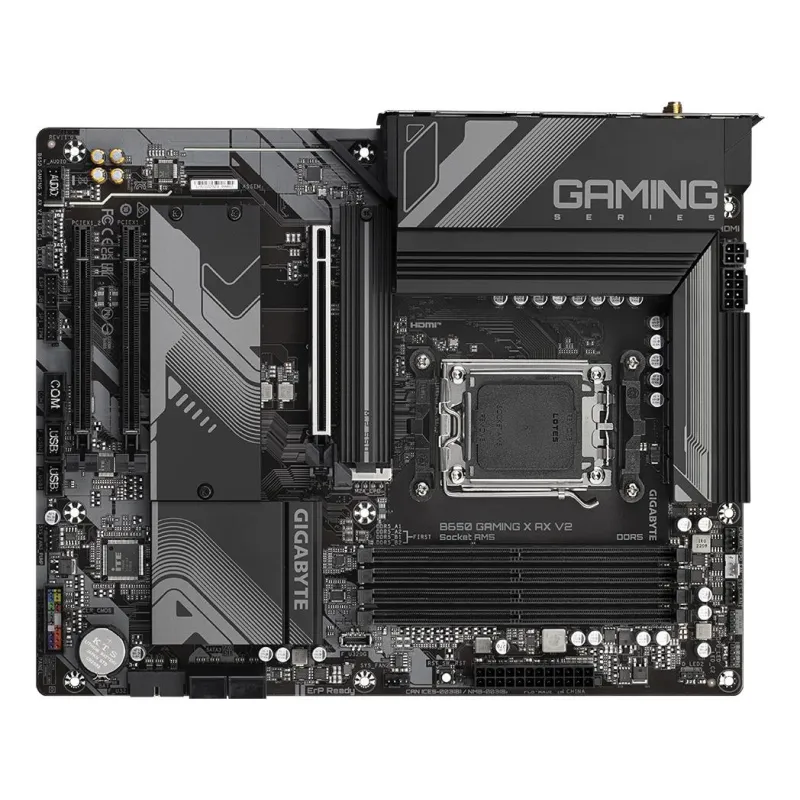

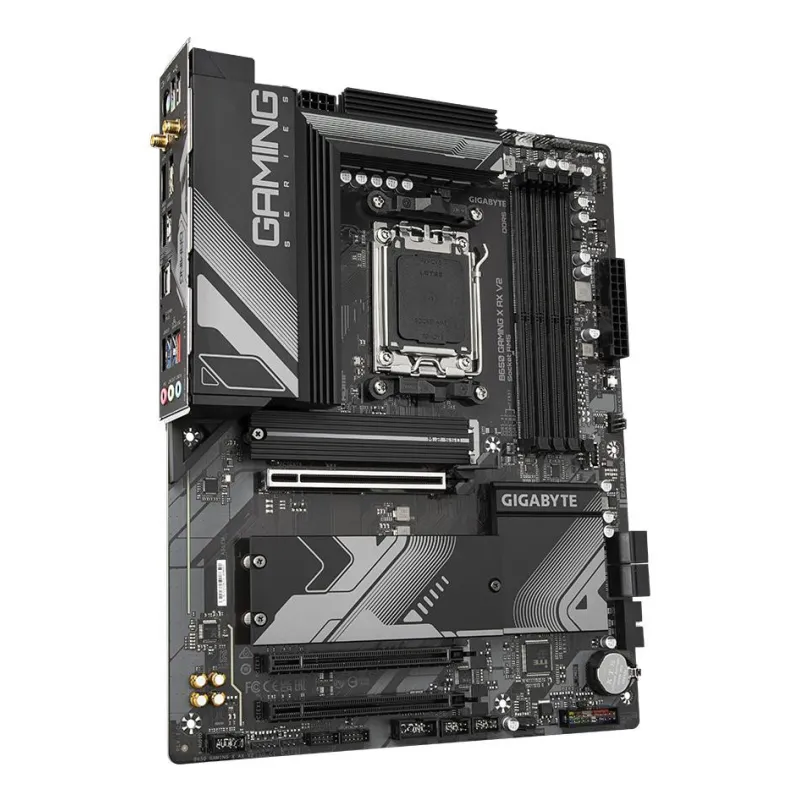

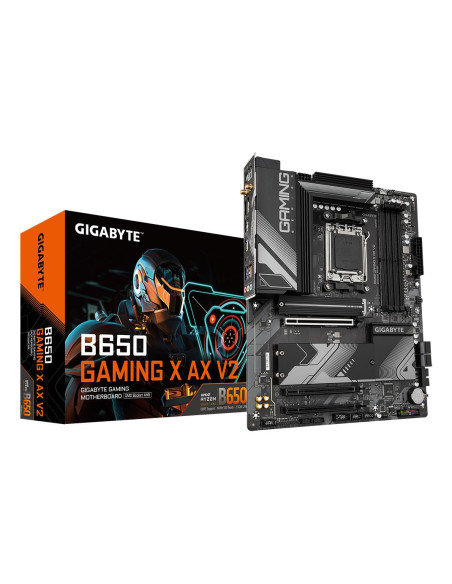

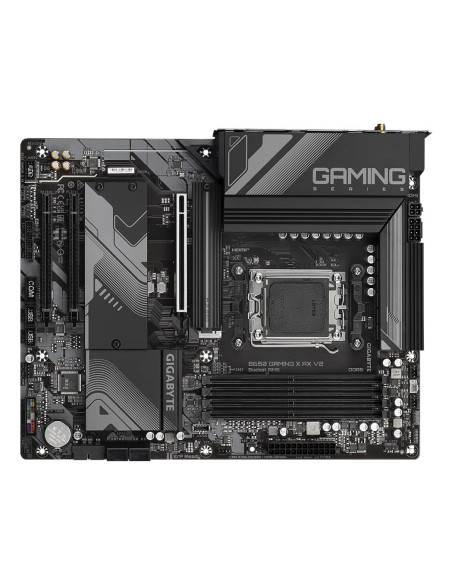

Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B

Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B

Name: Mainboard, GIGABYTE, AMD B650, Socket AM5, ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes, 3xNumber of M.2 (M) slots, B
Brand: GIGABYTE
SKU: B650 GAMING X AX V2 1.2
Price: 149 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas B650 GAMING X AX V2 1.2

Paskutinė prekė

149,00 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

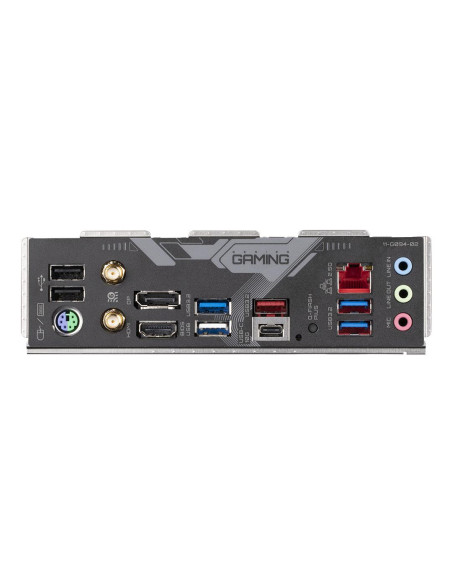

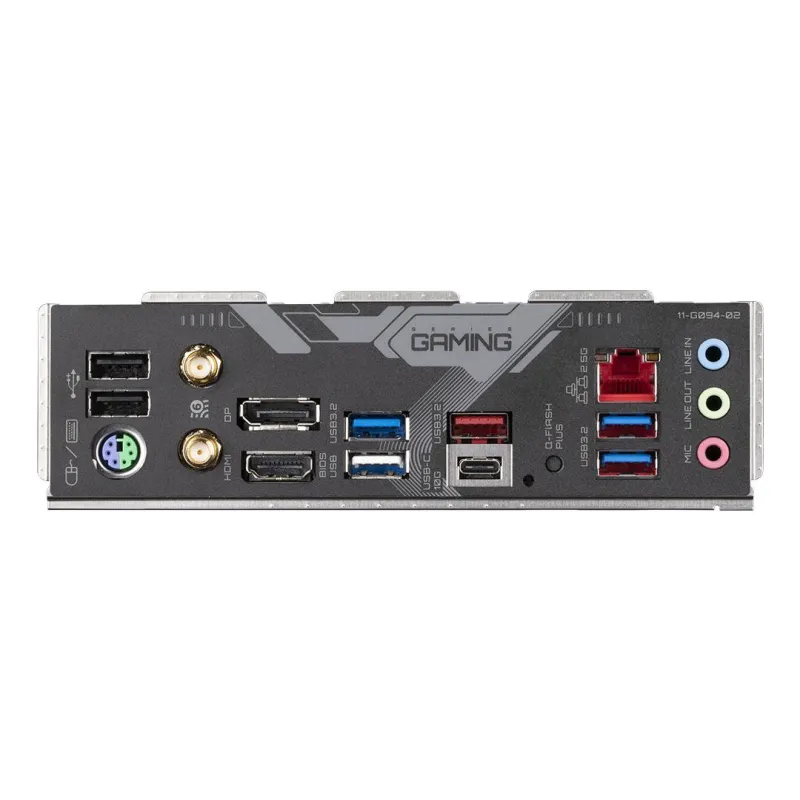

AMD B650 , ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,SATA III , 4096 x 2160 pixels , Discrete graphics support Yes , 3xUSB 2.0 ports quantity , 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity , 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE B650 GAMING X AX V2 MOTHERBOARD - AMD RYZEN 9000 SERIES CPUS, 8+2+2 PHASES VRM, UP TO 8000MHZ DDR5 (OC), 1XPCIE 5.0 + 2XPCIE 4.0 M.2, 2.5GBE LAN, WIFI 6E, USB 3.2 GEN 2. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCES
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.334
UNIT BOX LENGTH: 0.271
UNIT BOX WIDTH: 0.081
PRODUCT COLOUR: BROWN
PACKAGE WIDTH, MM: 335
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 80
PACKAGE WEIGHT, G: 2161
WARRANTY PERIOD, YEAR(S): 3
UNIT CALCULATED WEIGHT, KG: 2.14
PRODUCT NET WEIGHT, KG: 2
UNIT CALCULATED VOLUME, CUBM: 0.0102
UNITS PER SHIPPING BOX: 8
SHIPPING BOX WEIGHT, KG: 17.15
UNIT WIDTH, CM: 8.1
SHIPPING BOX HEIGHT, CM: 37.9
UNIT DEPTH, CM: 27.1
SHIPPING BOX DEPTH, CM: 57.9
UNIT HEIGHT, CM: 33.4
SHIPPING BOX WIDTH, CM: 37.2
NAME: MB AMD B650 SAM5 ATX/B650 GAMING X AX V2 GIGABYTE
MODEL: B650 GAMING X AX V2 1.2
WIDTH, MM: 305
DEPTH, MM: 244
HEIGHT, MM: 35
HDMI VERSION: 2.1
HDCP: YES
COUNTRY OF ORIGIN: CHINA
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 3
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
BATTERY WEIGHT, G: 3
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
WI-FI: Yes
BLUETOOTH: YES
BLUETOOTH VERSION: 5.3
POWER SOURCE TYPE: ATX
BATTERY TYPE: CR2032
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
ETHERNET LAN (RJ-45) PORTS: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
PROCESSOR MANUFACTURER: AMD
USB 2.0 PORTS QUANTITY: 3
SCREWS INCLUDED: YES
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
ETHERNET LAN: YES
TOP WI-FI STANDARD: WI-FI 6E (802.11AX)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)
ANTENNA INCLUDED: YES
BATTERIES INCLUDED: YES
HDMI PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 1
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-C PORTS QUANTITY: 1
USB 3.2 GEN 2 (3.1 GEN 2) TYPE-A PORTS QUANTITY: 1
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORT VERSION: 1.4
DISPLAYPORTS QUANTITY: 1
DIRECTX VERSION: 12.0
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR SOCKET: SOCKET AM5
MAXIMUM INTERNAL MEMORY, GB: 256
MOTHERBOARD CHIPSET: AMD B650
AUDIO CHIP: REALTEK ALC897
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
MOTHERBOARD FORM FACTOR: ATX
MOTHERBOARD CHIPSET FAMILY: AMD
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF MEMORY SLOTS: 4
MEMORY SLOTS TYPE: DIMM
ECC СOMPATIBILITY: NON-ECC
UNBUFFERED MEMORY: YES
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
SUPPORTED STORAGE DRIVE INTERFACES: M.2,SATA III
NUMBER OF HDDS SUPPORTED: 4
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID SUPPORT: YES
RAID LEVELS: 0/1/10
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
USB 3.2 GEN 2X2 CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 3
EPS POWER CONNECTOR (8-PIN): YES
12V POWER CONNECTOR: YES
RGB LED PIN HEADER: YES
NUMBER OF RGB LED PIN HEADERS: 5
WIFI-AP ANTENNA JACK: 2
WLAN CONTROLLER MODEL: REALTEK RTL8852CE
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
NUMBER OF M.2 (M) SLOTS: 3
1ST M.2 LARGEST KEY SIZE: 25110
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
2ND M.2 LARGEST KEY SIZE: 25110
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 25110
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
BIOS TYPE: UEFI AMI
BIOS MEMORY SIZE, MBIT: 256
MICROPHONE IN: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF WATER PUMP CONNECTORS: 2
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8125
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X16 (GEN 3.X) SLOTS: 2
DISCRETE GRAPHICS SUPPORT: YES
SERIAL PORT HEADERS: 1
