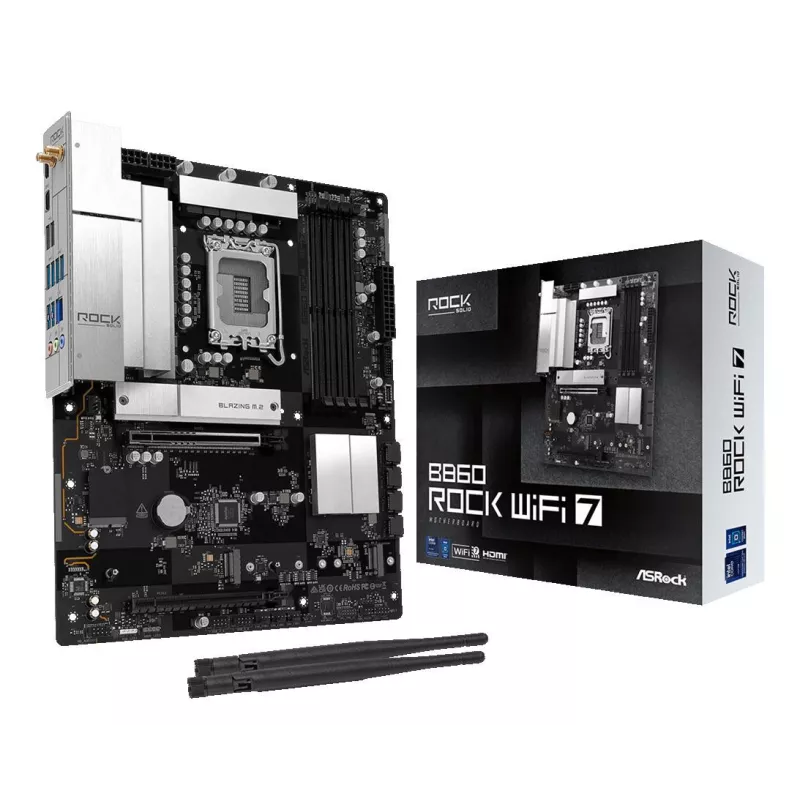

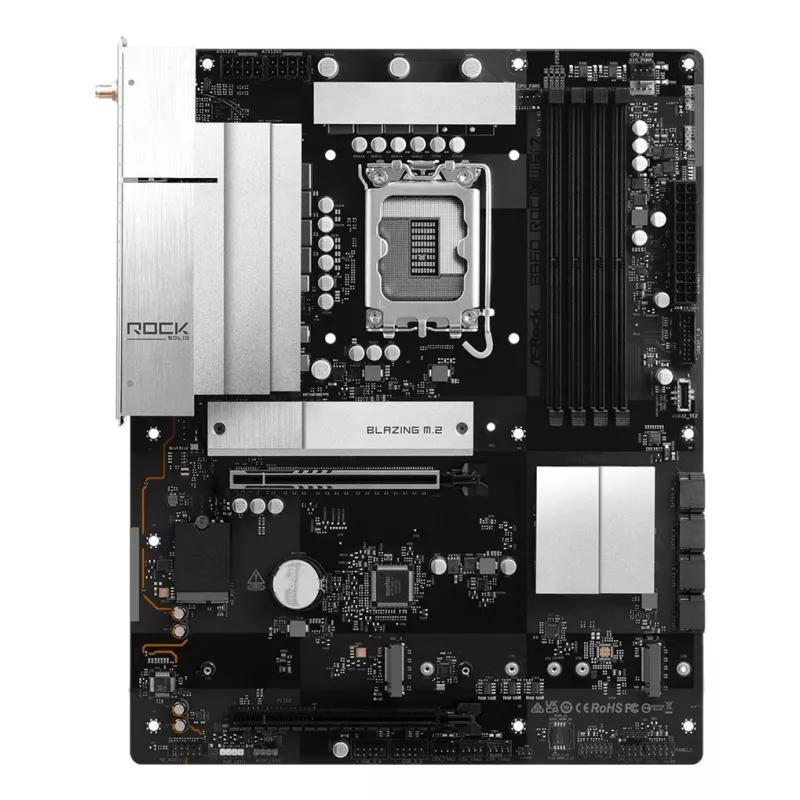

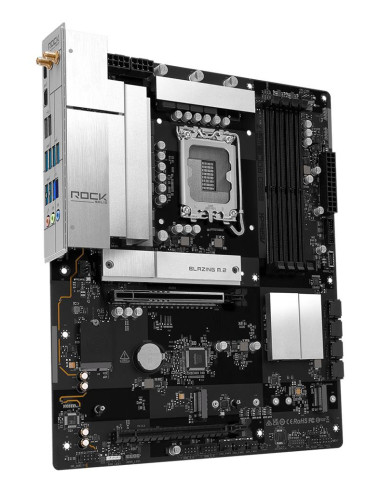

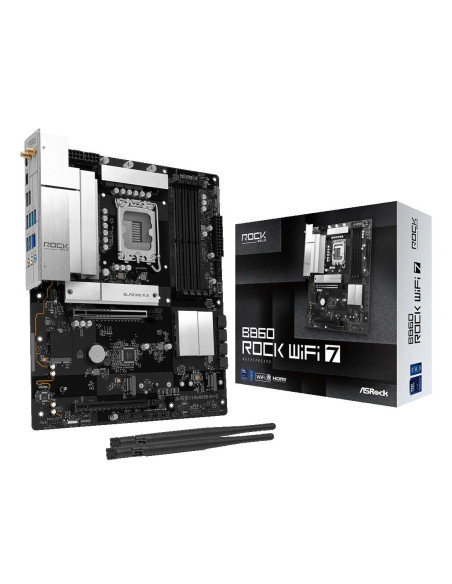

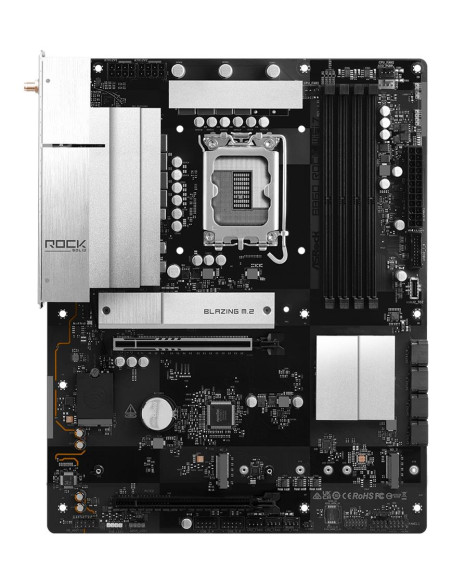

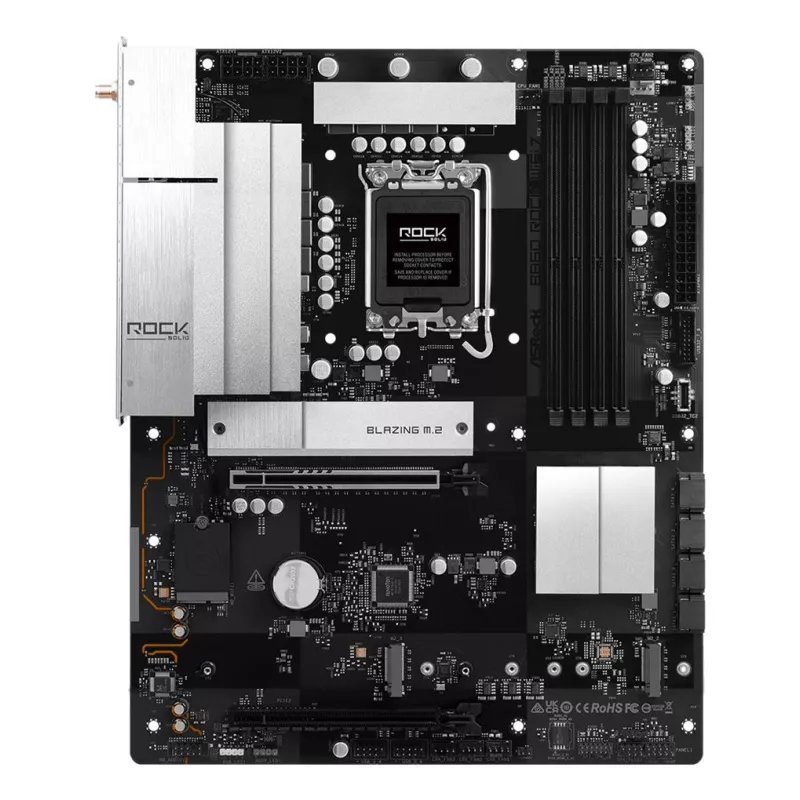

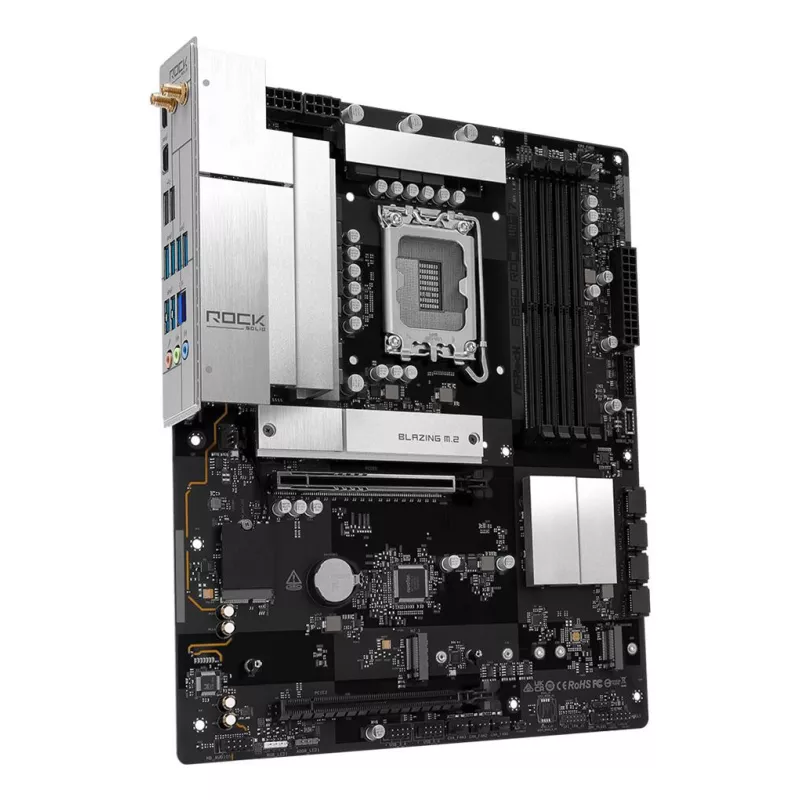

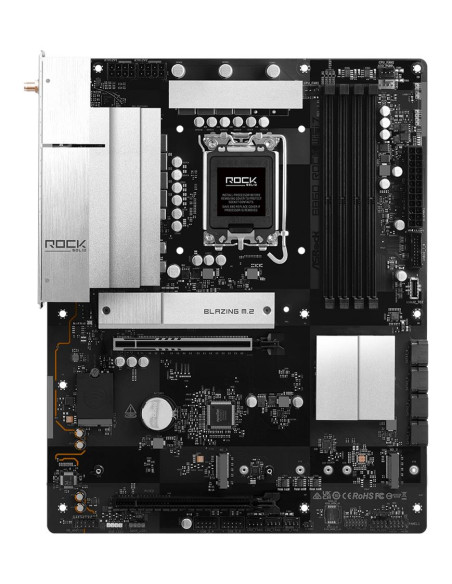

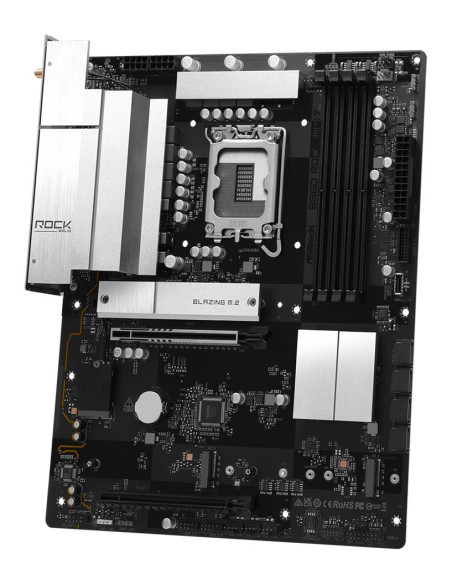

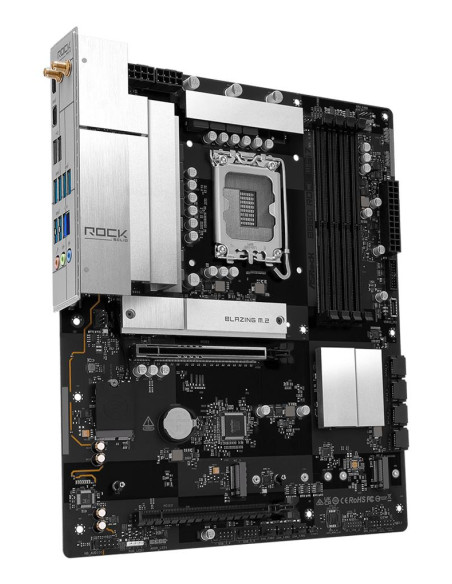

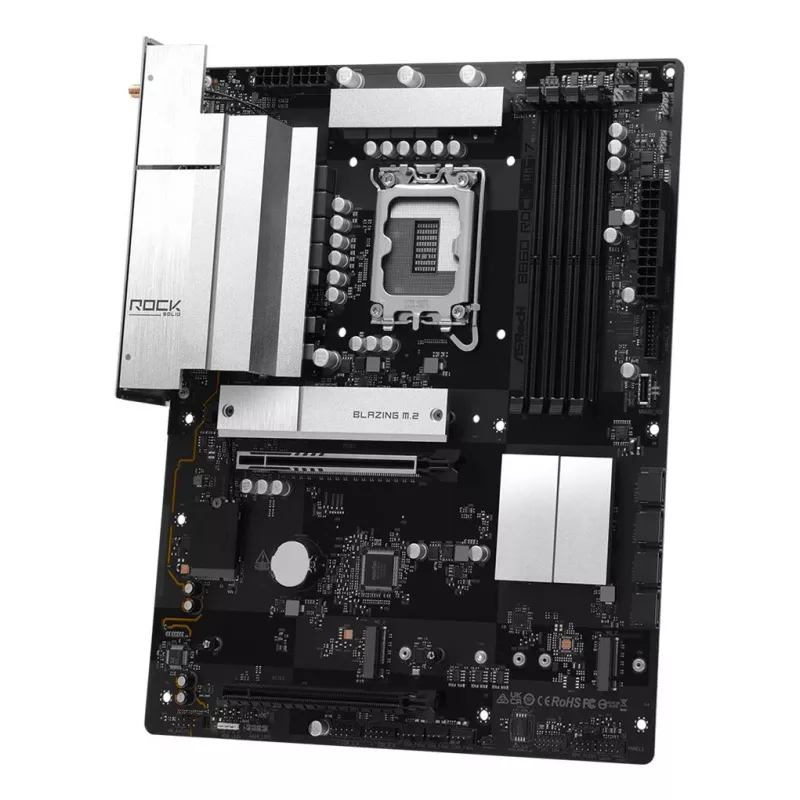

Mainboard, ASROCK, B860 Rock WiFi 7, Intel B860, LGA 1851 (Socket V1), ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes,

Mainboard, ASROCK, B860 Rock WiFi 7, Intel B860, LGA 1851 (Socket V1), ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes,

Name: Mainboard, ASROCK, B860 Rock WiFi 7, Intel B860, LGA 1851 (Socket V1), ATX, RAM DDR5-SDRAM, 4xSlots, Wi-Fi Yes, Bluetooth Yes,
Brand: ASROCK
SKU: B860 ROCK WIFI 7
Price: 144.05 EUR
Availability: InStock

Gamintojas: ASROCK

Kodas B860 ROCK WIFI 7

Yra sandėlyje

144,05 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

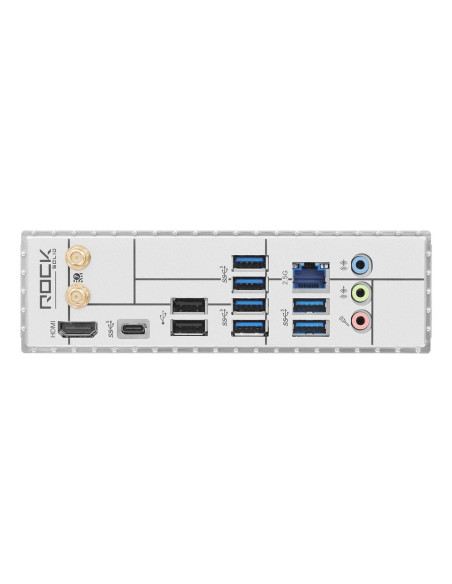

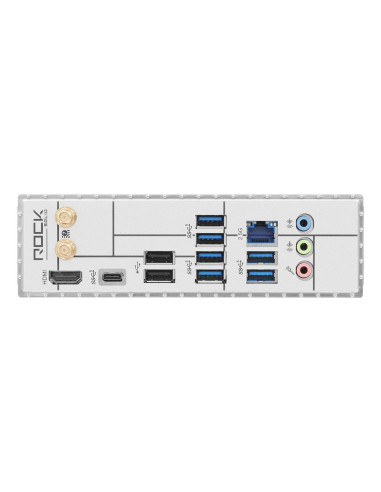

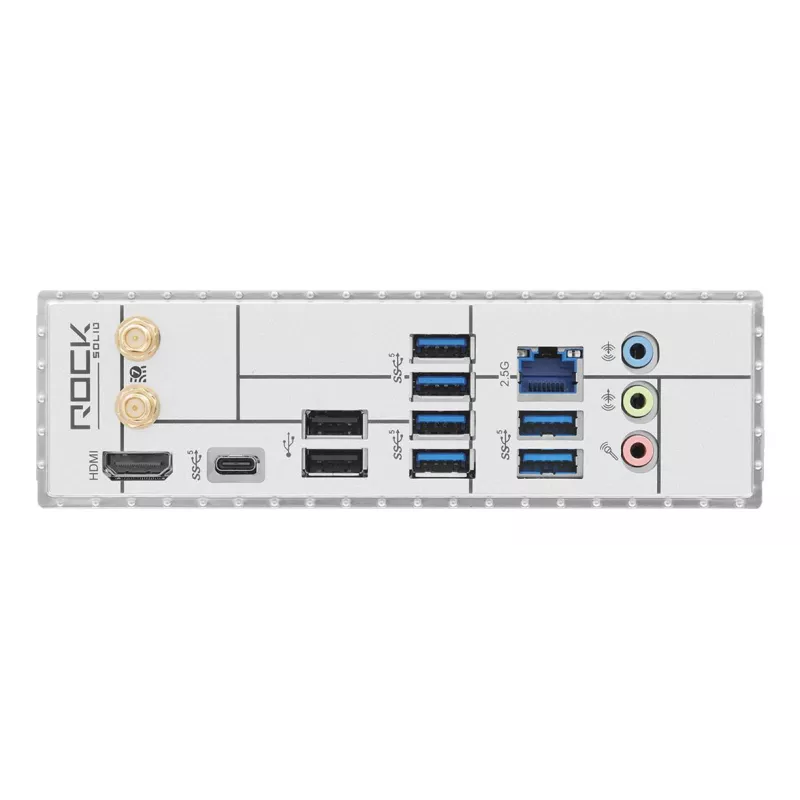

Intel B860 , ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 4xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0,SATA III , 3840 x 2160 pixels , 2xUSB 2.0 ports quantity , 6xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity , Wi-Fi Yes , Bluetooth Yes , Antenna included Yes

Prekės informacija
Atsiliepimai (0)

SUMMARY: ASROCK B860 ROCK WIFI 7. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2). SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 256 GB, MEMORY SLOTS TYPE: DIMM. SUPPORT
CNCODE: 84733020
CATEGORY CODE: MBI
UNIT BOX HEIGHT: 0.075
UNIT BOX LENGTH: 0.35
UNIT BOX WIDTH: 0.28
COMPLIANCE CERTIFICATES: CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)
PRODUCT COLOUR: BLACK
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
DEPTH, MM: 244
WIDTH, MM: 305
CABLES INCLUDED: SATA
UNITS PER SHIPPING BOX: 5
UNIT CALCULATED VOLUME, CUBM: 0.008928
UNIT CALCULATED WEIGHT, KG: 1.83
WI-FI: Yes
MODEL: B860 ROCK WIFI 7
RAID SUPPORT: YES
ETHERNET LAN: YES
COMPONENT FOR: PC
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
SUPPORTED PROCESSOR SOCKETS: LGA 1851
PROCESSOR MANUFACTURER: Intel
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
MEMORY CHANNELS: DUAL-CHANNEL
MAXIMUM INTERNAL MEMORY, GB: 256
AUDIO CHIP: REALTEK ALC897
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: ATX
ECC СOMPATIBILITY: NON-ECC
MEMORY SLOTS TYPE: DIMM
NUMBER OF MEMORY SLOTS: 4
SUPPORTED MEMORY TYPES: DDR5-SDRAM
UNBUFFERED MEMORY: YES
NUMBER OF STORAGE DRIVES SUPPORTED: 7
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: PCI EXPRESS 4.0,PCI EXPRESS 5.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
12V POWER CONNECTOR: YES
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
FRONT PANEL AUDIO CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 4
NUMBER OF SATA III CONNECTORS: 4
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
MOTHERBOARD CHIPSET: INTEL B860
WIFI-AP ANTENNA JACK: 2
BLUETOOTH: YES
BLUETOOTH VERSION: 5.4
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET/FAST ETHERNET/GIGABIT ETHERNET
TOP WI-FI STANDARD: WI-FI 7 (802.11BE)
WI-FI STANDARDS: 802.11A/802.11B/802.11G/WI-FI 4 (802.11N)/WI-FI 5 (802.11AC)/WI-FI 6 (802.11AX)/WI-FI 6E (802.11AX)/WI-FI 7 (802.11BE)
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 5.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
3RD M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
3RD M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 3
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
PCI EXPRESS X16 (GEN 5.X) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
ANTENNA INCLUDED: YES
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8666
MICROPHONE IN: YES
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 6
USB CONNECTOR TYPE: USB TYPE-A/USB TYPE-C
HDMI VERSION: 2.1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-C PORTS QUANTITY: 1
HEADPHONE OUTPUTS: 3
HDCP: YES
MAXIMUM RESOLUTION, PIXELS: 3840 X 2160
NUMBER OF CPU FAN CONNECTORS: 2
NUMBER OF EPS POWER CONNECTORS (8-PIN): 2
NUMBER OF RGB LED PIN HEADERS: 1
NUMBER OF WATER PUMP CONNECTORS: 1
TPM CONNECTOR: YES
LINE-IN: YES
LAN CONTROLLER: DRAGON RTL8125BG
USB 2.0 PORTS QUANTITY: 2
HDCP VERSION: 2.3
HIGH DYNAMIC RANGE (HDR) SUPPORTED: YES
