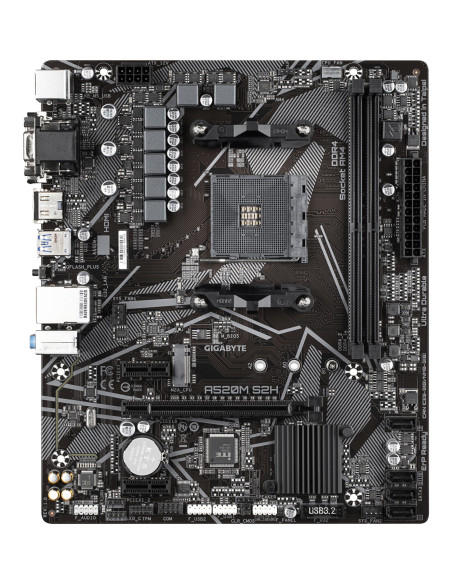

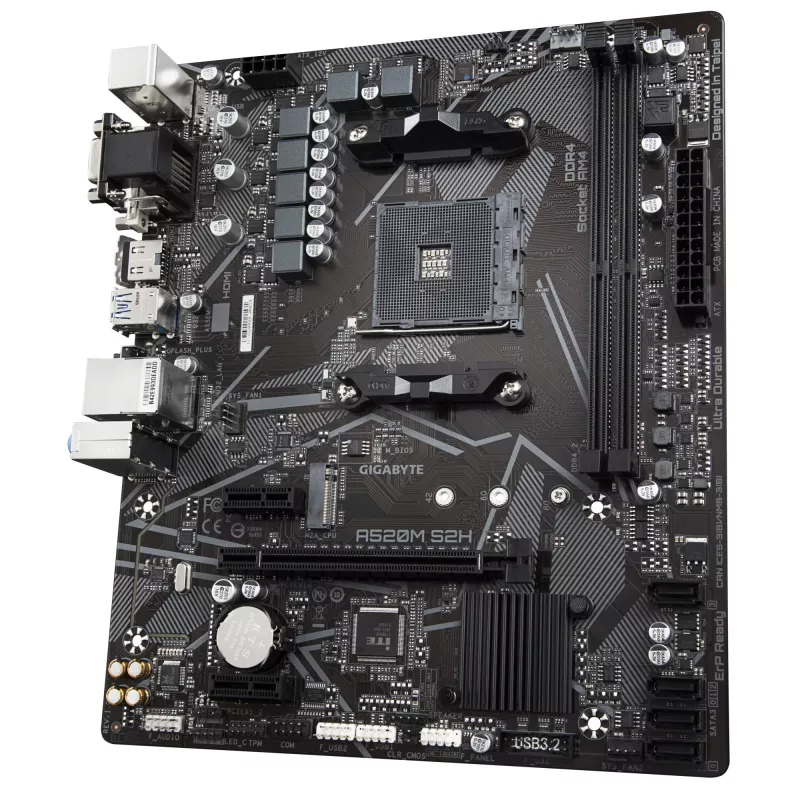

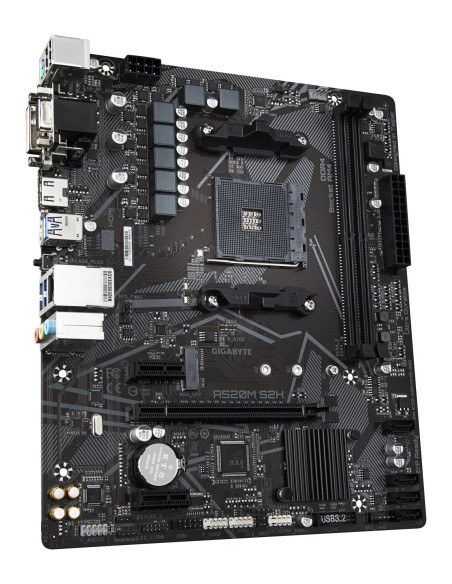

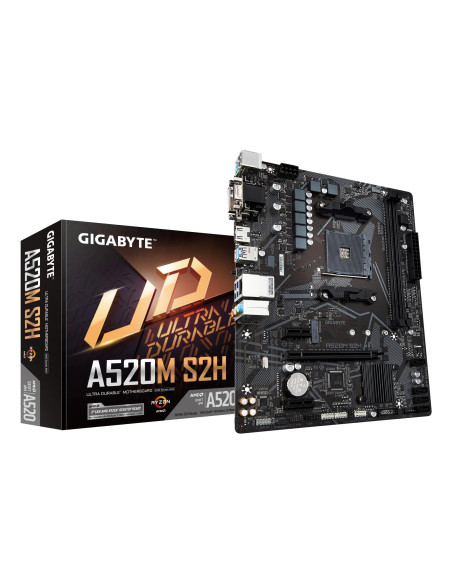

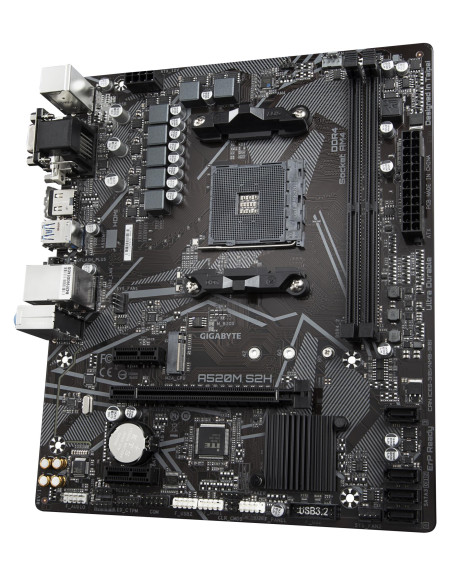

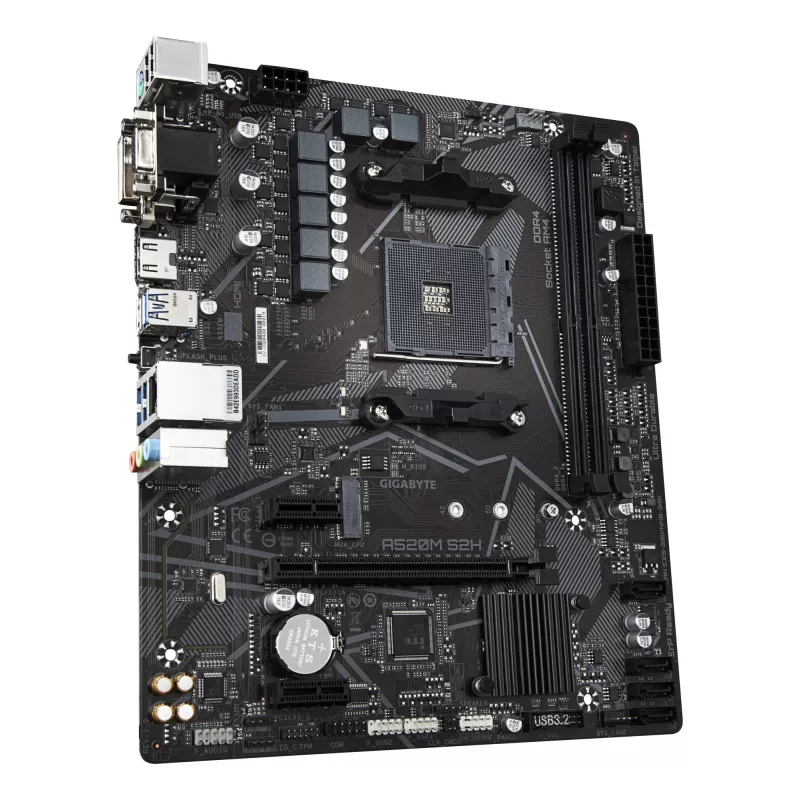

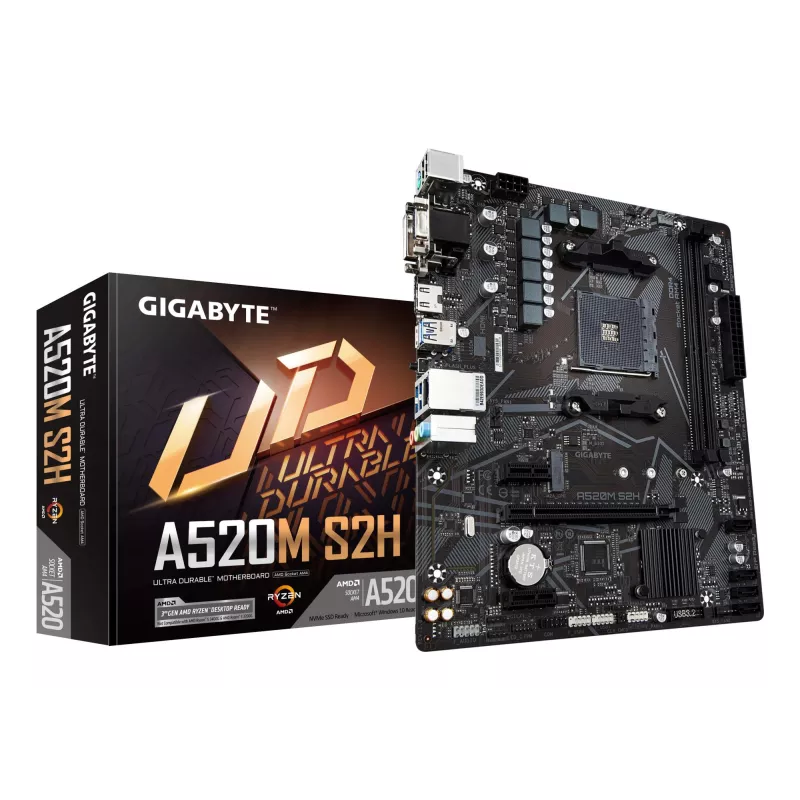

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2

Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2

Name: Mainboard, GIGABYTE, AMD A520, SAM4, Micro-ATX, Memory DDR4, Memory slots 2, 2xPCI-Express 3.0 1x, 1xPCI-Express 3.0 16x, 1xM.2
Brand: GIGABYTE
SKU: A520M S2H 1.3
Price: 58.02 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas A520M S2H 1.3

Yra sandėlyje

58,02 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

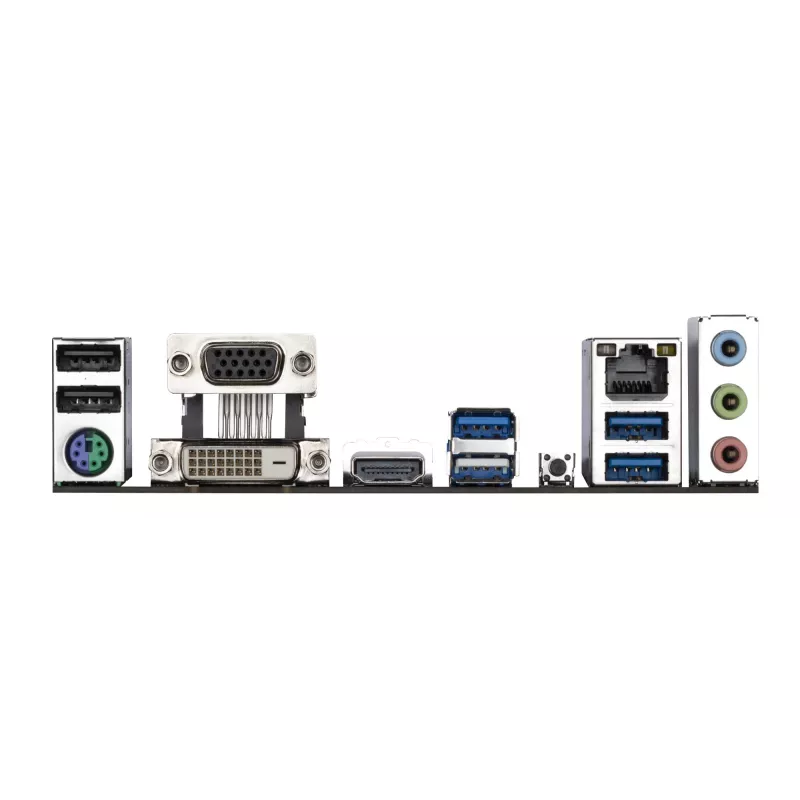

AMD A520 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM4 , Series AMD Ryzen 3000 Series , Supported memory types DDR4-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 3.0,SATA , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , 1xDVI-D ports quantity

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE A520M S2H MOTHERBOARD - SUPPORTS AMD RYZEN 5000 SERIES AM4 CPUS, 4+3 PHASES PURE DIGITAL VRM, UP TO 5100MHZ DDR4 (OC), PCIE 3.0 X4 M.2, GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM4, COMPATIBLE PROCESSOR SERIES
CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.235
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.05
PRODUCT COLOUR: BLACK
HEIGHT, MM: 35
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.00426
UNIT CALCULATED WEIGHT, KG: 0.794
HDMI PORTS QUANTITY: 1
WARRANTY PERIOD, YEAR(S): 3
DEPTH, MM: 205
PACKAGE DEPTH, MM: 235
PACKAGE HEIGHT, MM: 52
PACKAGE WEIGHT, G: 740
PACKAGE WIDTH, MM: 265
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
MODEL: A520M S2H 1.3
HDCP: YES
RAID SUPPORT: YES
DVI-D PORTS QUANTITY: 1
VGA (D-SUB) PORTS QUANTITY: 1
WI-FI: No
WIDTH, MM: 244
COUNTRY OF ORIGIN: CHINA
HARMONIZED SYSTEM (HS) CODE: 84733020
ETHERNET LAN: YES
COMPONENT FOR: PC
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 3000 SERIES
SUPPORTED PROCESSOR SOCKETS: SOCKET AM4
PROCESSOR MANUFACTURER: AMD
PROCESSOR SOCKET: SOCKET AM4
MAXIMUM INTERNAL MEMORY SUPPORTED BY PROCESSOR, GB: 64
MEMORY CHANNELS: DUAL-CHANNEL
ON-BOARD GRAPHICS CARD: NO
MAXIMUM INTERNAL MEMORY, GB: 64
SUPPORTED MEMORY TYPES: DDR4-SDRAM
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
MOTHERBOARD CHIPSET: AMD A520
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
ECC СOMPATIBILITY: ECC & NON-ECC
NUMBER OF MEMORY SLOTS: 2
RAID LEVELS: 0/1/10
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 3.0,SATA
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: YES
USB 2.0 CONNECTORS: 2
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 1
ETHERNET LAN (RJ-45) PORTS: 1
NUMBER OF SATA III CONNECTORS: 4
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
PS/2 PORTS QUANTITY: 1
NUMBER OF M.2 (M) SLOTS: 1
BIOS MEMORY SIZE, MBIT: 128
BIOS TYPE: UEFI AMI
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
CLEAR CMOS BUTTON: YES
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 2133/2400/2667/2933/3200/3333/3600/4000/4400/4600/4866/5000
USB 2.0 PORTS QUANTITY: 2
PCI EXPRESS X16 (GEN 3.X) SLOTS: 1
ACPI VERSION: 5.0
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
BATTERY TYPE: CR2032
BATTERY WEIGHT, G: 3
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
BATTERIES INCLUDED: YES
PCI EXPRESS X1 (GEN 3.X) SLOTS: 2
MAXIMUM NUMBER OF SMP PROCESSORS: 1
POWER FAN CONNECTOR: YES
