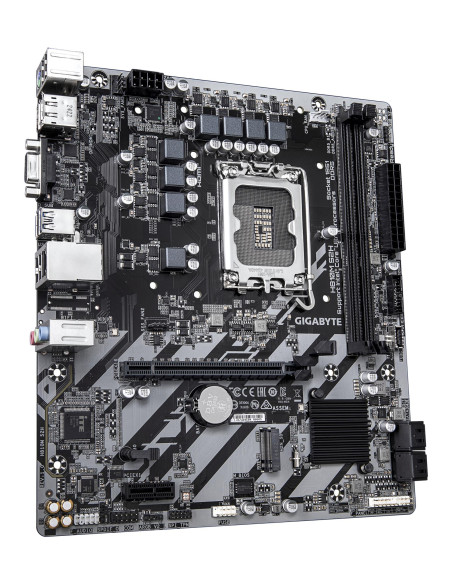

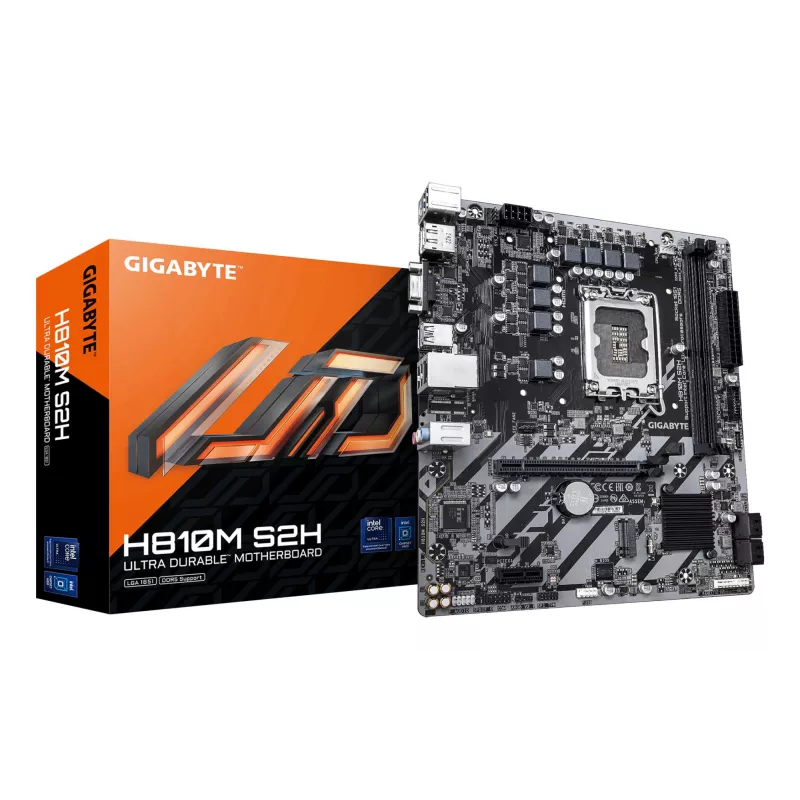

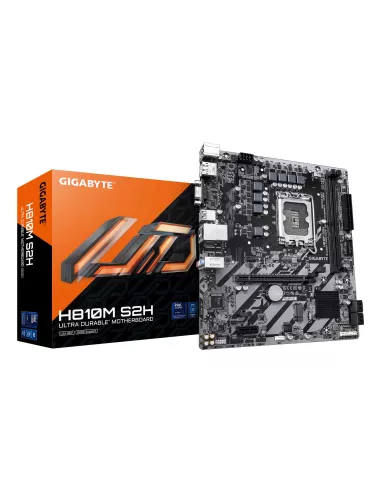

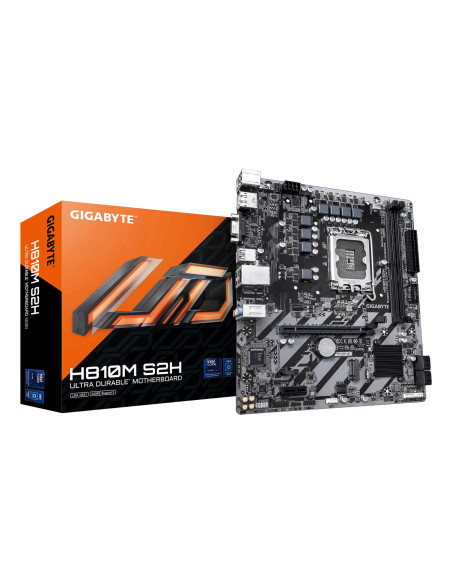

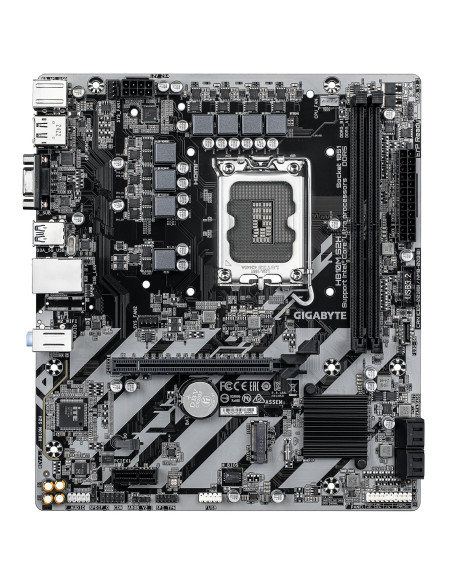

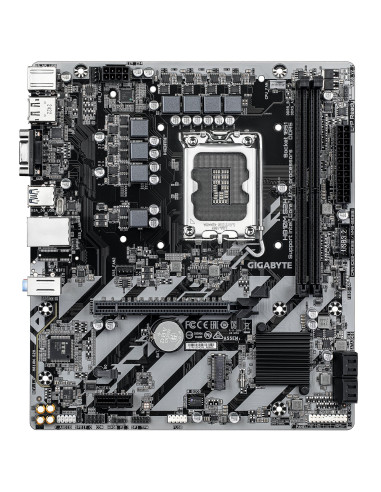

Mainboard, GIGABYTE, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MS2H

Mainboard, GIGABYTE, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MS2H

Name: Mainboard, GIGABYTE, LGA1851, Micro-ATX, Memory DDR5, Memory slots 2, H810MS2H
Brand: GIGABYTE
SKU: H810M S2H
Price: 94 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas H810M S2H

Yra sandėlyje

94,00 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

Intel H810 , micro ATX , Audio 7.1 channels , CPU Intel , Socket LGA 1851 (Socket V1) , Series Intel Core Ultra (Series 2) , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,PCI Express 4.0,SATA III , 4096 x 2160 pixels , 5xUSB 2.0 ports quantity , 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xVGA (D-Sub) ports quantity , 1xHDMI ports quantity , Weight 790 g

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBI
SUMMARY: GIGABYTE H810M S2H MOTHERBOARD - INTEL CORE ULTRA (SERIES 2) CPUS, 4+1+2 PHASES VRM, UP TO 6400MHZ DDR5, 1XPCIE 4.0 M.2, 1GBE LAN, USB 3.2 GEN 1. PROCESSOR MANUFACTURER: INTEL, PROCESSOR SOCKET: LGA 1851 (SOCKET V1), COMPATIBLE PROCESSOR SERIES: INTEL COR
CNCODE: 84733020
UNIT BOX HEIGHT: 0.055
UNIT BOX LENGTH: 0.265
UNIT BOX WIDTH: 0.27
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.00471
UNIT CALCULATED WEIGHT, KG: 0.875
MODEL: H810M S2H
BATTERY WEIGHT, G: 3
ETHERNET LAN (RJ-45) PORTS: 1
HDMI VERSION: 2.1
HDMI PORTS QUANTITY: 1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
WI-FI: No
ETHERNET LAN: YES
PRODUCT COLOUR: DARK BROWN
PACKAGE DEPTH, MM: 265
PACKAGE HEIGHT, MM: 54
PACKAGE WEIGHT, G: 872
PACKAGE WIDTH, MM: 265
SCREWS INCLUDED: YES
USB 2.0 PORTS QUANTITY: 5
HDCP: YES
WARRANTY PERIOD, YEAR(S): 3
HEADPHONE OUTPUTS: 1
BATTERIES INCLUDED: YES
BATTERY TYPE: CR2032
DEPTH, MM: 215
HEIGHT, MM: 35
WIDTH, MM: 244
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 10 X64/WINDOWS 11 X64
WEIGHT, G: 790
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
COOLING TYPE: PASSIVE
PRODUCTS PER SHIPPING (INNER) CASE, PC(S): 1
BATTERY TECHNOLOGY: LITHIUM-MANGANESE DIOXIDE (LIMNO2)
POWER SOURCE TYPE: ATX
PARALLEL PROCESSING TECHNOLOGY SUPPORT: NOT SUPPORTED
DISPLAYPORTS QUANTITY: 1
MAXIMUM RESOLUTION, PIXELS: 4096 X 2160
DISPLAYPORT VERSION: 2.1
DIRECTX VERSION: 12.0
VGA (D-SUB) PORTS QUANTITY: 1
BUNDLED SOFTWARE: NORTON INTERNET SECURITY (OEM VERSION) LAN BANDWIDTH MANAGEMENT SOFTWARE
RAID SUPPORT: YES
MOTHERBOARD CHIPSET: INTEL H810
MOTHERBOARD CHIPSET FAMILY: INTEL
MOTHERBOARD FORM FACTOR: MICRO ATX
PC HEALTH MONITORING: FAN/TEMPERATURE/VOLTAGE/WATER COOLING
COMPATIBLE PROCESSOR SERIES: INTEL CORE ULTRA (SERIES 2)
PROCESSOR SOCKET: LGA 1851 (SOCKET V1)
SUPPORTED PROCESSOR SOCKETS: LGA 1851
ECC СOMPATIBILITY: ECC & NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 128
PROCESSOR MANUFACTURER: Intel
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 6400
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 5600/6400
SUPPORTED MEMORY TYPES: DDR5-SDRAM
MEMORY SLOTS TYPE: DIMM
NUMBER OF STORAGE DRIVES SUPPORTED: 5
RAID LEVELS: 0/1/10/5
SUPPORTED STORAGE DRIVE INTERFACES: M.2,PCI EXPRESS 4.0,SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ATX POWER CONNECTOR (24-PIN): YES
CPU FAN CONNECTOR: YES
EPS POWER CONNECTOR (8-PIN): YES
NUMBER OF SATA III CONNECTORS: 4
NUMBER OF HDDS SUPPORTED: 4
USB 2.0 CONNECTORS: 1
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
MICROPHONE IN: YES
ETHERNET INTERFACE TYPE: GIGABIT ETHERNET
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 1
PCI EXPRESS X16 (GEN 4.X) SLOTS: 1
ACPI VERSION: 5.0
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 2.7
UNBUFFERED MEMORY: YES
FRONT PANEL AUDIO CONNECTOR: YES
FRONT PANEL CONNECTOR: YES
NUMBER OF CHASSIS FAN CONNECTORS: 2
RGB LED PIN HEADER: YES
PS/2 PORTS QUANTITY: 1
AUDIO CHIP: REALTEK ALC897
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF EPS POWER CONNECTORS (8-PIN): 1
NUMBER OF RGB LED PIN HEADERS: 2
TPM CONNECTOR: YES
LINE-IN: YES
MAXIMUM INTERNAL MEMORY PER SLOT, GB: 64
LAN CONTROLLER: REALTEK RTL8111H
CLEAR CMOS JUMPER: YES
DESKTOP MANAGEMENT INTERFACE (DMI) VERSION: 2.7
LITHIUM WEIGHT PER BATTERY, G: 0.07
NUMBER OF BATTERY CELLS: 1
PCI EXPRESS X1 (GEN 3.X) SLOTS: 1
S/PDIF OUT CONNECTOR: YES
SERIAL PORT HEADERS: 1
