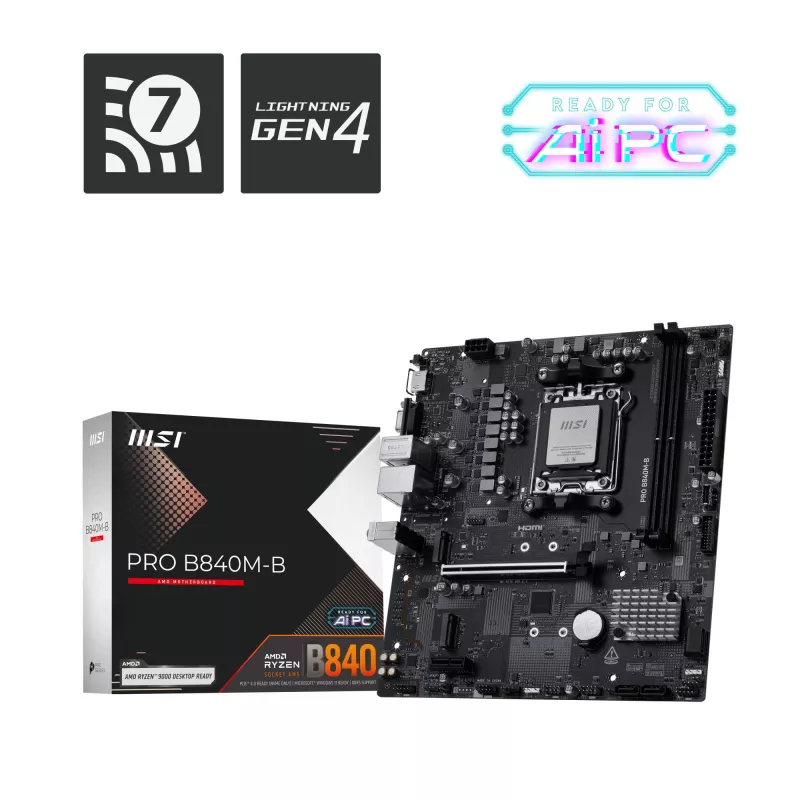

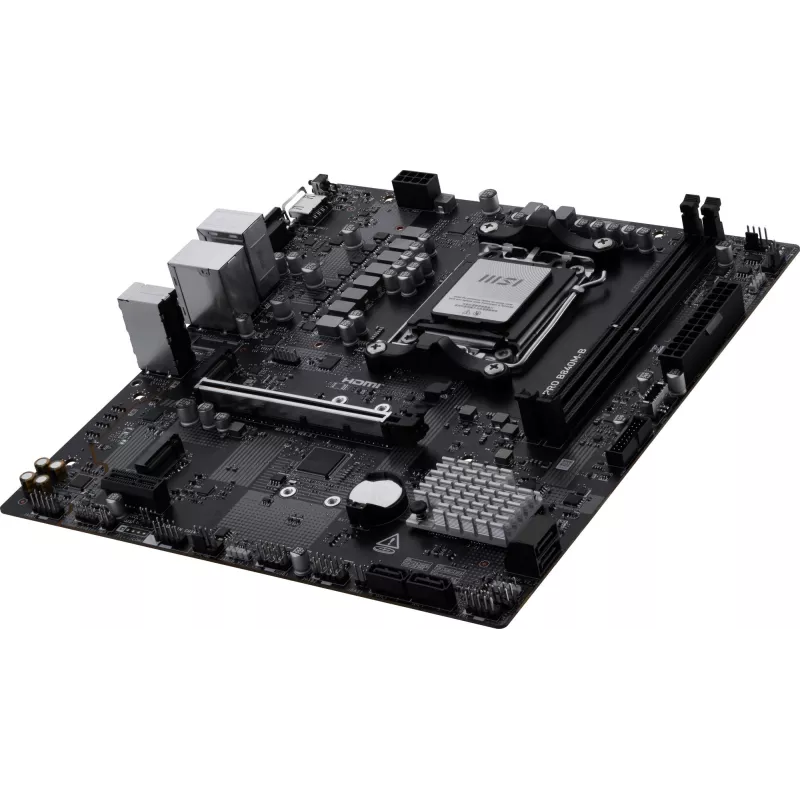

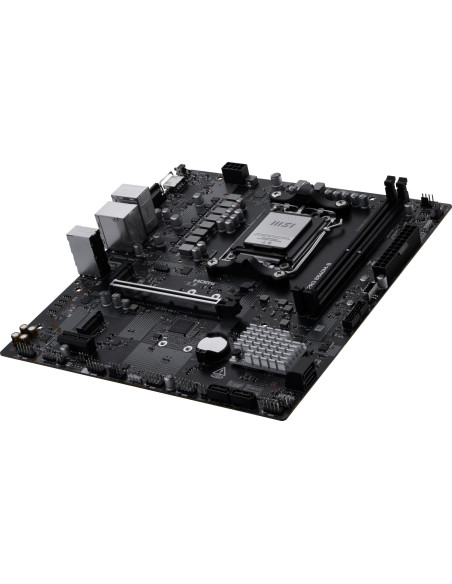

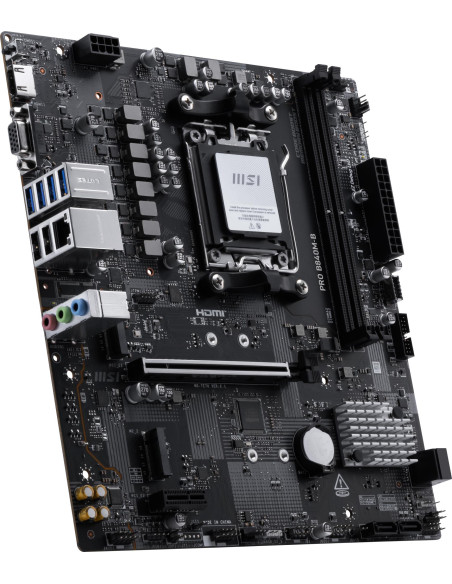

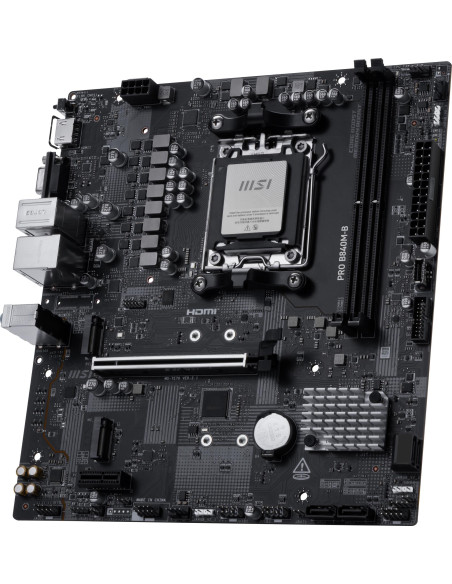

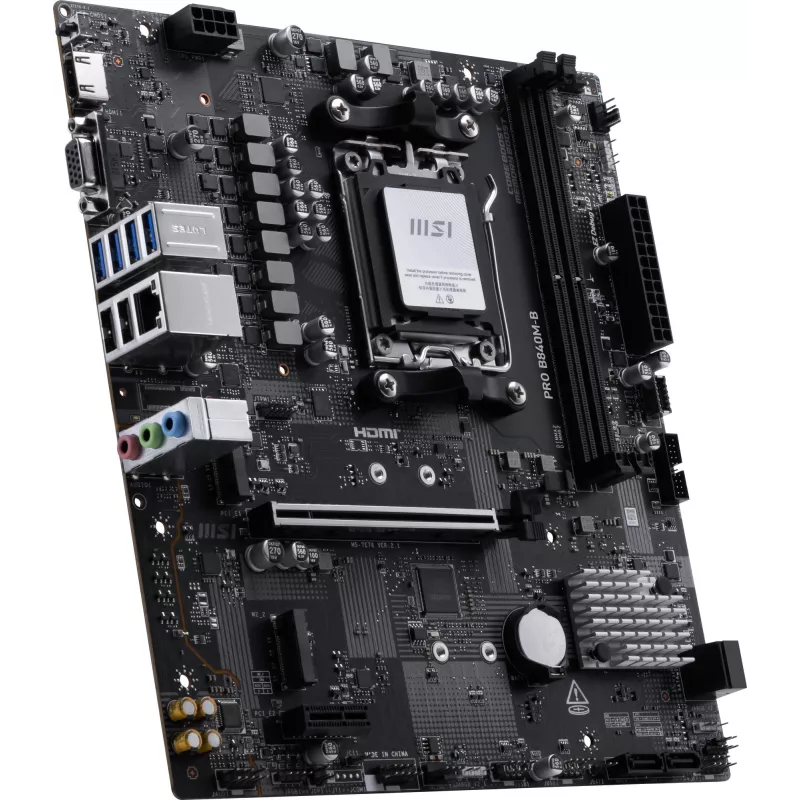

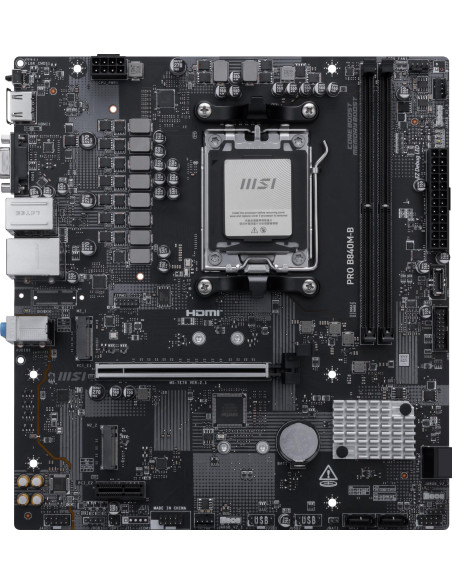

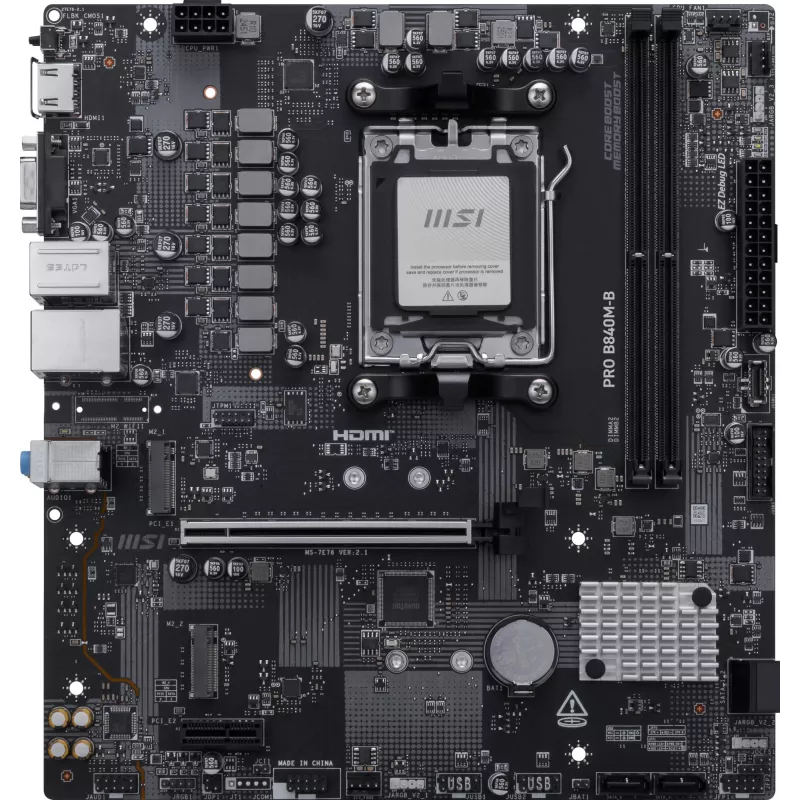

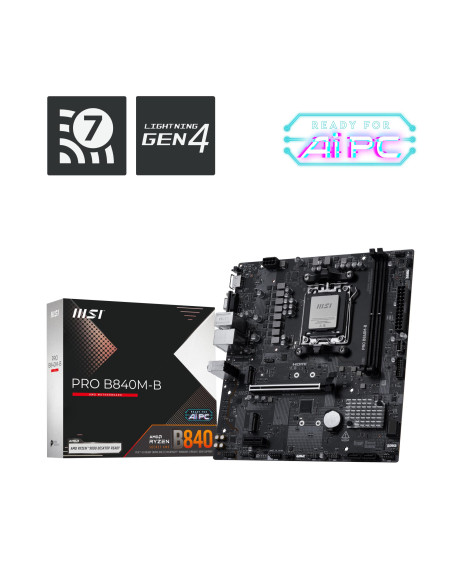

Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B

Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B

Name: Mainboard, MSI, AMD B840, SAM5, Micro-ATX, Memory DDR5, Memory slots 2, PROB840M-B
Brand: MSI
SKU: PRO B840M-B
Price: 95.2 EUR
Availability: InStock

Gamintojas: MSI

Kodas PRO B840M-B

Yra sandėlyje

95,20 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

AMD B840 , micro ATX , Audio 7.1 channels , CPU AMD , Socket Socket AM5 , Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series , Supported memory types DDR5-SDRAM , 2xNumber of memory slots , Memory slots type DIMM , Supported storage drive interfaces M.2,Micro SATA III , 2xUSB 2.0 ports quantity , 4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity , 1xEthernet LAN (RJ-45) ports , 1xHDMI ports quantity

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: MBA
CNCODE: 84733020
UNIT BOX HEIGHT: 0.26
UNIT BOX LENGTH: 0.28
UNIT BOX WIDTH: 0.065
UNITS PER SHIPPING BOX: 10
UNIT CALCULATED VOLUME, CUBM: 0.005751
UNIT CALCULATED WEIGHT, KG: 1.07
MODEL: PRO B840M-B
DEPTH, MM: 243.8
WIDTH, MM: 226
SUMMARY: MSI PRO B840M-B. PROCESSOR MANUFACTURER: AMD, PROCESSOR SOCKET: SOCKET AM5, COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES, AMD RYZEN 8000 SERIES, AMD RYZEN 9000 SERIES. SUPPORTED MEMORY TYPES: DDR5-SDRAM, MAXIMUM INTERNAL MEMORY: 128 GB, MEMORY SLOTS
PRODUCT COLOUR: BLACK
WINDOWS OPERATING SYSTEMS SUPPORTED: WINDOWS 11 X64
WI-FI: N
USB 2.0 PORTS QUANTITY: 2
ETHERNET LAN (RJ-45) PORTS: 1
HDMI PORTS QUANTITY: 1
AUDIO OUTPUT CHANNELS, CHANNELS: 7.1
ETHERNET LAN: Y
HDMI VERSION: 2.1
USB 3.2 GEN 1 (3.1 GEN 1) TYPE-A PORTS QUANTITY: 4
COMPONENT FOR: PC
MEMORY CHANNELS: DUAL-CHANNEL
COMPATIBLE PROCESSOR SERIES: AMD RYZEN 7000 SERIES/AMD RYZEN 8000 SERIES/AMD RYZEN 9000 SERIES
PROCESSOR SOCKET: SOCKET AM5
SUPPORTED PROCESSOR SOCKETS: SOCKET AM5
ECC ?OMPATIBILITY: NON-ECC
MAXIMUM INTERNAL MEMORY, GB: 128
PROCESSOR MANUFACTURER: AMD
NUMBER OF MEMORY SLOTS: 2
SUPPORTED MEMORY TYPES: DDR5-SDRAM
NUMBER OF STORAGE DRIVES SUPPORTED: 6
RAID LEVELS: 0/1/10
RAID SUPPORT: Y
SUPPORTED STORAGE DRIVE INTERFACES: M.2,MICRO SATA III
SUPPORTED STORAGE DRIVE TYPES: HDD & SSD
ON-BOARD GRAPHICS CARD: N
NUMBER OF CHASSIS FAN CONNECTORS: 5
MEMORY SLOTS TYPE: DIMM
RGB LED PIN HEADER: Y
USB 2.0 CONNECTORS: 4
USB 3.2 GEN 1 (3.1 GEN 1) CONNECTORS: 2
USB 3.2 GEN 2 (3.1 GEN 2) CONNECTORS: 1
NUMBER OF SATA III CONNECTORS: 4
ETHERNET INTERFACE TYPE: 2.5 GIGABIT ETHERNET
AUDIO CHIP: REALTEK ALC897
MOTHERBOARD CHIPSET: AMD B840
MOTHERBOARD CHIPSET FAMILY: AMD
MOTHERBOARD FORM FACTOR: MICRO ATX
1ST M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
1ST M.2 LARGEST KEY SIZE: 2280
2ND M.2 HIGHEST PCI EXPRESS GENERATION: 4.0
2ND M.2 LARGEST KEY SIZE: 2280
NUMBER OF M.2 (M) SLOTS: 2
BIOS MEMORY SIZE, MBIT: 256
BIOS TYPE: UEFI AMI
SUPPORTED MEMORY CLOCK SPEED (MAX), MHZ: 8000
NUMBER OF HDDS SUPPORTED: 4
SUPPORTED MEMORY CLOCK SPEEDS, MHZ: 4800/5600/8000
TOTAL NUMBER OF SATA CONNECTORS: 4
PCI EXPRESS X16 SLOTS: 2
NUMBER OF CPU FAN CONNECTORS: 1
NUMBER OF RGB LED PIN HEADERS: 3
NUMBER OF WATER PUMP CONNECTORS: 1
LAN CONTROLLER: REALTEK RTL8125D
ACPI VERSION: 6.5
SYSTEM MANAGEMENT BIOS (SMBIOS) VERSION: 3.7
