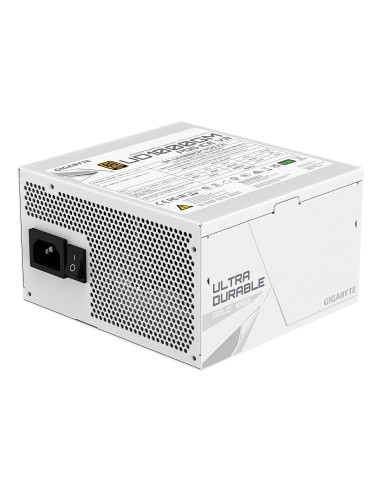

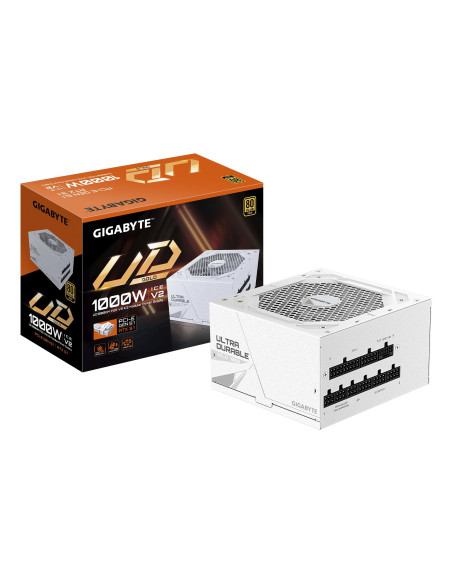

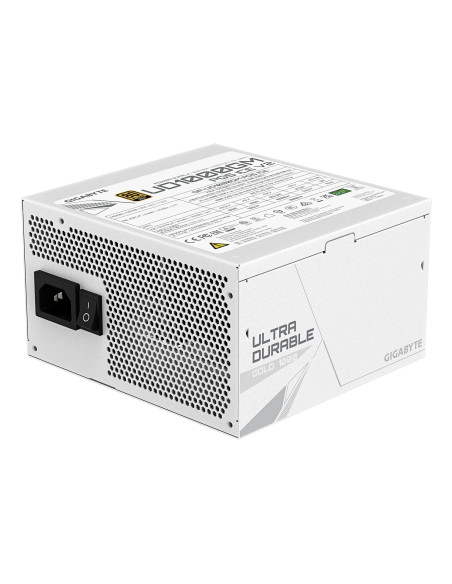

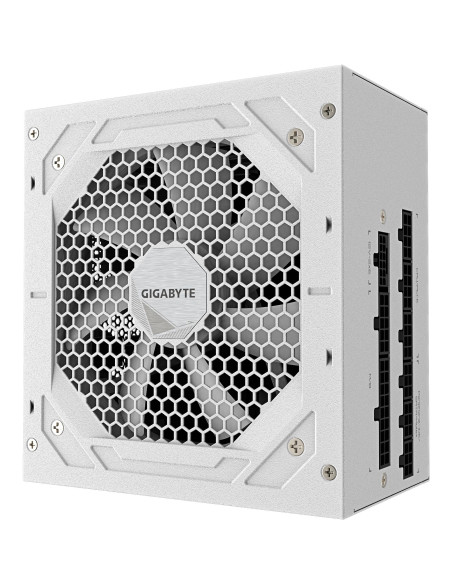

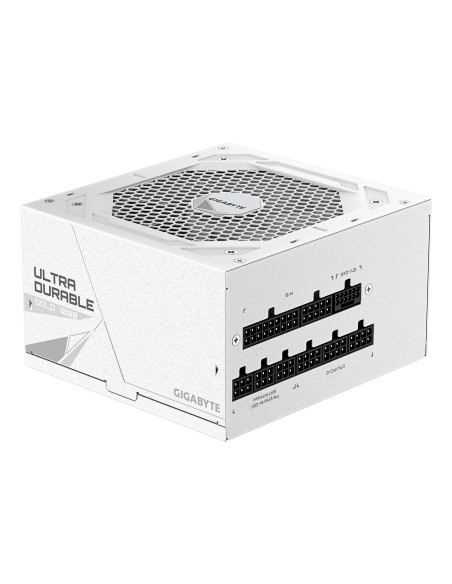

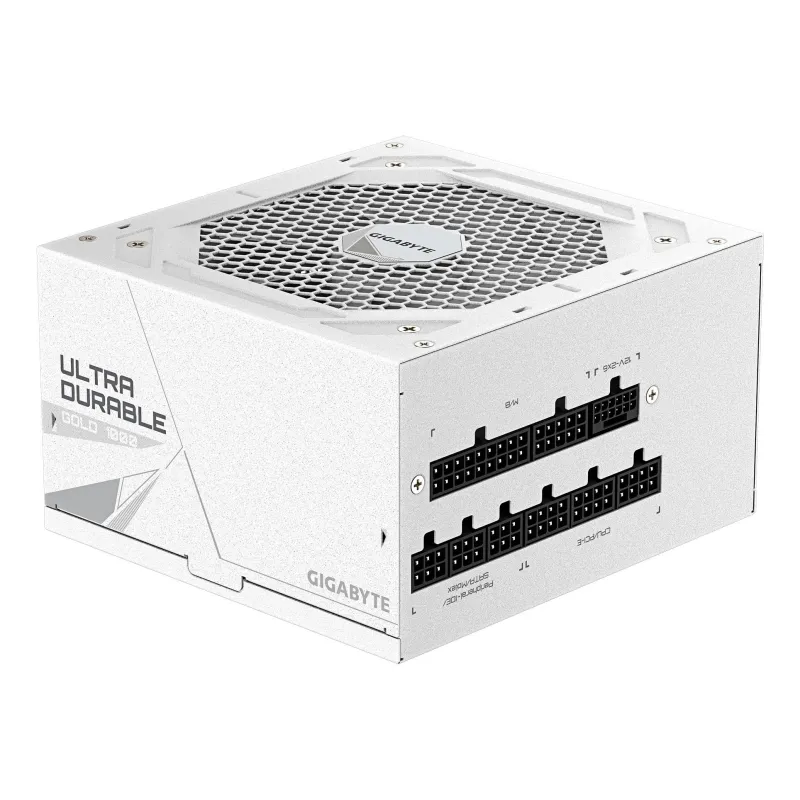

Power Supply, GIGABYTE, UD1000GM PG5 ICE, ATX 3.1, 1000 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD100

Power Supply, GIGABYTE, UD1000GM PG5 ICE, ATX 3.1, 1000 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD100

Name: Power Supply, GIGABYTE, UD1000GM PG5 ICE, ATX 3.1, 1000 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD100
Brand: GIGABYTE
SKU: GP-UD1000GM PG5 ICE
Price: 120.04 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas GP-UD1000GM PG5 ICE

Yra sandėlyje

120,04 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

1000 W , 100 - 240 V , Efficiency 90 % , 80 PLUS certification 80 PLUS Gold , PC , ATX , Fan diameter 120 mm , Weight 2.48 kg , Package type Box , UD1000GM PG5 ICE

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE UD1000GM PG5 V2 ICE POWER SUPPLY UNIT- PCIE GEN 5.1, 80 PLUS GOLD, FULLY MODULAR DESIGN, 120MM FAN, ATX 3.1 COMPATIBLE, EU PLUG. TOTAL POWER: 1000 W, AC INPUT VOLTAGE: 100 - 240 V, AC INPUT FREQUENCY: 50/60 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 P
CATEGORY CODE: PSU
CNCODE: 85044095
UNIT BOX HEIGHT: 0.215
UNIT BOX LENGTH: 0.12
UNIT BOX WIDTH: 0.26
PRODUCT COLOUR: WHITE
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
DEPTH, MM: 140
HEIGHT, MM: 86
WEIGHT, G: 2480
WIDTH, MM: 150
MODEL NAME: UD1000GM PG5 ICE
UNITS PER SHIPPING BOX: 5
UNIT CALCULATED VOLUME, CUBM: 0.007812
UNIT CALCULATED WEIGHT, KG: 2.72
PACKAGE DEPTH, MM: 269
PACKAGE HEIGHT, MM: 211
PACKAGE TYPE: BOX
PACKAGE WEIGHT, G: 2640
PACKAGE WIDTH, MM: 618
WARRANTY PERIOD, YEAR(S): 10
ON/OFF SWITCH: YES
EFFICIENCY, %: 90
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/UNDER VOLTAGE
INPUT CURRENT, A: 15 - 6.5
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
NUMBER OF FANS, FAN(S): 1
PURPOSE: PC
COOLING TYPE: ACTIVE

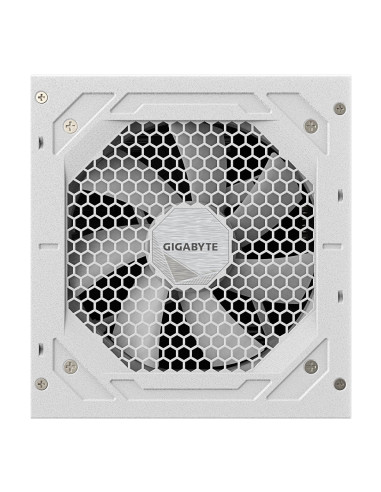

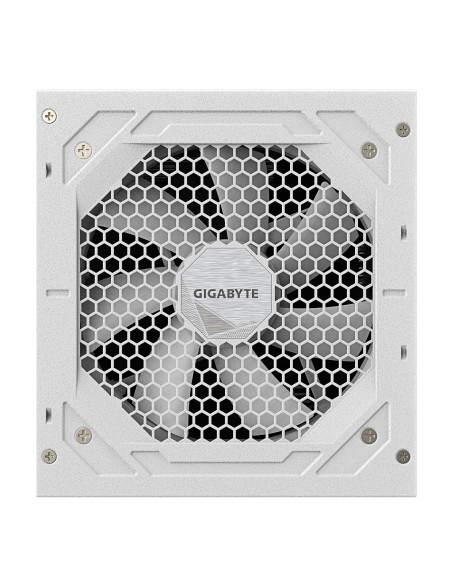

FAN DIAMETER, MM: 120
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 3
COMBINED POWER (+12V), W: 1000
COMBINED POWER (+3.3V), W: 125
COMBINED POWER (+5V), W: 125
COMBINED POWER (+5VSB), W: 15
COMBINED POWER (-12V), W: 3.6
HOLD TIME, MS: 16

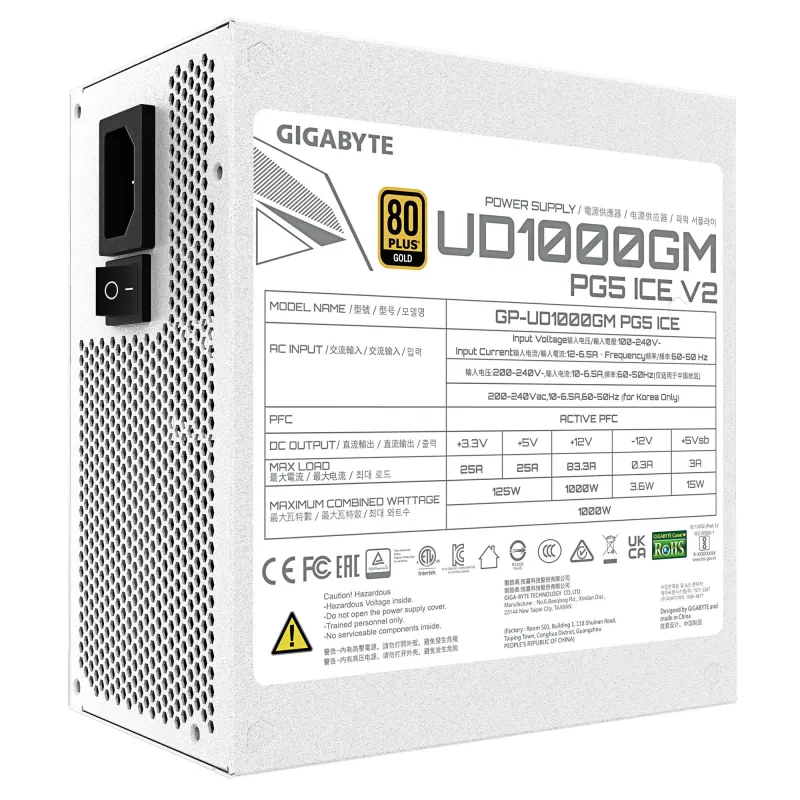

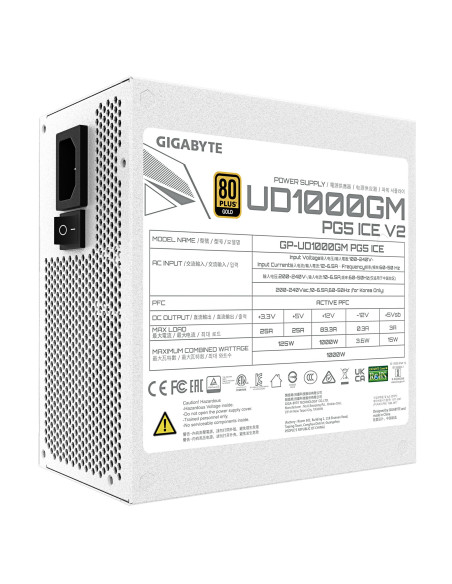

MAX OUTPUT CURRENT (+12V), A: 83.3
MAX OUTPUT CURRENT (+3.3V), A: 25
MAX OUTPUT CURRENT (+5V), A: 25
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
POWER FACTOR: 0.9
TOTAL POWER, W: 1000

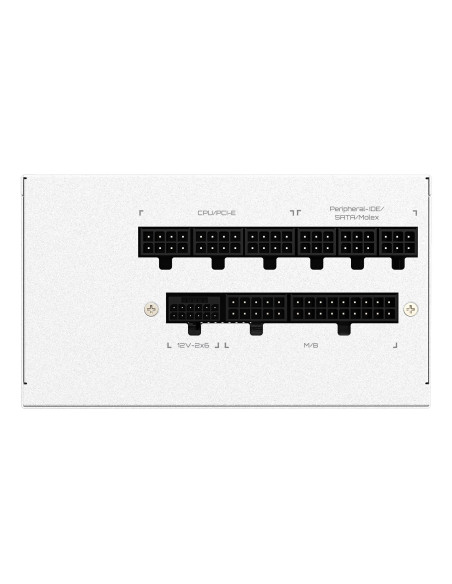

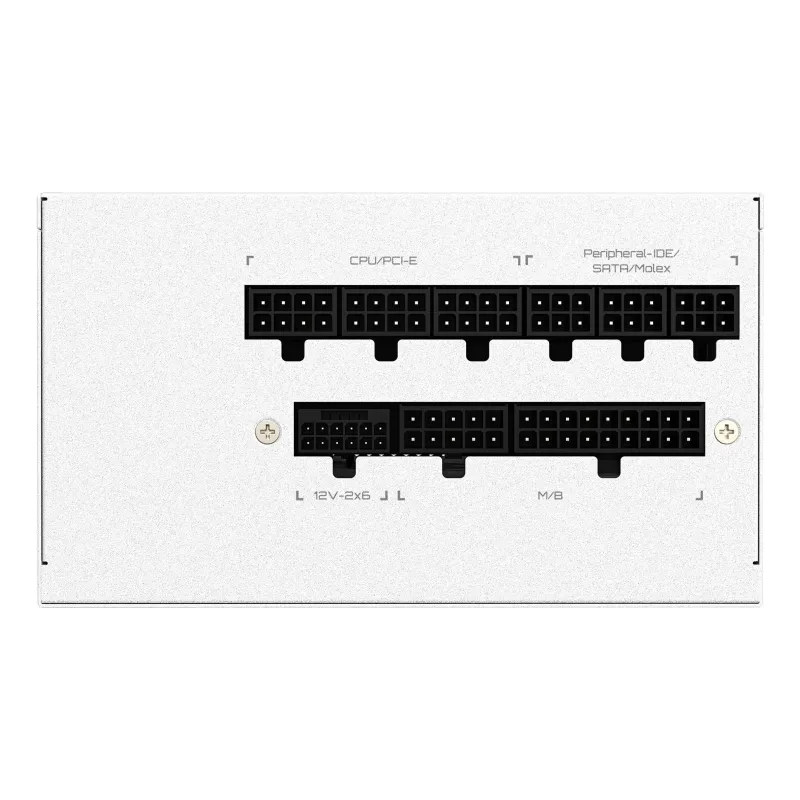

CABLING TYPE: FULLY-MODULAR
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
CPU POWER CABLE LENGTH, MM: 650
MOTHERBOARD POWER CABLE LENGTH, MM: 610
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 8
PCI EXPRESS CONNECTOR: YES
PCI EXPRESS POWER CABLE LENGTH, MM: 600
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 4
80 PLUS CERTIFICATION: 80 PLUS GOLD
ATX VERSION: 3.1
BEARING TECHNOLOGY: HYB
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
CPU POWER CONNECTOR (4+4 PIN): YES
FLOPPY DRIVE POWER CONNECTOR: 1
PCI EXPRESS POWER CONNECTORS (12+4 PIN): 1
NUMBER OF EPS CONNECTORS: 2
PCI EXPRESS POWER CONNECTORS (12+4 PIN) CABLE LENGTH, MM: 700
