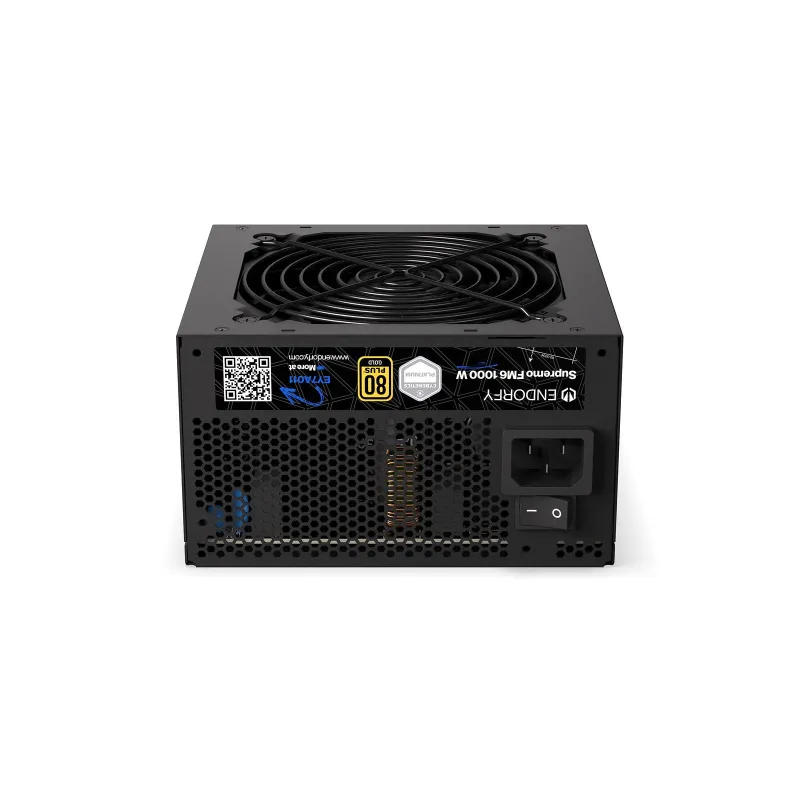

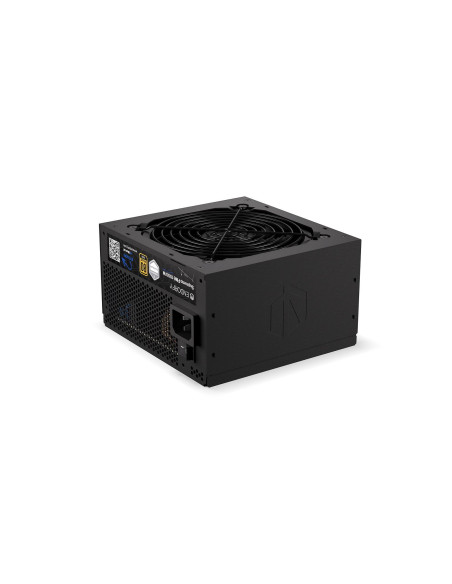

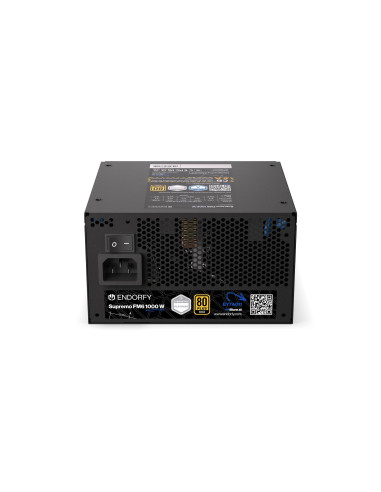

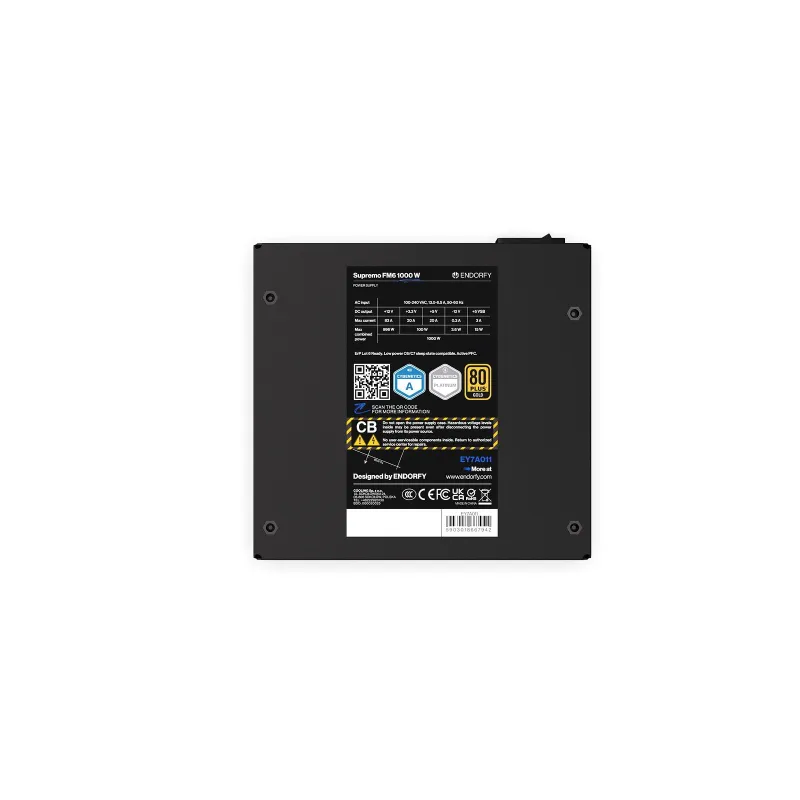

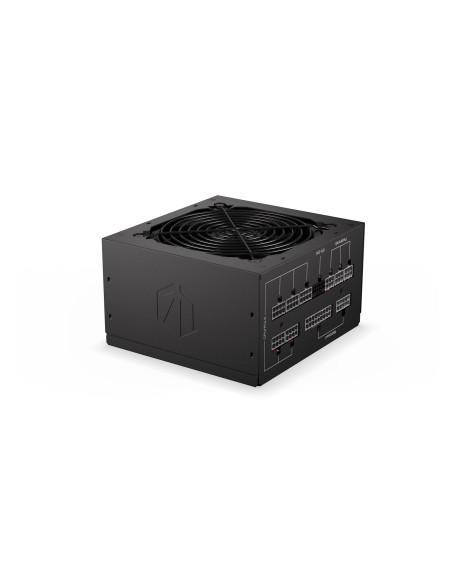

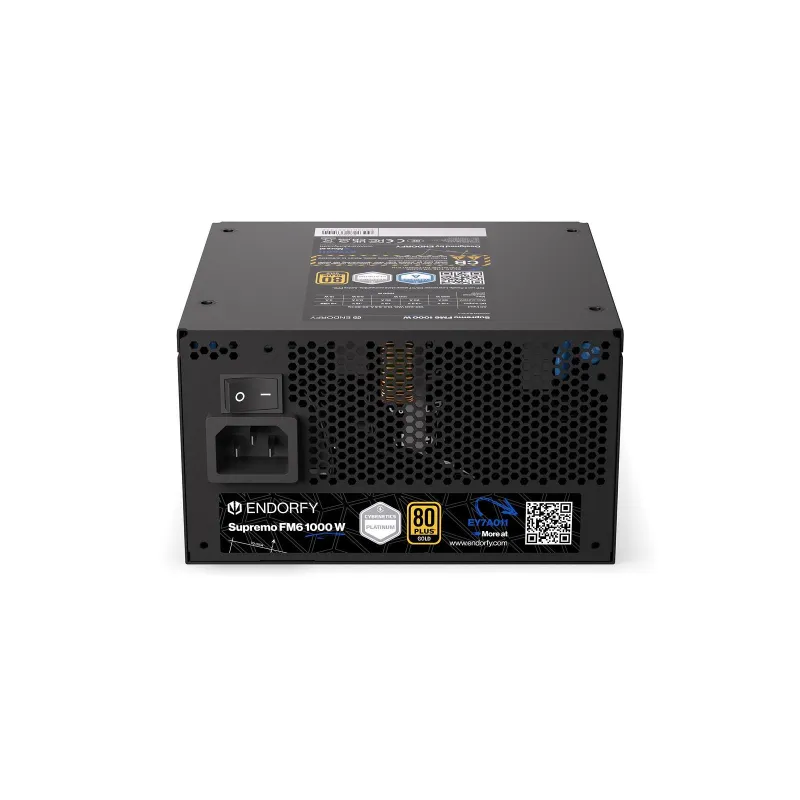

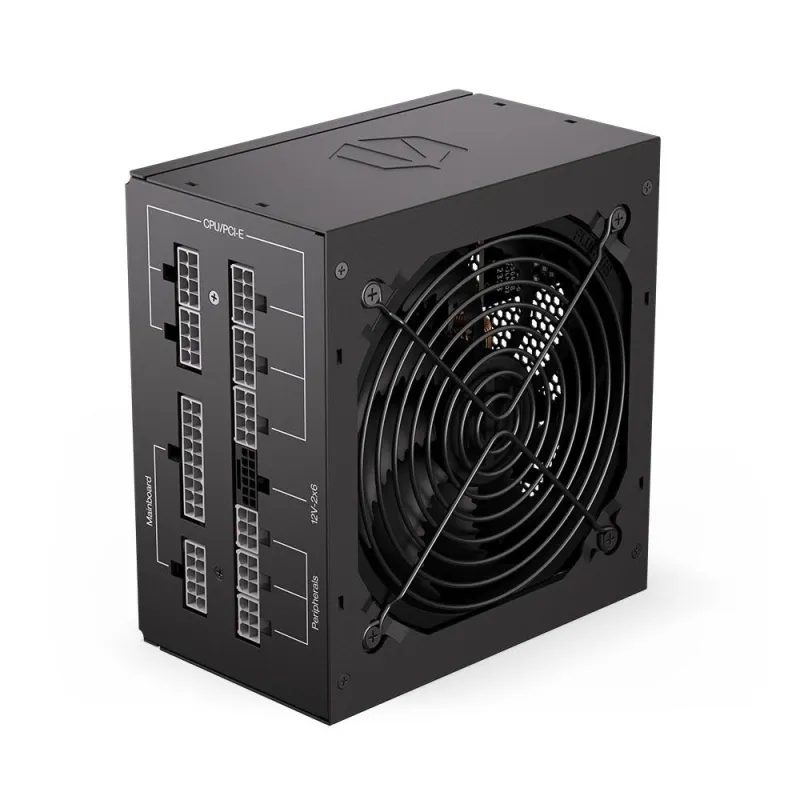

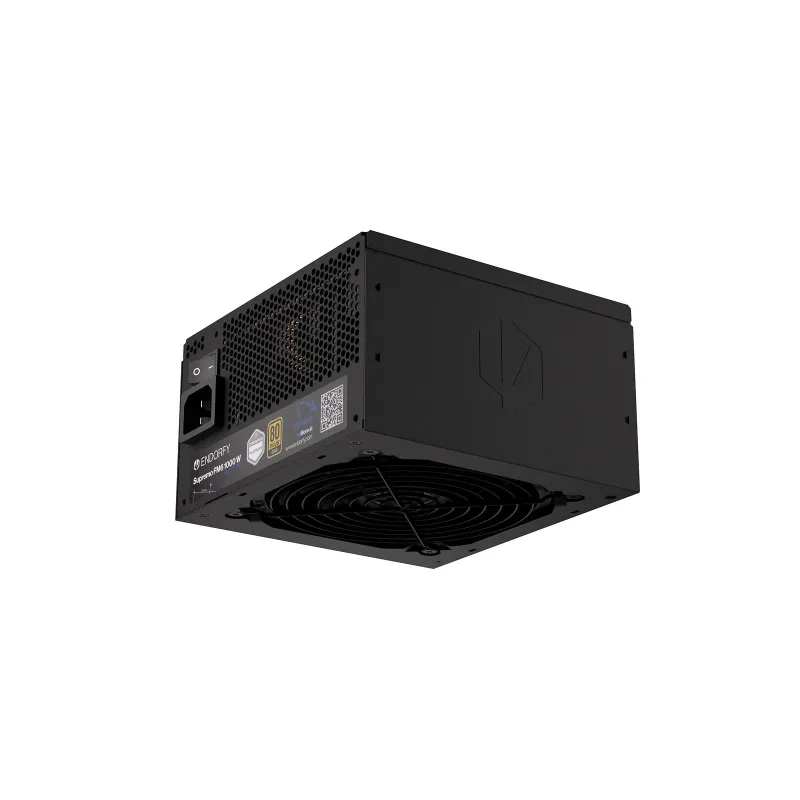

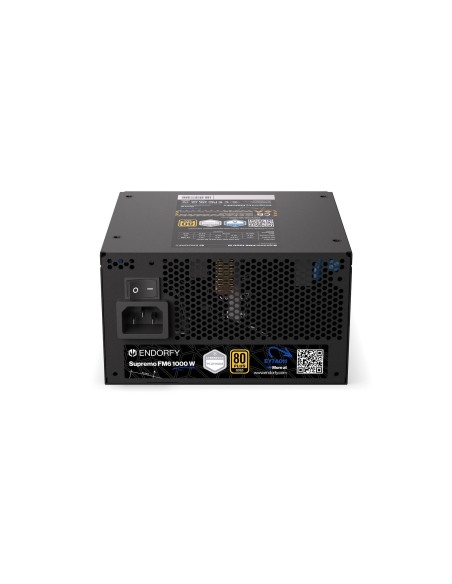

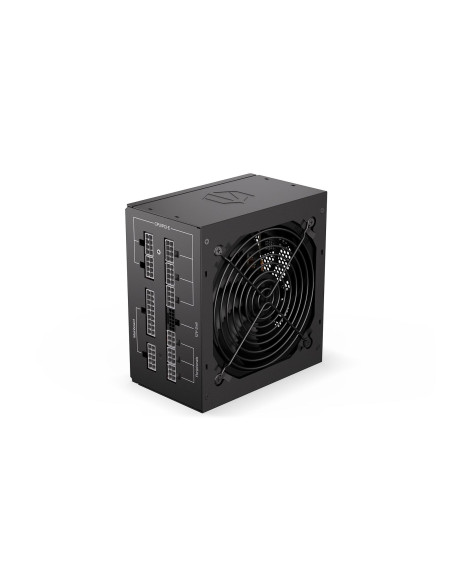

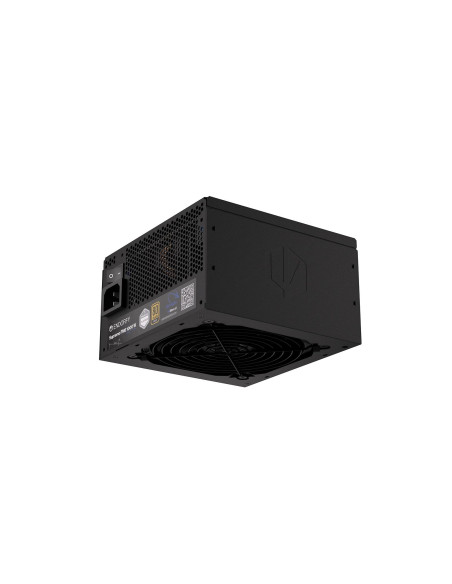

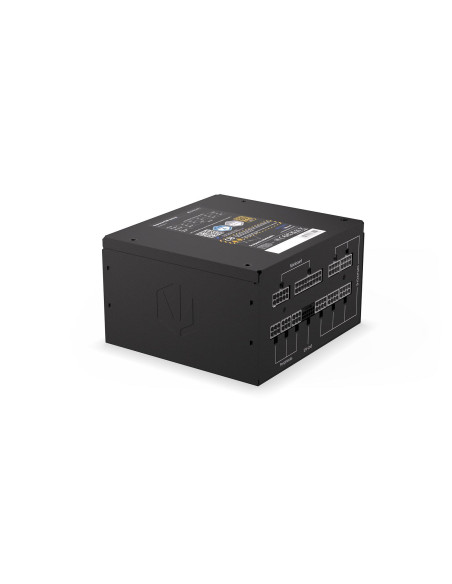

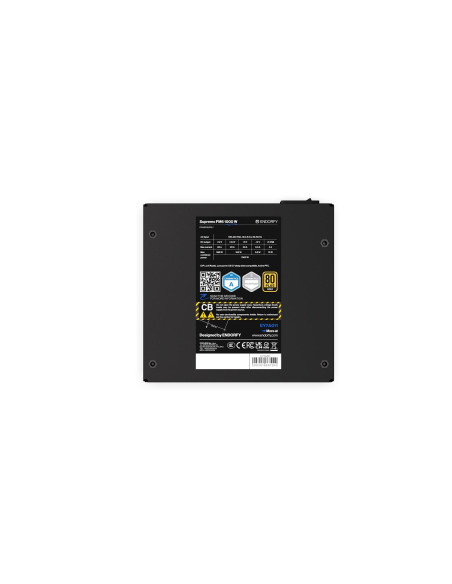

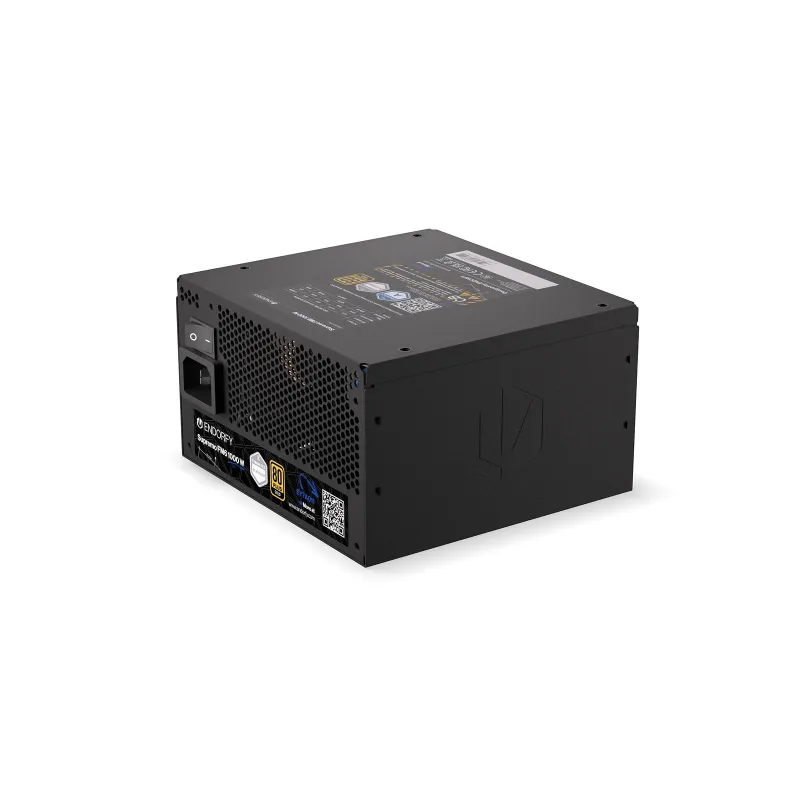

Power Supply, ENDORFY, SUPREMO FM6, 100 - 240 V, 1000 W, EY7A011

Power Supply, ENDORFY, SUPREMO FM6, 100 - 240 V, 1000 W, EY7A011

Name: Power Supply, ENDORFY, SUPREMO FM6, 100 - 240 V, 1000 W, EY7A011
Brand: ENDORFY
SKU: EY7A011
Price: 155.87 EUR
Availability: InStock

Gamintojas: ENDORFY

Kodas EY7A011

Yra sandėlyje

155,87 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

1000 W , 100 - 240 V , 80 PLUS certification 80 PLUS Gold , PC , ATX , Fan diameter 120 mm , Package type Box , Supremo FM6 1000 W

Prekės informacija
Atsiliepimai (0)

SUMMARY: ENDORFY SUPREMO FM6 1000 W. TOTAL POWER: 1000 W, AC INPUT VOLTAGE: 100 - 240 V, AC INPUT FREQUENCY: 50/60 HZ. MOTHERBOARD POWER CONNECTOR: 24-PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 60 CM, SATA POWER CABLE LENGTH: 560,720,880 MM. PURPOSE: PC, POWER SUPPL
CATEGORY CODE: PSU
CNCODE: 85044095
UNIT BOX HEIGHT: 0.22
UNIT BOX LENGTH: 0.1
UNIT BOX WIDTH: 0.27
DEPTH, MM: 150
WIDTH, MM: 140
MANUAL: YES
MODEL NAME: SUPREMO FM6 1000 W
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.00594
UNIT CALCULATED WEIGHT, KG: 2.8
PACKAGE DEPTH, MM: 270
PACKAGE HEIGHT, MM: 95
PACKAGE WEIGHT, G: 2740
PACKAGE WIDTH, MM: 220
PACKAGE TYPE: BOX
COMPLIANCE CERTIFICATES: CB/CCC/CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)/ROHS/UKCA
CABLES INCLUDED: AC
PRODUCT COLOUR: BLACK
ON/OFF SWITCH: YES
AC INPUT FREQUENCY, HZ: 50/60
AC INPUT VOLTAGE, V: 100 - 240
WARRANTY PERIOD, YEAR(S): 10
DOESN'T CONTAIN: CADMIUM/LEAD/MERCURY
LED INDICATORS: NO
HEIGHT, MM: 87

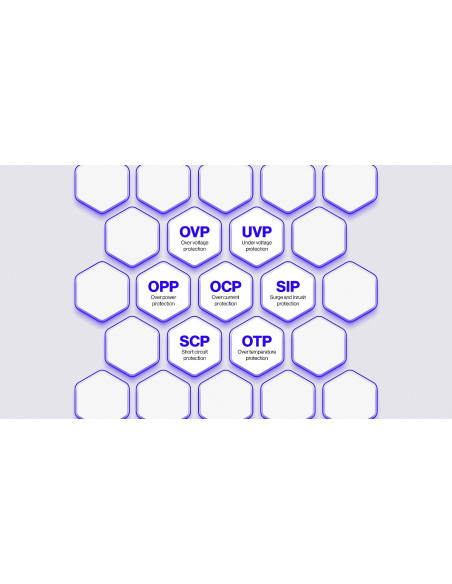

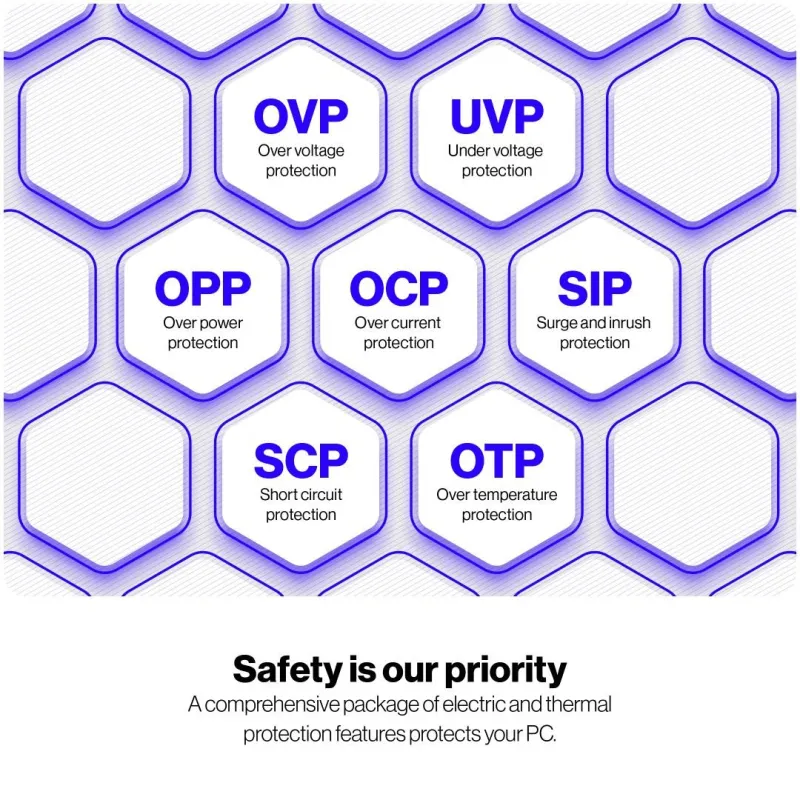

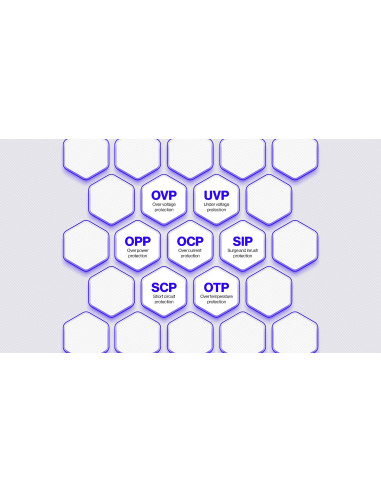

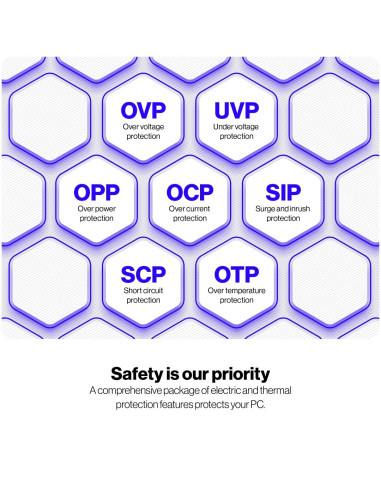

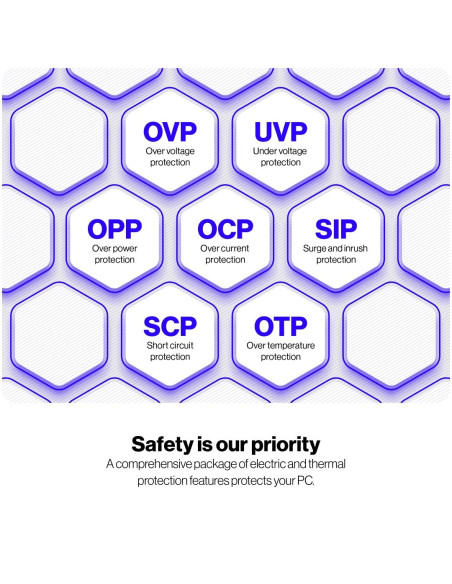

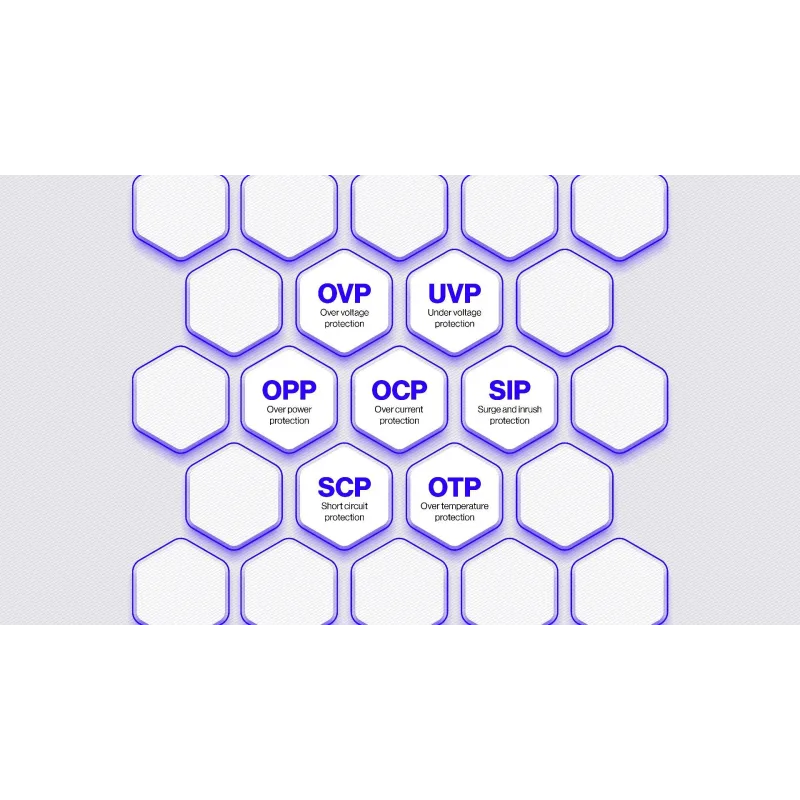

POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/SHORT CIRCUIT/SURGE & INRUSH PROTECTION (SIP)/UNDER TEMPERATURE/UNDER VOLTAGE
INPUT CURRENT, A: 13 - 6.5
PURPOSE: PC
SUSTAINABILITY CERTIFICATES: ERP
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
COOLING TYPE: ACTIVE
ILLUMINATION: NO

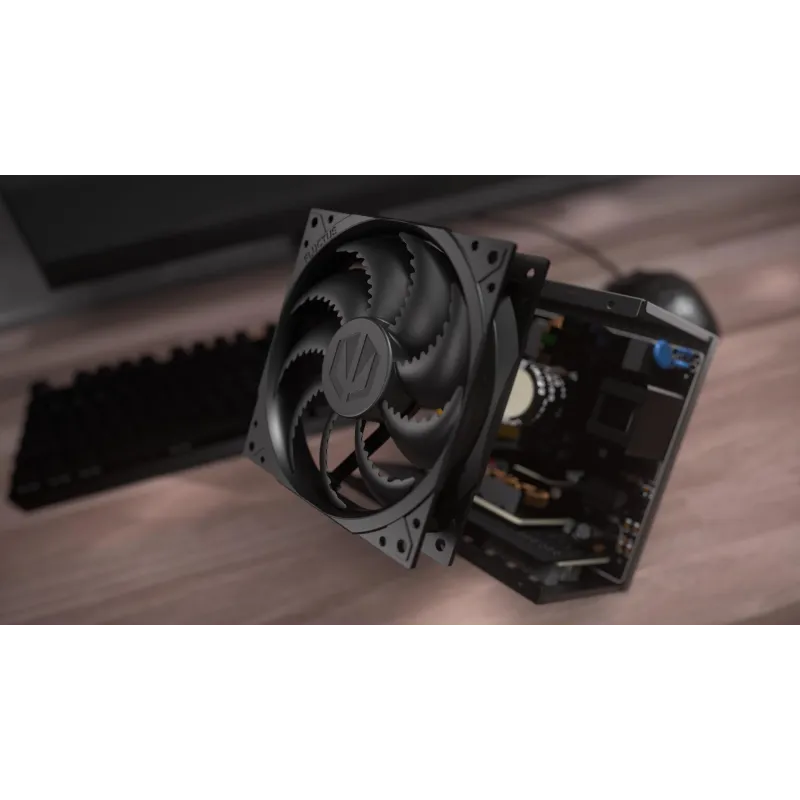

NUMBER OF FANS, FAN(S): 1

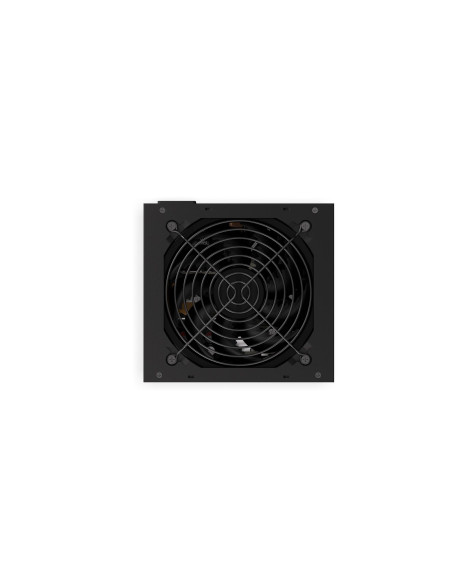

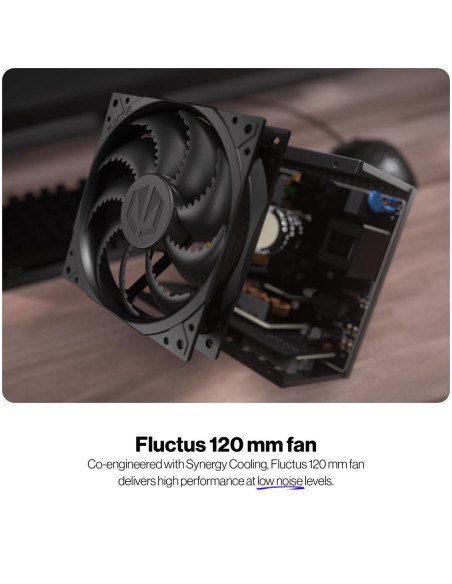

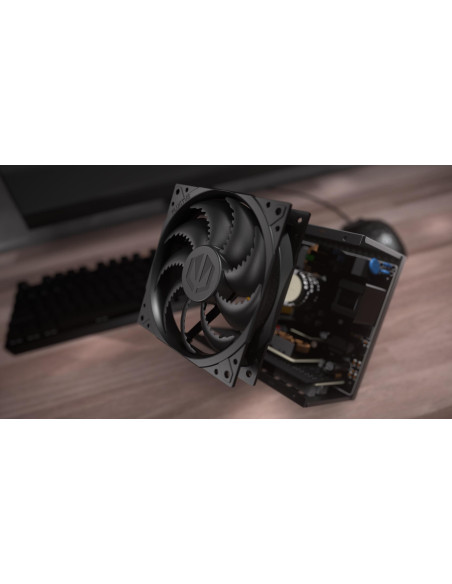

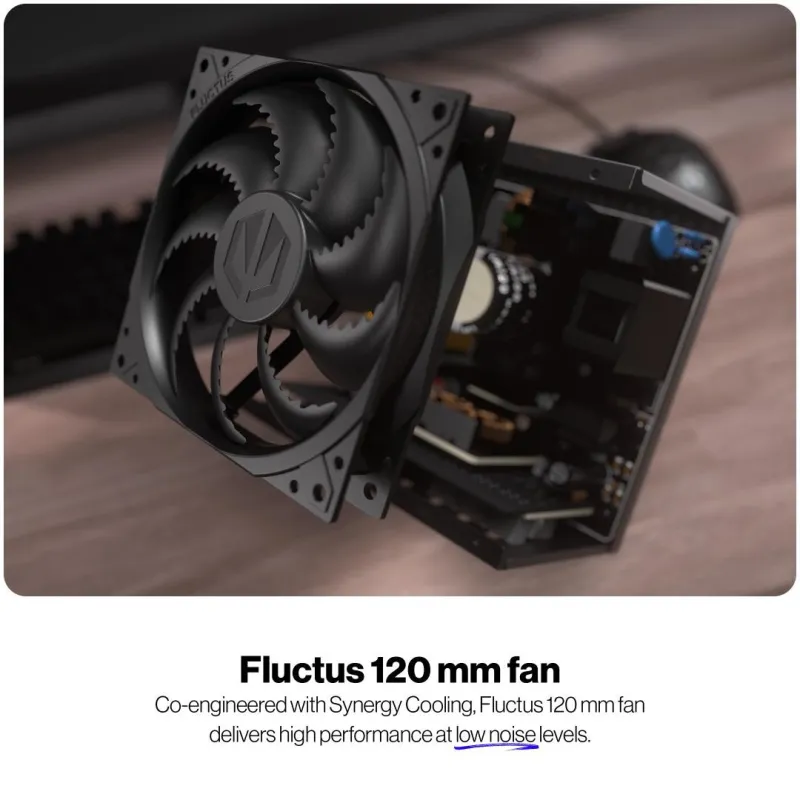

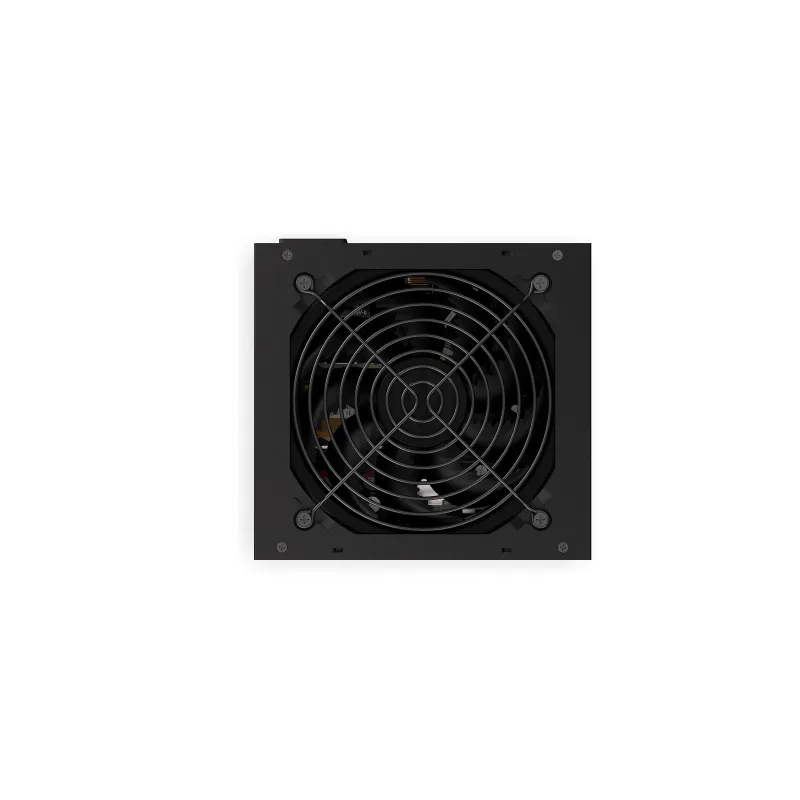

FAN DIAMETER, MM: 120
EPS POWER CONNECTOR (8-PIN): YES
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 1
COMBINED POWER (+12V), W: 996
COMBINED POWER (+3.3V), W: 100
COMBINED POWER (+5V), W: 100
COMBINED POWER (+5VSB), W: 15
COMBINED POWER (-12V), W: 3.6
MAX OUTPUT CURRENT (+12V), A: 83
MAX OUTPUT CURRENT (+3.3V), A: 20
MAX OUTPUT CURRENT (+5V), A: 20
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
TOTAL POWER, W: 1000

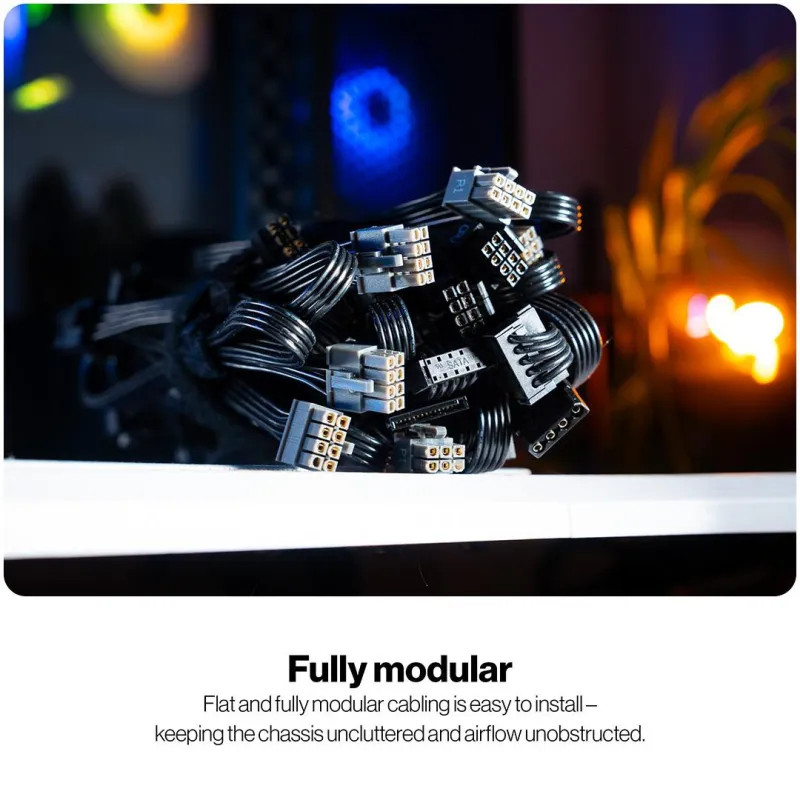

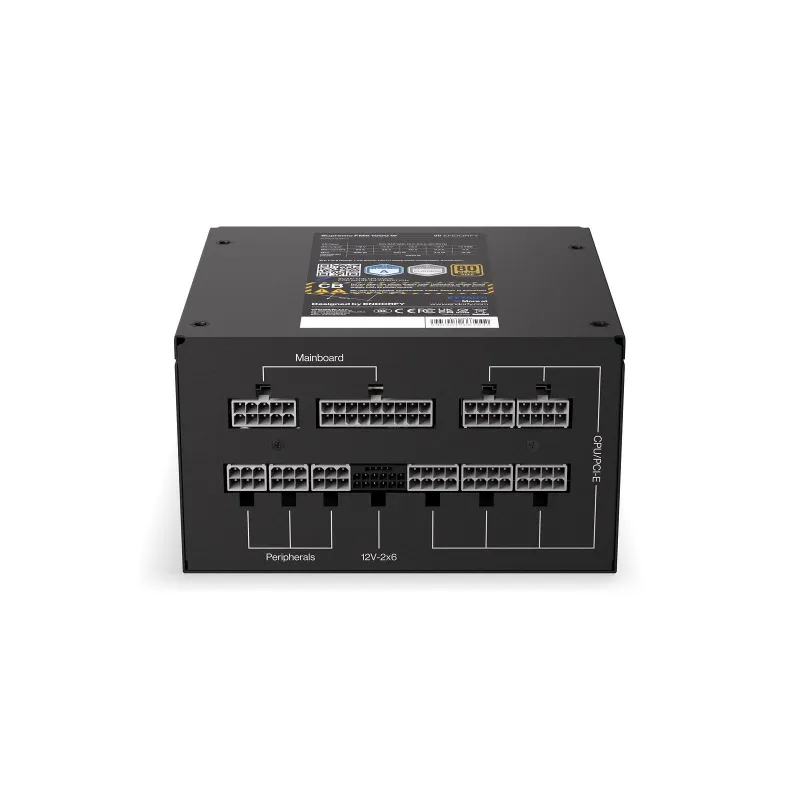

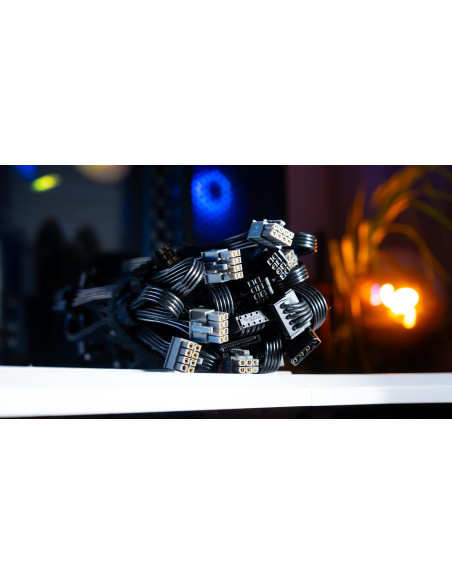

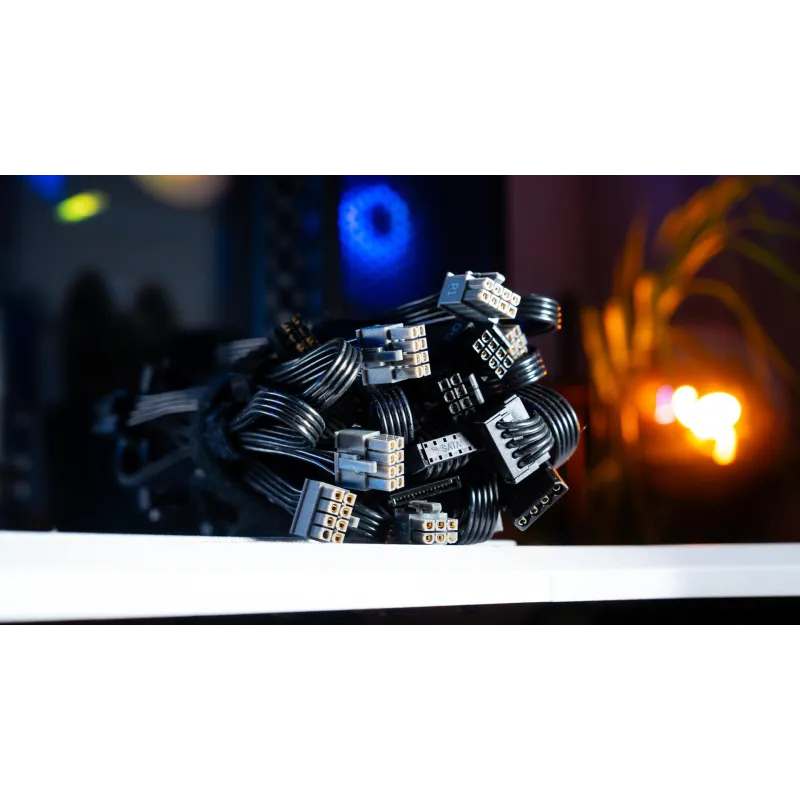

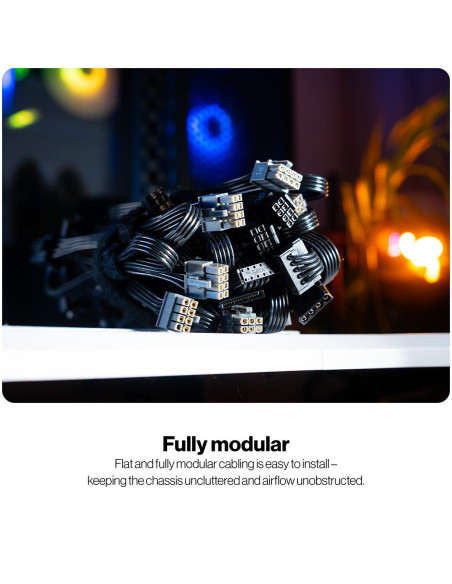

CABLING TYPE: FULLY-MODULAR
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
EPS POWER CONNECTOR (4+4 PIN): YES

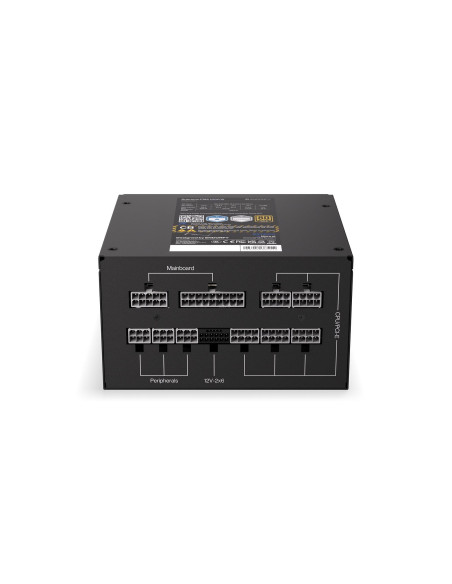

MOTHERBOARD POWER CONNECTOR: 24-PIN ATX
NUMBER OF SATA POWER CONNECTORS: 8
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 3

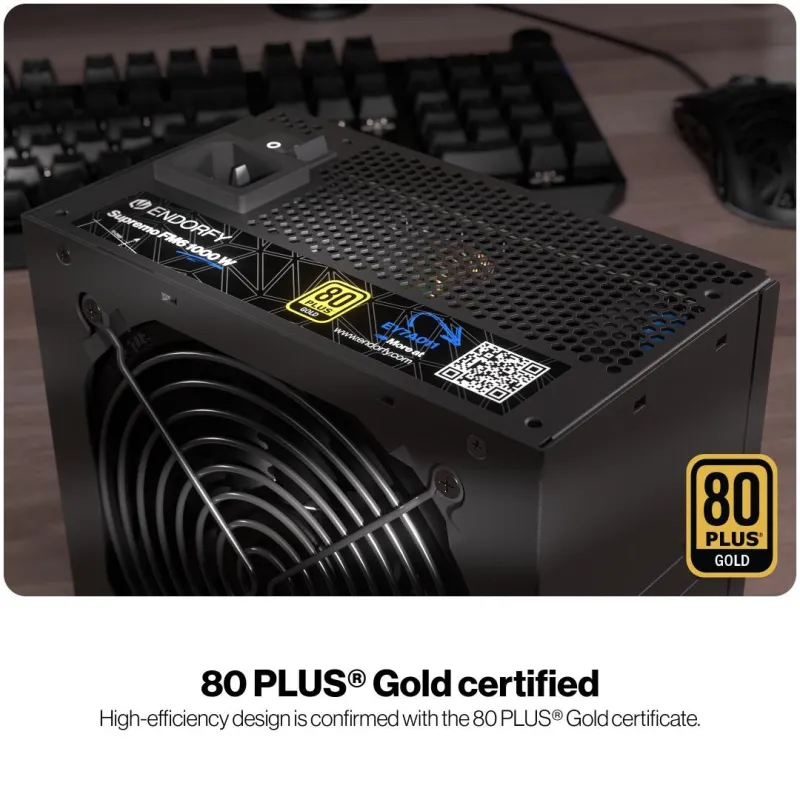

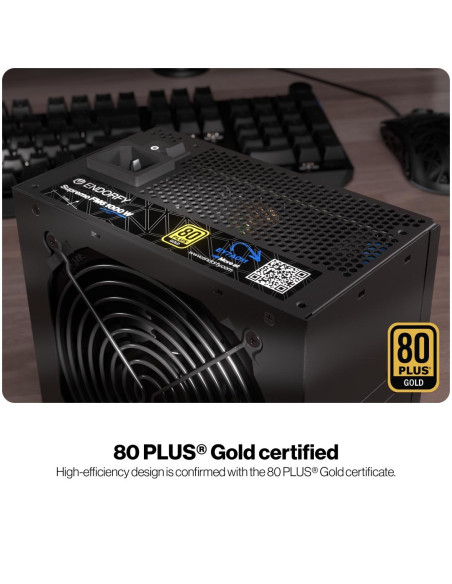

80 PLUS CERTIFICATION: 80 PLUS GOLD
BEARING TECHNOLOGY: FDB
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
MOTHERBOARD POWER CABLE LENGTH, MM: 600
PCI EXPRESS POWER CABLE LENGTH, MM: 560
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM: 880
SATA POWER CABLE LENGTH, MM: 560/720/880

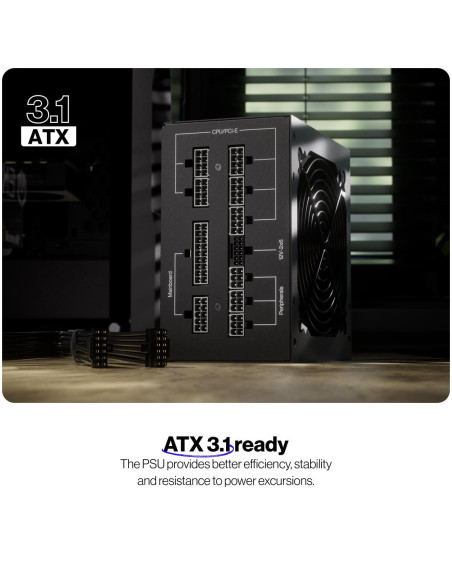

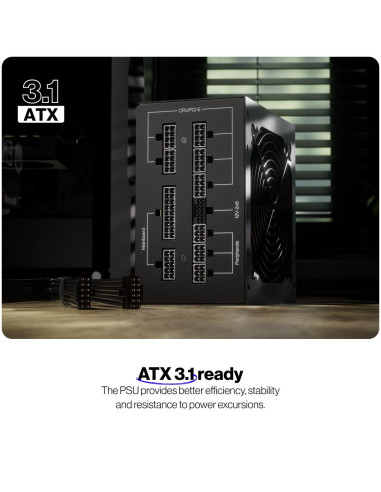

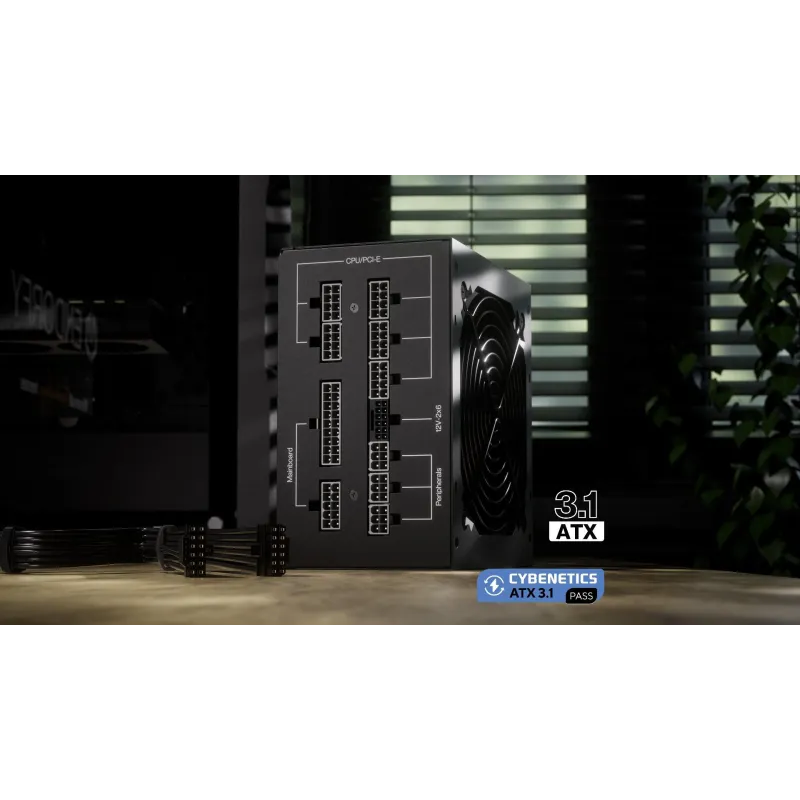

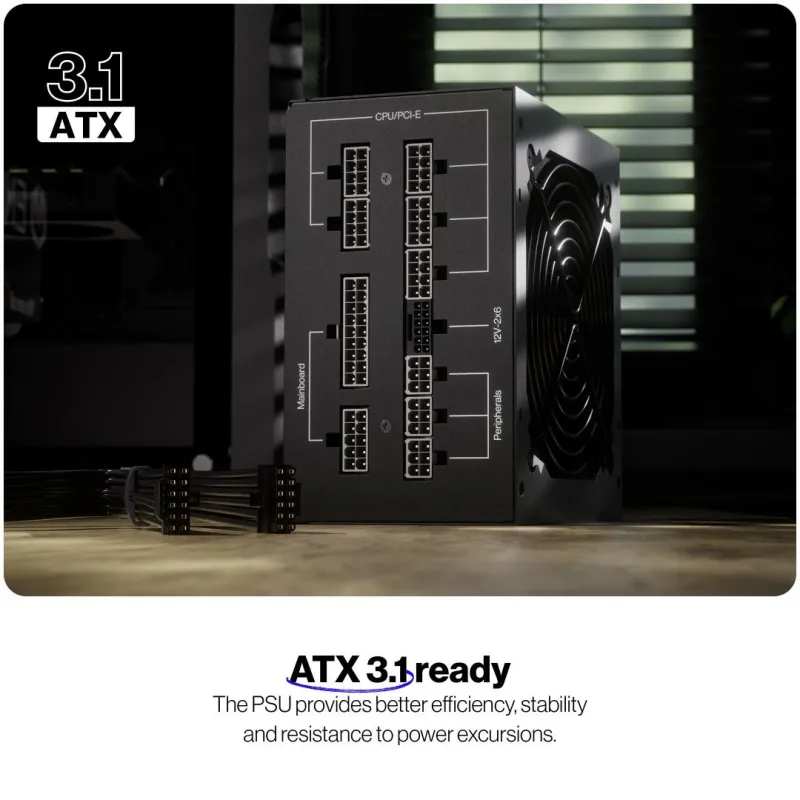

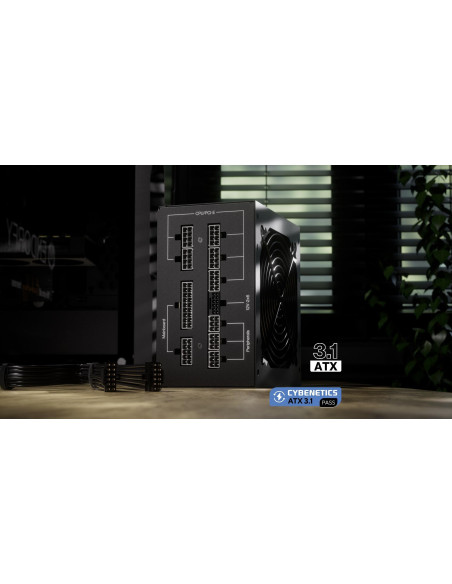

ATX VERSION: 3.1
FAN LOCATION: TOP
NUMBER OF SATA POWER CABLES: 3
ON/OFF FAN SWITCH: NO
PCI EXPRESS POWER CONNECTORS (12+4 PIN): 1
CYBENETICS CERTIFICATION: PLATINUM
