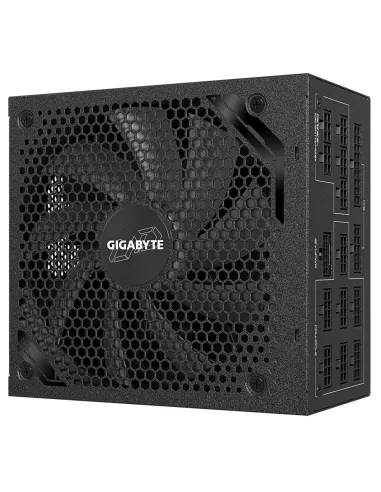

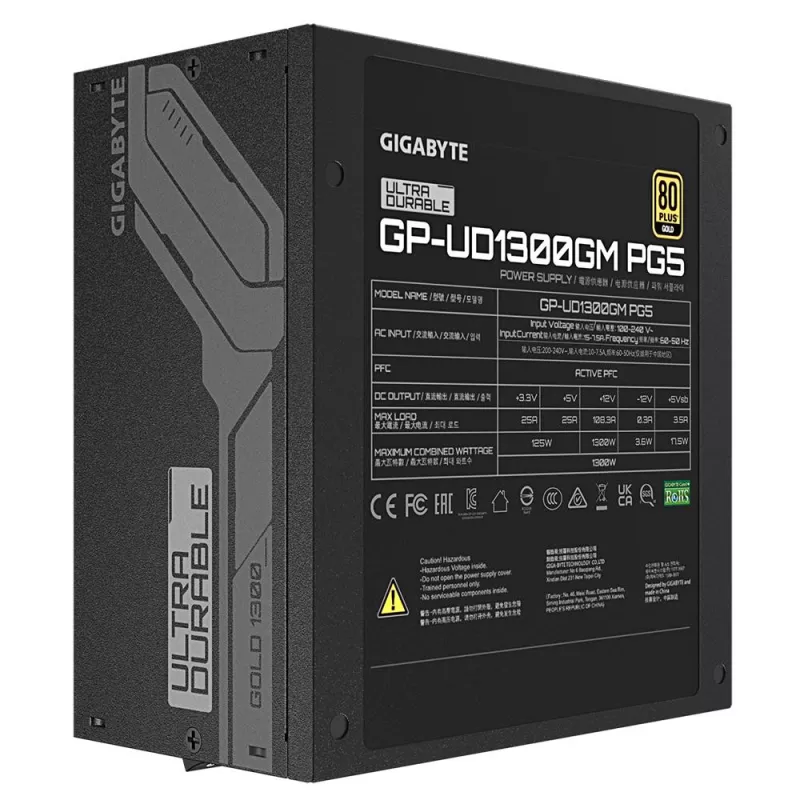

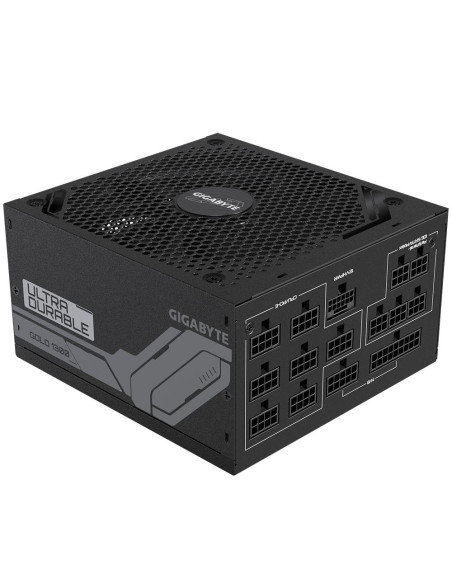

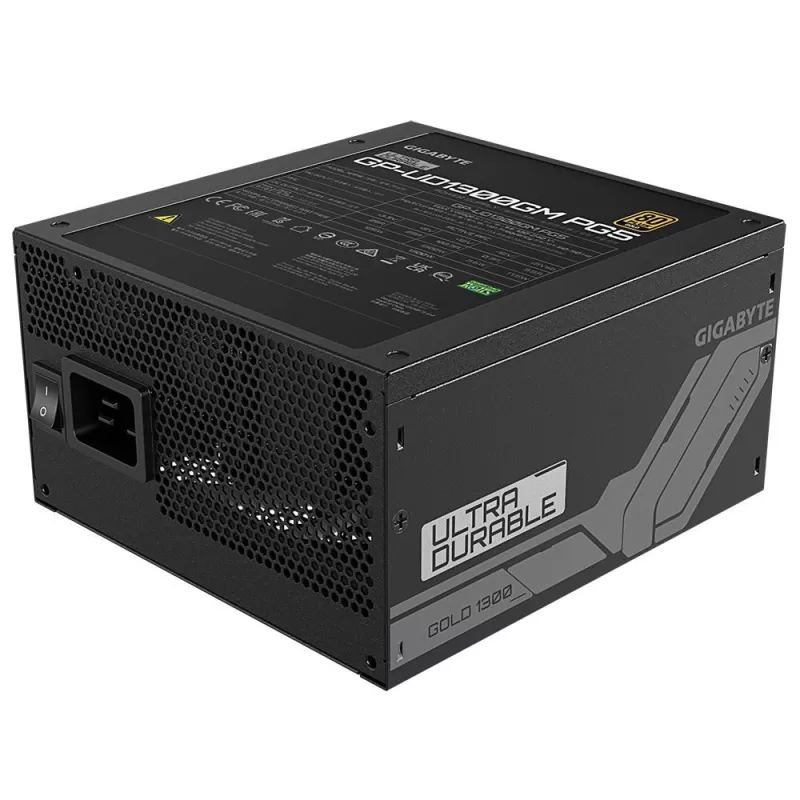

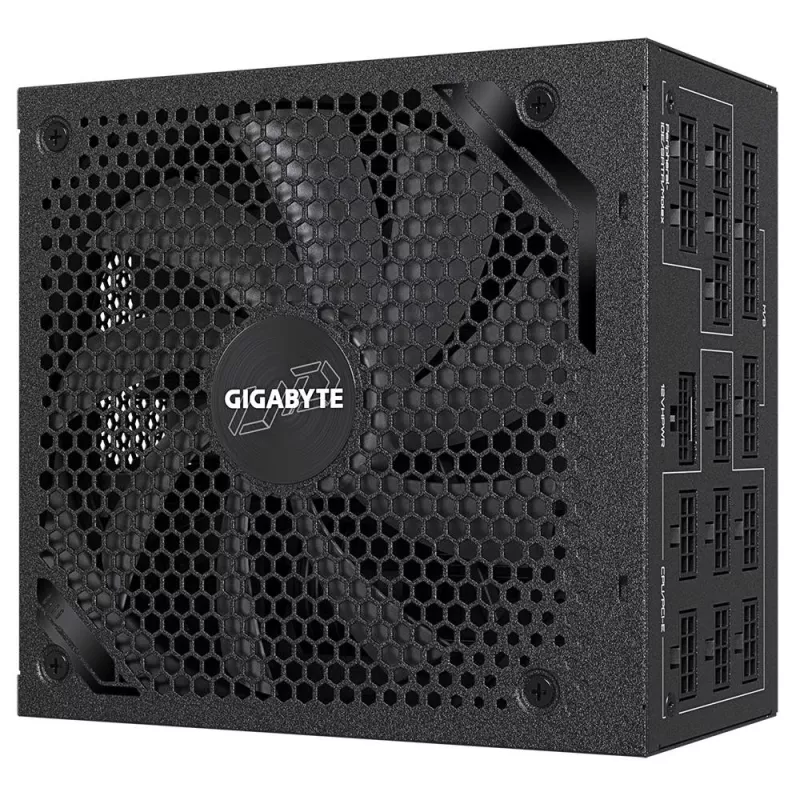

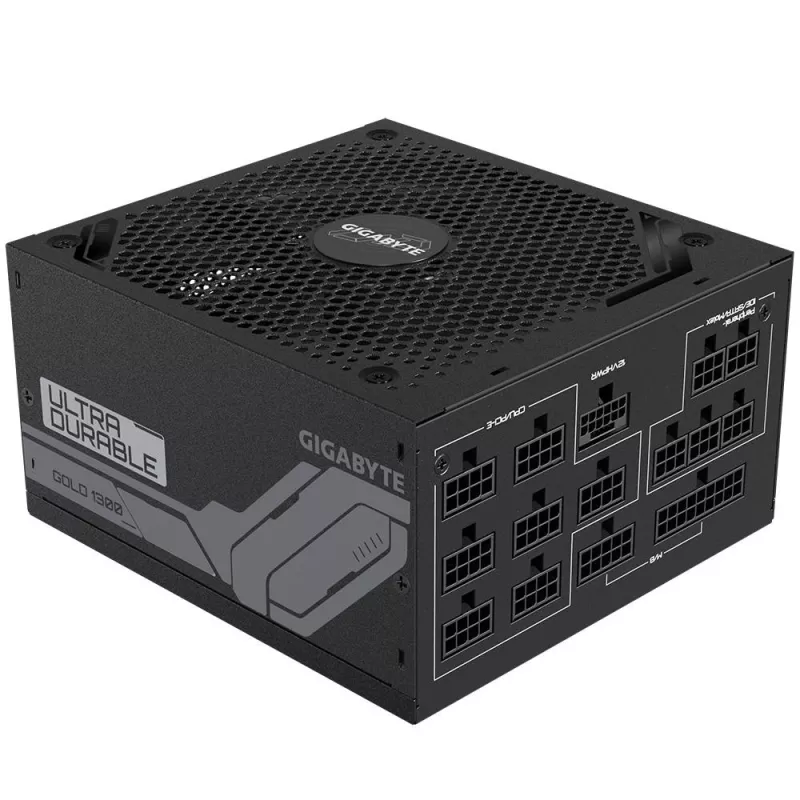

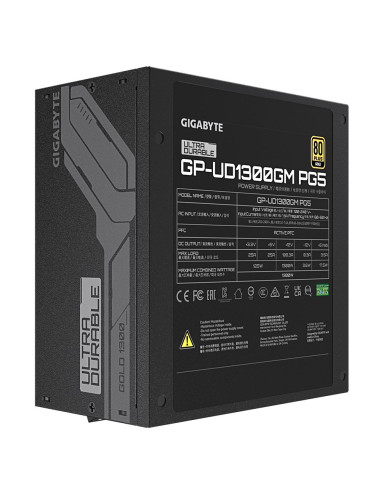

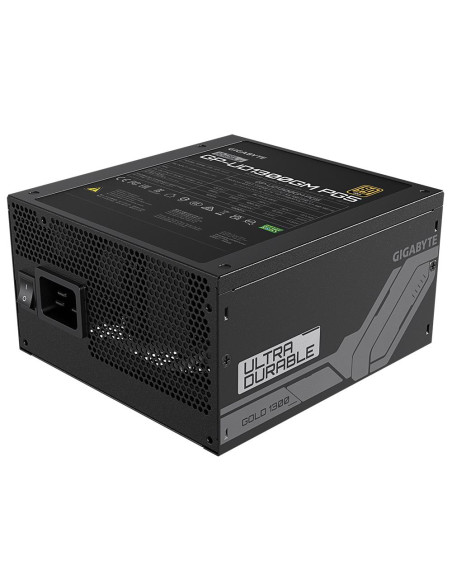

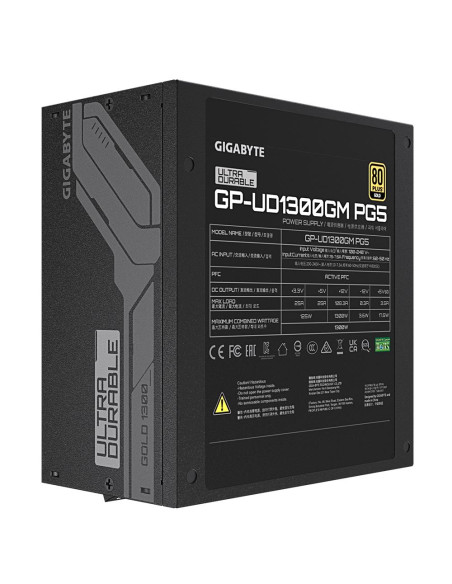

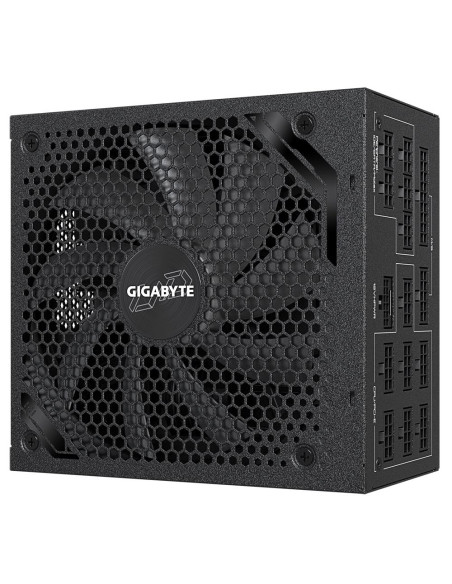

Power Supply, GIGABYTE, UD1300GM PG5, 1300 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD1300GMPG5

Power Supply, GIGABYTE, UD1300GM PG5, 1300 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD1300GMPG5

Name: Power Supply, GIGABYTE, UD1300GM PG5, 1300 Watts, Efficiency 80 PLUS GOLD, PFC Active, MTBF 100000 hours, GP-UD1300GMPG5
Brand: GIGABYTE
SKU: GP-UD1300GMPG5
Price: 180.68 EUR
Availability: InStock

Gamintojas: GIGABYTE

Kodas GP-UD1300GMPG5

Yra sandėlyje

180,68 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

1300 W , 100 - 240 V , Efficiency 90 % , 80 PLUS certification 80 PLUS Gold , PC , ATX , Noise level 40 dB , Fan diameter 120 mm , Package type Box , UD1300GM PG5

Prekės informacija
Atsiliepimai (0)

SUMMARY: GIGABYTE UD1300GM PG5. TOTAL POWER: 1300 W, AC INPUT VOLTAGE: 100 - 240 V, AC INPUT FREQUENCY: 50 - 60 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 61 CM, SATA POWER CABLE LENGTH: 150,600 MM. PURPOSE: PC, POWER SUPPLY UNI
CNCODE: 85044095
CATEGORY CODE: PSU
UNIT BOX HEIGHT: 0.22
UNIT BOX LENGTH: 0.345
UNIT BOX WIDTH: 0.145

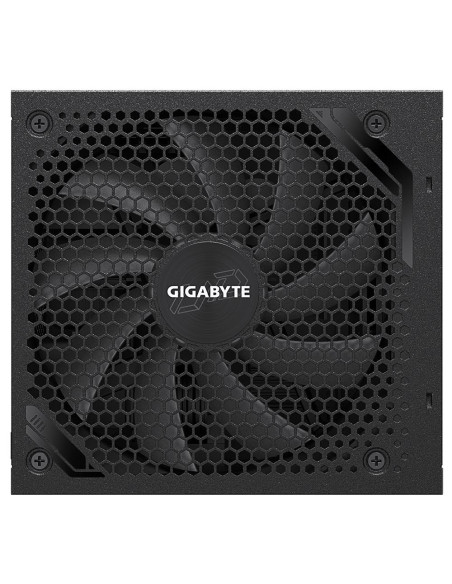

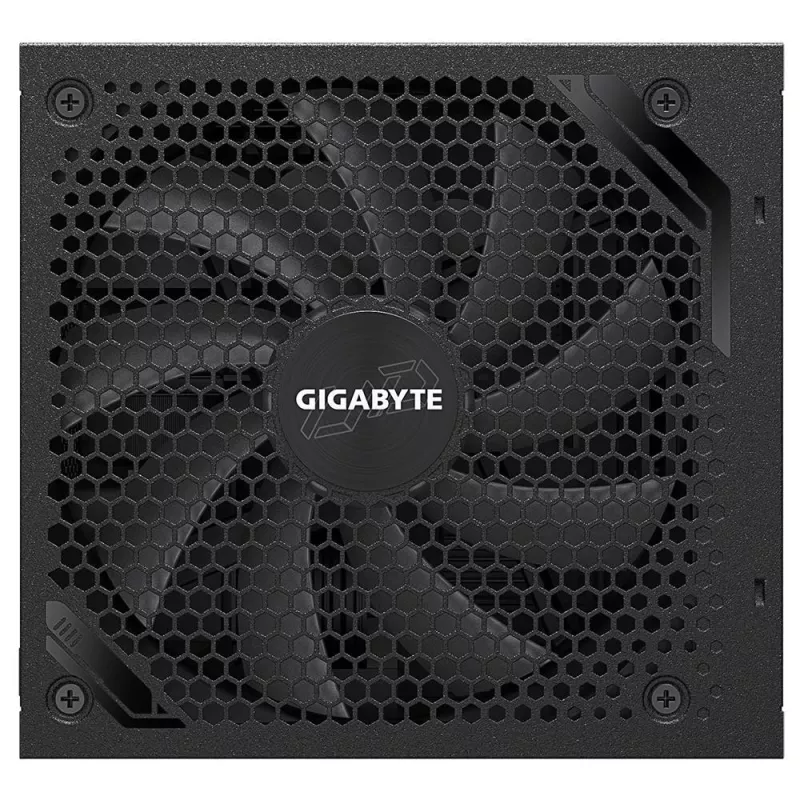

FAN DIAMETER, MM: 120
PRODUCT COLOUR: BLACK
WARRANTY PERIOD, YEAR(S): 5

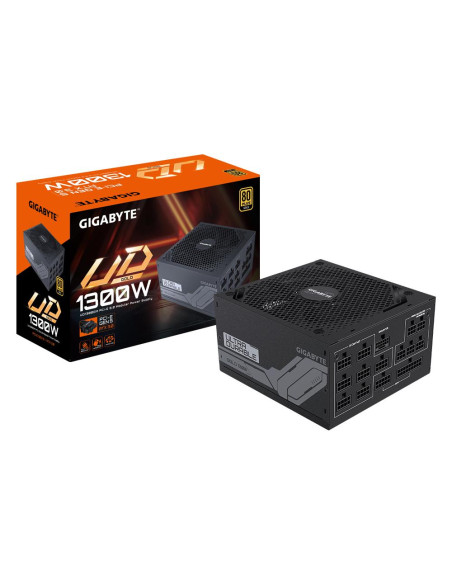

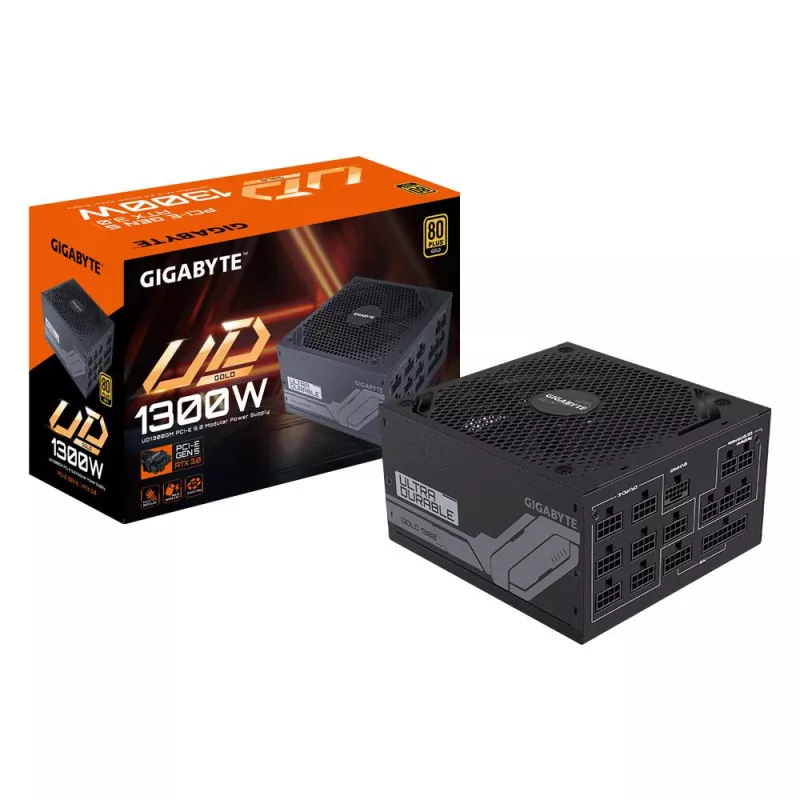

PACKAGE TYPE: BOX
UNITS PER SHIPPING BOX: 1
UNIT CALCULATED VOLUME, CUBM: 0.01101
UNIT CALCULATED WEIGHT, KG: 4.17
MODEL NAME: UD1300GM PG5
DEPTH, MM: 160
HEIGHT, MM: 86
WIDTH, MM: 150
COMPLIANCE CERTIFICATES: CCC/CE/FEDERAL COMMUNICATIONS COMMISSION (FCC)/ROHS
MEAN TIME BETWEEN FAILURES (MTBF), H: 100000
NUMBER OF FANS, FAN(S): 1
NOISE LEVEL, DB: 40
COOLING TYPE: ACTIVE
CABLES INCLUDED: CPU,PATA,PERIPHERAL (MOLEX),SATA
PERIPHERAL (MOLEX) POWER CONNECTORS (4-PIN): 2
AC INPUT FREQUENCY, HZ: 50 - 60
AC INPUT VOLTAGE, V: 100 - 240
INPUT CURRENT, A: 12 - 6
COMBINED POWER (+12V), W: 1300
COMBINED POWER (+3.3V), W: 125
COMBINED POWER (+5V), W: 125
COMBINED POWER (+5VSB), W: 17.5
COMBINED POWER (-12V), W: 3.6
EFFICIENCY, %: 90
MAX OUTPUT CURRENT (+12V), A: 108.3
MAX OUTPUT CURRENT (+3.3V), A: 25
MAX OUTPUT CURRENT (+5V), A: 25
MAX OUTPUT CURRENT (+5VSB), A: 3.5
MAX OUTPUT CURRENT (-12V), A: 0.3
TOTAL POWER, W: 1300

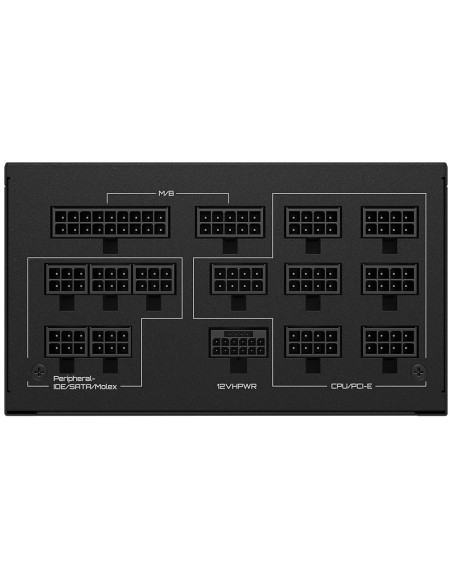

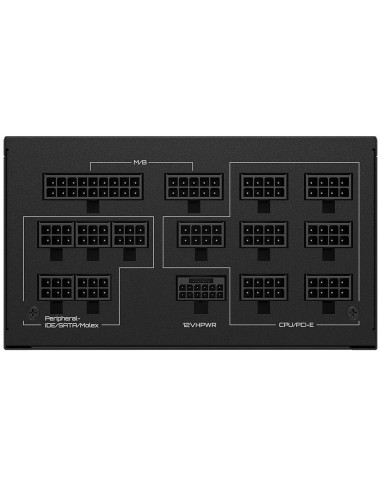

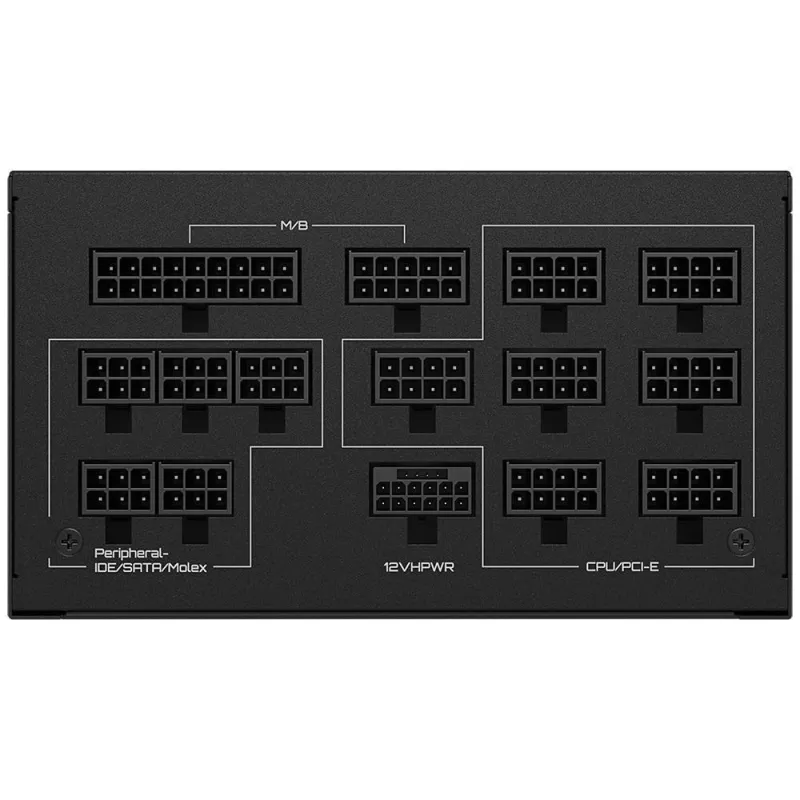

CABLING TYPE: FULLY-MODULAR
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 8
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 4
80 PLUS CERTIFICATION: 80 PLUS GOLD
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
PCI EXPRESS POWER CONNECTORS (16-PIN): 1
PURPOSE: PC
MOTHERBOARD POWER CABLE LENGTH, MM: 610
PERIPHERAL (MOLEX) POWER CABLE LENGTH, MM: 200/600
SATA POWER CABLE LENGTH, MM: 150/600
CABLE TIE(S) INCLUDED: YES
HOLD TIME, MS: 16
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/UNDER VOLTAGE
ATX POWER CONNECTOR (20+4 PIN): YES
NUMBER OF PATA POWER CONNECTORS: 3
PCI EXPRESS POWER CABLE LENGTH, MM: 700
PCI EXPRESS CONNECTOR: YES
CPU POWER CONNECTOR (4+4 PIN): YES
MAXIMUM INPUT CURRENT (@110V), A: 6
MAXIMUM INPUT CURRENT (@220V), A: 12
FAN LOCATION: TOP
ILLUMINATION: NO
