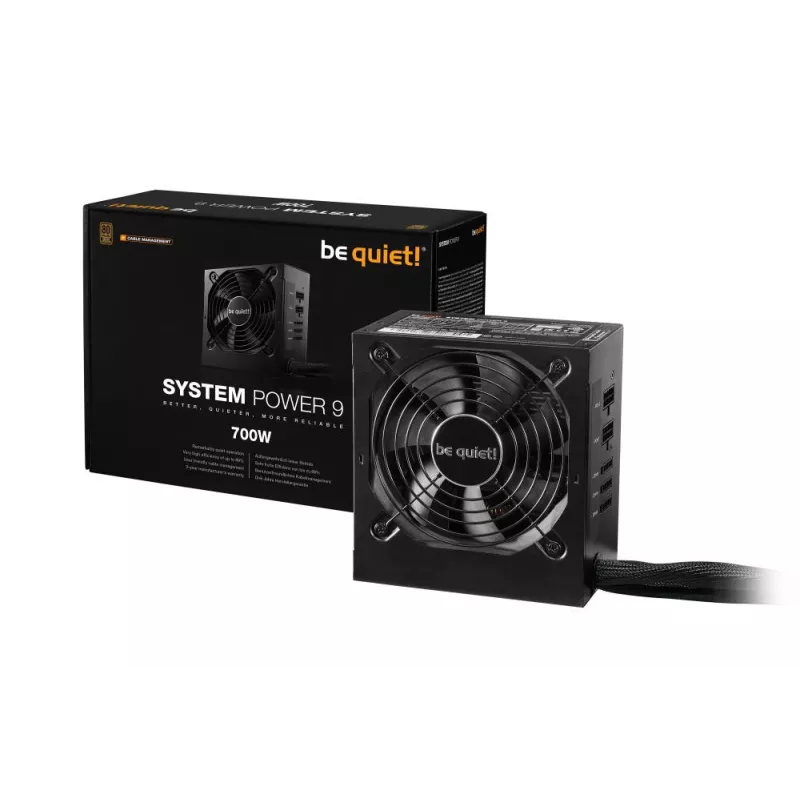

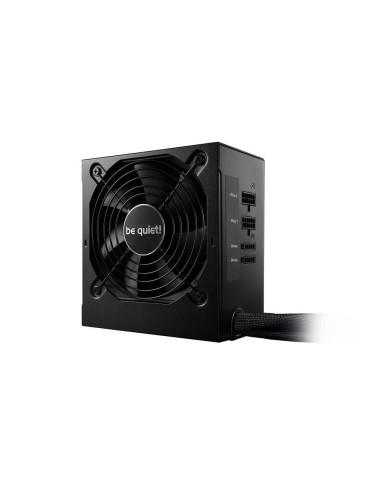

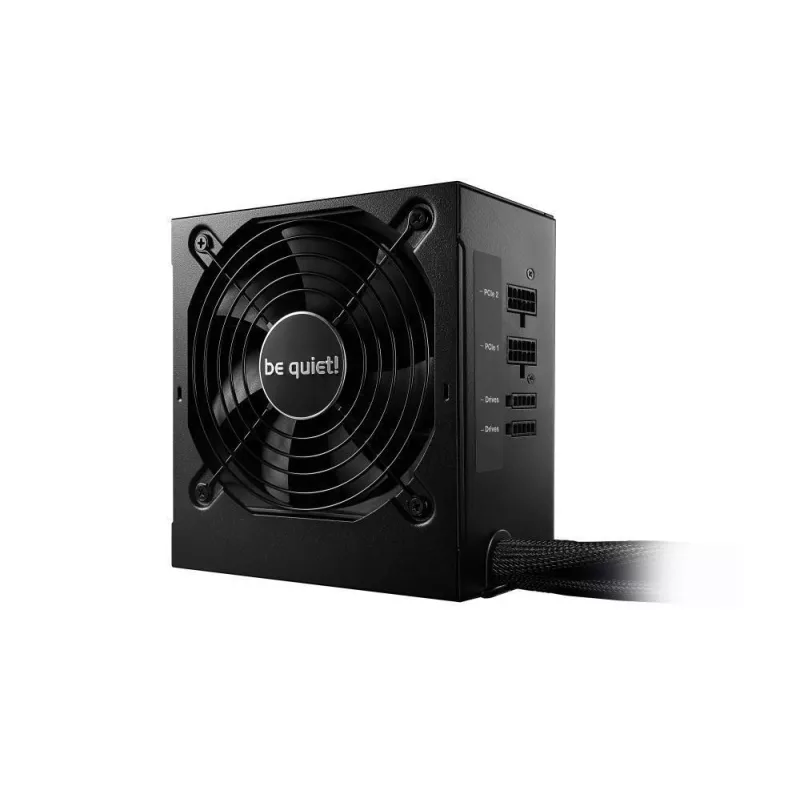

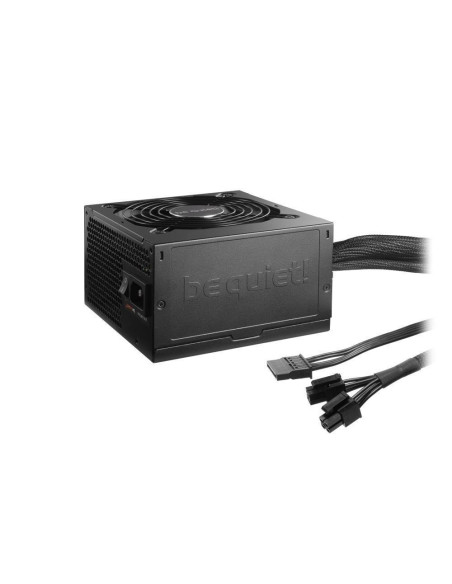

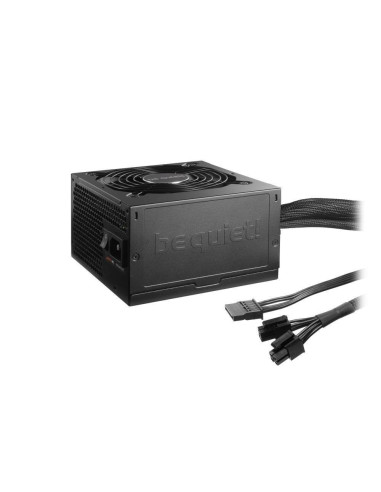

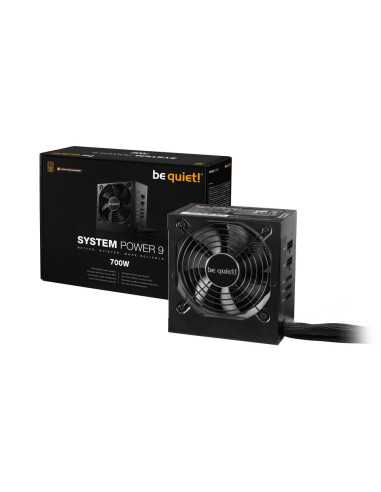

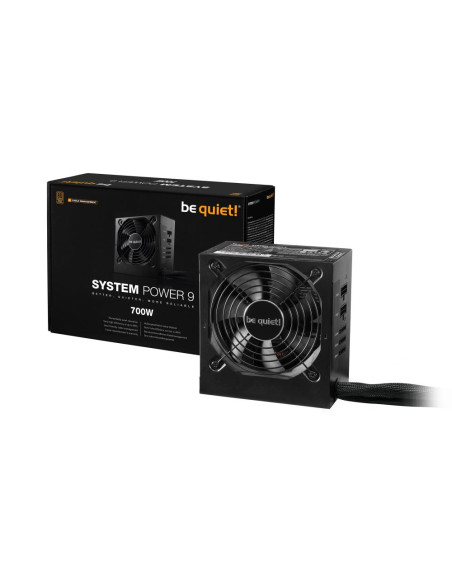

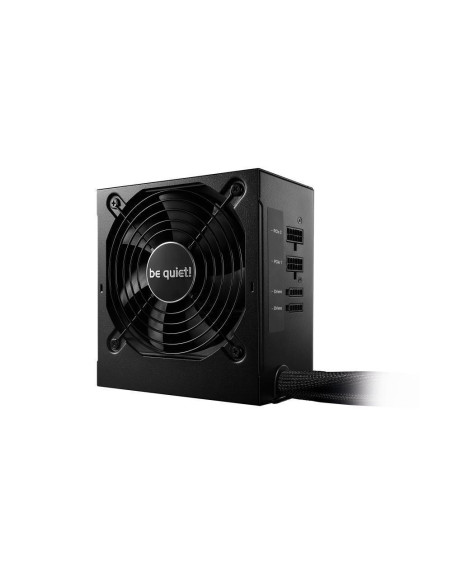

Power Supply, BE QUIET, 700 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MTBF 100000 hours, BN303

Power Supply, BE QUIET, 700 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MTBF 100000 hours, BN303

Name: Power Supply, BE QUIET, 700 Watts, Efficiency 80 PLUS BRONZE, PFC Active, MTBF 100000 hours, BN303
Brand: BE QUIET
SKU: BN303
Price: 93.44 EUR
Availability: InStock

Gamintojas: BE QUIET

Kodas BN303

Yra sandėlyje

93,44 €

Su mokesčiais

Pristatoma 1 - 3 darbo dienos

700 W , 200 - 240 V , Efficiency 89 % , 80 PLUS certification 80 PLUS Bronze , PC , ATX , Fan diameter 120 mm , Weight 1.69 kg , Package type Box , System Power 9 CM

Prekės informacija
Atsiliepimai (0)

CATEGORY CODE: PSU
CNCODE: 85044095
UNIT BOX HEIGHT: 0.1
UNIT BOX LENGTH: 0.27
UNIT BOX WIDTH: 0.2
DEPTH, MM: 140
HEIGHT, MM: 86
WIDTH, MM: 150
SUMMARY: BE QUIET! SYSTEM POWER 9 | 700W CM. TOTAL POWER: 700 W, AC INPUT VOLTAGE: 200 - 240 V, AC INPUT FREQUENCY: 50 HZ. MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX, MOTHERBOARD POWER CABLE LENGTH: 55 CM, SATA POWER CABLE LENGTH: 550,670 MM. PURPOSE: PC, POWER SUP
PRODUCT COLOUR: BLACK
AC INPUT VOLTAGE, V: 200 - 240
WEIGHT, G: 1690
PACKAGE DEPTH, MM: 268
PACKAGE HEIGHT, MM: 195
PACKAGE WIDTH, MM: 97
PACKAGE WEIGHT, G: 2440
CABLES INCLUDED: PCIE,SATA
MANUAL: YES
COMPLIANCE CERTIFICATES: ROHS
PACKAGE TYPE: BOX
CERTIFICATION: CE, CB, T V, RCM, CU
HARMONIZED SYSTEM (HS) CODE: 84733020
AC INPUT FREQUENCY, HZ: 50
SUSTAINABILITY CERTIFICATES: ENERGY STAR
PURPOSE: PC
MASTER (OUTER) CASE GROSS WEIGHT, G: 15340
MASTER (OUTER) CASE HEIGHT, MM: 556
MASTER (OUTER) CASE LENGTH, MM: 215
MASTER (OUTER) CASE WIDTH, MM: 311
PRODUCTS PER MASTER (OUTER) CASE, PC(S): 6
COOLING TYPE: ACTIVE
NUMBER OF FANS, FAN(S): 1
FAN DIAMETER, MM: 120
INPUT CURRENT, A: 6
COMBINED POWER (+12V), W: 672
COMBINED POWER (+3.3V), W: 130
COMBINED POWER (+5V), W: 130
COMBINED POWER (+5VSB), W: 15
EFFICIENCY, %: 89
COMBINED POWER (-12V), W: 3.6
HOLD TIME, MS: 17
MAX OUTPUT CURRENT (+12V1), A: 33
MAX OUTPUT CURRENT (+3.3V), A: 24
MAX OUTPUT CURRENT (+12V2), A: 25
MAX OUTPUT CURRENT (+5V), A: 15
MAX OUTPUT CURRENT (+5VSB), A: 3
MAX OUTPUT CURRENT (-12V), A: 0.3
POWER FACTOR: 0.95
POWER PROTECTION FEATURES: OVER CURRENT/OVER POWER/OVER VOLTAGE/OVERHEATING/SHORT CIRCUIT/UNDER VOLTAGE
POWER FACTOR CORRECTION (PFC) TYPE: ACTIVE
TOTAL POWER, W: 700
CABLING TYPE: SEMI-MODULAR
CPU POWER CABLE LENGTH, MM: 600
CPU POWER CONNECTOR (4+4 PIN): YES
FLOPPY DRIVE POWER CONNECTOR: 1
MOTHERBOARD POWER CABLE LENGTH, MM: 550
MOTHERBOARD POWER CONNECTOR: 20+4 PIN ATX
NUMBER OF SATA POWER CONNECTORS: 10
PCI EXPRESS POWER CABLE LENGTH, MM: 500
PCI EXPRESS POWER CONNECTORS (6+2 PIN): 4
SATA POWER CABLE LENGTH, MM: 550/670
80 PLUS CERTIFICATION: 80 PLUS BRONZE
ATX VERSION: 2.51
BEARING TECHNOLOGY: SLEEVE
COMPATIBLE PRODUCTS: INTEL C6/C7
NUMBER OF PATA POWER CONNECTORS: 2
POWER SUPPLY UNIT (PSU) FORM FACTOR: ATX
EPS VERSION: 2.92
NOISE LEVEL (FULL-LOAD MODE, 100%), DB: 31.7
NOISE LEVEL (QUIET MODE, 50%), DB: 14.1
